validatorOccupancyMap3D

State validator based on 3-D grid map

    Description

    The validatorOccupancyMap3D object validates states and discretized motions based on occupancy values in a 3-D occupancy map. The object interprets obstacle-free map locations as valid states. The object interprets occupied and unknown map locations as invalid states.

    Creation

    Description

    validator = validatorOccupancyMap3D creates a 3-D occupancy map validator associated with an SE(3) state space with default settings.

    example

    validator = validatorOccupancyMap3D(stateSpace) creates a validator in the specified state space. The stateSpace input sets the value of the StateSpace property.

    validator = validatorOccupancyMap3D(stateSpace,Name,Value) sets Properties using one or more name-value pairs. Unspecified properties have default values. Enclose each property name in quotes.

    For example, validatorOccupancyMap3D('ValidationDistance',0.1) creates a 3-D occupancy map validator with a sampling interval of 0.1.

    Properties

    expand all

    This property is read-only.

    State space for validating states, specified as a subclass of nav.StateSpace. These are the predefined state space objects:

    Example: validatorOccupancyMap3D(stateSpaceSE3)

    Map used for validating states, specified as an occupancyMap3D object.

    Example: validator.Map = occupancyMap3D(10)

    Interval for sampling between states and checking state validity, specified as a positive numeric scalar.

    Example: validator.ValidationDistance = 0.1

    Data Types: double

    State variable mapping for xyz-coordinates in the state vector, specified as a three-element vector of form [xIdx yIdx zIdx].

    Data Types: double

    Object Functions

    copyCreate deep copy of state validator object
    isMotionValidCheck if path between states is valid
    isStateValidCheck if state is valid

    Examples

    collapse all

    This example shows how to validate paths through a 3-D occupancy map evironment.

    Load and Assign Map to State Validator

    Load the 3-D occupancy map of a city block. Specify the threshold to consider cells as obstacle-free.

    mapData = load('dMapCityBlock.mat');
    omap = mapData.omap;
    omap.FreeThreshold = 0.5;

    Inflate the map to add a buffer zone for safe operation around the obstacles.

    inflate(omap,5);

    Create an SE(3) state space object with bounds for state variables.

    ss = stateSpaceSE3([-20 220;-20 220;-10 100; inf inf; inf inf; inf inf; inf inf]);

    Create an occupancyMap3D based state validator using the created state space.

    sv = validatorOccupancyMap3D(ss);

    Assign the map to the state validator object. Specify the ValidationDistance property.

    sv.Map = omap;
    sv.ValidationDistance = 0.1;

    Plan and Visualize Path

    Create the path planner and increase the maximum connection distance. Reduce the maximum number of iterations.

    planner = plannerRRT(ss,sv);
    planner.MaxConnectionDistance = 50;
    planner.MaxIterations = 1000;

    Create a user-defined goal reached evaluation function. Specify the GoalBias property.

    planner.GoalReachedFcn = @(~,x,y)(norm(x(1:3)-y(1:3))<5);
    planner.GoalBias = 0.1;

    Set the start and goal states.

    start = [40 180 25 0.7 0.2 0 0.1];
    goal = [150 33 35 0.3 0 0.1 0.6];

    Plan a path with default settings.

    [pthObj,solnInfo] = plan(planner,start,goal);

    Check the points of the path are valid states.

    isValid = isStateValid(sv,pthObj.States)
    isValid = 6×1 logical array

       1
       1
       1
       1
       1
       1



    Check the motion between each sequential path states.

    isPathValid = zeros(size(pthObj.States,1)-1,1,'logical');
    for i = 1:size(pthObj.States,1)-1
        [isPathValid(i), ~] = isMotionValid(sv,pthObj.States(i,:),pthObj.States(i+1,:));
    end
    isPathValid
    isPathValid = 5×1 logical array

       1
       1
       1
       1
       1

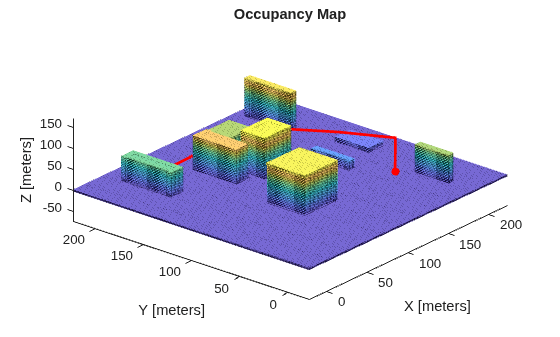

    Visualize the results.

    show(omap)
    hold on
    scatter3(start(1,1),start(1,2),start(1,3),'g','filled') % draw start state
    scatter3(goal(1,1),goal(1,2),goal(1,3),'r','filled') % draw goal state
    plot3(pthObj.States(:,1),pthObj.States(:,2),pthObj.States(:,3),'r-','LineWidth',2) % draw path

    Extended Capabilities

    C/C++ Code Generation
    Generate C and C++ code using MATLAB® Coder™.

    Introduced in R2020b
