yline
Horizontal line with constant y-value
Syntax
Description
yline(
creates a horizontal line at one or
more y-coordinates in the current axes. For example,
y
)yline(2)
creates a line at y=2
.
yline(___,
specifies
constant line properties using one or more name-value pair arguments. For a list of
properties, see ConstantLine Properties. Specify name-value pairs after all other input arguments.Name,Value
)
yl = yline(___)
returns a
ConstantLine
object or an array of ConstantLine
objects. Use yl
to modify or query properties of the line after it is
created.
Examples

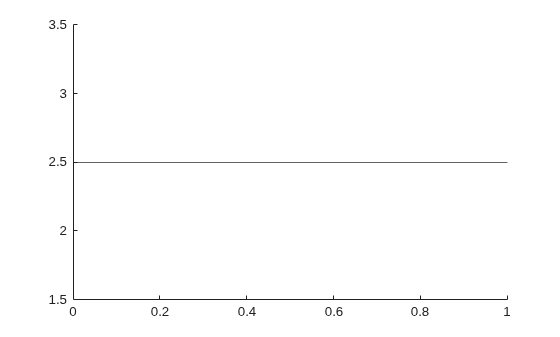

Create Horizontal Line
Add a Label
To create a line with a label, you must also specify the line style. The default line style is a solid line, '-'
.

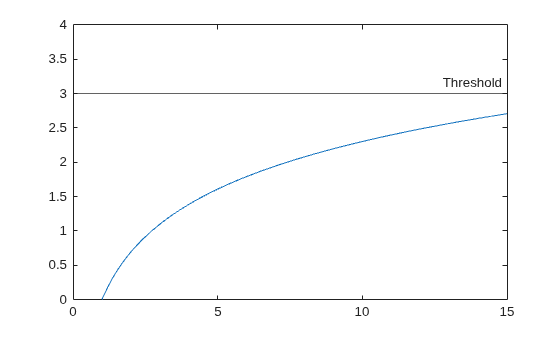

fplot(@(x) log(x)); xlim([0 15]); ylim([0 4]); yline(3,'-','Threshold');
Create Multiple Lines with Labels
Define a set of x
and y
vectors and plot them. Then pad the y-axis with extra space above and below the maximum and minimum plotted values.
x = 0:0.1:60;
y = 4.*cos(x)./(x+2);

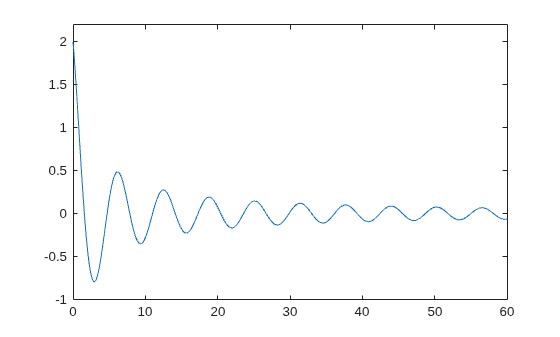

plot(x,y)
ylim padded
Find the maximum and minimum values of y
. Create horizontal lines at those locations with the labels 'Max'
and 'Min'
.

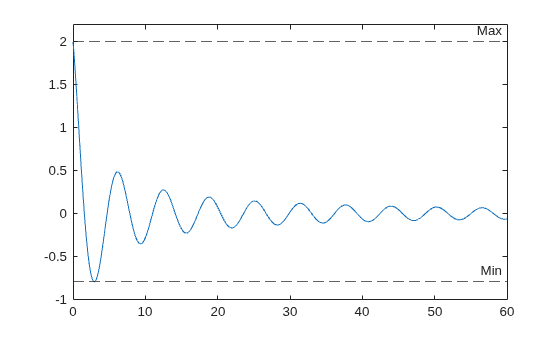

ymax = max(y); ymin = min(y); yline([ymax ymin],'--',{'Max','Min'})

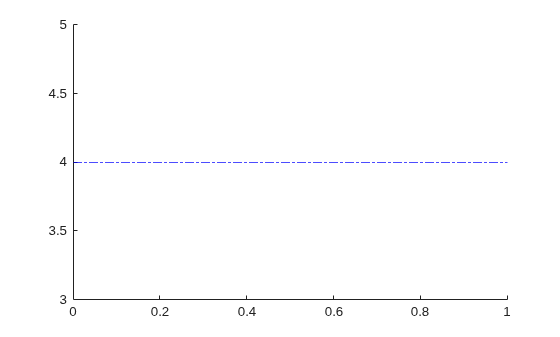

Specify Line Style and Color
Specify Line Style, Thickness, and Label Alignment
Create a horizontal dashed line with a label and a specified line width.

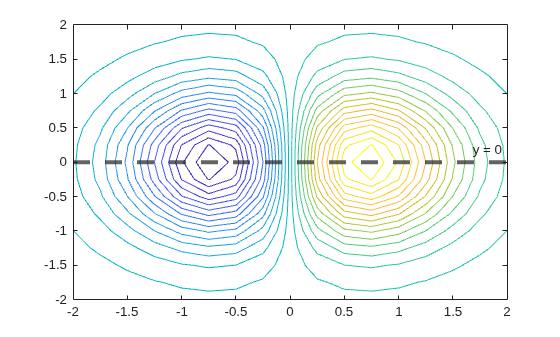

x = -2:0.25:2; [X,Y] = meshgrid(x); Z = X.*exp(-X.^2-Y.^2); contour(X,Y,Z,30) yl = yline(0,'--','y = 0','LineWidth',3);

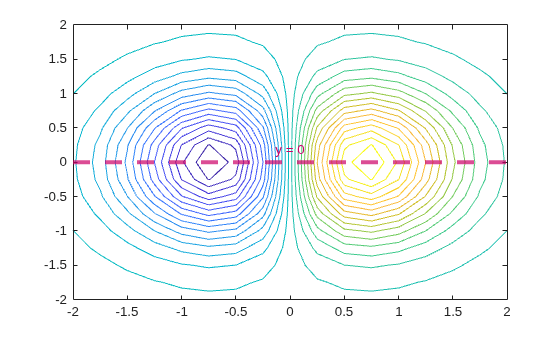

Change the horizontal alignment of the label and the color of the line.
yl.LabelHorizontalAlignment = 'center';
yl.Color = [.80 0 .40];
Add Line to Specific Axes
Call the tiledlayout
function to create a 1-by-2 tiled chart layout. Call the nexttile
function to create the axes objects ax1
and ax2
. Then plot into each of the axes. Add a horizontal line to the first plot by passing ax1
to the yline
function.

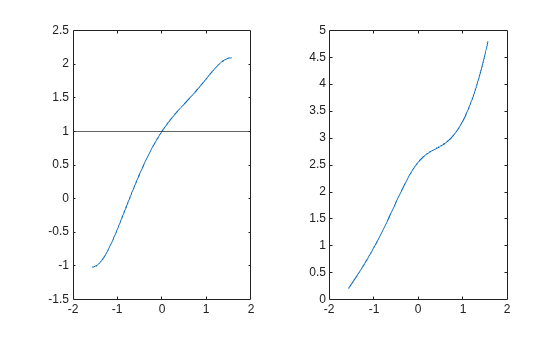

tiledlayout(1,2) ax1 = nexttile; x = -pi/2:pi/60:pi/2; y1 = tan(sin(x)) + cos(sin(x)); plot(ax1,x,y1) ax2 = nexttile; x = -pi/2:pi/60:pi/2; y2 = tan(cos(x)) + exp(x); plot(ax2,x,y2) yline(ax1,1.0);
Input Arguments
y
— y-coordinates
scalar | vector
y-coordinates, specified as a scalar or a vector containing
numeric, categorical, datetime, or duration values. The data type of
y
must match the data type of the
y-axis.
Example: yline(10)
displays a line at
y=10
.
Example: yline([13 20 33])
displays lines at
y=13
, y=20
, and
y=33
.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| logical
| categorical
| datetime
| duration
LineSpec
— Line style and color
character vector | string scalar
Line style and color, specified as a character vector or string scalar containing characters
and symbols. The characters and symbols can appear in any order. You can specify the
line style, line color, or both. Marker symbols such as 'o'
are
ignored.
Example: '--g'
is a green dashed line.
Line Style | Description | Resulting Line |
---|---|---|
"-" | Solid line |
|
"--" | Dashed line |
|
":" | Dotted line |
|
"-." | Dash-dotted line |
|
Color Name | Short Name | Appearance |
---|---|---|
'red' | 'r' |
|
'green' | 'g' |
|
'blue' | 'b' |
|
'cyan'
| 'c' |
|
'magenta' | 'm' |
|
'yellow' | 'y' |
|
'black' | 'k' |
|
'white' | 'w' |
|
ax
— Target axes
current axes (default) | Axes
object
Target axes, specified as an Axes
object. Use this argument if
you want yline
to plot in axes other than the current axes.
labels
— Line labels
''
(default) | character vector | string scalar | cell array of character vectors | string array
Line labels, specified as a character vector, cell array of character vectors, string array, or numeric array. To create a multiline label, use a string array or a cell array of character vectors.
Create a Label for One Line
Specify a character vector or a string scalar to display one line of text. To display multiple lines of text, specify a cell array of character vectors or a string array.
Presentation | How to Specify labels | Example |
---|---|---|
One line of text | Specify a character vector or a string scalar. |
yline(12,'-','Sample')
|
Multiline text | Specify a cell array of character vectors or a string array. Each element in the array is a different line of text. |
yline(12,'-',{'Sample','x=12'}) |
Create Labels for Multiple Lines
Specify a character vector or a string scalar to display the same label next to all the lines. Specify a cell array of character vectors or a string array to display different labels for each line.
Presentation | How to Specify labels | Example |
---|---|---|
One shared text label | Specify a character vector or a string scalar. |
yline([13 20 33],'-','Sample')
|
Different labels for each line | Specify a cell array of character vectors or a string array. Each
element in the array is a label for a different line. The number of elements
in the labels array must match the length of
x . |
label = {'Sample 1','Sample 2','Sample 3'}; yline([13 20 33],'-',label) |
Different labels with some multiline labels | Create a cell array of character vectors or a string array. Use the
sprintf function to insert
newline characters ('\n' ) in the text. |
label = {'Sample 1',sprintf('Sample 2\nx=20'),'Sample 3'}; yline([13 20 33],'-',label) |
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: yline(3,':','Median
Price','LabelHorizontalAlignment','center')
specifies the horizontal alignment
of the label as 'center'
.
Note
The properties listed here are only a subset. For a complete list, see ConstantLine Properties.
Color
— Line color
[0.15 0.15 0.15]
(default) | RGB triplet | hexadecimal color code | 'r'
| 'g'
| 'b'
| ...
Line color, specified as an RGB triplet, a hexadecimal color code, a color name, or a short name.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" | |
"none" | Not applicable | Not applicable | Not applicable | No color |
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB® uses in many types of plots.
RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|
[0 0.4470 0.7410] | "#0072BD" | |
[0.8500 0.3250 0.0980] | "#D95319" | |
[0.9290 0.6940 0.1250] | "#EDB120" | |
[0.4940 0.1840 0.5560] | "#7E2F8E" | |
[0.4660 0.6740 0.1880] | "#77AC30" | |
[0.3010 0.7450 0.9330] | "#4DBEEE" | |
[0.6350 0.0780 0.1840] | "#A2142F" |
Example: 'g'
Example: [0.6 0.2 0.5]
Example: '#D2F9A7'
LineWidth
— Line width
0.5
(default) | positive value
Line width, specified as a positive value in points.
DisplayName
— Legend label
''
(default) | character vector | string scalar
Legend label, specified as a character vector or string scalar. The legend does not
display until you call the legend
command. If you do not specify
the text, then legend
sets the label using the form
'dataN'
.
LabelHorizontalAlignment
— Horizontal alignment of label
'right'
(default) | 'left'
| 'center'
Horizontal alignment of the label with respect to the line, specified as one of the options in the table.
Option | Description | Example |
---|---|---|
'right' | Right side of the line |
|
'left' | Left side of the line |
|
'center' | Center of the line |
|
LabelVerticalAlignment
— Vertical alignment of label
'top'
(default) | 'middle'
| 'bottom'
Vertical alignment of the label with respect to the line, specified as one of the options in the table.
Option | Description | Example |
---|---|---|
'top' | Top of the line. |
|
'middle' | Middle of the line. The label segments the line. |
|
'bottom' | Bottom of the line. |
|
LabelOrientation
— Label orientation
'aligned'
(default) | 'horizontal'
Label orientation, specified as 'aligned'
or
'horizontal'
. Examples are shown in the table.
Orientation | Description | Example |
---|---|---|
'aligned' | Label has the same orientation as the specified line. |
|
'horizontal' | Label is horizontal, regardless of the line orientation. |
|
Algorithms
In a 3-D view of the axes, the constant line appears in the x-y plane at the midpoint of the z-axis limits. If the axes are rotated, then the constant line rotates accordingly.
Version History
Introduced in R2018b
