# bar3

3-D bar graph

## Description

`bar3(`

creates a 3-D bar graph for the
elements of `z`

)`z`

. Each bar corresponds to an element in `z`

.

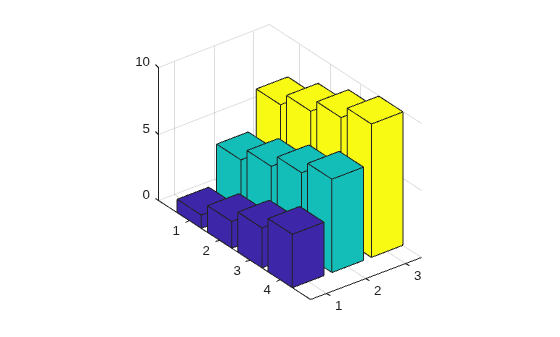

To plot a single series of bars, specify

`z`

as a vector. For a vector of length*m*, the function plots the bars on a*y*-axis ranging from`1`

to*m*.To plot multiple series of bars, specify

`z`

as a matrix with one column for each series. For an*m*-by-*n*matrix, the function plots the bars on an*x*-axis ranging from`1`

to*n*and a*y*-axis ranging from`1`

to*m*.

`bar3(___,`

sets the width of
the bars along the `width`

)*x*- and* y*-axes and controls the
separation of bars within a group. By default, `width`

is
`0.8`

and the bars have a slight separation. If `width`

is `1`

, the bars within a group touch one another.

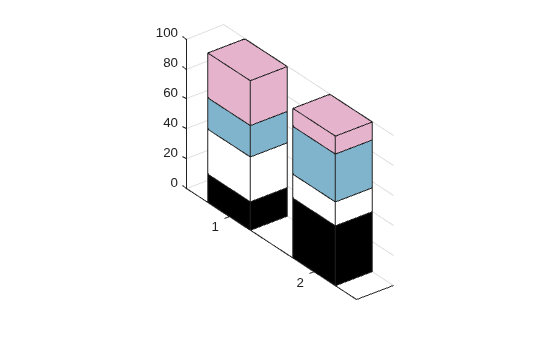

`bar3(___,`

specifies the
style of the bars, where `style`

)`style`

can be `'detached'`

,
`'grouped'`

, or `'stacked'`

. The default mode of display
is `'detached'`

.

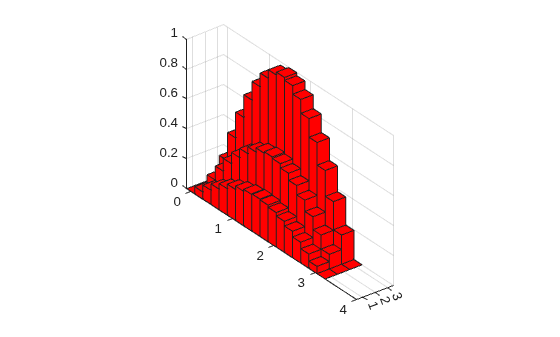

`bar3(___,`

displays all bars
using the color specified by `color`

)`color`

. For example, use
`'r'`

to specify all red bars.

returns one or more
`b`

= bar3(___)`Surface`

objects. If `z`

is a vector, then
`bar3`

creates one `Surface`

object. If
`z`

is a matrix, then `bar3`

returns a
`Surface`

object for each series. Use `b`

to set
properties of the bars after displaying the bar graph. For a list of properties, see
Surface Properties.

## Examples

## Input Arguments

## Output Arguments

## More About

## Tips

The plotted bars can be modified by altering the properties of the returned

`Surface`

objects. For a list of`Surface`

properties, see Surface Properties.

## Extended Capabilities

## Version History

**Introduced before R2006a**
