plot

Plot alpha shape

Description

example

plot(shp) plots alpha shape shp in a figure window.

example

plot(shp,Name,Value) uses additional options specified by one or more Name,Value pair arguments. For a complete list of allowed Name,Value pairs, see Patch Properties.

h = plot(___) returns a handle to a Patch object using any of the previous syntaxes.

Examples

collapse all

Create a set of 3-D points.

[x1, y1, z1] = sphere(24);
x1 = x1(:);
y1 = y1(:);
z1 = z1(:);
x2 = x1+5;
P = [x1 y1 z1; x2 y1 z1];
P = unique(P,'rows');

Create and plot an alpha shape using an alpha radius of 1.5.

shp = alphaShape(P,1.5);
plot(shp)

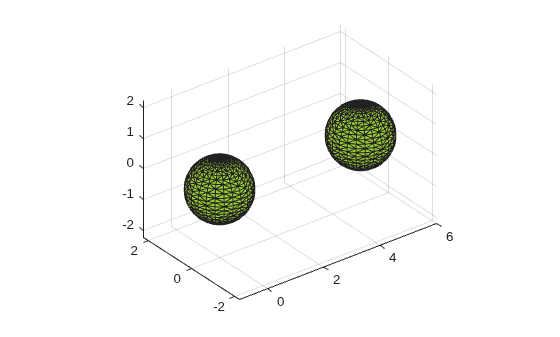

Figure contains an axes object. The axes object contains an object of type patch.

Plot the alpha shape with a specified color and transparency factor.

plot(shp,'FaceColor','red','FaceAlpha',0.1)

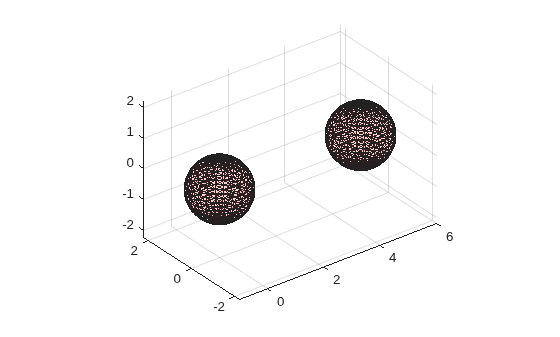

Figure contains an axes object. The axes object contains an object of type patch.

Input Arguments

collapse all

Alpha shape, specified as an alphaShape object. For more information, see alphaShape.

Example: shp = alphaShape(x,y) creates a 2-D alphaShape object from the (x,y) point coordinates.

Output Arguments

collapse all

Handle to Patch object, returned as a handle. For more information, see Introduction to Patch Objects.
