struct2geotable

Convert structure array to geospatial table

Since R2021b

Syntax

GT = struct2geotable(S)

GT = struct2geotable(S,coordinateSystemType,fnames)

GT = struct2geotable(S,Name=Value)

Description

GT = struct2geotable(S) converts the structure array S to a geospatial table GT. The function creates the Shape variable of GT by using the latitude-longitude or x-y coordinates in S. Each field of S is a variable of GT.

GT = struct2geotable(S,coordinateSystemType,fnames) creates the Shape variable of GT by using the coordinate system type coordinateSystemType and structure array fields fnames.

GT = struct2geotable(S,Name=Value) specifies options using name-value arguments. For example, specify that coordinates represent points, lines, or polygons by using the GeometryType name-value argument.

Examples

Convert Structure Array to Geospatial Table

Read a shapefile containing hydrographic data for Concord, MA, as a structure array. Import only the polygons with an area greater than 100 square kilometers. The x- and y-coordinates are in the X and Y fields of the structure.

areafilterfcn = @(areafilter) (areafilter > 100000);
S = shaperead("concord_hydro_area.shp", ...
    Selector={areafilterfcn,'AREA'});

Get the coordinate reference system for the data.

info = shapeinfo("concord_hydro_area.shp");
crs = info.CoordinateReferenceSystem;

Convert the structure array to a geospatial table. The struct2geotable function detects the X and Y fields and uses them to create the Shape variable. Specify the coordinate reference system for the Shape variable.

GT = struct2geotable(S, ...
    CoordinateReferenceSystem=crs);

View the shape object in the second row of the table. Shape object properties contain information such as the number of holes.

GT.Shape(2)

ans =
  mappolyshape with properties:

              NumRegions: 1
                NumHoles: 3
                Geometry: "polygon"
    CoordinateSystemType: "planar"
            ProjectedCRS: [1×1 projcrs]

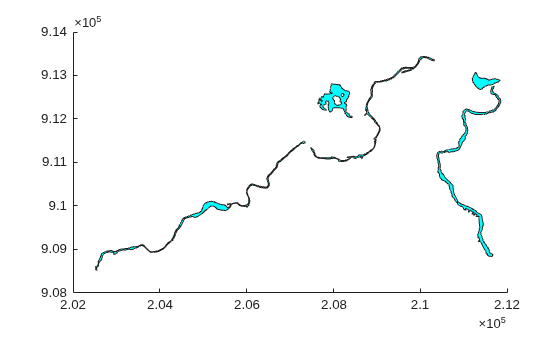

Display the polygons.

mapshow(GT,FaceColor="c")

Specify Fields Containing Coordinate Data

Create a sample structure array containing the locations of cities. The Lats field contains latitudes, the Lons field contains longitudes, and the Names field contains names.

lats = {35.7082,-22.8842,51.5074,39.9042,37.9838};
lons = {139.6401,-43.3882,-0.1278,116.4074,23.7275};
n = {'Tokyo','Rio de Janeiro','London','Beijing','Athens'};
S = cell2struct([lats;lons;n],{'Lats','Lons','Names'},1)

S=5×1 struct array with fields:
    Lats
    Lons
    Names

Convert the structure array to a geospatial table. The struct2geotable function does not automatically detect the field names Lats and Lons. Specify the coordinate system type as "geographic" and the field names containing the coordinates.

GT = struct2geotable(S,"geographic",["Lats" "Lons"])

GT=5×4 table
             Shape              Lats       Lons            Names
    _______________________    _______    _______    __________________

    (35.7082°N, 139.6401°E)     35.708     139.64    {'Tokyo'         }
    (22.8842°S,  43.3882°W)    -22.884    -43.388    {'Rio de Janeiro'}
    (51.5074°N,   0.1278°W)     51.507    -0.1278    {'London'        }
    (39.9042°N, 116.4074°E)     39.904     116.41    {'Beijing'       }
    (37.9838°N,  23.7275°E)     37.984     23.727    {'Athens'        }

View the Shape variable of the geospatial table.

GT.Shape

ans =
  5×1 geopointshape array with properties:

               NumPoints: [5×1 double]
                Latitude: [5×1 double]
               Longitude: [5×1 double]
                Geometry: "point"
    CoordinateSystemType: "geographic"
           GeographicCRS: []

Input Arguments

S — Input structure array

structure array

Input structure array.

The struct2geotable function detects the coordinates when the structure array fields have these names, ignoring case.

• Latitude coordinates — Latitude or Lat

• Longitude coordinates — Longitude, Lon, or Long

• x-coordinates — X

• y-coordinates — Y

If you specify an input structure array with a field called Shape, then the struct2geotable function overwrites it.

Data Types: struct

coordinateSystemType — Coordinate system type

"planar" | "geographic"

Coordinate system type, specified as one of these options:

• "planar" — Coordinates are in a planar coordinate system.

• "geographic" — Coordinates are in a geographic coordinate system.

Data Types: string

fnames — Names of structure array fields

two-element string vector

Names of the structure array fields used to create the Shape variable of the geospatial table, specified as a two-element string vector, such as ["Lats" "Lons"]. The fields contain latitude-longitude or x-y coordinates.

Data Types: string

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: struct2geotable(S,CoordinateReferenceSystem=geocrs(4326)) specifies the geographic CRS as the World Geodetic System of 1984, which has EPSG code 4326.

CoordinateReferenceSystem — Coordinate reference system

projcrs object | geocrs object

Coordinate reference system (CRS) to use when creating the Shape variable of the geospatial table, specified as a projcrs or geocrs object.

Specify a projcrs object when coordinateSystemType is "planar" and specify a geocrs object when coordinateSystemType is "geographic".

GeometryType — Geometry type

"point" (default) | "line" | "polygon"

Geometry type of the coordinate fields, specified as one of these options:

• "point" — The coordinate fields represent points.

• "line" — The coordinate fields represent lines.

• "polygon" — The coordinate fields represent polygons.

When you specify the geometry type as "polygon", the struct2geotable function assumes that the coordinates define polygons with a valid topology. A polygon has a valid topology when:

• Region interiors are to the right as you trace boundaries from vertex to vertex.

• The boundaries have no self-intersections.

In general, the outer boundaries of polygons with a valid topology have vertices in a clockwise order and the interior holes have vertices in a counterclockwise order.

The struct2geotable function detects the geometry type when the input structure array has a Geometry field with a value of 'Point', 'Multipoint', 'Line', or 'Polygon'.

Output Arguments

GT — Output geospatial table

geospatial table

Output geospatial table. A geospatial table is a table or timetable object with a Shape variable that contains geopointshape, geolineshape, geopolyshape, mappointshape, maplineshape, or mappolyshape objects.

For an input structure array with M elements and N fields, the size of GT is M-by-(N + 1).

Tips

• When the input structure has latitude-longitude fields and x-y fields, the struct2geotable function creates the geospatial table using the latitude-longitude fields. Create the geospatial table using the x-y fields by specifying the coordinateSystemType and fnames arguments.

• When you know that a shapefile contains latitude and longitude coordinates and read the shapefile using the shaperead function, you must specify the UseGeoCoords argument as true. Otherwise, the structure array contains X and Y fields instead of Lat and Lon fields. As a result, the struct2geotable function creates the Shape variable of the geospatial table using planar shape objects such as mappointshape instead of geographic shape objects such as geopointshape.
