tformarray
Apply spatial transformation to N-D array
The tformarray
function is not recommended for 2-D and 3-D
spatial transformations. Use the imwarp
function instead. For more information, see Version History.
Description
Examples
Transform Checkerboard Image

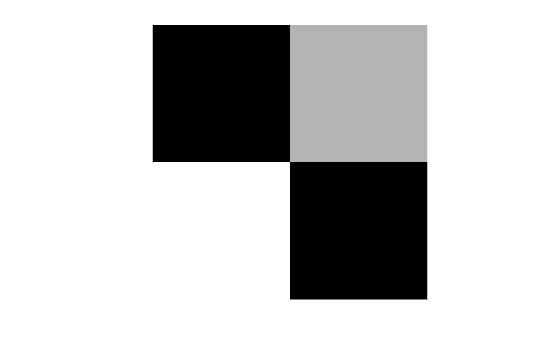

Create a 2-by-2 square checkerboard image where each square is 20 pixels wide. Display the image.
I = checkerboard(20,1,1); figure imshow(I)
Transform the checkerboard with a projective transformation. First create a spatial transformation structure.
T = maketform('projective',[1 1; 41 1; 41 41; 1 41],... [5 5; 40 5; 35 30; -10 30]);
Create a resampler. Use the pad method 'circular'
when creating the resampler, so that the output appears to be a perspective view of an infinite checkerboard.
R = makeresampler('cubic','circular');
Perform the transformation, specifying the transformation structure and the resampler. For this example, swap the output dimensions, and specify a 100-by-100 output image. Leave argument tmap_B
empty since you specify argument tsize_B
. Leave argument F
empty since the fill value is not needed.

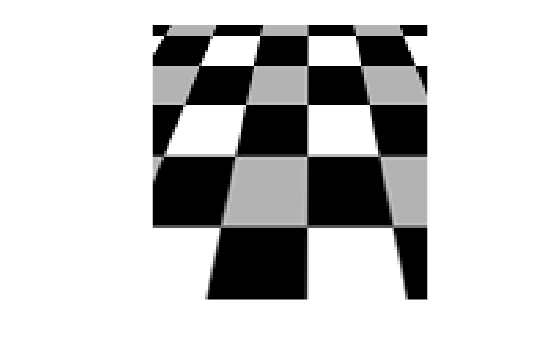

J = tformarray(I,T,R,[1 2],[2 1],[100 100],[],[]); figure imshow(J)
Transform Checkerboard Image, with Nonuniform Mapping from Input to Output Space
Create a 2-by-2 square checkerboard image where each square is 20 pixels wide. Display the image.
I = checkerboard(20,1,1); figure imshow(I)
Transform the checkerboard with a projective transformation. First create a spatial transformation structure.
T = maketform('projective',[1 1; 41 1; 41 41; 1 41],... [5 5; 40 5; 35 30; -10 30]);
Create a resampler. Use the pad method 'circular'
when creating the resampler, so that the output appears to be a perspective view of an infinite checkerboard.
R = makeresampler('cubic','circular');
Create arrays that specify the mapping of points from input space to output space. This example uses anisotropic sampling, where the distance between samples is larger in one direction than the other.
samp_x = 1:1.5:150; samp_y = 1:100; [x,y] = meshgrid(samp_x,samp_y); tmap = cat(3,x,y); size(tmap)
ans = 1×3
100 100 2
Note the size of tmap
. The output image will have dimensions 100-by-100.
Perform the transformation, specifying the transformation structure and the resampler. Specify the output map as tmap
. Leave argument tsize_B
empty, since you specify argument tmap_B
. The fill value does not matter since the resampler is circular.
J = tformarray(I,T,R,[1 2],[1 2],[],tmap,[]); figure imshow(J)

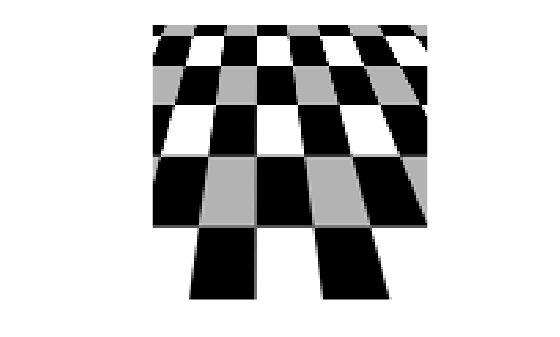

The length of checkerboard squares is larger in the y-direction than in the x-direction, which agrees with the larger sampling distance between points in the vector samp_x
. Compared to the result using isotopic point mapping (see example Transform Checkerboard Image), three additional columns of the checkerboard appear at the right of the transformed image, and no new rows are added to the transformed image.
Input Arguments
A
— Input image
numeric array
Input image, specified as a numeric array. A
can be
real or complex.
Data Types: single
| double
| int8
| int16
| int32
| uint8
| uint16
| uint32
| logical
Complex Number Support: Yes
T
— Spatial transformation
TFORM
spatial transformation structure
Spatial transformation, specified as a TFORM
spatial transformation
structure. You typically use the maketform
function to
create a TFORM
structure.
tformarray
uses T
and the function
tforminv
to compute the
corresponding location in the input transform subscript space for each
location in the output transform subscript space.
tformarray
defines the input transform space by
tdims_B
and tsize_B
and the
output transform subscript space by tdims_A
and
size(A)
.
If T
is empty, then tformarray
operates as a direct
resampling function. Further, if tmap_B
is:
Not empty, then
tformarray
applies the resampler defined inR
to compute values at each transform space location defined intmap_B
Empty, then
tformarray
applies the resampler at each location in the output transform subscript grid
Data Types: struct
R
— Resampler
structure
Resampler, specified as a structure. A resampler structure defines how to interpolate values
of the input array at specified locations. R
is created
with makeresampler
, which allows
fine control over how to interpolate along each dimension.
makeresampler
also controls what input array values
to use when interpolating close to the edge of the array.
Data Types: struct
tdims_A
— Input transform dimensions
row vector of finite, positive integers
Input transform dimensions, specified as a row vector of finite, positive integers.
tdims_A
and tdims_B
indicate
which dimensions of the input and output arrays are involved in the spatial
transformation. Each element must be unique. The entries need not be listed
in increasing order, but the order matters. The order specifies the precise
correspondence between dimensions of arrays A
and
B
and the input and output spaces of the
transformation T
.
length(tdims_A)
must equal
T.ndims_in
, and length(tdims_B)
must equal T.ndims_out
.
For example, if T
is a 2-D transformation,
tdims_A = [2 1]
, and tdims_B = [1
2]
, then the row and column dimensions of
A
correspond to the second and first transformation
input-space dimensions, respectively. The row and column dimensions of
B
correspond to the first and second output-space
dimensions, respectively.
Data Types: double
tdims_B
— Output transform dimensions
row vector of finite, positive integers
Output transform dimensions, specified as a row vector of finite, positive
integers. For more information, see tdims_A
.
Data Types: double
tsize_B
— Size of output array in the transform dimensions
row vector of finite, positive integers
Size of the output array transform dimensions, specified as a row vector
of finite, positive integers. The size of B
along
nontransform dimensions is taken directly from the size of
A
along those dimensions.
For example, if T
is a 2-D transformation,
size(A) = [480 640 3 10]
,
tdims_B
is [2 1]
, and
tsize_B
is [300 200]
, then
size(B)
is [200 300 3 10]
.
Data Types: double
tmap_B
— Point locations in output space
finite, real-valued array | []
Point locations in output space, specified as a finite real-valued array.
tmap_B
is an optional argument that provides an
alternative way of specifying the correspondence between the position of
elements of B
and the location in output transform
space. tmap_B
can be used, for example, to compute the
result of an image warp at a set of arbitrary locations in output
space.
If tmap_B
is not empty, then the size of
tmap_B
is
[D1 D2 D3 ... DN L]
N
equals length(tdims_B)
.
tsize_B
should be []
.
The value of L
depends on whether T
is empty. If T
is:
Not empty, then
L
isT.ndims_out
, and each L-dimension point intmap_B
is transformed to an input-space location usingT
Empty, then
L
islength(tdims_A)
, and eachL
-dimensional point intmap_B
is used directly as a location in input space.
Data Types: double
F
— Fill values
numeric scalar | numeric array | []
Fill values, specified as a numeric scalar, numeric array, or empty ([]
).
The fill values in F
can be used in three
situations:
When a separable resampler is created with
makeresampler
and itspadmethod
is set to either"fill"
or"bound"
.When a custom resampler is used that supports the
"fill"
or"bound"
pad methods (with behavior that is specific to the customization).When the map from the transform dimensions of
B
to the transform dimensions ofA
is deliberately undefined for some points. Such points are encoded in the input transform space byNaN
s in eithertmap_B
or in the output oftforminv
.
In the first two cases, fill values are used to compute values for output locations that map
outside or near the edges of the input array. Fill values are copied into
B
when output locations map well outside the input
array. See makeresampler
for more
information about "fill"
and "bound"
.
When F
is:
A scalar (including
NaN
), its value is replicated across all the nontransform dimensions.Nonscalar, its size depends on
size(A)
in the nontransform dimensions. Specifically, ifK
is theJ
th nontransform dimension ofA
, thensize(F,J)
must be eithersize(A,K)
or1
. As a convenience,tformarray
replicatesF
across any dimensions with unit size such that after the replicationsize(F,J)
equalssize(A,K)
.Empty (
[]
), thetformarray
function uses a fill value of0
.
For example, suppose A
represents 10 RGB images and has size
200-by-200-by-3-by-10, T
is a 2-D transformation, and
tdims_A
and tdims_B
are both
[1 2]. In other words, tformarray
applies the same 2-D
transform to each color plane of each of the 10 RGB images. In this
situation you have several options for F
:
F
can be a scalar, in which case the same fill value is used for each color plane of all 10 images.F
can be a 3-by-1 vector,[R G B]'
.tformarray
uses the RGB value as the fill value for the corresponding color planes of each of the 10 images.F
can be a 1-by-10 vector.tformarray
uses a different fill value for each of 10 images, with that fill value being used for all three color planes.F
can be a 3-by-10 matrix.tformarray
uses a different RGB fill color for each of the 10 images.
Data Types: double
Output Arguments
B
— Transformed image
numeric array
Transformed image, returned as a numeric array.
Extended Capabilities
Thread-Based Environment
Run code in the background using MATLAB® backgroundPool
or accelerate code with Parallel Computing Toolbox™ ThreadPool
.
This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.
Version History
Introduced before R2006aR2021b: Support for thread-based environments
tformarray
now supports thread-based
environments.
R2018b: tformarray
is not recommended for 2-D and 3-D geometric transformations
The tformarray
function is intended for transformations
involving higher-dimensioned arrays, mixed input/output dimensionality, or requiring
greater user control or customization.
For many common tasks involving 2-D and 3-D images, the imwarp
function is easier to use.
For example, the imwarp
function enables you to specify the
type of interpolation using a name-value argument. The imwarp
function also supports categorical images.
The tformarray
function is not recommended for 2-D and 3-D
geometric transformations. Instead, create a 2-D or 3-D geometric transformation
object, then use the imwarp
function. To perform a
transformation that pads the output using the "replicate"
,
"circular"
, or "symmetric"
padding method,
you can pad the input image using the padarray
function before calling
imwarp
. For more information about geometric transformation
objects, see 2-D and 3-D Geometric Transformation Process Overview.
This table shows a syntax of tformarray
with recommended
replacement code.
Discouraged Usage | Recommended Replacement |
---|---|
This example performs a 2-D affine transformation of image
A = [0.5 0 0; 0.5 2 0; 0 0 1]; T = maketform("affine",A); I = checkerboard(20,1,1); R = makeresampler("cubic","bound"); J = tformarray(I,T,R,[1 2],[2 1],[40 80],[],[]); | Create an A = [0.5 0 0; 0.5 2 0; 0 0 1];
T = affinetform2d(A);
I = checkerboard(20,1,1);
J = imwarp(I,T,"cubic") |
