Convert RGB color values to YCbCr color space



YCBCR = rgb2ycbcr(RGB) converts the red, green, and blue values of an RGB image to luminance (Y) and chrominance (Cb and Cr) values of a YCbCr image.


collapse all

Convert Image from RGB to YCbCr

Read an RGB image into the workspace.

RGB = imread("board.tif");

Convert the image to YCbCr.

YCBCR = rgb2ycbcr(RGB);

Display the original image and the new image

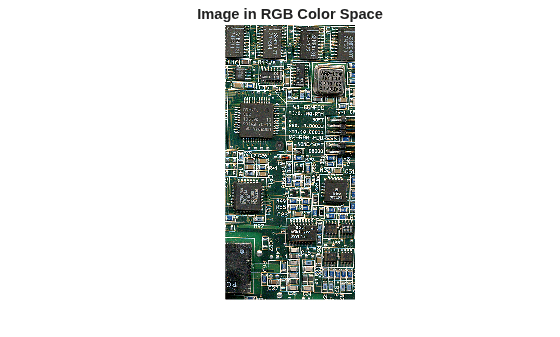

title("Image in RGB Color Space");

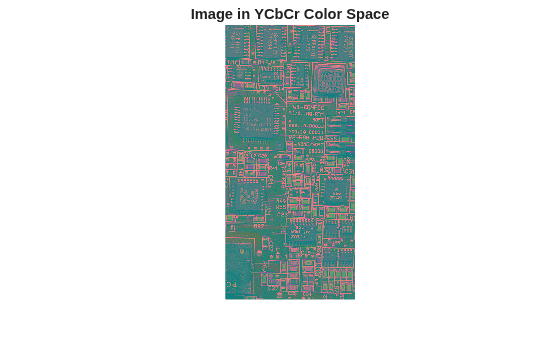

title("Image in YCbCr Color Space");

Convert Colormap from RGB to YCbCr.

Load an indexed image into the workspace. The colormap is in RGB colorspace.

[I,map] = imread("forest.tif");

Convert the colormap to YCbCr.

newcmap = rgb2ycbcr(map);

Display the grayscale image with the original map and with the new map.

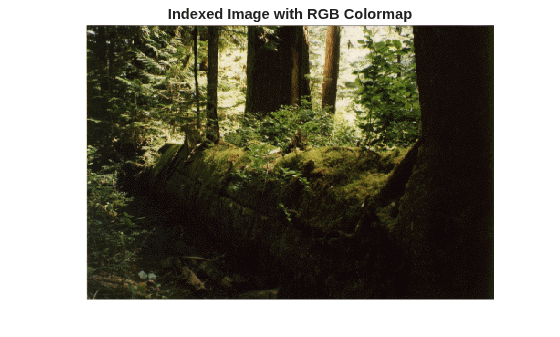

title("Indexed Image with RGB Colormap");

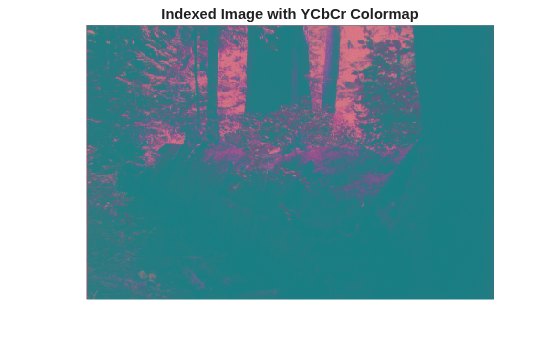

title("Indexed Image with YCbCr Colormap");

Input Arguments

collapse all

RGB color values to convert, specified as a numeric array in one of these formats.

  • c-by-3 colormap. Each row specifies one RGB color value.

  • m-by-n-by-3 image

Data Types: single | double | uint8 | uint16

Output Arguments

collapse all

Converted YCbCr color values, returned as a numeric array of the same size as the input.

  • If the input is double or single, then Y is in the range [16/255, 235/255] and Cb and Cr are in the range [16/255, 240/255].

  • If the input is uint8, then Y is in the range [16, 235] and Cb and Cr are in the range [16, 240].

  • If the input is uint16, then Y is in the range [4112, 60395] and Cb and Cr are in the range [4112, 61680].


[1] Poynton, C. A.A Technical Introduction to Digital Video, John Wiley & Sons, Inc., 1996, p. 175.

[2] Rec. ITU-R BT.601-5, Studio Encoding Parameters of Digital Television for Standard 4:3 and Wide-screen 16:9 Aspect Ratios, (1982-1986-1990-1992-1994-1995), Section 3.5.

Extended Capabilities

GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Version History

Introduced before R2006a
