# psnr

Peak signal-to-noise ratio (PSNR)

## Syntax

``peaksnr = psnr(A,ref)``
``peaksnr = psnr(A,ref,peakval)``
``peaksnr = psnr(___,'DataFormat',dataFormat)``
``````[peaksnr,snr] = psnr(___)``````

## Description

example

````peaksnr = psnr(A,ref)` calculates the peak signal-to-noise ratio (PSNR) for the image `A`, with the image `ref` as the reference.```
````peaksnr = psnr(A,ref,peakval)` calculates the PSNR of image `A` using the peak signal value `peakval`.```

example

````peaksnr = psnr(___,'DataFormat',dataFormat)` also specifies the dimension labels, `dataFormat`, of unformatted image data. Use this syntax to return a separate PSNR for each element along a batch dimension.```

example

``````[peaksnr,snr] = psnr(___)``` also returns the simple signal-to-noise ratio, `snr`.```

## Examples

collapse all

Read image and create a copy with added noise. The original image is the reference image.

```ref = imread('pout.tif'); A = imnoise(ref,'salt & pepper', 0.02);```

Calculate the PSNR.

```[peaksnr, snr] = psnr(A, ref); fprintf('\n The Peak-SNR value is %0.4f', peaksnr);```
``` The Peak-SNR value is 22.6437 ```
`fprintf('\n The SNR value is %0.4f \n', snr);`
``` The SNR value is 15.5524 ```

Read an image into the workspace, then create an unformatted `dlarray` object with the image data.

```ref = imread("strawberries.jpg"); ref = im2single(ref); dlref = dlarray(ref);```

Add salt and pepper noise to the image, then create an unformatted `dlarray` object with the noisy image data.

```noisy = imnoise(ref,'salt & pepper'); dlnoisy = dlarray(noisy);```

Calculate the peak SNR and SNR of the noisy data with respect to the original data.

`[peaksnr,snr] = psnr(dlnoisy,dlref)`
```peaksnr = 1x1 single dlarray 17.5941 ```
```snr = 1x1 single dlarray 11.1265 ```

Read a reference image into the workspace.

`ref = imread("office_1.jpg");`

Preallocate two arrays that store a sequence of six images of the size of the reference image.

```numFrames = 6; imsOriginal = zeros([size(ref) numFrames],class(ref)); imsNoisy = zeros([size(ref) numFrames],class(ref));```

Read and add images to the preallocated arrays. One array stores the original image data. The second array stores the image data with added salt and pepper noise.

```for p = 1:numFrames filename = strcat("office_",num2str(p),".jpg"); im = imread(filename); imsOriginal(:,:,:,p) = im; imsNoisy(:,:,:,p) = imnoise(im,"salt & pepper"); end```

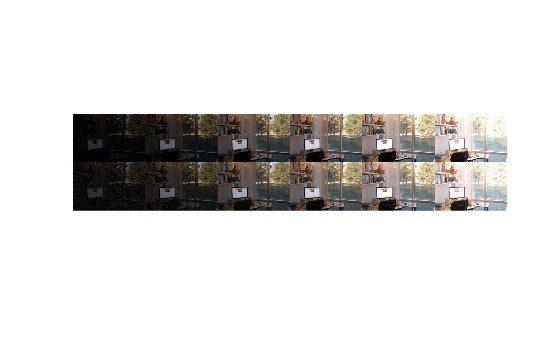

Display the image sequences in a montage. The first row shows the sequence with original image data. The second row shows the sequence with noisy image data.

`montage(cat(4,imsOriginal,imsNoisy),"Size",[2 numFrames])`

Calculate the peak PSNR of each noisy image with respect to the corresponding pristine image by specifying the data format of the input arrays as 'SSCB' (spatial, spatial, channel, batch).

```peak_psnrs = psnr(imsNoisy,imsOriginal,"DataFormat","SSCB"); peak_psnrs = squeeze(peak_psnrs)```
```peak_psnrs = 6×1 16.3560 16.9698 17.8079 18.1843 18.0656 17.1682 ```

## Input Arguments

collapse all

Image to be analyzed, specified as a numeric array of any dimension or a `dlarray` (Deep Learning Toolbox) object.

Data Types: `single` | `double` | `int16` | `uint8` | `uint16`

Reference image, specified as a numeric array or a `dlarray` (Deep Learning Toolbox) object. The reference image has the same size and data type as image `A`.

Data Types: `single` | `double` | `int16` | `uint8` | `uint16`

Peak signal level, specified as a nonnegative number. If not specified, the default value for `peakval` depends on the class of `A` and `ref`.

• If the images are of data type `double` or `single`, then `psnr` assumes that image data is in the range [0, 1]. The default value of `peakval` is `1`.

• If the images are of integer data types, then the default value of `peakval` is the largest value allowed by the range of the class. For `uint8` data, the default value of `peakval` is `255`. For `uint16` or `int16`, the default is `65535`.

Dimension labels of the input images `A` and `ref`, specified as a string scalar or character vector. Each character in `dataFormat` must be one of these labels:

• `S` — Spatial

• `C` — Channel

• `B` — Batch observations

The format cannot include more than one channel label or batch label. Do not specify the '`dataFormat`' argument when the input images are formatted `dlarray` objects.

Example: `'SSC'` indicates that the array has two spatial dimensions and one channel dimension, appropriate for 2-D RGB image data.

Example: `'SSCB'` indicates that the array has two spatial dimensions, one channel dimension, and one batch dimension, appropriate for a sequence of 2-D RGB image data.

## Output Arguments

collapse all

PSNR in decibels, returned as one of these values.

Input Image TypePSNR Value

• Unformatted numeric arrays

• Formatted numeric arrays without a batch (`'B'`) dimension

Numeric scalar with a single PSNR measurement.

Unformatted `dlarray` (Deep Learning Toolbox) objects

1-by-1 `dlarray` object with a single PSNR measurement.
Numeric arrays with a batch dimension specified using the `dataFormat` argumentNumeric array of the same dimensionality as the input images. The spatial and channel dimensions of `peaksnr` are singleton dimensions. There is one PSNR measurement for each element along the batch dimension
• Formatted `dlarray` objects with a batch dimension

• Unformatted `dlarray` objects with a batch dimension specified using the `dataFormat` argument

`dlarray` object of the same dimensionality as the input images. The spatial and channel dimensions of `peaksnr` are singleton dimensions. There is one PSNR measurement for each element along the batch dimension.

If `A` and `ref` have data type `single`, then `peaksnr` has data type `single`. Otherwise, `peaksnr` has data type `double`.

Signal-to-noise ratio in decibels, returned as one of these values.

Input Image TypePSNR Value

• Unformatted numeric arrays

• Formatted numeric arrays without a batch (`'B'`) dimension

Numeric scalar with a single SNR measurement.

Unformatted `dlarray` (Deep Learning Toolbox) objects

1-by-1 `dlarray` object with a single SNR measurement.
Numeric arrays with a batch dimension specified using the `dataFormat` argumentNumeric array of the same dimensionality as the input images. The spatial and channel dimensions of `snr` are singleton dimensions. There is one SNR measurement for each element along the batch dimension
• Formatted `dlarray` objects with a batch dimension

• Unformatted `dlarray` objects with a batch dimension specified using the `dataFormat` argument

`dlarray` object of the same dimensionality as the input images. The spatial and channel dimensions of `peaksnr` are singleton dimensions. There is one SNR measurement for each element along the batch dimension.

If `A` and `ref` have data type `single`, then `snr` has data type `single`. Otherwise, `snr` has data type `double`.

## Algorithms

The `psnr` function implements this equation to calculate PSNR:

`$PSNR=10{\mathrm{log}}_{10}\left(peakva{l}^{2}/MSE\right)$`

`peakval` is either specified by the user or taken from the range of the image data type. For example, for an image of data type `uint8`, the `peakval` is `255`. MSE is the mean square error between `A` and `ref`.
