# ordfilt2

2-D order-statistic filtering

## Syntax

``B = ordfilt2(A,order,domain)``
``B = ordfilt2(A,order,domain,S)``
``B = ordfilt2(___,padopt)``

## Description

example

````B = ordfilt2(A,order,domain)` replaces each element in `A` by the `order`th element in the sorted set of neighbors specified by the nonzero elements in `domain`. ```
````B = ordfilt2(A,order,domain,S)` filters `A`, where `ordfilt2` uses the values of `S` corresponding to the nonzero values of `domain` as additive offsets. You can use this syntax to implement grayscale morphological operations, including grayscale dilation and erosion.```
````B = ordfilt2(___,padopt)` filters `A`, where `padopt` specifies how `ordfilt2` pads the matrix boundaries.```

## Examples

collapse all

Read image into workspace and display it.

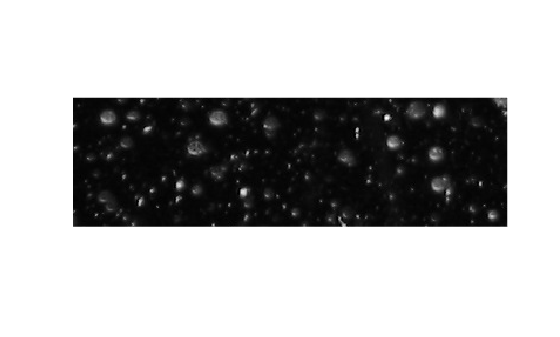

```A = imread('snowflakes.png'); figure imshow(A)```

Filter the image and display the result.

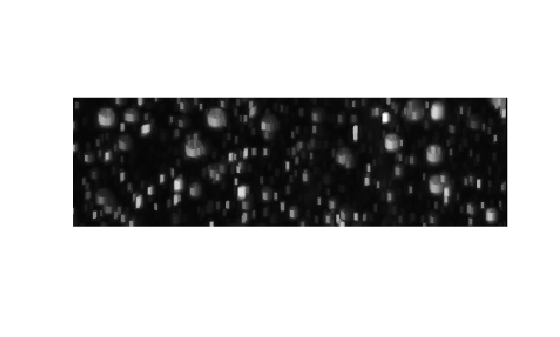

```B = ordfilt2(A,25,true(5)); figure imshow(B)```

## Input Arguments

collapse all

Data to filter, specified as a 2-D numeric matrix or 2-D logical matrix.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `uint8` | `uint16` | `uint32` | `logical`

Element to replace the target pixel, specified as a real scalar integer.

Data Types: `double`

Neighborhood, specified as a numeric or logical matrix containing `1`s and `0`s. `domain` is equivalent to the structuring element used for binary image operations. The `1`-valued elements define the neighborhood for the filtering operation. The table gives examples of some common filters.

Type of Filtering OperationMATLAB codeNeighborhoodSample Image Data, Indicating Selected Element
Median filter`B = ordfilt2(A,5,ones(3,3))`
Minimum filter`B = ordfilt2(A,1,ones(3,3))`
Maximum filter`B = ordfilt2(A,9,ones(3,3))`
Minimum of north, east, south, and west neighbors```B = ordfilt2(A,1,[0 1 0; 1 0 1; 0 1 0])```

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `logical`

Additive offsets, specified as a numeric matrix of the same size as `domain`.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `logical`

Padding option, specified as one of the following values.

OptionDescription
`'zeros'`Pad array boundaries with `0`’s.
`'symmetric'`

Pad array with mirror reflections of itself.

Data Types: `char` | `string`

## Output Arguments

collapse all

Filtered data, returned as a 2-D numeric matrix or 2-D logical matrix of the same class as the input data `A`.

## Tips

• When working with large domain matrices that do not contain any zero-valued elements, `ordfilt2` can achieve higher performance if `A` is in an integer data format (`uint8`, `int8`, `uint16`, `int16`). The gain in speed is larger for `uint8` and `int8` than for the 16-bit data types. For 8-bit data formats, the domain matrix must contain seven or more rows. For 16-bit data formats, the domain matrix must contain three or more rows and 520 or more elements.

## References

[1] Haralick, Robert M., and Linda G. Shapiro, Computer and Robot Vision, Volume I, Addison-Wesley, 1992.

[2] Huang, T.S., G.J.Yang, and G.Y.Tang. "A fast two-dimensional median filtering algorithm.", IEEE transactions on Acoustics, Speech and Signal Processing, Vol ASSP 27, No. 1, February 1979
