imresize3
Resize 3-D volumetric intensity image
Syntax
Description
returns the volume B
= imresize3(V
,[numrows
numcols numplanes]
)B
that has the number of rows, columns, and
planes specified by the 3-element vector [numrows numcols
numplanes]
.
returns a resized volume where B
= imresize3(___,Name,Value
)Name,Value
pairs control aspects
of the operation.
Examples
Resize 3-D Volumetric Image
Read MRI volume into the workspace.
s = load('mri');
mriVolumeOriginal = squeeze(s.D);
sizeO = size(mriVolumeOriginal);

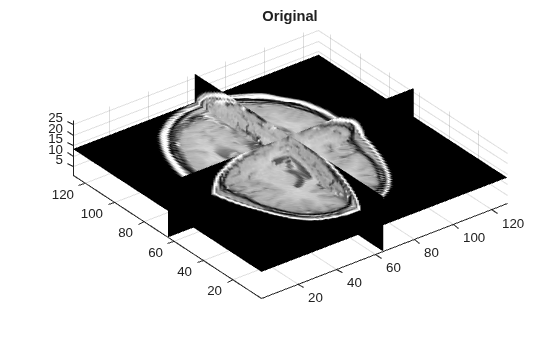

Visualize the volume.
figure; slice(double(mriVolumeOriginal),sizeO(2)/2,sizeO(1)/2,sizeO(3)/2); shading interp, colormap gray; title('Original');
Resize the volume, reducing the size of all dimensions by one-half. This example uses the default interpolation method and antialiasing.
mriVolumeResized = imresize3(mriVolumeOriginal, 0.5); sizeR = size(mriVolumeResized);

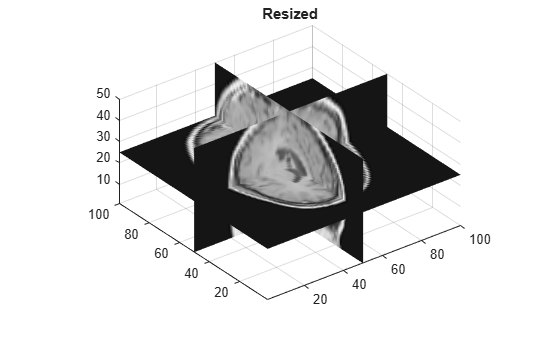

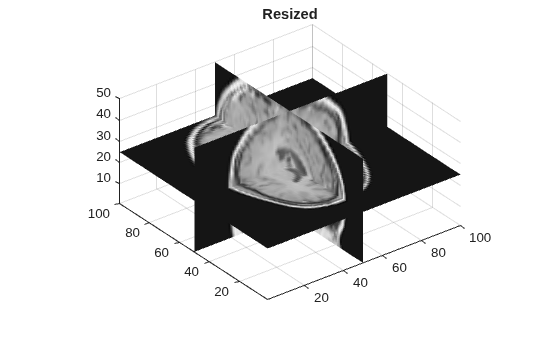

Visualize the resized volume.
figure; slice(double(mriVolumeResized),sizeR(2)/2,sizeR(1)/2,sizeR(3)/2); shading interp, colormap gray; title('Resized');
Input Arguments
V
— Volume to be resized
3-D numeric array | 3-D categorical array
Volume to be resized, specified as a 3-D numeric array or 3-D categorical array.
Data Types: single
| double
| int8
| int16
| int32
| uint8
| uint16
| uint32
| categorical
scale
— Scale factor
numeric scalar
Scale factor, specified as a numeric scalar.
If
scale
is less than 1, then the output image is smaller than the input volume.If
scale
is greater than 1, then the output image is larger than the input volume.
imresize3
applies the scale factor to each dimension
in the volume. To apply a different resize factor to each dimension, use the
Scale
name-value pair argument.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
[numrows numcols numplanes]
— Size of output volume
3-element vector of positive integers
Size of output volume, specified as a 3-element vector of positive integers in the form
[rows columns planes]
. If you specify one numeric
value and the other two values as NaN
s, then
imresize3
computes the other two elements
automatically to preserve the aspect ratio.
Data Types: single
| double
method
— Interpolation method
"nearest"
| "linear"
| "box"
| "triangle"
| "lanczos2"
| "lanczos3"
Interpolation method, specified as one of the values in the following table that identifies a general method or a named interpolation kernel.
Method | Description |
---|---|
| Nearest-neighbor interpolation. Nearest-neighbor interpolation is the only interpolation method supported for categorical images and it is the default method for images of this type. |
| Linear interpolation |
| Cubic interpolation. Cubic interpolation is the default for numeric volumes. Note Cubic interpolation can produce pixel values outside the original range. |
Interpolation Kernel | Description |
"box" | Box-shaped kernel. The box-shaped kernel is the only interpolation kernel supported for categorical images. |
"triangle" | Triangular kernel (equivalent to "linear" ) |
"lanczos2" | Lanczos-2 kernel |
"lanczos3" | Lanczos-3 kernel |
Data Types: char
| string
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: "Antialiasing",false
Antialiasing
— Perform antialiasing when shrinking a volume
true
| false
Perform antialiasing when shrinking a volume, specified as
true
or false
.
If
method
is"nearest"
, then the default value ofAntialiasing
isfalse
.If the interpolation
method
is the"box"
interpolation kernel and the input volume is categorical, then the default value ofAntialiasing
isfalse
.For all other interpolation methods, the default value of
Antialiasing
istrue
.
Data Types: logical
Method
— Interpolation method
"cubic"
(default) | string scalar | character vector
Interpolation method, specified as a string scalar or character vector. For details, see
method
.
Data Types: char
| string
OutputSize
— Size of output volume
3-element vector of positive integers
Size of the output volume, specified as a 3-element vector of positive integers of the form
[rows cols planes]
.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Scale
— Resize scale factor
positive number | 3-element vector of positive numbers
Resize scale factor, specified as a positive number or 3-element
vector of positive numbers. If you specify a scalar, then
imresize3
applies the same scale factor to each
dimension in the volume. If you specify a 3-element vector, then
imresize3
applies a different scale value to
each dimension.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Output Arguments
B
— Resized volume
array
Resized volume, returned as an array of the same data type as the input volume,
V
.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
imresize3
supports the generation of C code (requires MATLAB® Coder™). For more information, see Code Generation for Image Processing.The
method
argument and any name-value arguments must be compile-time constants.Input images of data type
categorical
are not supported.
Thread-Based Environment
Run code in the background using MATLAB® backgroundPool
or accelerate code with Parallel Computing Toolbox™ ThreadPool
.
This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.
Version History
Introduced in R2017aR2024a: Generate C code using MATLAB Coder
imresize3
now supports the generation of
C code (requires MATLAB
Coder).
R2021b: Support for thread-based environments
imresize3
now supports thread-based
environments.
