Point

Point annotation

Since R2024a

Description

A Point object labels points in a volume display. The properties of the object control the appearance and behavior of the point annotation. You can create a Point object interactively from the Viewer toolstrip. For details, see Label Volume Display Using Point and Line Annotations.

Creation

Syntax

p = images.ui.graphics.roi.Point

p = images.ui.graphics.roi.Point(Name=Value)

Description

p = images.ui.graphics.roi.Point creates a Point object with default property values. Use p to query and modify properties of the Point object after you create the object. To display the annotation, add p to the Annotations property of a Viewer object.

p = images.ui.graphics.roi.Point(Name=Value) sets properties of the object using one or more name-value arguments. For example, images.ui.graphics.roi.Point(Position=[35 3 1012]) creates a point annotation at the specified xyz-location.

Properties

Color — Color of point annotation

[0.85 0.325 0.098] (default) | RGB triplet | hexadecimal color code | color name | short color name

Color of the point annotation, specified as an RGB triplet, a hexadecimal color code, a color name, or a short color name. The default color is orange, defined by the RGB triplet [0.85 0.325 0.098].

For a custom color, specify an RGB triplet or a hexadecimal color code.

• An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

• A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and the hexadecimal color codes.

Color Name	Short Name	RGB Triplet	Hexadecimal Color Code	Appearance
"red"	"r"	[1 0 0]	"#FF0000"
"green"	"g"	[0 1 0]	"#00FF00"
"blue"	"b"	[0 0 1]	"#0000FF"
"cyan"	"c"	[0 1 1]	"#00FFFF"
"magenta"	"m"	[1 0 1]	"#FF00FF"
"yellow"	"y"	[1 1 0]	"#FFFF00"
"black"	"k"	[0 0 0]	"#000000"
"white"	"w"	[1 1 1]	"#FFFFFF"
"none"	Not applicable	Not applicable	Not applicable	No color

This table lists the default color palettes for plots in the light and dark themes.

Palette	Palette Colors
"gem" — Light theme default Before R2025a: Most plots use these colors by default.
"glow" — Dark theme default

You can get the RGB triplets and hexadecimal color codes for these palettes using the orderedcolors and rgb2hex functions. For example, get the RGB triplets for the "gem" palette and convert them to hexadecimal color codes.

RGB = orderedcolors("gem");
H = rgb2hex(RGB);

Before R2023b: Get the RGB triplets using RGB = get(groot,"FactoryAxesColorOrder").

Before R2024a: Get the hexadecimal color codes using H = compose("#%02X%02X%02X",round(RGB*255)).

Example: Color="r"

Example: Color="green"

Example: Color=[0 0.4470 0.7410]

Example: Color="#FF8800"

Label — Label for point annotation

string scalar | character vector

Label for the point annotation, specified as a string scalar or character vector. By default, the viewer displays the xyz-position of the point with no units. If you add the Point object to a viewer that has a nondefault value for the ScaleBarUnits property, such as "mm", the label includes the specified units.

To display a custom label, specify the label to display as a string scalar or character vector. To display no label, specify the Label value as "".

Example: Label="Left Ear"

Position — Location of point annotation

[0 0 0] (default) | 3-element numeric vector

Location of the point annotation, specified as a 3-element numeric vector of the form [x y z].

Tag — Tag for point annotation

"" (default) | string scalar

Tag for the point annotation, specified as a string scalar. This property has no effect on the volume display, and the viewer does not use this property. You can use this property to track annotations for app building.

UserData — User data associated with point annotation

any MATLAB^® data

User data associated with the point annotation, specified as any MATLAB data. For example, you can specify a numeric scalar, vector, matrix, array, cell array, string, character array, table, or structure. This property has no effect on the volume display, and the viewer does not use this property. You can use this property to append metadata to the point annotation for app building.

Examples

Create Point Annotation Object

Create a new viewer window by displaying a 10-by-10-by-10 cube.

V = ones(10,10,10);
vol = volshow(V);

Get a handle to the viewer window that contains the volume.

viewer = vol.Parent;

Create a point annotation object with default property values.

point1 = images.ui.graphics.roi.Point

point1 =
  Point with properties:

       Label: [0×0 string]
       Color: [0.8500 0.3250 0.0980]
    Position: [0 0 0]
         Tag: ""
    UserData: []

Create a point annotation with a custom position and label.

point2 = images.ui.graphics.roi.Point(Position=[1 10 10],Label="Point 2")

point2 =
  Point with properties:

       Label: "Point 2"
       Color: [0.8500 0.3250 0.0980]
    Position: [1 10 10]
         Tag: ""
    UserData: []

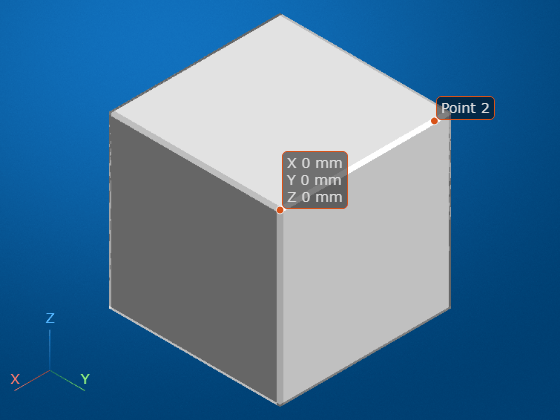

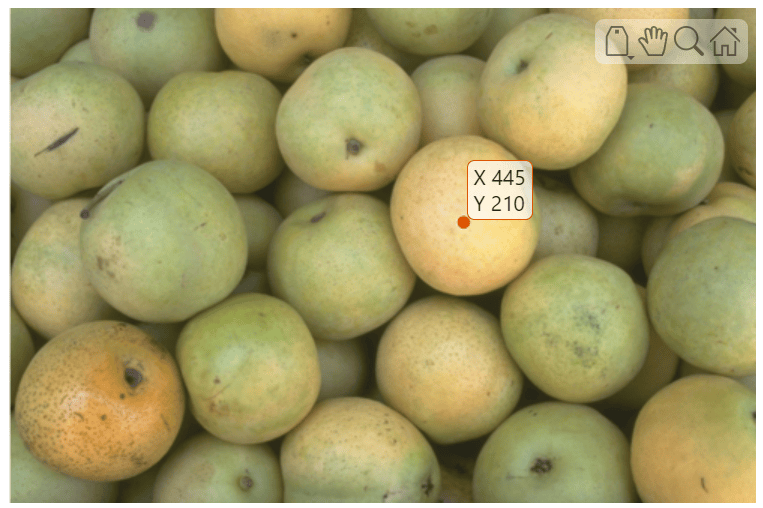

Add the annotations to the viewer.

viewer.Annotations = [point1 point2];

To append spatial units to coordinate labels, update the SpatialUnits property of the viewer. By default, annotation labels do not display a unit.

viewer.SpatialUnits = "mm";

Tips

• The Point object supports these forms of interactivity.

  Goal	Action
  Add annotation	From the Viewer toolstrip, select the point annotation icon . To place the annotation, click the surface of an object in the viewer.
  Move annotation	Drag the vertex of the annotation, not the label. You can reposition the annotation anywhere on the surface of an object in the viewer.
  Edit annotation label	Right-click the vertex of the annotation, not the label. From the context menu, select Edit Label. When the label text highlights, type new text for the label. To finish editing, click outside the label.
  Remove annotation	Right-click the vertex of the annotation, not the label. From the context menu, select Remove annotation to remove the selected annotation. Select Remove all annotations to remove all annotations in the viewer.

• When placing annotations, consider zooming in or snapping to an orthogonal view for greater spatial accuracy. Zoom in using the scroll wheel, or by selecting the zoom icon from the viewer toolstrip. Snap to an orthogonal view by clicking the orientation axes labels in the lower-left corner of the viewer.

Version History

Introduced in R2024a

R2024b: Creation function renamed from images.ui.graphics3d.roi.Point

The function you use to create a new Point object has been renamed from images.ui.graphics3d.roi.Point to images.ui.graphics.roi.Point. There are no plans to remove support for references to the old function name.
