graycomatrix

Create gray-level co-occurrence matrix from image

Description

glcm = graycomatrix(I) creates a gray-level co-occurrence matrix (GLCM) from image I.

graycomatrix creates the GLCM by calculating how often a pixel with gray level (grayscale intensity) value i occurs horizontally adjacent to a pixel with the value j. Each element (i,j) in glcm specifies the number of times that the pixel with value i occurred horizontally adjacent to a pixel with value j.

glcm = graycomatrix(I,Name=Value) adjusts aspects of the GLCM calculation based on the values of name-value arguments. For example, you can create multiple GLCMs for an image by using the Offsets name-value argument.

example

[glcm,SI] = graycomatrix(___) also returns the scaled image, SI, used to calculate the GLCM.

example

Examples

collapse all

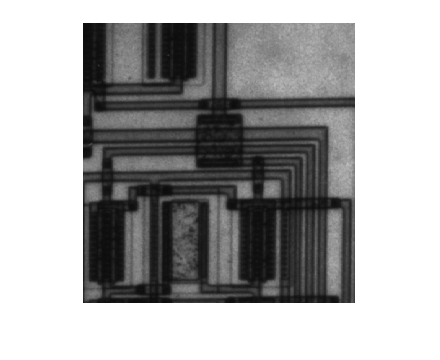

Read a grayscale image into the workspace.

I = imread('circuit.tif');
imshow(I)

Figure contains an axes object. The hidden axes object contains an object of type image.

Calculate the gray-level co-occurrence matrix (GLCM) for the grayscale image. By default, graycomatrix calculates the GLCM based on horizontal proximity of the pixels: [0 1]. That is the pixel next to the pixel of interest on the same row. This example specifies a different offset: two rows apart on the same column.

glcm = graycomatrix(I,'Offset',[2 0])
glcm = 8×8

       14205        2107         126           0           0           0           0           0
        2242       14052        3555         400           0           0           0           0
         191        3579        7341        1505          37           0           0           0
           0         683        1446        7184        1368           0           0           0
           0           7         116        1502       10256        1124           0           0
           0           0           0           2        1153        1435           0           0
           0           0           0           0           0           0           0           0
           0           0           0           0           0           0           0           0

Create a simple 3-by-6 sample array.

I = [ 1 1 5 6 8 8; 2 3 5 7 0 2; 0 2 3 5 6 7]
I = 3×6

     1     1     5     6     8     8
     2     3     5     7     0     2
     0     2     3     5     6     7

Calculate the gray-level co-occurrence matrix (GLCM) and return the scaled image used in the calculation. By specifying empty brackets for the GrayLimits parameter, the example uses the minimum and maximum grayscale values in the input image as limits.

[glcm,SI] = graycomatrix(I,'NumLevels',9,'GrayLimits',[])
glcm = 9×9

     0     0     2     0     0     0     0     0     0
     0     1     0     0     0     1     0     0     0
     0     0     0     2     0     0     0     0     0
     0     0     0     0     0     2     0     0     0
     0     0     0     0     0     0     0     0     0
     0     0     0     0     0     0     2     1     0
     0     0     0     0     0     0     0     1     1
     1     0     0     0     0     0     0     0     0
     0     0     0     0     0     0     0     0     1

SI = 3×6

     2     2     6     7     9     9
     3     4     6     8     1     3
     1     3     4     6     7     8

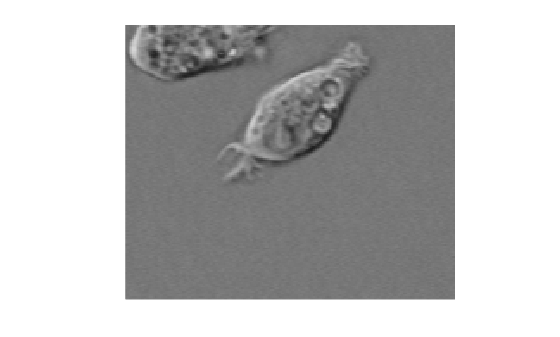

Read a grayscale image into the workspace.

I = imread('cell.tif');
imshow(I)

Figure contains an axes object. The hidden axes object contains an object of type image.

Define four offsets.

offsets = [0 1; -1 1;-1 0;-1 -1];

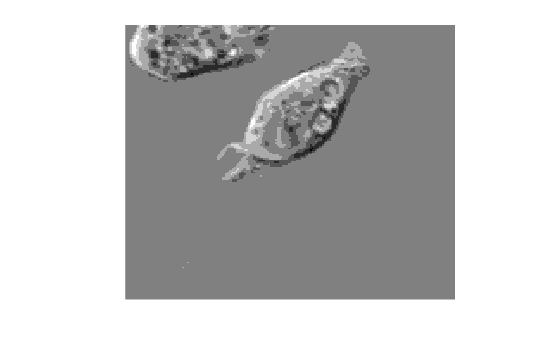

Calculate the GLCMs, returning the scaled image as well. Display the scaled image, performing an additional rescaling of data values to the range [0, 1].

[glcms,SI] = graycomatrix(I,'Offset',offsets);
imshow(rescale(SI))

Figure contains an axes object. The hidden axes object contains an object of type image.

Note how the function returns an array of four GLCMs.

whos
  Name           Size              Bytes  Class     Attributes

  I            159x191             30369  uint8
  SI           159x191            242952  double
  glcms          8x8x4              2048  double
  offsets        4x2                  64  double

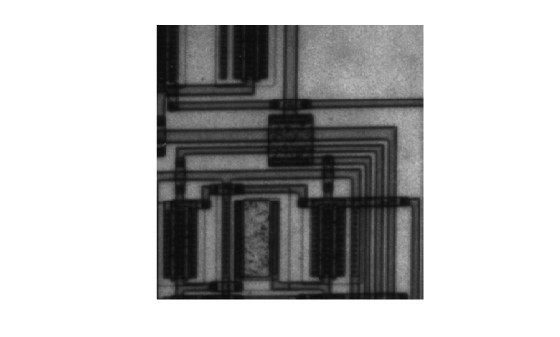

Read a grayscale image into the workspace.

I = imread('circuit.tif');
imshow(I)

Figure contains an axes object. The hidden axes object contains an object of type image.

Calculate the GLCM using the Symmetric option, returning the scaled image as well. The GLCM created when you set Symmetric to true is symmetric across its diagonal, and is equivalent to the GLCM described by Haralick (1973).

[glcm,SI] = graycomatrix(I,'Offset',[2 0],'Symmetric',true);
glcm
glcm = 8×8

       28410        4349         317           0           0           0           0           0
        4349       28104        7134        1083           7           0           0           0
         317        7134       14682        2951         153           0           0           0
           0        1083        2951       14368        2870           2           0           0
           0           7         153        2870       20512        2277           0           0
           0           0           0           2        2277        2870           0           0
           0           0           0           0           0           0           0           0
           0           0           0           0           0           0           0           0

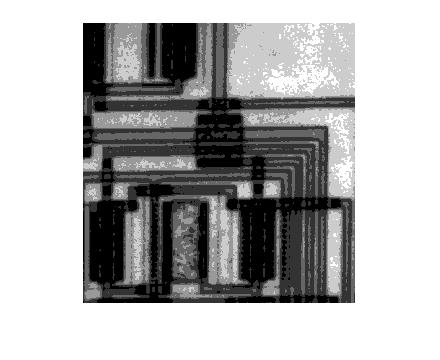

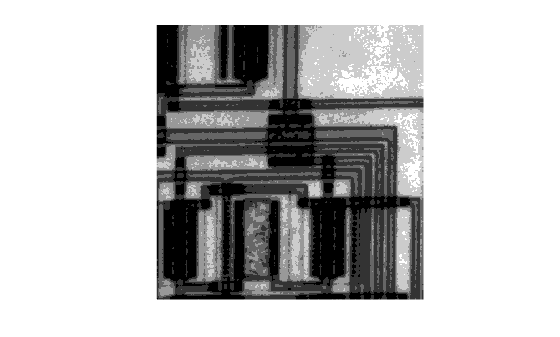

Display the scaled image, performing an additional rescaling of data values to the range [0, 1].

imshow(rescale(SI))

Figure contains an axes object. The hidden axes object contains an object of type image.

Input Arguments

collapse all

Input image, specified as a 2-D numeric matrix or 2-D logical matrix.

Name-Value Arguments

collapse all

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: glcm = graycomatrix(I,Offset=[2 0]) specifies a row offset of 2 and a column offset of 0.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: glcm = graycomatrix(I,"Offset",[2 0]) specifies a row offset of 2 and a column offset of 0.

Range used for scaling input image into gray levels, specified as a 2-element vector of the form [low high]. The range [low high] is divided into NumLevels equal width bins, and grayscale values in a bin get mapped to a single gray level. Grayscale values less than or equal to low are mapped to 1. Grayscale values greater than or equal to high are mapped to NumLevels.

If GrayLimits is set to [], then graycomatrix uses the minimum and maximum grayscale values in I as limits, [min(I(:)) max(I(:))], for example, [0, 1] for data type double and [-32768, 32767] for data type int16.

Number of gray levels, specified as a positive integer. For example, if NumLevels is 8, then graycomatrix scales the values in I so they are integers between 1 and 8. The number of gray levels determines the size of the GLCM. The default number of gray levels is 8 for numeric images and 2 for logical images.

Offset between the pixel of interest and its neighbor, specified as a p-by-2 matrix of integers. Each row in the matrix is a two-element vector, [row_offset col_offset], that specifies the spatial relationship of a pair of pixels. row_offset is the number of rows between the pixel-of-interest and its neighbor. col_offset is the number of columns between the pixel-of-interest and its neighbor.

Because the offset is often expressed as an angle, the following table lists the offset values that specify common angles, given the pixel distance D.

Angle

Offset

0

[0 D]

45

[-D D]

90[-D 0]
135[-D -D]

The figure illustrates four offsets of distance 1 from the pixel of interest. You would specify these offsets using the matrix [0 1; -1 1; -1 0; -1 -1].

Consider ordering of values, specified as true or false. For example, when Symmetric is set to true, graycomatrix counts both 1,2 and 2,1 pairings when calculating the number of times the value 1 is adjacent to the value 2. When Symmetric is set to false, graycomatrix only counts 1,2 or 2,1 pairings, depending on the value of Offset.

Data Types: logical

Output Arguments

collapse all

Gray-level co-occurrence matrix (or matrices), returned as an NumLevels-by-NumLevels-by-p array, where p is the number of offsets in Offset.

Data Types: double

Scaled image used to calculate the GLCM, returned as a numeric matrix of the same size as the input image. The values in SI are between 1 and NumLevels.

Data Types: double

Algorithms

graycomatrix calculates the GLCM from a scaled version of the image. By default, if I is a binary image, then graycomatrix scales the image to two gray levels. If I is a grayscale image, then graycomatrix scales the image to eight gray levels. You can specify the number of gray levels graycomatrix uses to scale the image by using the NumLevels name-value argument. You can adjust the way that graycomatrix scales the values using the GrayLimits name-value argument.

The figure shows how graycomatrix calculates the first three values in a GLCM with the default offset of [0 1]. In the GLCM, element (1, 1) contains the value 1 because there is only one instance in the input image where two horizontally adjacent pixels have the values 1 and 1, respectively. Element (1, 2) in the GLCM contains the value 2 because there are two instances where two horizontally adjacent pixels have the values 1 and 2. Element (1, 3) in the GLCM has the value 0 because there are no instances of two horizontally adjacent pixels with the values 1 and 3. graycomatrix continues processing the input image, scanning the image for other pixel pairs (i, j) and recording the counts in the corresponding elements of the GLCM.

graycomatrix ignores pixel pairs if either of the pixels contains a NaN, replaces positive Infs with the value NumLevels, and replaces negative Infs with the value 1. graycomatrix ignores border pixels, if the corresponding neighbor pixel falls outside the image boundaries.

The GLCM created when Symmetric is set to true is symmetric across its diagonal, and is equivalent to the GLCM described by Haralick (1973). The GLCM produced by the following syntax, with Symmetric set to true

graycomatrix(I,Offset=[0 1],Symmetric=true)

is equivalent to the sum of the two GLCMs produced by the following statements where Symmetric is set to false.

graycomatrix(I,Offset=[0 1],Symmetric=false)
graycomatrix(I,Offset=[0 -1],Symmetric=false)

References

[1] Haralick, R. M., K. Shanmugan, and I. Dinstein, "Textural Features for Image Classification", IEEE Transactions on Systems, Man, and Cybernetics, Vol. SMC-3, 1973, pp. 610-621.

[2] Haralick, R. M., and L. G. Shapiro. Computer and Robot Vision: Vol. 1, Addison-Wesley, 1992, p. 459.

Version History

Introduced before R2006a
