estimateAbundanceLS

Estimate abundance maps

Since R2020a

    Description

    example

    abundanceMap = estimateAbundanceLS(inputData,endmembers) estimates the abundance maps of the endmembers in a hyperspectral data cube by using the least-squares method.

    A hyperspectral data cube can contain both pure and mixed pixels. Pure pixels exhibit the spectral characteristics of a single class, while the mixed pixels exhibit the spectral characteristics of multiple classes. The spectral signatures of the pure pixels comprise the endmembers that identify the unique classes present in a hyperspectral data cube. The spectral signature of mixed pixels can be a linear combination of two or more endmember spectra. The abundance map identifies the proportion of each endmember present in the spectra of each pixel. For a hyperspectral data cube of spatial dimensions M-by-N containing P endmembers, there exist P abundance maps, each of size M-by-N.

    The abundance map estimation process is known as spectral unmixing, which is the decomposition of the spectra of each pixel into a given set of endmember spectra.

    example

    abundanceMap = estimateAbundanceLS(___,'Method',estMethod) specifies the least-squares method to use for estimating the abundance maps.

    Note

    This function requires the Image Processing Toolbox™ Hyperspectral Imaging Library. You can install the Image Processing Toolbox Hyperspectral Imaging Library from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

    The Image Processing Toolbox Hyperspectral Imaging Library requires desktop MATLAB®, as MATLAB Online™ or MATLAB Mobile™ do not support the library.

    Examples

    collapse all

    Load a MAT-file containing a hyperspectral data cube and endmember signatures into the workspace. Extract the data cube and endmember signatures.

    data = load('indian_pines.mat');
    dataCube = data.indian_pines;
    endmembers = data.signatures;

    Plot the endmember spectra.

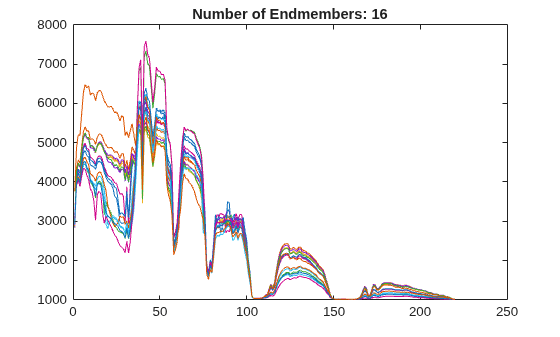

    plot(endmembers)
    numEndMem = num2str(size(endmembers,2));
    title(['Number of Endmembers:' numEndMem])

    Estimate the abundance maps for the endmember spectra.

    abundanceMap = estimateAbundanceLS(dataCube,endmembers);

    Display the abundance map for each endmember spectra. The order of the abundance maps is the same as the order of the endmembers in the endmembers input.

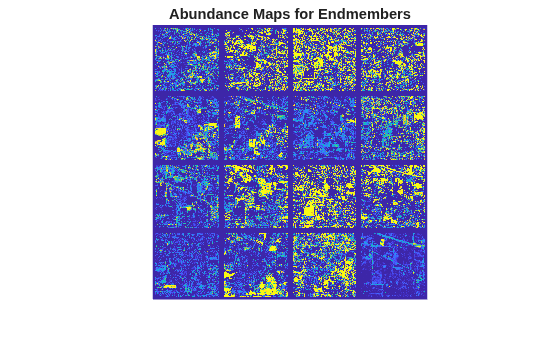

    montage(abundanceMap,'Size',[4 4],'BorderSize',[10 10]);
    colormap default
    title('Abundance Maps for Endmembers');

    Read hyperspectral data into the workspace.

    hcube = hypercube('jasperRidge2_R198.hdr');

    Extract six endmembers from the hyperspectral data.

    endmembers = nfindr(hcube,6);

    Estimate the abundance map for each endmember using the fully constrained least squares method.

    abundanceMap = estimateAbundanceLS(hcube.DataCube,endmembers,'Method','fcls');

    Estimate an RGB image of the data cube using the colorize function.

    rgbImg = colorize(hcube,'Method','RGB');

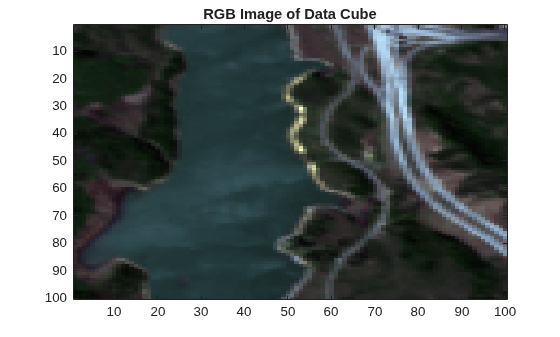

    Display the RGB image.

    figure
    imagesc(rgbImg)
    title('RGB Image of Data Cube')

    Display the abundance maps for the endmember spectra. The order of the abundance maps is the same as the order of the endmembers in the endmembers input argument.

    figure

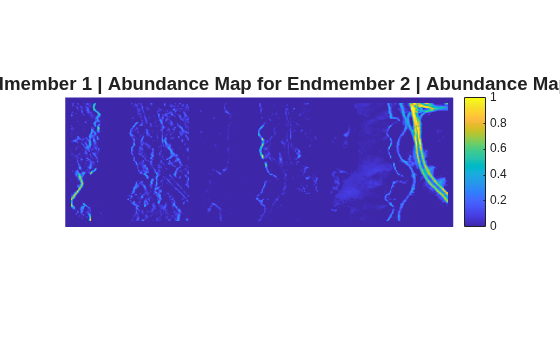

    montage(abundanceMap(:,:,1:3),'Size',[1 3],'BorderSize',[20 20])
    colormap default
    colorbar
    title('Abundance Map for Endmember 1 | Abundance Map for Endmember 2 | Abundance Map for Endmember 3','FontSize',14)

    figure

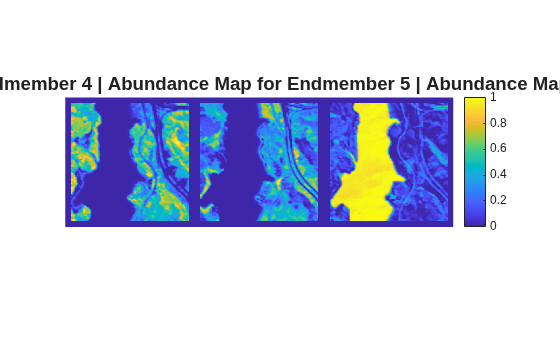

    montage(abundanceMap(:,:,4:6),'Size',[1 3],'BorderSize',[20 20])
    colormap default
    colorbar
    title('Abundance Map for Endmember 4 | Abundance Map for Endmember 5 | Abundance Map for Endmember 6','FontSize',14)

    Input Arguments

    collapse all

    Input hyperspectral data, specified as a 3-D numeric array that represent the hyperspectral data cube of size M-by-N-by-C or hypercube object. If the input is a hypercube object, the function reads the data cube stored in the DataCube property of the object. The hyperspectral data cube must be real and non-sparse.

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

    Endmember signatures, specified as a matrix of size C-by-P. where C is the number of spectral bands in the input hyperspectral data and P is the number of endmember spectral signatures.

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

    Method for estimating abundance maps, specified as one of these values.

    • 'ucls' — Unconstrained least-squares method.

    • 'fcls' — Fully constrained least-squares method.

    • 'ncls' — Nonnegative constrained least-squares method.

    Example: estimateAbundanceLS(inputData,endmembers,'Method','ncls')

    Data Types: char | string

    Output Arguments

    collapse all

    Abundance maps, returned as a 3-D numeric array of size M-by-N-by-P.

    Data Types: double

    References

    [1] Keshava, N., and J.F. Mustard. “Spectral Unmixing.” IEEE Signal Processing Magazine 19, no. 1 (January 2002): 44–57. https://doi.org/10.1109/79.974727.

    [2] Kay, Steven M. Fundamentals of Statistical Signal Processing. Prentice Hall Signal Processing Series. Englewood Cliffs, N.J: Prentice-Hall PTR, 1993.

    Version History

    Introduced in R2020a
