bigimageshow
Display 2-D blockedImage
object
Description
Note
imageshow
is
recommended over bigimageshow
because it provides faster performance,
improved rendering quality, and a simpler interface. (since R2024b)
A bigimageshow
object displays data from a
blockedImage
object. The bigimageshow
object
progressively loads image data based on image extents and screen resolution.
Creation
Description
bigimageshow(
displays the 2-D blocked
image bim
)bim
.
For categorical data, bigimageshow
sets the axis colormap to
parula
. For numeric data, gray
is the default
colormap.
b = bigimageshow(___)
returns the
bigimageshow
object b
. Use b
to
modify the display settings after you display the blocked image.
sets initial display properties using name-value
arguments. You can specify multiple name-value arguments.b
= bigimageshow(___,Name=Value
)
For example, bigimageshow(bim,GridVisible="on",GridLineStyle=":")
displays the blocked image, bim
, and overlays dotted grid lines.
Input Arguments
bim
— Blocked image
blockedImage
object
Blocked image, specified as a blockedImage
object.
ax
— Parent axes
axes object
Parent axes of bigimageshow
object, specified as an axes
object.
Properties
Parent
— Parent axes of bigimageshow
object
gca
(default) | axes
object
Parent axes of the bigimageshow
object, specified as an
axes
object. If you do not specify a parent,
bigimageshow
uses the handle to the current figure,
gca
. If a figure does not exist, bigimageshow
creates a new figure.
CData
— 2-D blockedImage
object to display
blockedImage
object
2-D blockedImage
object to display, specified as a blockedImage
object.
CDataMapping
— Color data mapping method
"direct"
(default) | "scaled"
Color data mapping method, specified as "direct"
or
"scaled"
. Use this property to control the mapping of color data
values in CData
into the colormap. CData
must be
a vector or a matrix defining indexed colors. This property has no effect if
CData
is a 3-D array defining RGB colors.
The methods have these effects:
"direct"
— Interpret the values as indices into the current colormap. Values with a decimal portion are fixed to the nearest lower integer.If the values are of type
double
orsingle
, values of1
or less map to the first color in the colormap. Values equal to or greater than the length of the colormap map to the last color in the colormap.If the values are of type
uint8
,uint16
,uint32
,uint64
,int8
,int16
,int32
, orint64
, values of0
or less map to the first color in the colormap. Values equal to or greater than the length of the colormap map to the last color in the colormap (or up to the range limits of the type).If the values are of type
logical
, values of0
map to the first color in the colormap and values of1
map to the second color in the colormap.
"scaled"
— Scale the values to range between the minimum and maximum color limits. TheCLim
property of the axes contains the color limits.
AlphaData
— Transparency data
1
(default) | numeric scalar |
blockedImage
object
Transparency data, specified in one of these forms:
Numeric scalar — Use a consistent transparency across the entire image.
2-D
blockedImage
object — Transparency data must have the same rows and columns extent as theCData
2-DblockedImage
object. The blocked image can have multiple resolution levels, in which case,bigimageshow
selects the level closest to the currentResolutionLevel
for display.
The AlphaDataMapping
property controls how MATLAB® interprets the alpha data transparency values.
Example: 0.5
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| logical
AlphaDataMapping
— Interpretation of AlphaData
values
"none"
(default) | "scaled"
| "direct"
Interpretation of AlphaData
values, specified as one of these
values:
"none"
— Interpret the values as transparency values. A value of 1 or greater is completely opaque, a value of 0 or less is completely transparent, and a value between 0 and 1 is semitransparent."scaled"
— Map the values into the figure’s alphamap. The minimum and maximum alpha limits of the axes determine the alpha data values that map to the first and last elements in the alphamap, respectively. For example, if the alpha limits are[3 5]
, alpha data values less than or equal to3
map to the first element in the alphamap. Alpha data values greater than or equal to5
map to the last element in the alphamap. TheALim
property of the axes contains the alpha limits. TheAlphamap
property of the figure contains the alphamap."direct"
— Interpret the values as indices into the figure’s alphamap. Values with a decimal portion are fixed to the nearest lower integer:If the values are of type
double
orsingle
, values of 1 or less map to the first element in the alphamap. Values equal to or greater than the length of the alphamap map to the last element in the alphamap.If the values are of type integer, then values of 0 or less map to the first element in the alphamap. Values equal to or greater than the length of the alphamap map to the last element in the alphamap (or up to the range limits of the type). The integer types are
uint8
,uint16
,uint32
,uint64
,int8
,int16
,int32
, andint64
.If the values are of type
logical
, values of0
map to the first element in the alphamap and values of1
map to the second element in the alphamap.
ResolutionLevel
— Resolution level
positive integer | "fine"
| "coarse"
Resolution level of the 2-D blockedImage
object to display,
specified as a positive integer that identifies a resolution level of the 2-D
blockedImage
object in the CData
property.
Resolution level can also be specified as "fine"
or
"coarse"
corresponding to these two limits. The default value is
computed based on available screen space and resolution.
ResolutionLevelMode
— Selection mode for resolution level
"auto"
(default) | "manual"
Selection mode for resolution level, specified as one of these values:
"auto"
— Automatically select resolution level based on parent axes and available screen size."manual"
— Manually specify resolution level by setting theResolutionLevel
property.
GridVisible
— Grid visibility
"off"
(default) | "on"
Grid visibility, specified as "off"
or "on"
.
bigimageshow
spaces the grid in world units to include as many
pixels as specified by CData
.BlockSize
at the
current GridResolutionLevel
.
GridLevel
— Resolution level of blocked image at which to show grid
positive integer | "fine"
| "coarse"
Resolution level of blocked image at which to show grid, specified as one of these values:
positive integer — Display the grid specified as a numeric scalar that identifies a resolution level of the 2-D
blockedImage
object inCData
property. Value is between 1 and the value of theNumLevels
property of the blocked image in thebigimageshow
CData
property."fine"
— Display the grid at the finest resolution level."coarse"
— Display the grid at the coarsest resolution level.
By default, GridLevel
has the same value as
ResolutionLevel
property.
GridLevelMode
— Selection mode for grid level
"auto"
(default) | "manual"
Selection mode for grid level, specified as one of these values:
"auto"
— Select the grid resolution level to match the image data resolution levelResolutionLevel
."manual"
— Manually specify the grid resolution level by setting theGridLevel
property.
GridColor
— Grid line color
"blue"
(default) | RGB triplet | hexadecimal color code | color name | short color name
Grid line color, specified as an RGB triplet, a hexadecimal color code, a color
name, or a short color name. To display the grid lines, set the
GridVisible
property to "on"
.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" |
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.
RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|
[0 0.4470 0.7410] | "#0072BD" | |
[0.8500 0.3250 0.0980] | "#D95319" | |
[0.9290 0.6940 0.1250] | "#EDB120" | |
[0.4940 0.1840 0.5560] | "#7E2F8E" | |
[0.4660 0.6740 0.1880] | "#77AC30" | |
[0.3010 0.7450 0.9330] | "#4DBEEE" | |
[0.6350 0.0780 0.1840] | "#A2142F" |
Example: GridColor = [1 0 0]
Example: GridColor = "r"
Example: GridColor = "red"
Example: GridColor = "#FF0000"
GridAlpha
— Grid line transparency
0.8
(default) | number in the range [0, 1]
Grid line transparency, specified as a number in the range [0, 1]. A value of
1
means completely opaque and a value of 0
means
completely transparent. To display the grid lines, set the
GridVisible
property to "on"
.
GridLineWidth
— Grid line width
1
(default) | positive number
Grid line width, specified as a positive number, measured in points. To display the
grid lines, set the GridVisible
property to
"on"
.
GridLineStyle
— Grid line style
"-"
(default) | "--"
| ":"
| "-."
Grid line style, specified as one of the line styles in this table.
Line Style | Description | Resulting Line |
---|---|---|
"-" | Solid line |
|
"--" | Dashed line |
|
":" | Dotted line |
|
"-." | Dash-dot line |
|
To display the grid lines, set the GridVisible
property to "on"
.
Interpolation
— Interpolation method
"linear"
(default) | "nearest"
Interpolation method used to resample pixels, specified as
"linear"
for bilinear interpolation, or
"nearest"
for nearest neighbor interpolation.
For categorical data, bigimageshow
supports only nearest neighbor
interpolation. For logical data, the default value is
"nearest"
.
On Windows systems with a software version of OpenGL, the only supported
interpolation option is "nearest"
.
Visible
— Control image visibility
"on"
(default) | "off"
Control image visibility, specified as one of these values:
"on"
— Display thebigimageshow
object."off"
— Hide the object without deleting it. You still can access the properties of an invisible object.
Object Functions
showmask | Show mask overlay at specified inclusion threshold |
hidemask | Hide mask overlay in bigimageshow object |
showlabels | Display label overlay on bigimageshow object |
hidelabels | Hide label overlay on bigimageshow object |
Examples

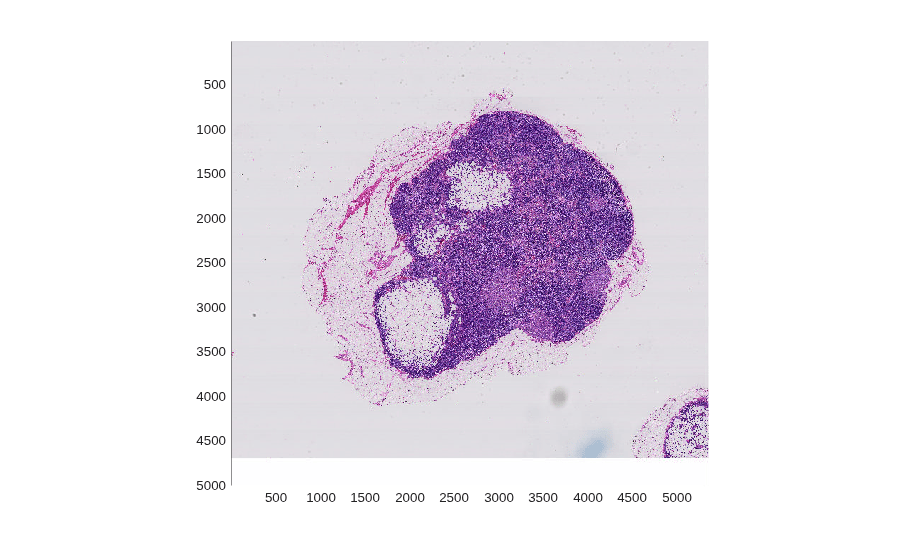

Visualize 2-D Blocked Image at Different Resolution Levels
This example uses a modified version of a training image of a lymph node containing tumor tissue (tumor_091.tif) from the CAMELYON16 data set. The modified image has three coarse resolution levels and has been adjusted to enforce a consistent aspect ratio and to register features at each level.
Create a blocked image from the sample image.
bim = blockedImage('tumor_091R.tif');

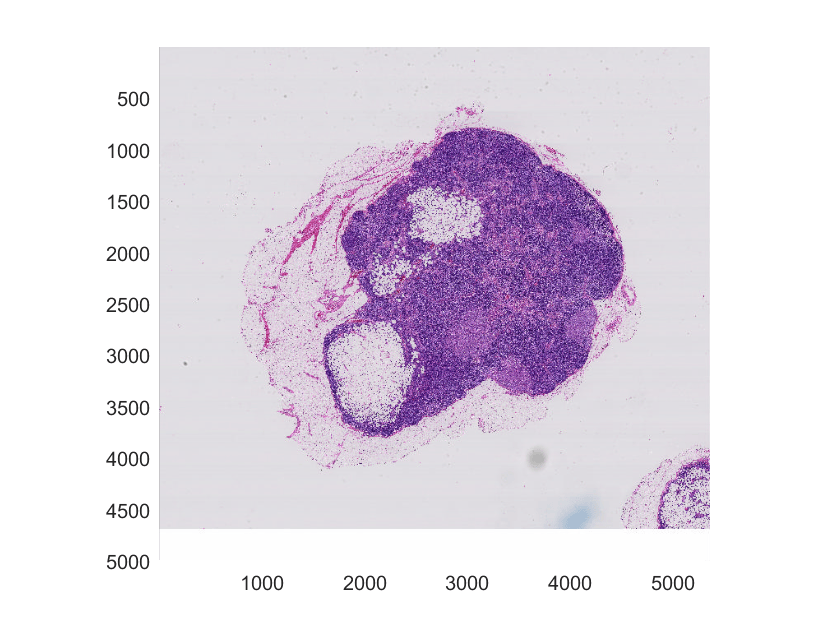

Display the blocked image.
h = bigimageshow(bim);

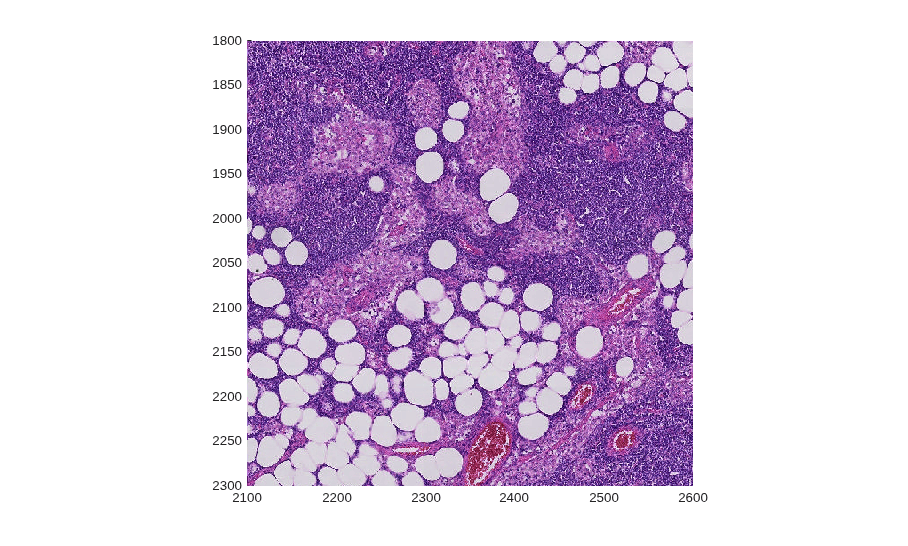

Zoom in on a region in the image.
xlim([2100, 2600]) ylim([1800 2300])
To view the image at the three resolution levels, specify a new value for the ResolutionLevel
property. As you view each resolution level, note that the axis limits remain the same, but bigimageshow
ensures that the images from other levels are correctly sized. When you set ResolutionLevel
, the ResolutionLevelMode
value changes to 'manual'
automatically.
h.ResolutionLevel = 3; pause(1); h.ResolutionLevel = 2; pause(1); h.ResolutionLevel = 1; pause(1);

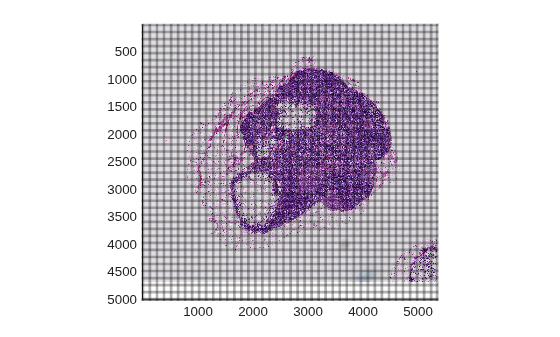

Visualize Blocked Image with Grid Lines Indicating Blocks
Create a blocked image from the sample image tumor_091R.tif
. This sample image is a training image of a lymph node containing tumor tissue from the CAMELYON16 data set. The image has been modified to have three coarse resolution levels, and has been adjusted to enforce a consistent aspect ratio and to register features at each level.
bim = blockedImage('tumor_091R.tif','BlockSize', [128 128]);
Display the blocked image with bigimageshow
. Specify that you want the grid to be visible at the finest resolution level (level 1). Also specify the color, width, and transparency of the grid lines.
h = bigimageshow(bim,... 'GridVisible','on','GridLevel',1,... 'GridLineWidth', 2,'GridColor','k','GridAlpha',0.3);

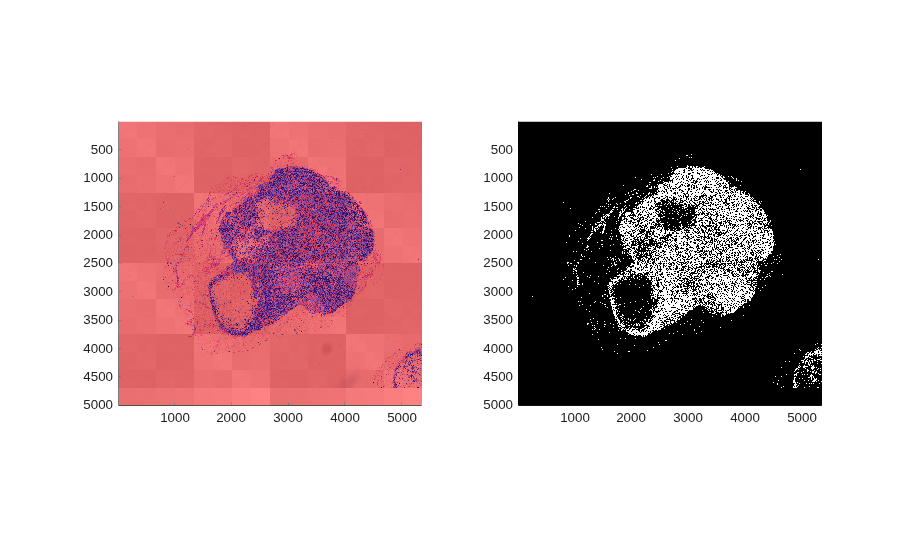

Validate Mask using Alpha Layer
Create a blocked image from the sample image tumor_091R.tif
. This sample image is a training image of a lymph node containing tumor tissue from the CAMELYON16 data set. The image has been modified to have three coarse resolution levels, and has been adjusted to enforce a consistent aspect ratio and to register features at each level.
bim = blockedImage('tumor_091R.tif');
Create a coarse mask using the blockedImage
apply
object function.
bmask = apply(bim, @(bs)im2gray(bs.Data)<120, "Level", 3);
Overlay the mask as an alpha layer.
ha1 = subplot(1,2,1); h = bigimageshow(bim); h.AlphaData = bmask; h.AlphaDataMapping = 'direct'; alphamap([0.4 1]) h.Parent.Color = 'r';
Independently visualize the mask.
ha2 = subplot(1,2,2);
bigimageshow(bmask);
linkaxes([ha1, ha2]);
%
Improve Mask Creation Using InclusionThreshold and BlockSize
Create a blocked image from the sample image tumor_091R.tif
. This sample image is a training image of a lymph node containing tumor tissue from the CAMELYON16 data set. The image has been modified to have three coarse resolution levels, and has been adjusted to enforce a consistent aspect ratio and to register features at each level.
bim = blockedImage("tumor_091R.tif");
Create a mask using the coarsest resolution level of the blocked image.
bmask = apply(bim,@(im)im2gray(im.Data)<120,Level=3);

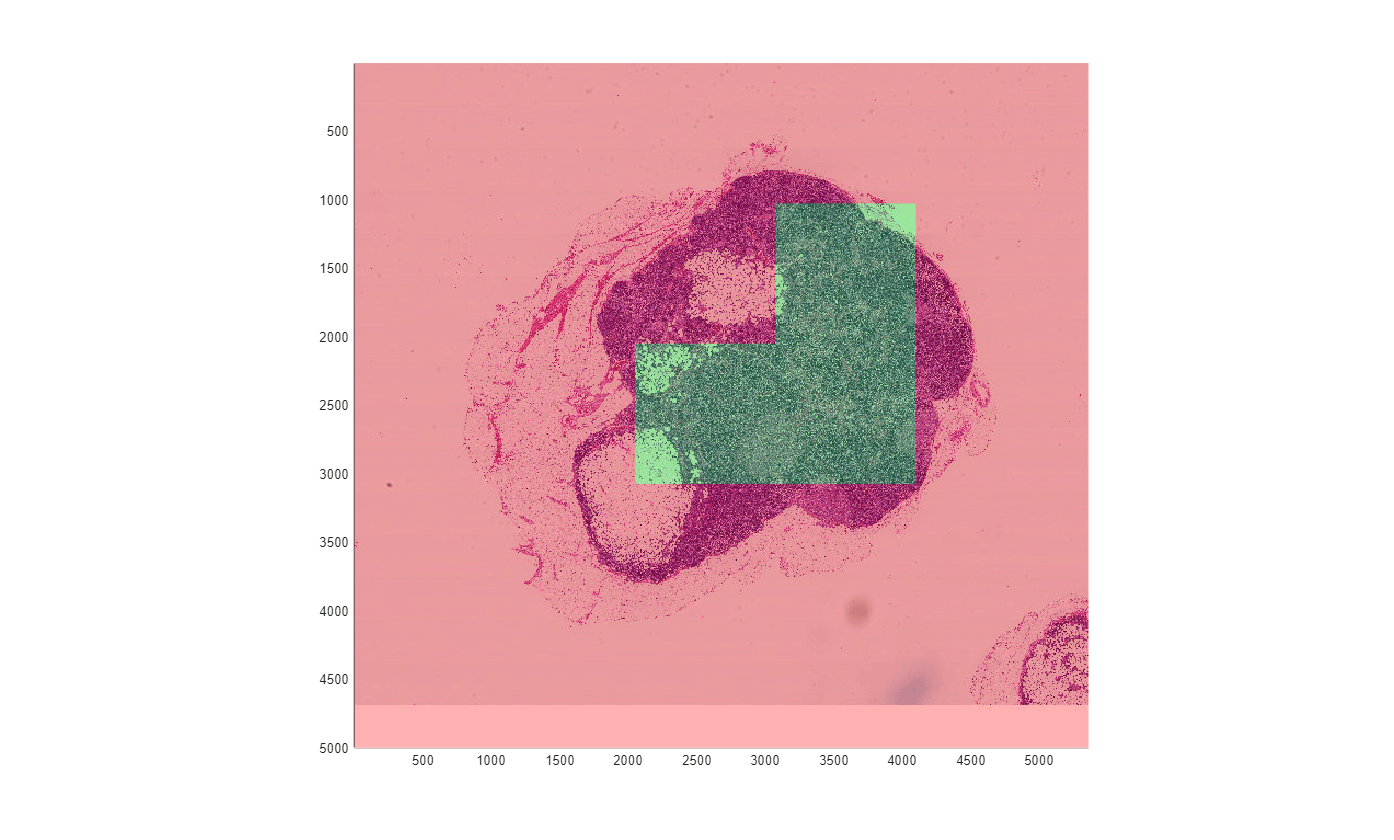

Display the blocked image with the mask.
h = bigimageshow(bim); showmask(h,bmask);

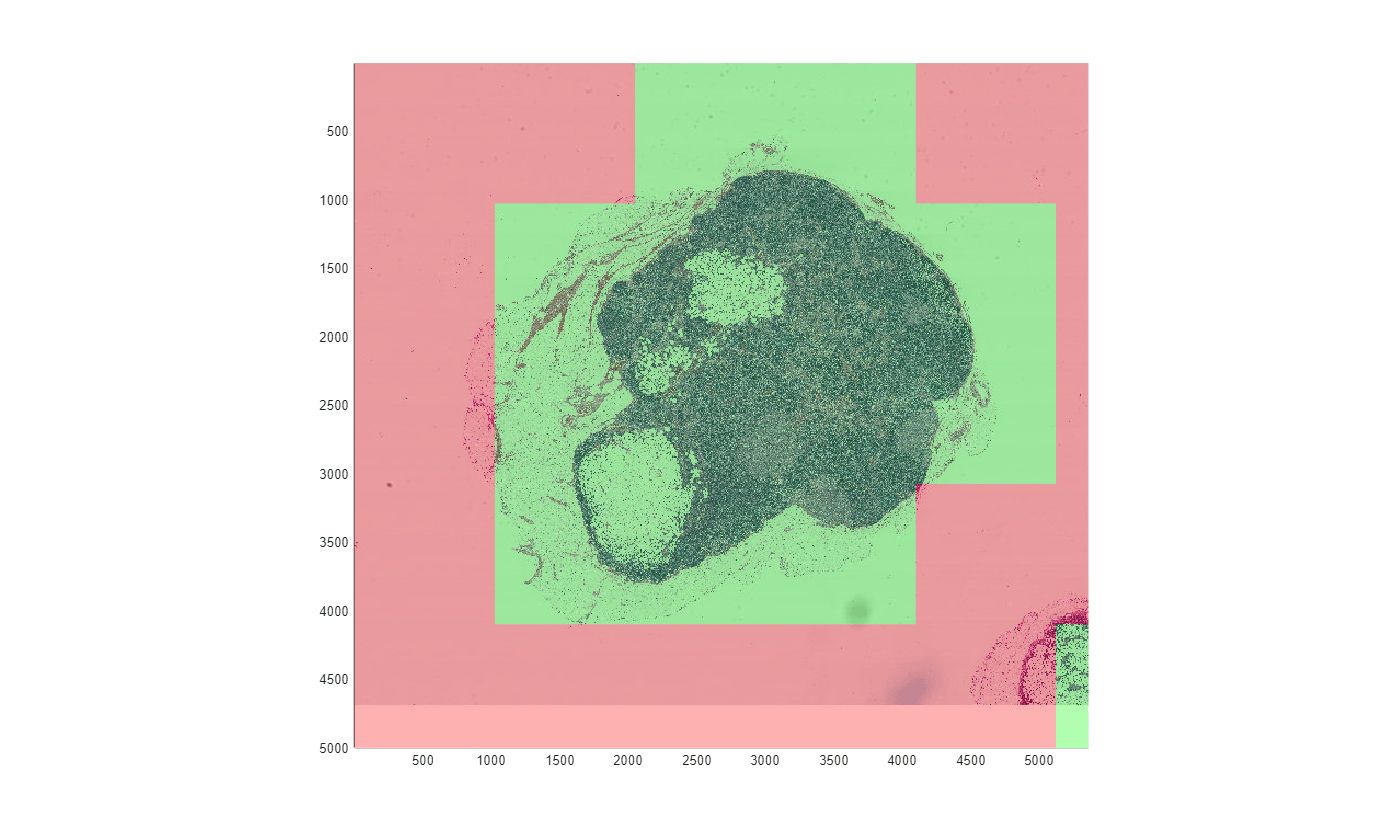

Experiment with different inclusion thresholds to get a better fit of the mask over the stained area. By default, the inclusion threshold is 0.5.
showmask(h,bmask,InclusionThreshold=0.2); showmask(h,bmask,InclusionThreshold=0); showmask(h,bmask,InclusionThreshold=0.06);

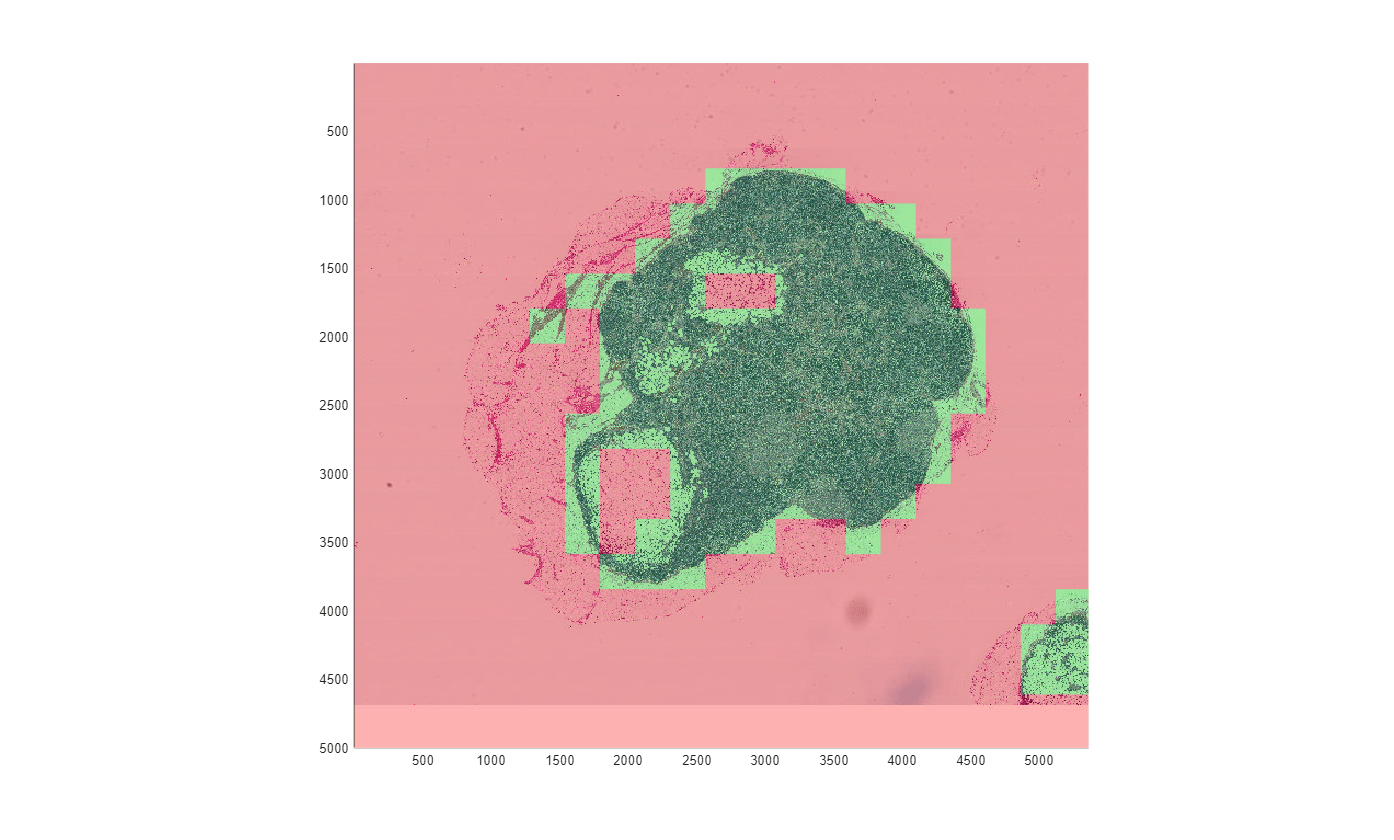

Experiment with different block sizes, in conjunction with different inclusion thresholds, to get a better fit of the mask over the stained area. By default, the block size for the coarsest resolution level is 625-by-670.
showmask(h,bmask,InclusionThreshold=0.06,BlockSize=[256 256]); showmask(h,bmask,InclusionThreshold=0.14,BlockSize=[256 256]);

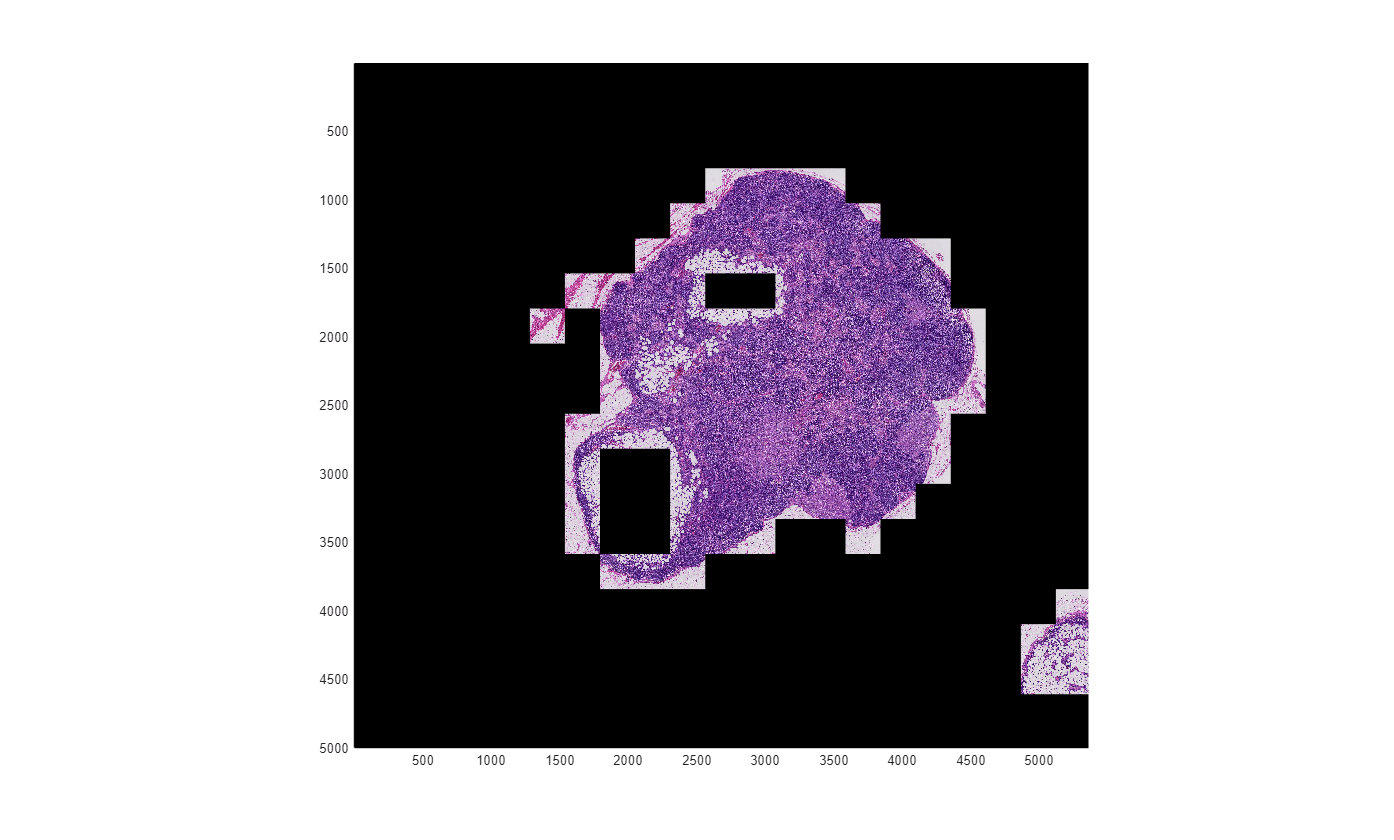

When you are satisfied with the mask, use it to segment the lymph node.
bls = selectBlockLocations(bim,BlockSize=[256 256], ... Mask=bmask,InclusionThreshold=0.14); bregion = apply(bim, @(bs)bs.Data,BlockLocationSet=bls); figure bigimageshow(bregion); %
Display Blocked Image with Label Overlay
Create a blocked image from the sample image tumor_091R.tif
. This sample image is a training image of a lymph node containing tumor tissue from the CAMELYON16 data set. The image has been modified to have three coarse resolution levels, and has been adjusted to enforce a consistent aspect ratio and to register features at each level.
bim = blockedImage("tumor_091R.tif");
Create a label image at a coarse resolution level.
First get a single-resolution image. By default, gather
gets data from the coarsest resolution level.
cim = gather(bim);
Convert the image to grayscale. Use multithresh
to calculate three threshold values to convert the image into a four-level image.
cgim = im2gray(cim); numClasses = 4; thresh = multithresh(cgim,numClasses-1);

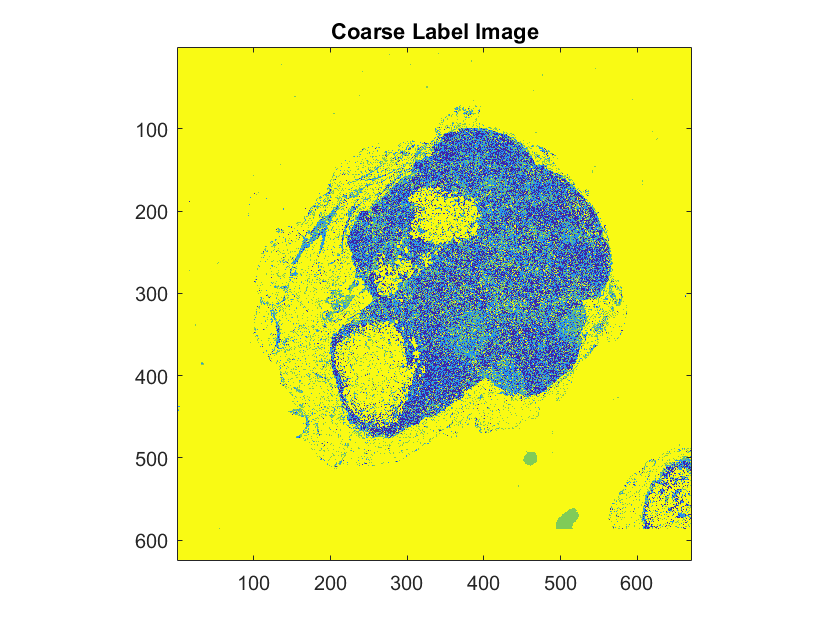

Segment the image into four regions using imquantize
, specifying the threshold levels returned by multithresh
.
labels = imquantize(cgim,thresh); imagesc(labels) axis square title("Coarse Label Image")
Convert the labels
image back to a blockedImage
object, using the same spatial referencing as the original image at the coarsest resolution level.
blabels = blockedImage(labels,WorldStart=bim.WorldStart(3,1:2),...
WorldEnd=bim.WorldEnd(3,1:2));
Display the original blocked image.
figure hB = bigimageshow(bim);

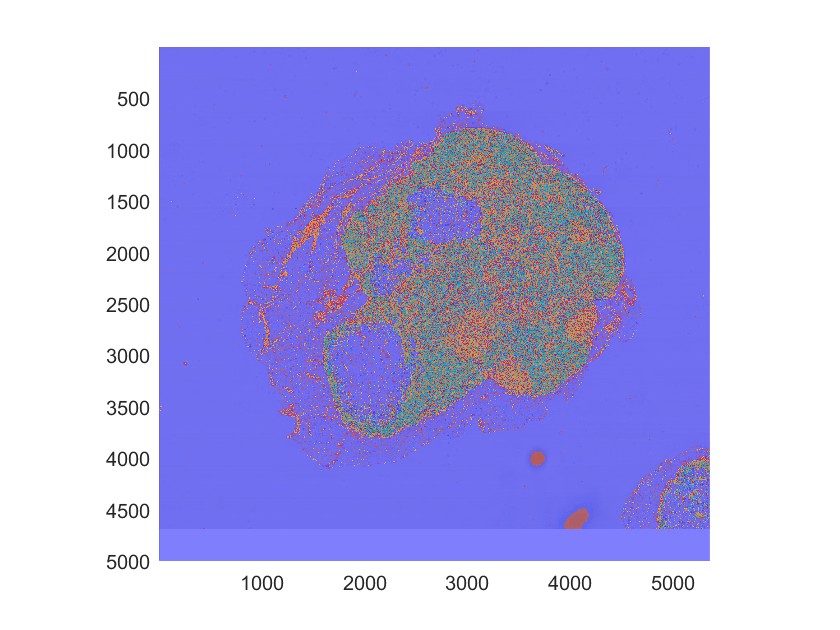

Overlay the labels
image on the original blocked image.
showlabels(hB,blabels)
More About
Events
To receive notification from the
bigimageshow
object when certain events happen, set up
listeners for these events. You can specify a callback function
that executes when one of these events occurs. When the bigimageshow
object
notifies your application through the listener, it returns data specific to the event. Look
at the event class for the specific event to see what is returned.
Event Name | Trigger | Event Data | Event Attributes |
---|---|---|---|
DataReadStarted (since R2023a) | The | event.EventData |
|
DataReadFinished (since R2023a) | The | event.EventData |
|
For example, this code adds listeners that change the title of the parent figure. The
title displays "Reading image data"
while you zoom. The title displays
"Resolution level: "
with the current resolution level after you
complete zooming.
bim = blockedImage("tumor_091R.tif"); h = bigimageshow(bim); listenerStarted = addlistener(h,"DataReadStarted", ... @(h,~)title("Reading image data",Parent=h.Parent)); listenerFinished = addlistener(h,"DataReadFinished", ... @(h,~)title("Resolution level: "+num2str(h.ResolutionLevel),Parent=h.Parent));
References
[1] Bejnordi, Babak Ehteshami, Mitko Veta, Paul Johannes van Diest, Bram van Ginneken, Nico Karssemeijer, Geert Litjens, Jeroen A. W. M. van der Laak, et al. “Diagnostic Assessment of Deep Learning Algorithms for Detection of Lymph Node Metastases in Women With Breast Cancer.” JAMA 318, no. 22 (December 12, 2017): 2199–2210. https://doi.org/10.1001/jama.2017.14585.
[2] Grand Challenge. https://camelyon17.grand-challenge.org/Data/.
Version History
Introduced in R2019bR2023a: Support for events
The bigimageshow
function now supports
DataReadStarted
and DataReadFinished
events.
R2021a: Support for blocked images
The bigimageshow
function now accepts blockedImage
objects as input for display.
See Also
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
