uvmfbuild

Generate DPI components and YAML file for UVMF from Simulink model

Since R2025a

Add-On Required: This feature requires the ASIC Testbench for HDL Verifier add-on.

Syntax

uvmfbuild(Predictor=predictorSubsystem,Sequence=sequenceSubsystem)

Description

uvmfbuild(Predictor=predictorSubsystem,Sequence=sequenceSubsystem) generates UVM sequence and predictor components and a YAML file that is UVM framework (UVMF) compliant from a Simulink^® model.

Use the generated YAML file and UVM components with Siemens^® UVMF tools for testbench generation and RTL validation.

Examples

Generate UVM and YAML File for Adder

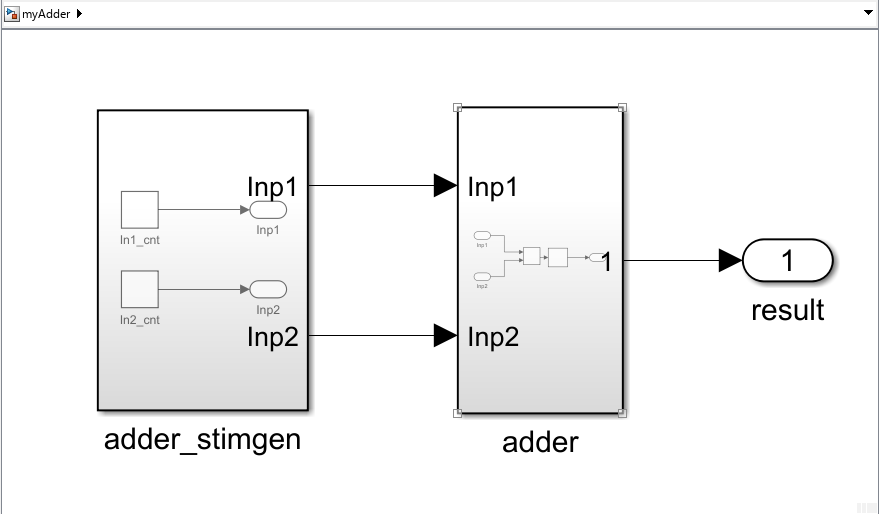

Generate the following artifacts from the myAdder model:

• A UVM sequence component for the adder_stimgen subsystem

• A UVM predictor component for the adder subsystem

• A YAML file for UVM Framework

open_system("myAdder");
uvmfbuild(Predictor='myAdder/adder',Sequence='myAdder/adder_stimgen');

### Generating DPI components for all the specified subsystems
### Searching for referenced models in model 'adder'.
### Total of 1 models to build.
### Starting build procedure for model: adder
### Generating code and artifacts to 'Model specific' folder structure
### Generating code into build folder: /tmp/Bdoc25a_2864802_2707279/tpef6f76ba/hdlverifier-ex92377061/uvmfbuild/adder_build
### Invoking Target Language Compiler on adder.rtw
### Using System Target File: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/hdlverifier/dpigenerator/rtw/systemverilog_dpi_grt.tlc
### Loading TLC function libraries
.......
### Initial pass through model to cache user defined code
.
### Caching model source code
........
### Generating TLC interface API.
...
### Writing source file adder_capi.c
.
### Writing header file adder_capi.h
...............................
### Writing header file adder_types.h
### Writing header file adder.h
.
### Writing header file rtwtypes.h
### Writing header file builtin_typeid_types.h
### Writing header file multiword_types.h
### Writing source file adder.c
### Writing header file adder_private.h
### Writing header file rtmodel.h
.
### TLC code generation complete (took 2.334s).
### Starting SystemVerilog DPI Component Generation
### Saving binary information cache.
### Generating DPI H Wrapper adder_dpi.h
### Generating DPI-C Wrapper adder_dpi.c
### Generating makefiles for: adder_dpi
### Using toolchain: GNU gcc/g++ | gmake (64-bit Linux)
### Creating '/tmp/Bdoc25a_2864802_2707279/tpef6f76ba/hdlverifier-ex92377061/uvmfbuild/adder_build/adder.mk' ...
### Successful completion of build procedure for model: adder

Build Summary

Top model targets:

Model  Build Reason                                         Status           Build Duration
===========================================================================================
adder  Information cache folder or artifacts were missing.  Code generated.  0h 0m 8.944s

1 of 1 models built (0 models already up to date)
Build duration: 0h 0m 10.923s
### Searching for referenced models in model 'adder_stimgen'.
### Total of 1 models to build.
### Starting build procedure for model: adder_stimgen
### Generating code and artifacts to 'Model specific' folder structure
### Generating code into build folder: /tmp/Bdoc25a_2864802_2707279/tpef6f76ba/hdlverifier-ex92377061/uvmfbuild/adder_stimgen_build
### Invoking Target Language Compiler on adder_stimgen.rtw
### Using System Target File: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25a.2864802/build/runnable/matlab/toolbox/hdlverifier/dpigenerator/rtw/systemverilog_dpi_grt.tlc
### Loading TLC function libraries
.......
### Initial pass through model to cache user defined code
.
### Caching model source code
.........
### Generating TLC interface API.
.....
### Writing source file adder_stimgen_capi.c
..
### Writing header file adder_stimgen_capi.h
..............................
### Writing header file adder_stimgen_types.h
### Writing header file adder_stimgen.h
.
### Writing header file rtwtypes.h
### Writing header file builtin_typeid_types.h
### Writing header file multiword_types.h
### Writing source file adder_stimgen.c
### Writing header file adder_stimgen_private.h
.
### Writing header file rtmodel.h
### TLC code generation complete (took 1.848s).
### Starting SystemVerilog DPI Component Generation
### Saving binary information cache.
### Generating DPI H Wrapper adder_stimgen_dpi.h
### Generating DPI-C Wrapper adder_stimgen_dpi.c
### Generating makefiles for: adder_stimgen_dpi
### Using toolchain: GNU gcc/g++ | gmake (64-bit Linux)
### Creating '/tmp/Bdoc25a_2864802_2707279/tpef6f76ba/hdlverifier-ex92377061/uvmfbuild/adder_stimgen_build/adder_stimgen.mk' ...
### Successful completion of build procedure for model: adder_stimgen

Build Summary

Top model targets:

Model          Build Reason                                         Status           Build Duration
===================================================================================================
adder_stimgen  Information cache folder or artifacts were missing.  Code generated.  0h 0m 5.9157s

1 of 1 models built (0 models already up to date)
Build duration: 0h 0m 6.1153s
### Generating UVM Framework test bench YAML file uvmftb.yaml

You can now use these files with Siemens® UVM Framework tools to generate a full UVM testbench.

Input Arguments

predictorSubsystem — Name of predictor subsystem

string

Name of the predictor subsystem, specified as a string.

sequenceSubsystem — Name of sequence subsystem

string

Name of the sequence subsystem, specified as a string.

Version History

Introduced in R2025a
