Fuzzy PID Controller

Fuzzy logic-based PID controller

Since R2024b

•

Libraries:
Fuzzy Logic Toolbox

Description

The Fuzzy PID Controller block implements a PID controller with a single Fuzzy Logic Controller block and parallel structure. The control architecture is shown in the following figure.

For this controller:

• The inputs to the block are the reference signal (r) and the plant output (y).

• The inputs to the FIS are the error (E) and the change in error (ΔE).

• The error signal is scaled by gain factor C_e.

• The change in error is scaled by gain factor C_d.

• The FIS has a single output that splits into a PI control branch and a PD control branch.

• The PI control branch contains gain C₀ and an integrator.

• The PD control branch contains gain C₁.

• The control signal output by the block is the sum of the PI and PD branches.

For more information on this controller structure, see [1].

Examples

Implement Fuzzy PID Controller in Simulink

Implement a fuzzy PID controller using a lookup table, and compare the controller performance with a traditional PID controller.

• Open Live Script

Fuzzy PID Control with Type-2 FIS

Create a type-2 fuzzy logic PID controller and compare its performance with a type-1 fuzzy PID controller and a conventional PID controller.

• Open Live Script

New

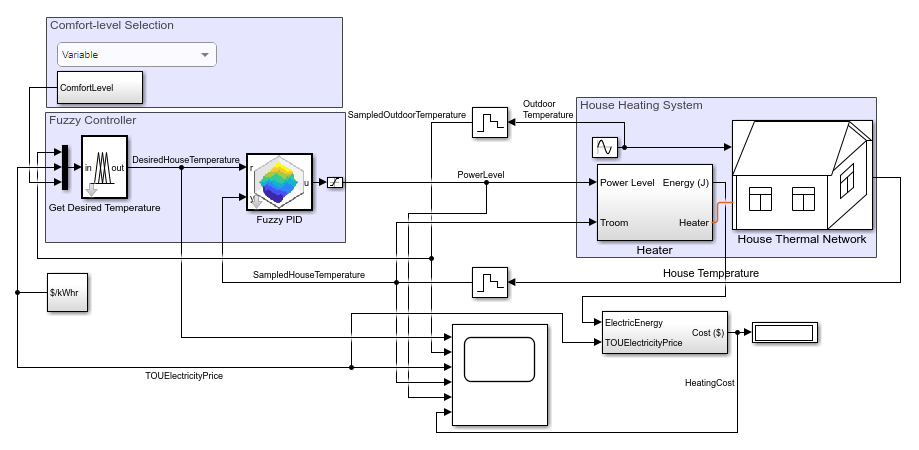

Fuzzy Logic Control for House Heating System

Use a fuzzy PID controller to regulate the temperature of a house, balancing the trade off between comfort and cost.

• Since R2024b
• Open Live Script

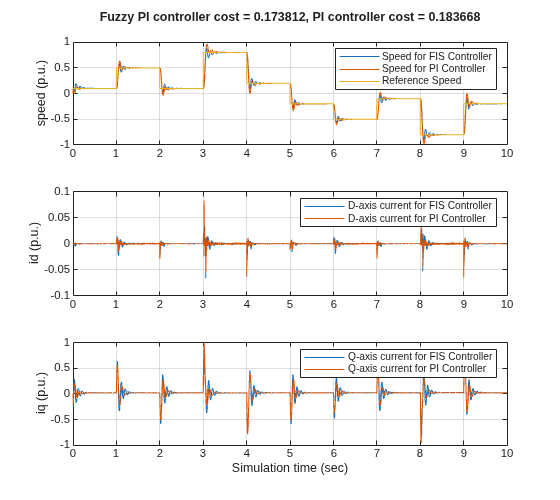

Field-Oriented Control of PMSM Using Fuzzy PI Controller

Use a fuzzy PI controller for speed control of a permanent magnet synchronous motor using field-oriented control (FOC) principles.

• Open Live Script

Ports

Input

r — Reference

scalar

Reference signal to track.

y — Plant output

scalar

Output of the system under control.

Output

u — Controller output

scalar

Controller output, based on a sum of the PI, PD, and feedforward controller paths.

e — Error

scalar

Difference between the reference signal r and plant output y. Use this output for tracking error metrics, such as the integral of absolute (IAE).

Dependencies

• To enable this port, select the Add error (e) output parameter.

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink^® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Controller Options

Time Domain — Controller time domain

Discrete-time (default) | Continuous-time

Specify either a discrete-time or continuous-time controller.

When you select Discrete-time, it is recommended that you specify an explicit sample time for the block using the Sample time parameter. Selecting Discrete-time also enables the Integrator method, and Filter method parameters.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	TimeDomainType
Values:	"Discrete-time" (default) | "Continuous-time"

Ce — Gain for error

1 (default) | scalar

Specify a gain factor to scale the error signal to the range of the corresponding input variable of the FIS.

For more information on selecting initial controller gains, see Derive Controller Gains from Conventional PID Gains.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	CE
Values:	"1" (default) | nonnegative scalar in quotes

Cd — Gain for derivative signal

1 (default) | scalar

Specify the gain factor applied to the derivative signal before it enters the FIS.

This gain factor is also applied in the reference feedforward path when Derivative signal is Process output (y).

For more information on selecting initial controller gains, see Derive Controller Gains from Conventional PID Gains.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	CD
Values:	"1" | nonnegative scalar in quotes

C0 — Gain for change in FIS output

1 (default) | scalar

Specify the gain factor applied to the FIS output in the PI control branch.

This gain factor is also applied in the reference feedforward path when Derivative signal is Process output (y).

To design a PD controller, set C0 to zero.

For more information on selecting initial controller gains, see Derive Controller Gains from Conventional PID Gains.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	C0
Values:	"1" | nonnegative scalar in quotes

C1 — Gain for FIS output

1 (default) | scalar

Specify the gain factor applied to the FIS output in the PD control path.

To design a PI controller, set C1 to zero.

For more information on selecting initial controller gains, see Derive Controller Gains from Conventional PID Gains.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	C1
Values:	"1" | nonnegative scalar in quotes

Integrator method — Method for computing integral in discrete-time controller

Forward Euler (default) | Backward Euler | Trapezoidal

In discrete time, the integral term of the controller transfer function is Iα(z), where α(z) depends on the integrator method you specify with this parameter.

You can specify one of the following integration methods:

• Forward Euler — Forward rectangular (left-hand)

• Backward Euler — Backward rectangular (right-hand) approximation

• Trapezoidal — Bilinear approximation

For more information about the filtered derivative, see the Integrator method (Simulink) parameter of the PID Controller block.

Dependencies

• To enable this parameter, set the Time Domain parameter to Discrete-time.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	IntegratorMethod
Values:	"Forward Euler" (default) | "Backward Euler" | "Trapezoidal"

Use accumulator — Accumulate signal in integrator

off (default) | on

Select this parameter to accumulate signal in the integration stage.

When you clear Use accumulator, the integration sample time for the controller is the block sample time, as specified in the Sample time parameter.

When you select Use accumulator, the integration sample time for the controller is 1. In this case, the block sample time determines when the integral output is computed but does not impact the integral output value.

When you use an accumulator, multiply C0 by the Sample time.

Dependencies

• To enable this parameter, set the Time Domain parameter to Discrete-time.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	UseAccumulator
Values:	"off" (default) | "on"

Derivative signal — Signal used for computing derivative

Error (e) (default) | Process output (y)

Compute the derivative from one of the following signals:

• Error (e) —Use the error signal, which is the difference between the plant output and the reference signal, as shown in the following figure.



• Process output (y) — Use the plant output directly, as shown in the following figure. When you select this option, the controller includes a feedforward path from the reference signal to the controller output.



Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	DerivativeSignal
Values:	"Error (e)" (default) | "Process output (y)"

Use filtered derivative — Apply filter to derivative term

on (default) | off

For discrete-time controllers, clear this option to replace the filtered derivative with an unfiltered discrete-time differentiator with pole locations that depend on the Filter method parameter.

For continuous-time controllers, the derivative term is always filtered.

For more information about the filtered derivative, see the Use filtered derivative (Simulink) parameter of the PID Controller block.

Dependencies

To enable this parameter, set Time domain to Discrete-time.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	UseFilter
Values:	"on" (default) | "off"

Filter coefficient — Derivative filter coefficient

100 (default) | positive scalar

Specify a finite, real gain value for the filter coefficient. The filter coefficient determines the pole location of the filter in the derivative action of the block. The location of the filter pole depends on the Time domain parameter.

For more information about the filter coefficient and its impact on pole locations, see the Filter coefficient (N) (Simulink) parameter of the PID Controller block.

Dependencies

• To enable this parameter for discrete-time controllers, select the Use filtered derivative parameter.

• This parameter is always enabled for continuous-time controllers.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	N
Values:	"100" (default) | positive scalar in quotes

Filter method — Method for computing derivative in discrete-time controller

Forward Euler (default) | Backward Euler | Trapezoidal

You can specify one of the following filter methods for the derivative term of the controller:

• Forward Euler — Forward rectangular (left-hand)

• Backward Euler — Backward rectangular (right-hand) approximation

• Trapezoidal — Bilinear approximation

For more information about these methods, see the Filter method (Simulink) parameter of the PID Controller block.

Dependencies

• To enable this parameter,set the Time Domain parameter to Discrete-time and select the Use filtered derivative parameter.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	DerivativeFilterMethod
Values:	"Forward Euler" (default) | "Backward Euler" | "Trapezoidal"

Add error (e) output — Enable e output port

off (default) | on

Enable e output port for accessing the error signal.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	E
Values:	"off" (default) | "on"

Sample time (–1 for inherited) — Sample time

-1 (default) | positive scalar

Specify a sample time by entering a positive scalar value, such as 0.1. The default discrete sample time of –1 means that the block inherits its sample time from upstream blocks. However, it is recommended that you set the controller sample time explicitly, especially if you expect the sample time of upstream blocks to change. The effect of the controller coefficients depend on the sample time. Thus, for a given set of coefficient values, changing the sample time changes the performance of the controller.

Dependencies

• To enable this parameter, set the Time Domain parameter to Discrete-time.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	SampleTime
Values:	"-1" (default) | positive scalar in quotes

Fuzzy Inference System

FIS name — Fuzzy inference system

mamfis object | sugfis object | mamfistype2 object | sugfistype2 object | FIS file name in quotes | MAT file name in quotes

Fuzzy inference system, specified as one of the following:

• mamfis or sugfis object — Specify the name of a type-1 FIS object in the MATLAB^® workspace.

• mamfistype2 or sugfistype2 object — Specify the name of a type-2 FIS object in the MATLAB workspace.

• Name of a FIS file (*.fis) in the current working folder or on the MATLAB path. Including the file extension in the file name is optional. Specify the filename in quotes.

• Name of a MAT file (*.mat) in the current working folder or on the MATLAB path. The MAT file must contain only one FIS object. Including the file extension in the file name is optional. Specify the filename in quotes.

The FIS must have two input variables (error signal and derivative signal) and one output variable.

The default FIS, fuzzycontroller, is a linear FIS configured to allow easier selection of fuzzy PID controller gains based on specified conventional PID controller gains. For more information about this FIS, see Default FIS.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	FIS
Values:	'"fuzzycontroller"' (default) | variable name in quotes | file name in quotes

Number of samples for output discretization — Number of points in output fuzzy sets

101 (default) | integer greater than 1

Number of samples for discretizing the range of FIS output variables, specified as an integer greater than 1. This value corresponds to the number of points in the output fuzzy set for each rule.

To reduce memory usage while evaluating Mamdani FISs, specify a lower number of samples. Doing so sacrifices the accuracy of the defuzzified output value. Specifying a low number of samples can make the output area for defuzzification zero. In this case, the defuzzified output value is the midpoint of the output variable range.

Note

The block ignores this parameter when evaluating Sugeno FISs.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	OutputSampleNumber
Values:	"101" (default) | integer greater than 1 in quotes

Implement FIS as lookup table — Convert FIS to lookup table

off (default) | on

To reduce the processing time for the controller, you can represent your FIS as a lookup table.

The block divides the input range of each FIS input into equally sized regions based on the number of breakpoints. Specify the number of breakpoints using the Number of input breakpoints parameter.

For each input combination, the block calculates a corresponding FIS output. During evaluation, the controller uses these precomputed outputs instead of performing the fuzzy inference process.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	UseLookupTable
Values:	"off" (default) | "on"

Number of input breakpoints (samples) — Number of lookup table breakpoints

10 (default) | positive integer

Number of lookup table breakpoints, specified as a positive integer. Increasing the number of breakpoints improves the accuracy of the lookup table while increasing its memory requirements.

Dependencies

• To enable this parameter, select the Implement FIS as lookup table parameter.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter:	NumBreakpoints
Values:	"10" (default) | positive integer in quotes

Algorithms

Default FIS

The default fuzzycontroller FIS for the Fuzzy PID Controller block is a Sugeno FIS with a linear control surface. This default FIS configuration is proposed in [2].

The linear control surface allows you to compute controller gains based on conventional PID gains. To simplify controller gain calculations, the output variable range of the FIS is double the range of each input variable. For more information, see Derive Controller Gains from Conventional PID Gains.

Each input variable has two triangular membership functions, positive and negative,

The output variable has three constant membership functions located at –1, 0, and 1 named negative, zero, and positive, respectively.

To generate a linear control surface using these membership functions, fuzzycontroller uses the following rules:

• If (error is negative) and (rate is negative) then (u is negative)

• If (error is positive) and (rate is negative) then (u is zero)

• If (error is negative) and (rate is positive) then (u is zero)

• If (error is positive) and (rate is positive) then (u is positive)

Derive Controller Gains from Conventional PID Gains

You can use the following approach to design your fuzzy PID controller based on the tuned gain values from a conventional PID controller.

1. Design a conventional PID controller and obtain gain values K_p, K_i, and K_d.

2. Determine the expected ranges of the FIS inputs and outputs for your application, where [–L,L] is the range for both input variables and [–H,H] is the range for the output variable.

3. Select initial values for the C_e, C_d, C₀, and C₁ gain parameters based on the conventional PID gains and signal ranges.

4. Design a nonlinear control surface by modifying the rule base of your FIS.

For an example that uses this approach, see Implement Fuzzy PID Controller in Simulink.

If you assume a linear control surface for your FIS, the fuzzy PID controller gains are related to the conventional PID gains as follows:

$$\begin{array}{l}{K}_p=\left(C_0\cdot C_d+C_1\cdot C_e\right)\frac{H}{2L}\\ K_i=\left(C_0\cdot C_e\right)\frac{H}{2L}\\ K_d=\left(C_1\cdot C_d\right)\frac{H}{2L}\end{array}$$

You can select Ce based on the expected error and FIS input error range. For example, if the input range for the error signal is [–1,1] and the maximum expected error magnitude is 10, set Ce to 0.1.

You can then solve for Cd, C0, and C1.

$$\begin{array}{l}{C}_d=\frac{C_e}{2K_i}\left(K_p-\sqrt{K_p^2-4K_i{K}_d}\right)\\ C_0=\frac{2L{K}_i}{H{C}_e}\\ C_1=\frac{2L{K}_d}{H{C}_d}\end{array}$$

You can simplify your gain calculations by setting the FIS variable ranges such that H = 2L.

References

[1] Xu, J. X., Hang, C. C., Liu, C. "Parallel structure and tuning of a fuzzy PID controller." Automatica, Vol. 36, pp. 673-684. 2000.

[2] Ying, Hao. Fuzzy Control and Modeling: Analytical Foundations and Applications. IEEE Press Series in Biomedical Engineering. New York: IEEE Press, 2000.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

Usage notes and limitations:

• Continuous-time controller:

  • Not recommended for production code.

• Discrete-time controller:

  • Depends on absolute time when placed inside a triggered subsystem hierarchy.

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.

Version History

Introduced in R2024b
