This example shows how to do adaptive nonlinear noise cancellation using the

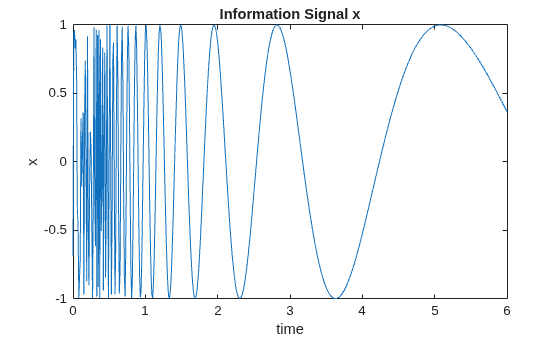

Define a hypothetical information signal,
x, sampled at 100Hz over 6 seconds.
time = (0:0.01:6)'; x = sin(40./(time+0.01)); plot(time,x) title('Information Signal x','fontsize',10) xlabel('time','fontsize',10) ylabel('x','fontsize',10)
x cannot be measured without an interference signal, , which is generated from another noise source, , via a certain unknown nonlinear process.

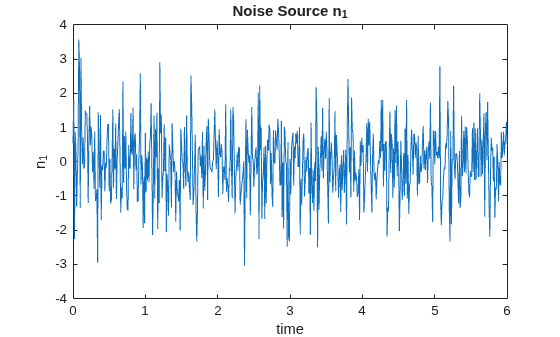

The plot below shows noise source .
n1 = randn(size(time)); plot(time,n1) title('Noise Source n_1','fontsize',10) xlabel('time','fontsize',10) ylabel('n_1','fontsize',10)
Assume that the interference signal, , that appears in the measured signal is generated via an unknown nonlinear equation:

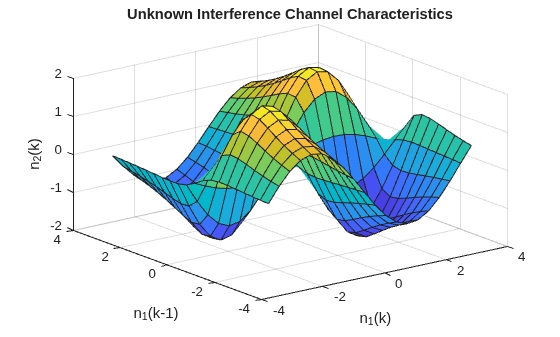

Plot this nonlinear characteristic as a surface.
domain = linspace(min(n1),max(n1),20); [xx,yy] = meshgrid(domain,domain); zz = 4*sin(xx).*yy./(1+yy.^2); surf(xx,yy,zz); xlabel('n_1(k)','fontsize',10); ylabel('n_1(k-1)','fontsize',10); zlabel('n_2(k)','fontsize',10); title('Unknown Interference Channel Characteristics','fontsize',10);

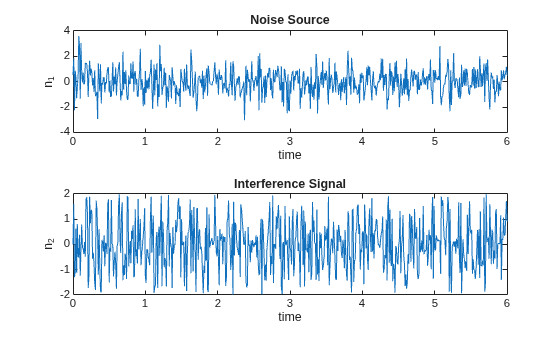

Compute the interference signal, , from the noise source, , and plot both signals.
n1d0 = n1; % n1 with delay 0 n1d1 = [0; n1d0(1:length(n1d0)-1)]; % n1 with delay 1 n2 = 4*sin(n1d0).*n1d1./(1+n1d1.^2); % interference subplot(2,1,1) plot(time,n1); ylabel('noise n_1','fontsize',10); subplot(2,1,2) plot(time,n2); ylabel('interference n_2','fontsize',10);
is related to via the highly nonlinear process shown previously; from the plots, it is hard to see if these two signals are correlated in any way.

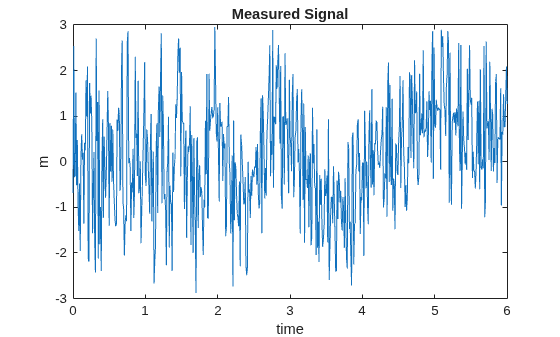

The measured signal,
m, is the sum of the original information signal,
x, and the interference, . However, we do not know . The only signals available to us are the noise signal, , and the measured signal
m = x + n2; % measured signal subplot(1,1,1) plot(time, m) title('Measured Signal','fontsize',10) xlabel('time','fontsize',10) ylabel('m','fontsize',10)
You can recover the original information signal,
x, using adaptive noise cancellation via ANFIS training.
anfis command to identify the nonlinear relationship between and . While is not directly available, you can assume that
m is a "contaminated" version of for training. This assumption treats
x as "noise" in this kind of nonlinear fitting.
Assume the order of the nonlinear channel is known (in this case,
2), so you can use a 2-input ANFIS model for training.
Define the training data. The first two columns of
data are the inputs to the ANFIS model, and a delayed version of . The final column of
data is the measured signal,
delayed_n1 = [0; n1(1:length(n1)-1)]; data = [delayed_n1 n1 m];
Generate the initial FIS object. By default, the grid partitioning algorithm uses two membership functions for each input variable, which produces four fuzzy rules for learning.
genOpt = genfisOptions('GridPartition'); inFIS = genfis(data(:,1:end-1),data(:,end),genOpt);
Tune the FIS using the
anfis command with an initial training step size of
trainOpt = anfisOptions('InitialFIS',inFIS,'InitialStepSize',0.2); outFIS = anfis(data,trainOpt);
ANFIS info: Number of nodes: 21 Number of linear parameters: 12 Number of nonlinear parameters: 12 Total number of parameters: 24 Number of training data pairs: 601 Number of checking data pairs: 0 Number of fuzzy rules: 4 Start training ANFIS ... 1 0.761817 2 0.748426 3 0.739315 4 0.733993 5 0.729492 Step size increases to 0.220000 after epoch 5. 6 0.725382 7 0.721269 8 0.717621 9 0.714474 Step size increases to 0.242000 after epoch 9. 10 0.71207 Designated epoch number reached --> ANFIS training completed at epoch 10. Minimal training RMSE = 0.712070
The tuned FIS,
outFIS, models the second-order relationship between and .
Calculate the estimated interference signal,
estimated_n2, by evaluating the tuned FIS using the original training data.
estimated_n2 = evalfis(outFIS,data(:,1:2));

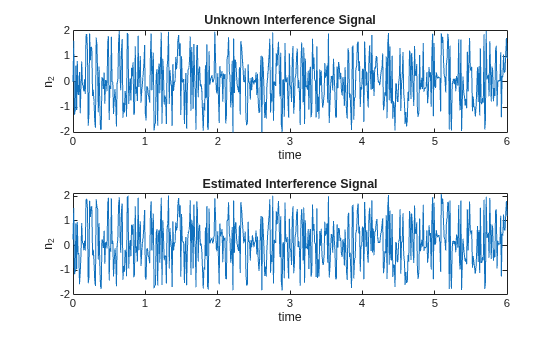

Plot the and actual signal and the estimated version from the ANFIS output.
subplot(2,1,1) plot(time, n2) ylabel('n_2 (unknown)'); subplot(2,1,2) plot(time, estimated_n2) ylabel('Estimated n_2');
The estimated information signal is equal to the difference between the measured signal,
m, and the estimated interference (ANFIS output).
estimated_x = m - estimated_n2;

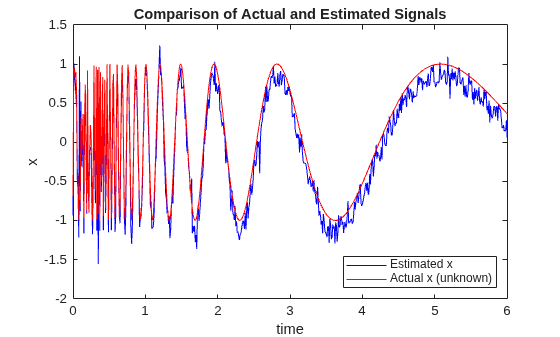

Compare the original information signal,
x, and the estimate,
figure plot(time,estimated_x,'b',time,x,'r') legend('Estimated x','Actual x (unknown)','Location','SouthEast')
Without extensive training, the ANFIS produces a good estimate of the information signal.
