# kpsstest

KPSS test for stationarity

## Syntax

``h = kpsstest(y)``
``h = kpsstest(y,Name,Value)``
``````[h,pValue] = kpsstest(___)``````
``````[h,pValue,stat,cValue,reg] = kpsstest(___)``````

## Description

example

````h = kpsstest(y)` returns the logical value (`h`) with the rejection decision from conducting the Kwiatkowski, Phillips, Schmidt, and Shin (KPSS) test for a unit root in the univariate time series `y`.```

example

````h = kpsstest(y,Name,Value)` uses additional options specified by one or more `Name,Value` pair arguments. If any `Name,Value` pair argument is a vector, then all `Name,Value` pair arguments specified must be vectors of equal length or length one. `kpsstest(y,Name,Value)` treats each element of a vector input as a separate test, and returns a vector of rejection decisions.If any `Name,Value` pair argument is a row vector, then `kpsstest(y,Name,Value)` returns a row vector. ```

example

``````[h,pValue] = kpsstest(___)``` returns the rejection decision and p-value for the hypothesis test, using any of the input arguments in the previous syntaxes.```

example

``````[h,pValue,stat,cValue,reg] = kpsstest(___)``` additionally returns the test statistic, critical value, and a structure of regression statistics for the hypothesis test.```

## Examples

collapse all

Reproduce the first row of the second half of Table 5 in Kwiatkowski et al., 1992.

Load the Nelson-Plosser Macroeconomic series data set.

`load Data_NelsonPlosser`

Linearize the real gross national product series (RGNP).

`logGNPR = log(DataTable.GNPR);`

Assess the null hypothesis that the series is trend stationary over a range of lags.

```lags = (0:8)'; [~,pValue,stats] = kpsstest(logGNPR,'Lags',lags,'Trend',true); results = [lags pValue stats]```
```results = 9×3 0 0.0100 0.6299 1.0000 0.0100 0.3367 2.0000 0.0100 0.2421 3.0000 0.0169 0.1976 4.0000 0.0276 0.1729 5.0000 0.0401 0.1578 6.0000 0.0484 0.1479 7.0000 0.0589 0.1412 8.0000 0.0668 0.1370 ```

The tests corresponding to 0 `lags` 2 produce p-values that are less than 0.01. For `lags` 7, the tests indicate sufficient evidence to suggest that log rGNP is unit root nonstationary (i.e., not trend stationary) at the default 5% level.

Test whether the wage series in the manufacturing sector (1900-1970) has a unit root.

Load the Nelson-Plosser Macroeconomic data set.

```load Data_NelsonPlosser wages = DataTable.WN; T = sum(isfinite(wages)); % Sample size without NaNs sqrtT = sqrt(T) % See Kwiatkowski et al., 1992 ```
```sqrtT = 8.4261 ```

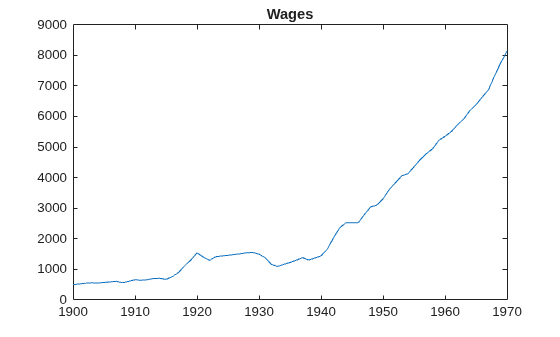

Plot the wages series.

```plot(dates,wages) title('Wages') axis tight ```

The plot suggests that the wages series grows exponentially.

Linearize the wages series.

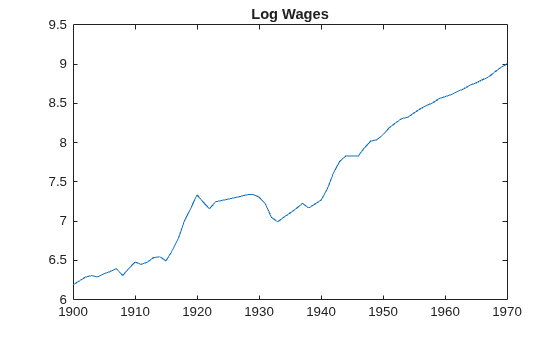

```logWages = log(wages); plot(dates,logWages) title('Log Wages') axis tight ```

The plot suggests that the log wages series has a linear trend.

Test the hypothesis that the log wages series is a unit root process with a trend (i.e., difference stationary), against the alternative that there is no unit root (i.e., trend stationary). Conduct the test by setting a range of lags around , as suggested in Kwiatkowski et al., 1992.

```[h,pValue] = kpsstest(logWages,'lags',[7:10]) ```
```h = 1x4 logical array 0 0 0 0 pValue = 0.1000 0.1000 0.1000 0.1000 ```

All tests fail to reject the null hypothesis that the log wages series is trend stationary.

The p-values are larger than 0.1. The software compares the test statistic to critical values and computes p-values that it interpolates from tables in Kwiatkowski et al., 1992.

## Input Arguments

collapse all

Univariate time series, specified as a vector. The last element is the most recent observation.

`NaN`s indicate missing observations, and `kpsstest` removes them from `y`. Removing `NaN`s decreases the effective sample size and can cause an irregular time series.

### Name-Value Pair Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside quotes. You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

Example: `'alpha',0.1,'lags',0:2` specifies three tests that include 0, 1, and 2 autocovariance lags in the Newey-West estimator of the long-run variance, each conducted at 0.1 level of significance.

Number of autocovariance lags to include in the Newey-West estimator of the long-run variance, specified as the comma-separated pair consisting of `'lags'` and a nonnegative integer or vector of nonnegative integers. Use a vector to conduct multiple tests.

Example: `'lags',0:2`

Data Types: `double`

Indicate whether to include the deterministic trend term δt in the model, specified as the comma-separated pair consisting of `'trend'` and a logical value or a vector of logical values. Use a vector to conduct multiple tests.

Example: `'trend',false`

Data Types: `logical`

Significance levels for the hypothesis tests, specified as the comma-separated pair consisting of `'alpha'` and a scalar or vector. All values of `alpha` must be between 0.01 and 0.10. Use a vector to conduct multiple tests.

Example: `'alpha',0.01`

Data Types: `double`

## Output Arguments

collapse all

Test rejection decisions, returned as a logical value or vector of logical values with a length equal to the number of tests that the software conducts.

• `h = 1` indicates rejection of the trend-stationary null in favor of the unit root alternative.

• `h = 0` indicates failure to reject the trend-stationary null.

Test statistic p-values, returned as a scalar or vector with a length equal to the number of tests that the software conducts. The p-values are right-tail probabilities.

When test statistics are outside tabulated critical values, `kpsstest` returns maximum (`0.10`) or minimum (`0.01`) p-values.

Test statistics, returned as a scalar or vector with a length equal to the number of tests that the software conducts.

`kpsstest` computes test statistics using an ordinary least squares (OLS) regression.

• If you set `'trend',false`, then the software regresses `y` on an intercept.

• Otherwise, the software regresses `y` on an intercept and trend term.

Critical values, returned as a scalar or vector with a length equal to the number of tests that the software conducts. Critical values are for right-tail probabilities.

Regression statistics for ordinary least squares (OLS) estimation of coefficients in the alternative model, returned as a data structure or data structure array with a length equal to the number of tests that the software conducts.

Each data structure has the following fields.

FieldDescription
`num`Length of input series with `NaN`s removed
`size`Effective sample size, adjusted for lags
`names`Regression coefficient names
`coeff`Estimated coefficient values
`se`Estimated coefficient standard errors
`Cov`Estimated coefficient covariance matrix
`tStats`t statistics of coefficients and p-values
`FStat`F statistic and p-value
`yMu`Mean of the lag-adjusted input series
`ySigma`Standard deviation of the lag-adjusted input series
`yHat`Fitted values of the lag-adjusted input series
`res`Regression residuals
`DWStat`Durbin-Watson statistic
`SSR`Regression sum of squares
`SSE`Error sum of squares
`SST`Total sum of squares
`MSE`Mean square error
`RMSE`Standard error of the regression
`RSq`R2 statistic
`aRSq`Adjusted R2 statistic
`LL`Loglikelihood of data under Gaussian innovations
`AIC`Akaike information criterion
`BIC`Bayesian (Schwarz) information criterion
`HQC`Hannan-Quinn information criterion

collapse all

### Kwiatkowski, Phillips, Schmidt, and Shin (KPSS) Test

Assesses the null hypothesis that a univariate time series is trend stationary against the alternative that it is a nonstationary unit root process.

The test uses the structural model:

`$\begin{array}{l}{y}_{t}={c}_{t}+\delta t+{u}_{1t}\\ {c}_{t}={c}_{t-1}+{u}_{2t},\end{array}$`

where

• δ is the trend coefficient.

• u1t is a stationary process.

• u2t is an independent and identically distributed process with mean 0 and variance σ2.

The null hypothesis is that σ2 = 0, which implies that the random walk term (ct) is constant and acts as the model intercept. The alternative hypothesis is that σ2 > 0, which introduces the unit root in the random walk.

The test statistic is

`$\frac{\sum _{t=1}^{T}{S}_{t}^{2}}{{s}^{2}{T}^{2}},$`

where

• T is the sample size.

• s2 is the Newey-West estimate of the long-run variance.

• ${S}_{t}={e}_{1}+{e}_{2}+\dots {\text{+e}}_{t}.$

## Tips

• In order to draw valid inferences from the KPSS test, you should determine a suitable value for `'lags'`. These two methods determine a suitable number of lags:

• Begin with a small number of lags and then evaluate the sensitivity of the results by adding more lags.

• Kwiatkowski et al. [2] suggest that a number of lags on the order of $\sqrt{T}$, where T is the sample size, is often satisfactory under both the null and the alternative.

For consistency of the Newey-West estimator, the number of lags must approach infinity as the sample size increases.

• You should determine the value of `'trend'` by the growth characteristics of the time series. Determine its value with a specific testing strategy in mind.

• If a series is growing, then include a trend term to provide a reasonable comparison of a trend stationary null and a unit root process with drift. `kpsstest` sets `'trend',true` by default.

• If a series does not exhibit long-term growth characteristics, then don’t include a trend term (i.e., set `'trend',false`).

## Algorithms

• `kpsstest` performs a regression to find the ordinary least squares (OLS) fit between the data and the null model.

• Test statistics follow nonstandard distributions under the null, even asymptotically. Kwiatkowski et al. [2] use Monte Carlo simulations, for models with and without a trend, to tabulate asymptotic critical values for a standard set of significance levels between 0.01 and 0.1. `kpsstest` interpolates critical values and p-values from these tables.

## References

[1] Hamilton, J. D. Time Series Analysis. Princeton, NJ: Princeton University Press, 1994.

[2] Kwiatkowski, D., P. C. B. Phillips, P. Schmidt, and Y. Shin. “Testing the Null Hypothesis of Stationarity against the Alternative of a Unit Root.” Journal of Econometrics. Vol. 54, 1992, pp. 159–178.

[3] Newey, W. K., and K. D. West. “A Simple, Positive Semidefinite, Heteroskedasticity and Autocorrelation Consistent Covariance Matrix.” Econometrica. Vol. 55, 1987, pp. 703–708.
