garch

GARCH conditional variance time series model

Description

Use garch to specify a univariate generalized autoregressive conditional heteroscedastic (GARCH) model. The garch function returns a garch object specifying the functional form of a GARCH(P,Q) model, and stores its parameters values.

The key components of a garch model include:

  • The GARCH polynomial, which is composed of lagged conditional variances. The degree is denoted P.

  • The ARCH polynomial, which is composed of the composed of lagged squared innovations. The degree is denoted Q.

P and Q are the maximum nonzero lags in the GARCH and ARCH polynomials, respectively. Other model components include an innovation mean model offset, a conditional variance model constant, and the innovations distribution.

All coefficients are unknown (NaN values) and estimable unless you specify their values using name-value pair argument syntax. To estimate models containing all or partially unknown parameter values given data, use estimate. For completely specified models (models in which all parameter values are known), simulate or forecast responses using simulate or forecast, respectively.

Creation

Syntax

Mdl = garch
Mdl = garch(P,Q)
Mdl = garch(Name,Value)

Description

example

Mdl = garch returns a zero-degree conditional variance garch object.

example

Mdl = garch(P,Q) returns a garch object that has a GARCH polynomial with a degree of P and an ARCH polynomial with a degree of Q. The GARCH and ARCH polynomials contain all consecutive lags from 1 through their degrees, and all coefficients are NaN values.

This shorthand syntax allows for easy model template creation in which you specify the polynomial degrees explicitly. The model template is suited for unrestricted parameter estimation, that is, estimation without any parameter equality constraints. However, after you create a model, you can alter property values using dot notation.

example

Mdl = garch(Name,Value) sets properties or additional options using name-value pairs. You can specify multiple values. Enclose each name in single quotes. For example, 'ARCHLags',[1 4],'ARCH',{0.2 0.3} specifies the two ARCH coefficients in ARCH at lags 1 and 4.

This longhand syntax allows for creating more flexible models.

Input Arguments

expand all

The shorthand syntax provides an easy way for you to create model templates that are suitable for unrestricted parameter estimation. For example, to create a GARCH(1,2) model containing unknown parameter values, enter:

Mdl = garch(1,2);
To impose equality constraints on parameter values during estimation, set the appropriate property values using dot notation.

GARCH polynomial degree, specified as a nonnegative integer. In the GARCH polynomial and at time t, MATLAB® includes all consecutive conditional variance terms from lag t – 1 through lag tP.

You can specify this argument using the garch(P,Q) shorthand syntax only.

If P > 0, then you must specify Q as a positive integer.

Example: garch(1,1)

Data Types: double

ARCH polynomial degree, specified as a nonnegative integer. In the ARCH polynomial and at time t, MATLAB includes all consecutive squared innovation terms from lag t – 1 through lag tQ.

You can specify this argument using the garch(P,Q) shorthand syntax only.

If P > 0, then you must specify Q as a positive integer.

Example: garch(1,1)

Data Types: double

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

The longhand syntax enables you to create models in which some or all coefficients are known. During estimation, estimate imposes equality constraints on any known parameters.

Example: 'ARCHLags',[1 4],'ARCH',{NaN NaN} specifies a GARCH(0,4) model and unknown, but nonzero ARCH coefficient matrices at lags 1 and 4.

GARCH polynomial lags, specified as the comma-separated pair consisting of 'GARCHLags' and a numeric vector of unique positive integers.

GARCHLags(j) is the lag corresponding to the coefficient GARCH{j}. The lengths of GARCHLags and GARCH must be equal.

Assuming all GARCH coefficients (specified by the GARCH property) are positive or NaN values, max(GARCHLags) determines the value of the P property.

Example: 'GARCHLags',[1 4]

Data Types: double

ARCH polynomial lags, specified as the comma-separated pair consisting of 'ARCHLags' and a vector of unique positive integers.

ARCHLags(j) is the lag corresponding to the coefficient ARCH{j}. The lengths of ARCHLags and ARCH must be equal.

Assuming all ARCH coefficients (specified by the ARCH property) are positive or NaN values, max(ARCHLags) determines the value of the Q property.

Example: 'ARCHLags',[1 4]

Data Types: double

Conditional probability distribution of the innovation process, specified as the comma-separated pair consisting of 'Distribution' and a value in this table.

DistributionValueStructure Array
Gaussian'Gaussian'struct('Name','Gaussian')
Student’s t
't'
By default, DoF is NaN.
struct('Name','t','DoF',DoF)
DoF > 2 or DoF = NaN

The t distribution degrees of freedom parameter is estimable. That is, if you want estimate to estimate it along with all other unknown parameters, then set its value to NaN.

Example: 'Distribution',struct('Name','t','DoF',10)

Data Types: char | struct

Properties

expand all

You can set writable properties when you create a garch object by using name-value pair argument syntax. Or, after you create a model, you can use dot notation. For example, to create a GARCH(1,1) model with unknown coefficients, and then specify a t innovation distribution with unknown degrees of freedom, enter:

Mdl = garch('GARCHLags',1,'ARCHLags',1);
Mdl.Distribution = "t";

This property is read-only.

GARCH polynomial degree, specified as a nonnegative integer. P is the maximum lag in the GARCH polynomial with a coefficient that is positive or NaN. Lags that are less than P can have coefficients equal to 0.

P specifies the minimum number of presample conditional variances required to initialize the model.

If you use name-value pair arguments to create the model, then MATLAB implements one of these alternatives (assuming the coefficient of the largest lag is positive or NaN):

  • If you specify GARCH, then P is the number of elements therein.

  • If you specify GARCHLags, then P is the largest lag therein. This alternative takes precedence over the others.

  • Otherwise, P is 0.

Data Types: double

This property is read-only.

ARCH polynomial degree, specified as a nonnegative integer. Q is the maximum lag in the ARCH polynomial with a coefficient that is positive or NaN. Lags that are less than Q can have coefficients equal to 0.

Q specifies the minimum number of presample innovations required to initiate the model.

If you use name-value pair arguments to create the model, then MATLAB implements one of these alternatives (assuming the coefficient of the largest lag is positive or NaN):

  • If you specify ARCH, then Q is the number of elements therein.

  • If you specify ARCHLags, then Q is the largest lag therein. This alternative takes precedence over the others.

  • Otherwise, Q is 0.

Data Types: double

Conditional variance model constant, specified as a positive scalar or NaN value.

Data Types: double

GARCH polynomial coefficients, specified as a cell vector of positive scalars or NaN values.

  • If you set the GARCHLags name-value pair argument, then the following conditions apply.

    • The lengths of GARCH and GARCHLags are equal.

    • GARCH{j} is the coefficient of lag GARCHLags(j).

    • By default, GARCH is a numel(GARCHLags)-by-1 cell vector of NaN values.

  • Otherwise, the following conditions apply.

    • The length of GARCH is P.

    • GARCH{j} is the coefficient of lag j.

    • By default, GARCH is a P-by-1 cell vector of NaN values.

Data Types: cell

ARCH polynomial coefficients, specified as a cell vector of positive scalars or NaN values.

  • If you set the ARCHLags name-value pair argument, then the following conditions apply.

    • The lengths of ARCH and ARCHLags are equal.

    • ARCH{j} is the coefficient of lag ARCHLags(j).

    • By default, ARCH is a numel(ARCHLags)-by-1 cell vector of NaN values.

  • Otherwise, the following conditions apply.

    • The length of ARCH is Q.

    • ARCH{j} is the coefficient of lag j.

    • By default, ARCH is a Q-by-1 cell vector of NaN values.

Data Types: cell

This property is read-only.

The model unconditional variance, specified as a positive scalar.

The unconditional variance is

σε2=κ(1i=1Pγij=1Qαj).

κ is the conditional variance model constant (Constant).

Data Types: double

Innovation mean model offset, or additive constant, specified as a numeric scalar or NaN value.

Data Types: double

Conditional probability distribution of the innovations process, specified as a structure array.

The Name field stores the name of the distribution, either "Gaussian" for the Gaussian distribution or "t" for the t distribution.

If Name is "t", then Distribution also contains the DoF field, which stores the t-distribution degrees of freedom.

By default, Distribution is struct('Name',"Gaussian"). When you create the object, if you specify that the underlying innovation process has a t distribution by using the Distribution name-value pair argument, then the DoF field is NaN by default.

Data Types: struct

Model description, specified as a string scalar or character vector. By default, this property describes the parametric form of the model, for example, "GARCH(1,1) Conditional Variance Model (Gaussian Distribution)".

Example: 'Description','Model 1'

Data Types: string | char

Note

  • All NaN-valued model parameters, which include coefficients and the t-innovation-distribution degrees of freedom (if present), are estimable. That is, when you pass the resulting garch object and data to estimate, MATLAB estimates all NaN-valued parameters. During estimation, estimate treats known parameters as equality constraints, that is,estimate holds any known parameters fixed at their values.

  • All GARCH and ARCH coefficients are subject to a near-zero tolerance exclusion test. That is, the software:

    1. Creates lag operator polynomials for each of the GARCH and ARCH components.

    2. Compares each coefficient to the default lag operator zero tolerance, 1e-12.

    3. Includes a coefficient in the model if its magnitude is greater than 1e-12, and excludes the coefficient otherwise. In other words, the software considers excluded coefficients to be sufficiently close to zero.

    For details, see LagOp.

Object Functions

estimateFit conditional variance model to data
filterFilter disturbances through conditional variance model
forecastForecast conditional variances from conditional variance models
inferInfer conditional variances of conditional variance models
simulateMonte Carlo simulation of conditional variance models
summarizeDisplay estimation results of conditional variance model

Examples

collapse all

Create a default garch model object and specify its parameter values using dot notation.

Create a GARCH(0,0) model.

Mdl = garch
Mdl =
  garch with properties:

     Description: "GARCH(0,0) Conditional Variance Model (Gaussian Distribution)"
    Distribution: Name = "Gaussian"
               P: 0
               Q: 0
        Constant: NaN
           GARCH: {}
            ARCH: {}
          Offset: 0

Mdl is a garch model. It contains an unknown constant, its offset is 0, and the innovation distribution is 'Gaussian'. The model does not have a GARCH or ARCH polynomial.

Specify two unknown ARCH coefficients for lags one and two using dot notation.

Mdl.ARCH = {NaN NaN}
Mdl =
  garch with properties:

     Description: "GARCH(0,2) Conditional Variance Model (Gaussian Distribution)"
    Distribution: Name = "Gaussian"
               P: 0
               Q: 2
        Constant: NaN
           GARCH: {}
            ARCH: {NaN NaN} at lags [1 2]
          Offset: 0

The Q and ARCH properties are updated to 2 and {NaN NaN}. The two ARCH coefficients are associated with lags 1 and 2.

Create a garch model using the shorthand notation garch(P,Q), where P is the degree of the GARCH polynomial and Q is the degree of the ARCH polynomial.

Create a GARCH(3,2) model.

Mdl = garch(3,2)
Mdl =
  garch with properties:

     Description: "GARCH(3,2) Conditional Variance Model (Gaussian Distribution)"
    Distribution: Name = "Gaussian"
               P: 3
               Q: 2
        Constant: NaN
           GARCH: {NaN NaN NaN} at lags [1 2 3]
            ARCH: {NaN NaN} at lags [1 2]
          Offset: 0

Mdl is a garch model object. All properties of Mdl, except P, Q, and Distribution, are NaN values. By default, the software:

  • Includes a conditional variance model constant

  • Excludes a conditional mean model offset (i.e., the offset is 0)

  • Includes all lag terms in the ARCH and GARCH lag-operator polynomials up to lags Q and P, respectively

Mdl specifies only the functional form of a GARCH model. Because it contains unknown parameter values, you can pass Mdl and the time-series data to estimate to estimate the parameters.

Create a garch model using name-value pair arguments.

Specify a GARCH(1,1) model. By default, the conditional mean model offset is zero. Specify that the offset is NaN.

Mdl = garch('GARCHLags',1,'ARCHLags',1,'Offset',NaN)
Mdl =
  garch with properties:

     Description: "GARCH(1,1) Conditional Variance Model with Offset (Gaussian Distribution)"
    Distribution: Name = "Gaussian"
               P: 1
               Q: 1
        Constant: NaN
           GARCH: {NaN} at lag [1]
            ARCH: {NaN} at lag [1]
          Offset: NaN

Mdl is a garch model object. The software sets all parameters (the properties of the model object) to NaN, except P, Q, and Distribution.

Since Mdl contains NaN values, Mdl is only appropriate for estimation only. Pass Mdl and time-series data to estimate.

Create a GARCH(1,1) model with mean offset,

where

and is an independent and identically distributed standard Gaussian process.

Mdl = garch('Constant',0.0001,'GARCH',0.75,...
    'ARCH',0.1,'Offset',0.5)
Mdl =
  garch with properties:

     Description: "GARCH(1,1) Conditional Variance Model with Offset (Gaussian Distribution)"
    Distribution: Name = "Gaussian"
               P: 1
               Q: 1
        Constant: 0.0001
           GARCH: {0.75} at lag [1]
            ARCH: {0.1} at lag [1]
          Offset: 0.5

garch assigns default values to any properties you do not specify with name-value pair arguments.

Access the properties of a garch model object using dot notation.

Create a garch model object.

Mdl = garch(3,2)
Mdl =
  garch with properties:

     Description: "GARCH(3,2) Conditional Variance Model (Gaussian Distribution)"
    Distribution: Name = "Gaussian"
               P: 3
               Q: 2
        Constant: NaN
           GARCH: {NaN NaN NaN} at lags [1 2 3]
            ARCH: {NaN NaN} at lags [1 2]
          Offset: 0

Remove the second GARCH term from the model. That is, specify that the GARCH coefficient of the second lagged conditional variance is 0.

Mdl.GARCH{2} = 0
Mdl =
  garch with properties:

     Description: "GARCH(3,2) Conditional Variance Model (Gaussian Distribution)"
    Distribution: Name = "Gaussian"
               P: 3
               Q: 2
        Constant: NaN
           GARCH: {NaN NaN} at lags [1 3]
            ARCH: {NaN NaN} at lags [1 2]
          Offset: 0

The GARCH polynomial has two unknown parameters corresponding to lags 1 and 3.

Display the distribution of the disturbances.

Mdl.Distribution
ans = struct with fields:
    Name: "Gaussian"

The disturbances are Gaussian with mean 0 and variance 1.

Specify that the underlying I.I.D. disturbances have a t distribution with five degrees of freedom.

Mdl.Distribution = struct('Name','t','DoF',5)
Mdl =
  garch with properties:

     Description: "GARCH(3,2) Conditional Variance Model (t Distribution)"
    Distribution: Name = "t", DoF = 5
               P: 3
               Q: 2
        Constant: NaN
           GARCH: {NaN NaN} at lags [1 3]
            ARCH: {NaN NaN} at lags [1 2]
          Offset: 0

Specify that the ARCH coefficients are 0.2 for the first lag and 0.1 for the second lag.

Mdl.ARCH = {0.2 0.1}
Mdl =
  garch with properties:

     Description: "GARCH(3,2) Conditional Variance Model (t Distribution)"
    Distribution: Name = "t", DoF = 5
               P: 3
               Q: 2
        Constant: NaN
           GARCH: {NaN NaN} at lags [1 3]
            ARCH: {0.2 0.1} at lags [1 2]
          Offset: 0

To estimate the remaining parameters, you can pass Mdl and your data to estimate and use the specified parameters as equality constraints. Or, you can specify the rest of the parameter values, and then simulate or forecast conditional variances from the GARCH model by passing the fully specified model to simulate or forecast, respectively.

Fit a GARCH model to an annual time series of Danish nominal stock returns from 1922-1999.

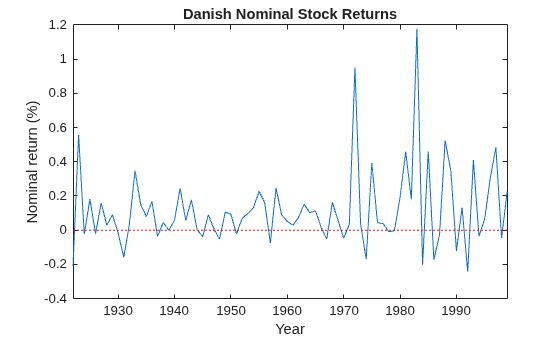

Load the Data_Danish data set. Plot the nominal returns (nr).

load Data_Danish;
nr = DataTable.RN;

figure;
plot(dates,nr);
hold on;
plot([dates(1) dates(end)],[0 0],'r:'); % Plot y = 0
hold off;
title('Danish Nominal Stock Returns');
ylabel('Nominal return (%)');
xlabel('Year');

The nominal return series seems to have a nonzero conditional mean offset and seems to exhibit volatility clustering. That is, the variability is smaller for earlier years than it is for later years. For this example, assume that a GARCH(1,1) model is appropriate for this series.

Create a GARCH(1,1) model. The conditional mean offset is zero by default. To estimate the offset, specify that it is NaN.

Mdl = garch('GARCHLags',1,'ARCHLags',1,'Offset',NaN);

Fit the GARCH(1,1) model to the data.

EstMdl = estimate(Mdl,nr);

    GARCH(1,1) Conditional Variance Model with Offset (Gaussian Distribution):

                  Value      StandardError    TStatistic     PValue
                _________    _____________    __________    _________

    Constant    0.0044476      0.007814        0.56918        0.56923
    GARCH{1}      0.84932       0.26495         3.2056      0.0013477
    ARCH{1}       0.07325       0.14953        0.48986        0.62423
    Offset        0.11227      0.039214         2.8629      0.0041974

EstMdl is a fully specified garch model object. That is, it does not contain NaN values. You can assess the adequacy of the model by generating residuals using infer, and then analyzing them.

To simulate conditional variances or responses, pass EstMdl to simulate.

To forecast innovations, pass EstMdl to forecast.

Simulate conditional variance or response paths from a fully specified garch model object. That is, simulate from an estimated garch model or a known garch model in which you specify all parameter values.

Load the Data_Danish data set.

load Data_Danish;
nr = DataTable.RN;

Create a GARCH(1,1) model with an unknown conditional mean offset. Fit the model to the annual nominal return series.

Mdl = garch('GARCHLags',1,'ARCHLags',1,'Offset',NaN);
EstMdl = estimate(Mdl,nr);

    GARCH(1,1) Conditional Variance Model with Offset (Gaussian Distribution):

                  Value      StandardError    TStatistic     PValue
                _________    _____________    __________    _________

    Constant    0.0044476      0.007814        0.56918        0.56923
    GARCH{1}      0.84932       0.26495         3.2056      0.0013477
    ARCH{1}       0.07325       0.14953        0.48986        0.62423
    Offset        0.11227      0.039214         2.8629      0.0041974

Simulate 100 paths of conditional variances and responses for each period from the estimated GARCH model.

numObs = numel(nr); % Sample size (T)
numPaths = 100;     % Number of paths to simulate
rng(1);             % For reproducibility
[VSim,YSim] = simulate(EstMdl,numObs,'NumPaths',numPaths);

VSim and YSim are T-by- numPaths matrices. Rows correspond to a sample period, and columns correspond to a simulated path.

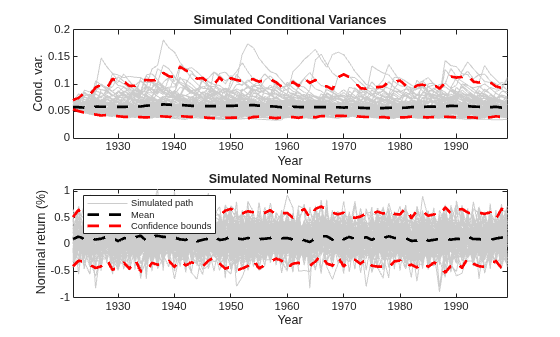

Plot the average and the 97.5% and 2.5% percentiles of the simulated paths. Compare the simulation statistics to the original data.

VSimBar = mean(VSim,2);
VSimCI = quantile(VSim,[0.025 0.975],2);
YSimBar = mean(YSim,2);
YSimCI = quantile(YSim,[0.025 0.975],2);

figure;
subplot(2,1,1);
h1 = plot(dates,VSim,'Color',0.8*ones(1,3));
hold on;
h2 = plot(dates,VSimBar,'k--','LineWidth',2);
h3 = plot(dates,VSimCI,'r--','LineWidth',2);
hold off;
title('Simulated Conditional Variances');
ylabel('Cond. var.');
xlabel('Year');

subplot(2,1,2);
h1 = plot(dates,YSim,'Color',0.8*ones(1,3));
hold on;
h2 = plot(dates,YSimBar,'k--','LineWidth',2);
h3 = plot(dates,YSimCI,'r--','LineWidth',2);
hold off;
title('Simulated Nominal Returns');
ylabel('Nominal return (%)');
xlabel('Year');
legend([h1(1) h2 h3(1)],{'Simulated path' 'Mean' 'Confidence bounds'},...
    'FontSize',7,'Location','NorthWest');

Forecast conditional variances from a fully specified garch model object. That is, forecast from an estimated garch model or a known garch model in which you specify all parameter values. The example follows from Estimate GARCH Model.

Load the Data_Danish data set.

load Data_Danish;
nr = DataTable.RN;

Create a GARCH(1,1) model with an unknown conditional mean offset, and fit the model to the annual, nominal return series.

Mdl = garch('GARCHLags',1,'ARCHLags',1,'Offset',NaN);
EstMdl = estimate(Mdl,nr);

    GARCH(1,1) Conditional Variance Model with Offset (Gaussian Distribution):

                  Value      StandardError    TStatistic     PValue
                _________    _____________    __________    _________

    Constant    0.0044476      0.007814        0.56918        0.56923
    GARCH{1}      0.84932       0.26495         3.2056      0.0013477
    ARCH{1}       0.07325       0.14953        0.48986        0.62423
    Offset        0.11227      0.039214         2.8629      0.0041974

Forecast the conditional variance of the nominal return series 10 years into the future using the estimated GARCH model. Specify the entire returns series as presample observations. The software infers presample conditional variances using the presample observations and the model.

numPeriods = 10;
vF = forecast(EstMdl,numPeriods,'Y0',nr);

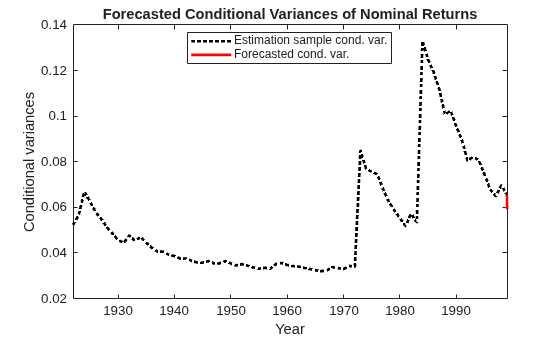

Plot the forecasted conditional variances of the nominal returns. Compare the forecasts to the observed conditional variances.

v = infer(EstMdl,nr);

figure;
plot(dates,v,'k:','LineWidth',2);
hold on;
plot(dates(end):dates(end) + 10,[v(end);vF],'r','LineWidth',2);
title('Forecasted Conditional Variances of Nominal Returns');
ylabel('Conditional variances');
xlabel('Year');
legend({'Estimation sample cond. var.','Forecasted cond. var.'},...
    'Location','Best');

More About

expand all

Tips

You can specify a garch model as part of a composition of conditional mean and variance models. For details, see arima.

References

[1] Tsay, R. S. Analysis of Financial Time Series. 3rd ed. Hoboken, NJ: John Wiley & Sons, Inc., 2010.

Introduced in R2012a
