restart

Restart driving scenario simulation from beginning

Syntax

``restart(scenario)``

Description

example

````restart(scenario)` restarts the simulation of the driving scenario, `scenario`, from the beginning. The function sets the `SimulationTime` property of the driving scenario to `0`.```

Examples

collapse all

Create a driving scenario in which a vehicle travels down a straight, 25-meter road at 20 meters per second. Plot the scenario.

```scenario = drivingScenario('SampleTime',0.1); roadcenters= [0 0 0; 25 0 0]; road(scenario,roadcenters)```
```ans = Road with properties: Name: "" RoadID: 1 RoadCenters: [2x3 double] RoadWidth: 6 BankAngle: [2x1 double] Heading: [2x1 double] ```

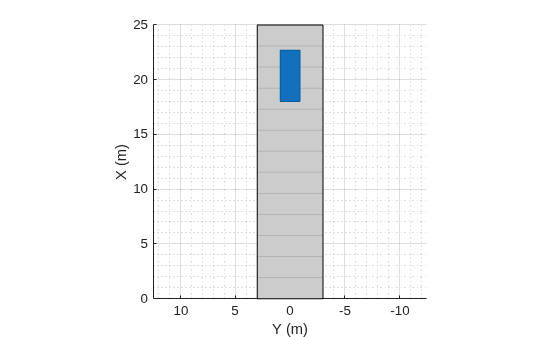

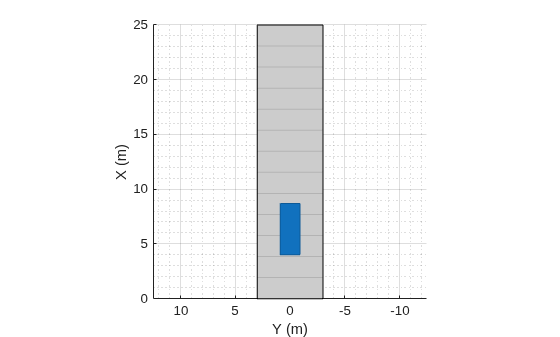

```v = vehicle(scenario,'ClassID',1); waypoints = [5 0 0; 20 0 0]; speed = 20; % m/s smoothTrajectory(v,waypoints,speed) plot(scenario)```

Run the simulation and display the location of the vehicle at each time step.

```while advance(scenario) fprintf('Vehicle location: %0.2f meters at t = %0.0f ms\n', ... v.Position(1), ... scenario.SimulationTime * 1000) end```
```Vehicle location: 7.00 meters at t = 100 ms Vehicle location: 9.00 meters at t = 200 ms Vehicle location: 11.00 meters at t = 300 ms Vehicle location: 13.00 meters at t = 400 ms Vehicle location: 15.00 meters at t = 500 ms Vehicle location: 17.00 meters at t = 600 ms Vehicle location: 19.00 meters at t = 700 ms ```

Restart the simulation. Increase the sample time and rerun the simulation.

```restart(scenario); scenario.SampleTime = 0.2; while advance(scenario) fprintf('Vehicle location: %0.2f meters at t = %0.0f ms\n', ... v.Position(1), ... scenario.SimulationTime * 1000) end```
```Vehicle location: 9.00 meters at t = 200 ms Vehicle location: 13.00 meters at t = 400 ms Vehicle location: 17.00 meters at t = 600 ms ```

Input Arguments

collapse all

Driving scenario, specified as a `drivingScenario` object.
