# Solve Ordinary Differential Equation Using Neural Network

This example shows how to solve an ordinary differential equation (ODE) using a neural network.

Not all differential equations have a closed-form solution. To find approximate solutions to these types of equations, many traditional numerical algorithms are available. However, you can also solve an ODE by using a neural network. This approach comes with several advantages, including that it provides differentiable approximate solutions in a closed analytic form [1].

This example shows you how to:

1. Generate training data in the range $x\in \left[0,2\right]$.

2. Define a neural network that takes $x$ as input and returns the approximate solution to the ODE $\stackrel{˙}{\text{\hspace{0.17em}}\mathit{y}}=-2\mathit{xy}$, evaluated at $x$, as output.

3. Train the network with a custom loss function.

4. Compare the network predictions with the analytic solution.

### ODE and Loss Function

In this example, you solve the ODE

`$\stackrel{˙}{\text{\hspace{0.17em}}\mathit{y}}=-2\mathit{xy},$`

with the initial condition $\mathit{y}\left(0\right)=1$. This ODE has the analytic solution

`$\mathit{y}\left(\mathit{x}\right)={\mathit{e}}^{-{\mathit{x}}^{2}}.$`

Define a custom loss function that penalizes deviations from satisfying the ODE and the initial condition. In this example, the loss function is a weighted sum of the ODE loss and the initial condition loss:

`${L}_{\theta }\left(x\right)=‖{\underset{}{\overset{˙}{y}}}_{\theta }+2x{y}_{\theta }{‖}^{2}+k‖{y}_{\theta }\left(0\right)-1{‖}^{2}$`

$\theta \text{\hspace{0.17em}}$is the network parameters, $k$ is a constant coefficient, ${\mathit{y}}_{\theta \text{\hspace{0.17em}}}$ is the solution predicted by the network, and $\stackrel{˙}{{\mathit{y}}_{\theta \text{\hspace{0.17em}}}}$ is the derivative of the predicted solution computed using automatic differentiation. The term $‖\text{\hspace{0.17em}}\stackrel{˙}{{\mathit{y}}_{\theta \text{\hspace{0.17em}}}}\text{\hspace{0.17em}}+\text{\hspace{0.17em}}2{\mathit{xy}}_{\theta \text{\hspace{0.17em}}}\text{\hspace{0.17em}}{‖}^{2}$ is the ODE loss and it quantifies how much the predicted solution deviates from satisfying the ODE definition. The term $‖{\mathit{y}}_{\theta \text{\hspace{0.17em}}}\left(0\right)-1\text{\hspace{0.17em}}{‖}^{2}$ is the initial condition loss and it quantifies how much the predicted solution deviates from satisfying the initial condition.

### Generate Input Data and Define Network

Generate 10,000 training data points in the range $x\in \left[0,2\right]$.

`x = linspace(0,2,10000)';`

Define the network for solving the ODE. As the input is a real number $x\in \mathbb{R}$, specify an input size of 1.

```inputSize = 1; layers = [ featureInputLayer(inputSize,Normalization="none") fullyConnectedLayer(10) sigmoidLayer fullyConnectedLayer(1) sigmoidLayer];```

Create a `dlnetwork` object from the layer array.

`net = dlnetwork(layers)`
```net = dlnetwork with properties: Layers: [5×1 nnet.cnn.layer.Layer] Connections: [4×2 table] Learnables: [4×3 table] State: [0×3 table] InputNames: {'input'} OutputNames: {'layer_2'} Initialized: 1 View summary with summary. ```

### Define Model Loss Function

Create the function `modelLoss`, listed in the Model Loss Function section of the example, which takes as inputs a neural network, a mini-batch of input data, and the coefficient associated with the initial condition loss. This function returns the loss and the gradients of the loss with respect to the learnable parameters in the neural network.

### Specify Training Options

Train for 15 epochs with a mini-batch size of 100.

```numEpochs = 15; miniBatchSize = 100;```

Specify the options for SGDM optimization. Specify a learning rate of 0.5, a learning rate drop factor of 0.5, a learning rate drop period of 5, and a momentum of 0.9.

```initialLearnRate = 0.5; learnRateDropFactor = 0.5; learnRateDropPeriod = 5; momentum = 0.9;```

Specify the coefficient of the initial condition term in the loss function as 7. This coefficient specifies the relative contribution of the initial condition to the loss. Tweaking this parameter can help training converge faster.

`icCoeff = 7;`

### Train Model

To use mini-batches of data during training:

1. Create an `arrayDatastore` object from the training data.

2. Create a `minibatchqueue` object that takes the `arrayDatastore` object as input, specify the mini-batch size, to discard partial mini-batches, and that the training data has the format `"BC"` (batch, channel).

By default, the `minibatchqueue` object converts the data to `dlarray` objects with underlying type `single`. It also converts each output to a `gpuArray` if a GPU is available. Using a GPU requires Parallel Computing Toolbox™ and a supported GPU device. For information on supported devices, see GPU Computing Requirements (Parallel Computing Toolbox).

```ads = arrayDatastore(x,IterationDimension=1); mbq = minibatchqueue(ads, ... MiniBatchSize=miniBatchSize, ... PartialMiniBatch="discard", ... MiniBatchFormat="BC");```

Initialize the velocity parameter for the SGDM solver.

`velocity = [];`

Calculate the total number of iterations for the training progress monitor.

```numObservationsTrain = numel(x); numIterationsPerEpoch = floor(numObservationsTrain / miniBatchSize); numIterations = numEpochs * numIterationsPerEpoch;```

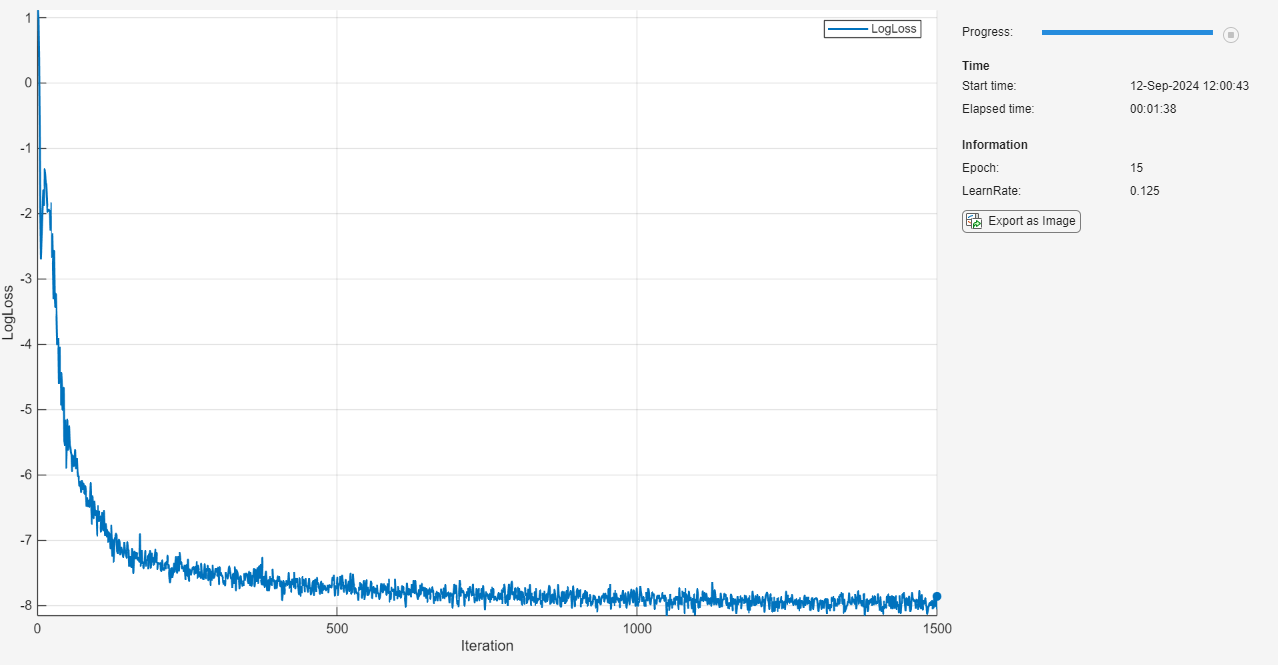

Initialize the `TrainingProgressMonitor` object. Because the timer starts when you create the monitor object, make sure that you create the object close to the training loop.

```monitor = trainingProgressMonitor( ... Metrics="LogLoss", ... Info=["Epoch" "LearnRate"], ... XLabel="Iteration");```

Train the network using a custom training loop. For each epoch, shuffle the data and loop over mini-batches of data. For each mini-batch:

• Evaluate the model loss and gradients and loss using the `dlfeval` and `modelLoss` functions.

• Update the network parameters using the `sgdmupdate` function.

• Display the training progress.

• Stop if the `Stop` property is `true`. The `Stop` property value of the `TrainingProgressMonitor` object changes to true when you click the Stop button.

Every `learnRateDropPeriod` epochs, multiply the learning rate by `learnRateDropFactor`.

```epoch = 0; iteration = 0; learnRate = initialLearnRate; start = tic; % Loop over epochs. while epoch < numEpochs && ~monitor.Stop epoch = epoch + 1; % Shuffle data. mbq.shuffle % Loop over mini-batches. while hasdata(mbq) && ~monitor.Stop iteration = iteration + 1; % Read mini-batch of data. X = next(mbq); % Evaluate the model gradients and loss using dlfeval and the modelLoss function. [loss,gradients] = dlfeval(@modelLoss, net, X, icCoeff); % Update network parameters using the SGDM optimizer. [net,velocity] = sgdmupdate(net,gradients,velocity,learnRate,momentum); % Update the training progress monitor. recordMetrics(monitor,iteration,LogLoss=log(loss)); updateInfo(monitor,Epoch=epoch,LearnRate=learnRate); monitor.Progress = 100 * iteration/numIterations; end % Reduce the learning rate. if mod(epoch,learnRateDropPeriod)==0 learnRate = learnRate*learnRateDropFactor; end end```

### Test Model

Test the accuracy of the network by comparing its predictions with the analytic solution.

Generate test data in the range $x\in \left[0,4\right]$ to see if the network is able to extrapolate outside the training range $x\in \left[0,2\right]$.

`xTest = linspace(0,4,1000)';`

Make predictions using the `minibatchpredict` function. By default, the `minibatchpredict` function uses a GPU if one is available. Using a GPU requires a Parallel Computing Toolbox™ license and a supported GPU device. For information on supported devices, see GPU Computing Requirements (Parallel Computing Toolbox). Otherwise, the function uses the CPU. To specify the execution environment, use the `ExecutionEnvironment` option.

`yModel = minibatchpredict(net,xTest);`

Evaluate the analytic solution.

`yAnalytic = exp(-xTest.^2);`

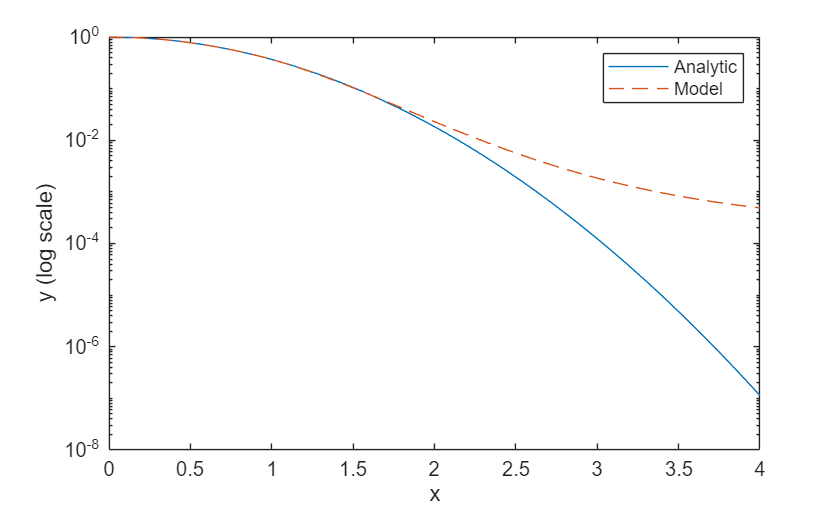

Compare the analytic solution and the model prediction by plotting them on a logarithmic scale.

```figure; plot(xTest,yAnalytic,"-") hold on plot(xTest,yModel,"--") legend("Analytic","Model") xlabel("x") ylabel("y (log scale)") set(gca,YScale="log")```

The model approximates the analytic solution accurately in the training range $x\in \left[0,2\right]$ and it extrapolates in the range $x\in \left(2,4\right]$ with lower accuracy.

Calculate the mean squared relative error in the training range $x\in \left[0,2\right]$.

```yModelTrain = yModel(1:500); yAnalyticTrain = yAnalytic(1:500); errorTrain = mean(((yModelTrain-yAnalyticTrain)./yAnalyticTrain).^2) ```
```errorTrain = single 4.3454e-04 ```

Calculate the mean squared relative error in the extrapolated range $x\in \left(2,4\right]$.

```yModelExtra = yModel(501:1000); yAnalyticExtra = yAnalytic(501:1000); errorExtra = mean(((yModelExtra-yAnalyticExtra)./yAnalyticExtra).^2) ```
```errorExtra = single 17576682 ```

Notice that the mean squared relative error is higher in the extrapolated range than it is in the training range.

### Model Loss Function

The `modelLoss` function takes as inputs a `dlnetwork` object `net`, a mini-batch of input data `X`, and the coefficient associated with the initial condition loss `icCoeff`. This function returns the gradients of the loss with respect to the learnable parameters in `net` and the corresponding loss. The loss is defined as a weighted sum of the ODE loss and the initial condition loss. The evaluation of this loss requires second order derivatives. To enable second order automatic differentiation, use the function `dlgradient` and set the `EnableHigherDerivatives` name-value argument to `true`.

```function [loss,gradients] = modelLoss(net, X, icCoeff) y = forward(net,X); % Evaluate the gradient of y with respect to x. % Since another derivative will be taken, set EnableHigherDerivatives to true. dy = dlgradient(sum(y,"all"),X,EnableHigherDerivatives=true); % Define ODE loss. eq = dy + 2*y.*X; % Define initial condition loss. ic = forward(net,dlarray(0,"CB")) - 1; % Specify the loss as a weighted sum of the ODE loss and the initial condition loss. loss = mean(eq.^2,"all") + icCoeff * ic.^2; % Evaluate model gradients. gradients = dlgradient(loss, net.Learnables); end```

### References

1. Lagaris, I. E., A. Likas, and D. I. Fotiadis. “Artificial Neural Networks for Solving Ordinary and Partial Differential Equations.” IEEE Transactions on Neural Networks 9, no. 5 (September 1998): 987–1000. https://doi.org/10.1109/72.712178.
