dlupdate

Update parameters using custom function

Since R2019b

Syntax

``netUpdated = dlupdate(fun,net)``
``params = dlupdate(fun,params)``
``[___] = dlupdate(fun,___A1,...,An)``
``[___,X1,...,Xm] = dlupdate(fun,___)``

Description

example

````netUpdated = dlupdate(fun,net)` updates the learnable parameters of the `dlnetwork` object `net` by evaluating the function `fun` with each learnable parameter as an input. `fun` is a function handle to a function that takes one parameter array as an input argument and returns an updated parameter array. ```
````params = dlupdate(fun,params)` updates the learnable parameters in `params` by evaluating the function `fun` with each learnable parameter as an input.```
````[___] = dlupdate(fun,___A1,...,An)` also specifies additional input arguments, in addition to the input arguments in previous syntaxes, when `fun` is a function handle to a function that requires `n+1` input values.```
````[___,X1,...,Xm] = dlupdate(fun,___)` returns multiple outputs `X1,...,Xm` when `fun` is a function handle to a function that returns `m+1` output values.```

Examples

collapse all

Perform L1 regularization on a structure of parameter gradients.

Create the sample input data.

`dlX = dlarray(rand(100,100,3),'SSC');`

Initialize the learnable parameters for the convolution operation.

```params.Weights = dlarray(rand(10,10,3,50)); params.Bias = dlarray(rand(50,1));```

Calculate the gradients for the convolution operation using the helper function `convGradients`, defined at the end of this example.

`gradients = dlfeval(@convGradients,dlX,params);`

Define the regularization factor.

`L1Factor = 0.001;`

Create an anonymous function that regularizes the gradients. By using an anonymous function to pass a scalar constant to the function, you can avoid having to expand the constant value to the same size and structure as the parameter variable.

`L1Regularizer = @(grad,param) grad + L1Factor.*sign(param);`

Use `dlupdate` to apply the regularization function to each of the gradients.

`gradients = dlupdate(L1Regularizer,gradients,params);`

The gradients in `grads` are now regularized according to the function `L1Regularizer`.

`convGradients` Function

The `convGradients` helper function takes the learnable parameters of the convolution operation and a mini-batch of input data `dlX`, and returns the gradients with respect to the learnable parameters.

```function gradients = convGradients(dlX,params) dlY = dlconv(dlX,params.Weights,params.Bias); dlY = sum(dlY,'all'); gradients = dlgradient(dlY,params); end```

Use `dlupdate` to train a network using a custom update function that implements the stochastic gradient descent algorithm (without momentum).

```[XTrain,TTrain] = digitTrain4DArrayData; classes = categories(TTrain); numClasses = numel(classes);```

Define the Network

Define the network architecture and specify the average image value using the `Mean` option in the image input layer.

```layers = [ imageInputLayer([28 28 1],'Mean',mean(XTrain,4)) convolution2dLayer(5,20) reluLayer convolution2dLayer(3,20,'Padding',1) reluLayer convolution2dLayer(3,20,'Padding',1) reluLayer fullyConnectedLayer(numClasses) softmaxLayer];```

Create a `dlnetwork` object from the layer array.

`net = dlnetwork(layers);`

Define Model Loss Function

Create the helper function `modelLoss`, listed at the end of this example. The function takes a `dlnetwork` object and a mini-batch of input data with corresponding labels, and returns the loss and the gradients of the loss with respect to the learnable parameters.

Create the helper function `sgdFunction`, listed at the end of this example. The function takes the parameters and the gradients of the loss with respect to the parameters, and returns the updated parameters using the stochastic gradient descent algorithm, expressed as

`${\theta }_{\mathit{l}+1}=\theta -\alpha \nabla \mathit{E}\left({\theta }_{\mathit{l}}\right)$`

where $\mathit{l}$ is the iteration number, $\alpha >0$ is the learning rate, $\theta$ is the parameter vector, and $\mathit{E}\left(\theta \right)$ is the loss function.

Specify Training Options

Specify the options to use during training.

```miniBatchSize = 128; numEpochs = 30; numObservations = numel(TTrain); numIterationsPerEpoch = floor(numObservations./miniBatchSize);```

Specify the learning rate.

`learnRate = 0.01;`

Train Network

Calculate the total number of iterations for the training progress monitor.

`numIterations = numEpochs * numIterationsPerEpoch;`

Initialize the `TrainingProgressMonitor` object. Because the timer starts when you create the monitor object, make sure that you create the object close to the training loop.

`monitor = trainingProgressMonitor(Metrics="Loss",Info="Epoch",XLabel="Iteration");`

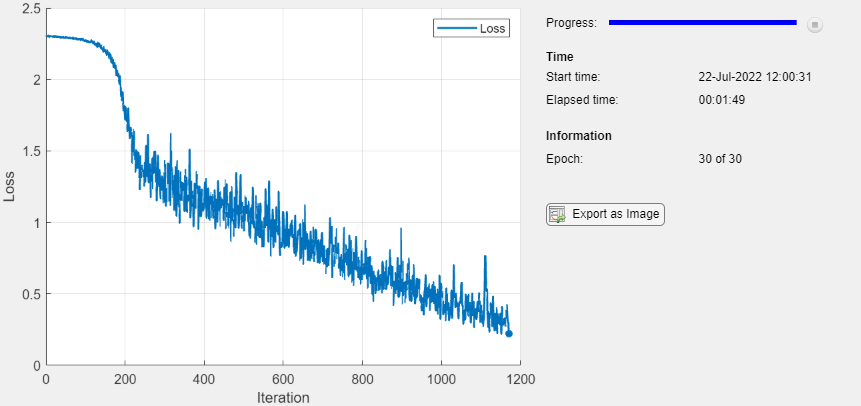

Train the model using a custom training loop. For each epoch, shuffle the data and loop over mini-batches of data. Update the network parameters by calling `dlupdate` with the function `sgdFunction` defined at the end of this example. At the end of each epoch, display the training progress.

Train on a GPU, if one is available. Using a GPU requires Parallel Computing Toolbox™ and a supported GPU device. For information on supported devices, see GPU Computing Requirements (Parallel Computing Toolbox).

```iteration = 0; epoch = 0; while epoch < numEpochs && ~monitor.Stop epoch = epoch + 1; % Shuffle data. idx = randperm(numel(TTrain)); XTrain = XTrain(:,:,:,idx); TTrain = TTrain(idx); i = 0; while i < numIterationsPerEpoch && ~monitor.Stop i = i + 1; iteration = iteration + 1; % Read mini-batch of data and convert the labels to dummy % variables. idx = (i-1)*miniBatchSize+1:i*miniBatchSize; X = XTrain(:,:,:,idx); T = zeros(numClasses, miniBatchSize,"single"); for c = 1:numClasses T(c,TTrain(idx)==classes(c)) = 1; end % Convert mini-batch of data to dlarray. X = dlarray(single(X),"SSCB"); % If training on a GPU, then convert data to a gpuArray. if canUseGPU X = gpuArray(X); end % Evaluate the model loss and gradients using dlfeval and the % modelLoss function. [loss,gradients] = dlfeval(@modelLoss,net,X,T); % Update the network parameters using the SGD algorithm defined in % the sgdFunction helper function. updateFcn = @(net,gradients) sgdFunction(net,gradients,learnRate); net = dlupdate(updateFcn,net,gradients); % Update the training progress monitor. recordMetrics(monitor,iteration,Loss=loss); updateInfo(monitor,Epoch=epoch + " of " + numEpochs); monitor.Progress = 100 * iteration/numIterations; end end```

Test Network

Test the classification accuracy of the model by comparing the predictions on a test set with the true labels.

`[XTest,TTest] = digitTest4DArrayData;`

Convert the data to a `dlarray` with the dimension format `"SSCB"` (spatial, spatial, channel, batch). For GPU prediction, also convert the data to a `gpuArray`.

```XTest = dlarray(XTest,"SSCB"); if canUseGPU XTest = gpuArray(XTest); end```

To classify images using a `dlnetwork` object, use the `predict` function and find the classes with the highest scores.

```YTest = predict(net,XTest); [~,idx] = max(extractdata(YTest),[],1); YTest = classes(idx);```

Evaluate the classification accuracy.

`accuracy = mean(YTest==TTest)`
```accuracy = 0.9040 ```

Model Loss Function

The helper function `modelLoss` takes a `dlnetwork` object `net` and a mini-batch of input data `X` with corresponding labels `T`, and returns the loss and the gradients of the loss with respect to the learnable parameters in `net`. To compute the gradients automatically, use the `dlgradient` function.

```function [loss,gradients] = modelLoss(net,X,T) Y = forward(net,X); loss = crossentropy(Y,T); gradients = dlgradient(loss,net.Learnables); end```

The helper function `sgdFunction` takes the learnable parameters `parameters`, the gradients of the loss with respect to the learnable parameters, and the learning rate `learnRate`, and returns the updated parameters using the stochastic gradient descent algorithm, expressed as

`${\theta }_{\mathit{l}+1}=\theta -\alpha \nabla \mathit{E}\left({\theta }_{\mathit{l}}\right)$`

where $\mathit{l}$ is the iteration number, $\alpha >0$ is the learning rate, $\theta$ is the parameter vector, and $\mathit{E}\left(\theta \right)$ is the loss function.

```function parameters = sgdFunction(parameters,gradients,learnRate) parameters = parameters - learnRate .* gradients; end```

Input Arguments

collapse all

Function to apply to the learnable parameters, specified as a function handle.

`dlupdate` evaluates `fun` with each network learnable parameter as an input. `fun` is evaluated as many times as there are arrays of learnable parameters in `net` or `params`.

Network, specified as a `dlnetwork` object.

The function updates the `Learnables` property of the `dlnetwork` object. `net.Learnables` is a table with three variables:

• `Layer` — Layer name, specified as a string scalar.

• `Parameter` — Parameter name, specified as a string scalar.

• `Value` — Value of parameter, specified as a cell array containing a `dlarray`.

Network learnable parameters, specified as a `dlarray`, a numeric array, a cell array, a structure, or a table.

If you specify `params` as a table, it must contain the following three variables.

• `Layer` — Layer name, specified as a string scalar.

• `Parameter` — Parameter name, specified as a string scalar.

• `Value` — Value of parameter, specified as a cell array containing a `dlarray`.

You can specify `params` as a container of learnable parameters for your network using a cell array, structure, or table, or nested cell arrays or structures. The learnable parameters inside the cell array, structure, or table must be `dlarray` or numeric values of data type `double` or `single`.

The input argument `A1,...,An` must be provided with exactly the same data type, ordering, and fields (for structures) or variables (for tables) as `params`.

Data Types: `single` | `double` | `struct` | `table` | `cell`

Additional input arguments to `fun`, specified as `dlarray` objects, numeric arrays, cell arrays, structures, or tables with a `Value` variable.

The exact form of `A1,...,An` depends on the input network or learnable parameters. The following table shows the required format for `A1,...,An` for possible inputs to `dlupdate`.

InputLearnable Parameters`A1,...,An`
`net`Table `net.Learnables` containing `Layer`, `Parameter`, and `Value` variables. The `Value` variable consists of cell arrays that contain each learnable parameter as a `dlarray`. Table with the same data type, variables, and ordering as `net.Learnables`. `A1,...,An` must have a `Value` variable consisting of cell arrays that contain the additional input arguments for the function `fun` to apply to each learnable parameter.
`params``dlarray``dlarray` with the same data type and ordering as `params`.
Numeric arrayNumeric array with the same data type and ordering as `params`.
Cell arrayCell array with the same data types, structure, and ordering as `params`.
StructureStructure with the same data types, fields, and ordering as `params`.
Table with `Layer`, `Parameter`, and `Value` variables. The `Value` variable must consist of cell arrays that contain each learnable parameter as a `dlarray`.Table with the same data types, variables and ordering as `params`. `A1,...,An` must have a `Value` variable consisting of cell arrays that contain the additional input argument for the function `fun` to apply to each learnable parameter.

Output Arguments

collapse all

Network, returned as a `dlnetwork` object.

The function updates the `Learnables` property of the `dlnetwork` object.

Updated network learnable parameters, returned as a `dlarray`, a numeric array, a cell array, a structure, or a table with a `Value` variable containing the updated learnable parameters of the network.

Additional output arguments from the function `fun`, where `fun` is a function handle to a function that returns multiple outputs, returned as `dlarray` objects, numeric arrays, cell arrays, structures, or tables with a `Value` variable.

The exact form of `X1,...,Xm` depends on the input network or learnable parameters. The following table shows the returned format of `X1,...,Xm` for possible inputs to `dlupdate`.

InputLearnable parameters`X1,...,Xm`
`net`Table `net.Learnables` containing `Layer`, `Parameter`, and `Value` variables. The `Value` variable consists of cell arrays that contain each learnable parameter as a `dlarray`. Table with the same data type, variables, and ordering as `net.Learnables`. `X1,...,Xm` has a `Value` variable consisting of cell arrays that contain the additional output arguments of the function `fun` applied to each learnable parameter.
`params``dlarray``dlarray` with the same data type and ordering as `params`.
Numeric arrayNumeric array with the same data type and ordering as `params`.
Cell arrayCell array with the same data types, structure, and ordering as `params`.
StructureStructure with the same data types, fields, and ordering as `params`.
Table with `Layer`, `Parameter`, and `Value` variables. The `Value` variable must consist of cell arrays that contain each learnable parameter as a `dlarray`.Table with the same data types, variables. and ordering as `params`. `X1,...,Xm` has a `Value` variable consisting of cell arrays that contain the additional output argument of the function `fun` applied to each learnable parameter.

Version History

Introduced in R2019b
