getLayer
Description
Examples
Get Layer from Neural Network

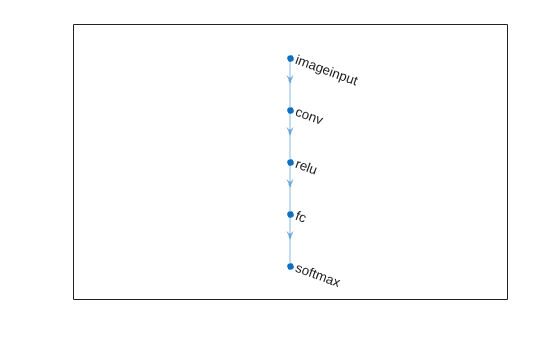

Define a simple network architecture and display the network in a plot.
net = dlnetwork;
layers = [
imageInputLayer([28 28])
convolution2dLayer(3,16,Padding="same")
reluLayer
fullyConnectedLayer(10)
softmaxLayer];
net = addLayers(net,layers);
figure
plot(net)
Look up the convolution layer by name. You can then edit the layer and replace it using the getLayer
function.
convLayer = getLayer(net,"conv")
convLayer = Convolution2DLayer with properties: Name: 'conv' Hyperparameters FilterSize: [3 3] NumChannels: 'auto' NumFilters: 16 Stride: [1 1] DilationFactor: [1 1] PaddingMode: 'same' PaddingSize: [] PaddingValue: 0 Learnable Parameters Weights: [] Bias: [] Use properties method to see a list of all properties.
If you know the index of the layer, you can alternatively look it up by index.
convLayer = net.Layers(2);
Replace Layer in Nested Network
Define a network architecture containing several network layers.
net = dlnetwork;
layers = [lstmLayer(100,OutputMode="sequence")
dropoutLayer(0.2)];
lstmDropoutLayer = networkLayer(layers);
layers = [sequenceInputLayer(3)
lstmDropoutLayer
lstmDropoutLayer
fullyConnectedLayer(10)
softmaxLayer];
net = addLayers(net,layers);
Plot the network.
figure plot(net)
Look up the first LSTM layer by specifying the path to the layer. The path includes the name of the network layer ("subnet_1"
) and the name of the LSTM layer ("lstm"
), separated by a forward slash. You can use the path to look up layers nested within a hierarchy of multiple network layers.
tempLSTMLayer = getLayer(net,"subnet_1/lstm");
Edit properties of the layer, and replace the original layer with the modified layer.
tempLSTMLayer.InputWeightsInitializer = "zeros"; tempLSTMLayer.RecurrentWeightsInitializer = "zeros"; tempLSTMLayer.BiasInitializer = "ones"; tempLSTMLayer.Name = "modifiedLSTM";
Replace the original layer with the modified layer, specifying the network, the path to the layer to replace, and the modified layer.
net = replaceLayer(net,"subnet_1/lstm",tempLSTMLayer);
Input Arguments
net
— Neural network
dlnetwork
object
Neural network, specified as a dlnetwork
object.
layerName
— Name of layer
character vector | string scalar
Name of layer to look up, specified as a character vector or string scalar.
Example: "conv1"
Data Types: char
| string
layerPath
— Path to nested layer
character vector | string scalar
Path to nested layer, specified as a character vector or string scalar.
For a layer within a networkLayer
,
specify layerPath
as:
The name of the network layer and the name of the nested layer separated by a forward slash
"/"
. For example, the path to a layer named"nestedLayerName"
in a network layer named"networkLayerName"
is"networkLayerName/nestedLayerName"
. If there are multiple levels of nested layers, then specify the path using the formnetworkLayerName1/.../networkLayerNameN/nestedLayerName
.
Custom layers can have a dlnetwork
as a learnable or state property. For a
layer of a dlnetwork
in the property of a custom layer, specify
layerPath
as:
The name of the custom layer, the name of the
dlnetwork
property, and the name of the nested layer separated by forward slashes"/"
. For example, the path to a layer named"layerName"
inside adlnetwork
property named"propertyName"
of a custom layer named"customLayerName"
is"customLayerName/propertyName/layerName"
. If there are multiple levels of nested layers, then specify the path using the form"customLayerName1/propertyName1/.../customLayerNameN/propertyNameN/layerName"
.
Data Types: char
| string
Version History
Introduced in R2024a
