Classify Images on an FPGA Using a Quantized DAG Network

In this example, you use Deep learning HDL Toolbox to deploy a quantized deep convolutional neural network and classify an image. The example uses the pretrained ResNet-18 convolutional neural network to demonstrate transfer learning, quantization, and deployment for the quantized network. Use MATLAB ® to retrieve the prediction results.

ResNet-18 has been trained on over a million images and can classify images into 1000 object categories (such as keyboard, coffee mug, pencil, and many animals). The network has learned rich feature representations for a wide range of images. The network takes an image as input and outputs a label for the object in the image together with the probabilities for each of the object categories.

Required Products

For this example, you need:

  • Deep Learning Toolbox ™

  • Deep Learning HDL Toolbox ™

  • Deep Learning Toolbox Model for ResNet-18 Network

  • Deep Learning HDL Toolbox Support Package for Xilinx FPGA and SoC Devices

  • Image Processing Toolbox ™

  • Deep Learning Toolbox Model Quantization Library

  • MATLAB Coder Interface for Deep Learning Libraries

Transfer Learning Using Resnet-18

To perform classification on a new set of images, you fine-tune a pretrained ResNet-18 convolutional neural network by transfer learning. In transfer learning, you can take a pretrained network and use it as a starting point to learn a new task. Fine-tuning a network with transfer learning is usually much faster and easier than training a network with randomly initialized weights from scratch. You can quickly transfer learned features to a new task using a smaller number of training images.

Load Pretrained SeriesNetwork

To load the pretrained series network ResNet-18, enter:

snet = resnet18;

To view the layers of the pretrained series network, enter:

analyzeNetwork(snet);

The first layer, the image input layer, requires input images of size 227-by-227-by-3, where 3 is the number of color channels.

inputSize = snet.Layers(1).InputSize;

Define Training and Validation Data Sets

This example uses the MathWorks MerchData data set. This is a small data set containing 75 images of MathWorks merchandise, belonging to five different classes (cap, cube, playing cards, screwdriver, and torch).

curDir = pwd;
unzip('MerchData.zip');
imds = imageDatastore('MerchData', ...
'IncludeSubfolders',true, ...
'LabelSource','foldernames');
[imdsTrain,imdsValidation] = splitEachLabel(imds,0.7,'randomized');

Replace Final Layers

The fully connected layer and classification layer of the pretrained network net are configured for 1000 classes. These two layers fc1000 and ClassificationLayer_predictions in ResNet-18, contain information on how to combine the features that the network extracts into class probabilities and predicted labels . These two layers must be fine-tuned for the new classification problem. Extract all the layers, except the last two layers, from the pretrained network.

lgraph = layerGraph(snet)
lgraph =
  LayerGraph with properties:

         Layers: [71×1 nnet.cnn.layer.Layer]
    Connections: [78×2 table]
     InputNames: {'data'}
    OutputNames: {'ClassificationLayer_predictions'}

numClasses = numel(categories(imdsTrain.Labels))
numClasses = 5
newLearnableLayer = fullyConnectedLayer(numClasses, ...
'Name','new_fc', ...
'WeightLearnRateFactor',10, ...
'BiasLearnRateFactor',10);
lgraph = replaceLayer(lgraph,'fc1000',newLearnableLayer);
newClassLayer = classificationLayer('Name','new_classoutput');
lgraph = replaceLayer(lgraph,'ClassificationLayer_predictions',newClassLayer);

Train Network

The network requires input images of size 224-by-224-by-3, but the images in the image datastores have different sizes. Use an augmented image datastore to automatically resize the training images. Specify additional augmentation operations to perform on the training images, such as randomly flipping the training images along the vertical axis and randomly translating them up to 30 pixels horizontally and vertically. Data augmentation helps prevent the network from overfitting and memorizing the exact details of the training images.

pixelRange = [-30 30];
imageAugmenter = imageDataAugmenter( ...
'RandXReflection',true, ...
'RandXTranslation',pixelRange, ...
'RandYTranslation',pixelRange);

To automatically resize the validation images without performing further data augmentation, use an augmented image datastore without specifying any additional preprocessing operations.

augimdsTrain = augmentedImageDatastore(inputSize(1:2),imdsTrain, ...
'DataAugmentation',imageAugmenter);
augimdsValidation = augmentedImageDatastore(inputSize(1:2),imdsValidation);

Specify the training options. For transfer learning, keep the features from the early layers of the pretrained network (the transferred layer weights). To slow down learning in the transferred layers, set the initial learning rate to a small value. Specify the mini-batch size and validation data. The software validates the network every ValidationFrequency iterations during training.

options = trainingOptions('sgdm', ...
'MiniBatchSize',10, ...
'MaxEpochs',6, ...
'InitialLearnRate',1e-4, ...
'Shuffle','every-epoch', ...
'ValidationData',augimdsValidation, ...
'ValidationFrequency',3, ...
'Verbose',false, ...
'Plots','training-progress');

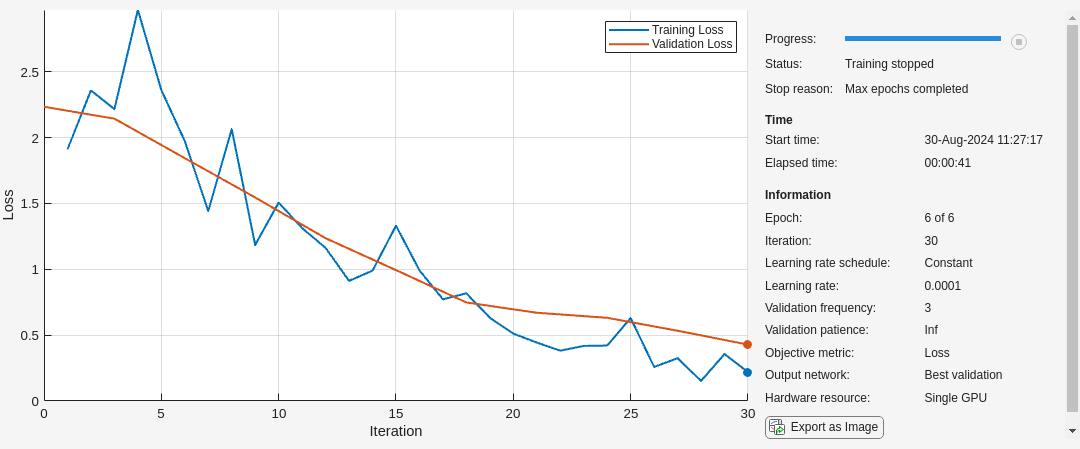

Train the network that consists of the transferred and new layers. By default, trainNetwork uses a GPU if one is available (requires Parallel Computing Toolbox™ and a supported GPU device. For more information, see GPU Support by Release (Parallel Computing Toolbox)). Otherwise, the network uses a CPU (requires MATLAB Coder Interface for Deep learning Libraries™). You can also specify the execution environment by using the 'ExecutionEnvironment' name-value argument of trainingOptions.

netTransfer = trainNetwork(augimdsTrain,lgraph,options);

Quantize the Network

Create a dlquantizer object and specify the network to quantize.

dlquantObj = dlquantizer(netTransfer,'ExecutionEnvironment','FPGA');

Calibrate the Quantized Network Object

Use the calibrate function to exercise the network with sample inputs and collect the range information. The calibrate function exercises the network and collects the dynamic ranges of the weights and biases in the convolution and fully connected layers of the network and the dynamic ranges of the activations in all layers of the network. The calibrate function returns a table. Each row of the table contains range information for a learnable parameter of the quantized network.

dlquantObj.calibrate(augimdsTrain)
ans=95×5 table
       Optimized Layer Name       Network Layer Name    Learnables / Activations    MinValue    MaxValue
    __________________________    __________________    ________________________    ________    ________

    {'conv1_Weights'         }    {'bn_conv1'     }            "Weights"            -0.86045     1.3675
    {'conv1_Bias'            }    {'bn_conv1'     }            "Bias"               -0.66706    0.67651
    {'res2a_branch2a_Weights'}    {'bn2a_branch2a'}            "Weights"            -0.40354    0.34824
    {'res2a_branch2a_Bias'   }    {'bn2a_branch2a'}            "Bias"                -0.7954     1.3412
    {'res2a_branch2b_Weights'}    {'bn2a_branch2b'}            "Weights"            -0.75855     0.5863
    {'res2a_branch2b_Bias'   }    {'bn2a_branch2b'}            "Bias"                -1.3406     1.7593
    {'res2b_branch2a_Weights'}    {'bn2b_branch2a'}            "Weights"            -0.32464    0.35274
    {'res2b_branch2a_Bias'   }    {'bn2b_branch2a'}            "Bias"                -1.1606     1.5388
    {'res2b_branch2b_Weights'}    {'bn2b_branch2b'}            "Weights"             -1.1713    0.95244
    {'res2b_branch2b_Bias'   }    {'bn2b_branch2b'}            "Bias"               -0.73906     1.2628
    {'res3a_branch2a_Weights'}    {'bn3a_branch2a'}            "Weights"            -0.19423     0.2396
    {'res3a_branch2a_Bias'   }    {'bn3a_branch2a'}            "Bias"               -0.53868    0.69323
    {'res3a_branch2b_Weights'}    {'bn3a_branch2b'}            "Weights"            -0.53801    0.73706
    {'res3a_branch2b_Bias'   }    {'bn3a_branch2b'}            "Bias"                -0.6457     1.1458
    {'res3a_branch1_Weights' }    {'bn3a_branch1' }            "Weights"            -0.64085    0.98864
    {'res3a_branch1_Bias'    }    {'bn3a_branch1' }            "Bias"                -0.9258    0.76574
      ⋮

Create Target Object

Use the dlhdl.Target class to create a target object with a custom name for your target device and an interface to connect your target device to the host computer. Interface options are JTAG and Ethernet. To use JTAG,Install Xilinx™ Vivado™ Design Suite 2019.2. To set the Xilinx Vivado toolpath, enter:

% hdlsetuptoolpath('ToolName', 'Xilinx Vivado', 'ToolPath', 'C:\Xilinx\Vivado\2019.2\bin\vivado.bat');
hTarget = dlhdl.Target('Xilinx','Interface','Ethernet');

Create WorkFlow Object

Use the dlhdl.Workflow class to create an object. When you create the object, specify the network and the bitstream name. Specify the saved pretrained alexnet neural network as the network. Make sure that the bitstream name matches the data type and the FPGA board that you are targeting. In this example, the target FPGA board is the Xilinx ZCU102 SoC board. The bitstream uses a single data type.

hW = dlhdl.Workflow('Network', dlquantObj, 'Bitstream', 'zcu102_int8','Target',hTarget);

Compile the netTransfer DAG network

To compile the netTransfer DAG network, run the compile method of the dlhdl.Workflow object. You can optionally specify the maximum number of input frames.

dn = hW.compile('InputFrameNumberLimit',15)
### Compiling network for Deep Learning FPGA prototyping ...
### Targeting FPGA bitstream zcu102_int8 ...
### The network includes the following layers:

     1   'data'                  Image Input              224×224×3 images with 'zscore' normalization                          (SW Layer)
     2   'conv1'                 Convolution              64 7×7×3 convolutions with stride [2  2] and padding [3  3  3  3]     (HW Layer)
     3   'bn_conv1'              Batch Normalization      Batch normalization with 64 channels                                  (HW Layer)
     4   'conv1_relu'            ReLU                     ReLU                                                                  (HW Layer)
     5   'pool1'                 Max Pooling              3×3 max pooling with stride [2  2] and padding [1  1  1  1]           (HW Layer)
     6   'res2a_branch2a'        Convolution              64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
     7   'bn2a_branch2a'         Batch Normalization      Batch normalization with 64 channels                                  (HW Layer)
     8   'res2a_branch2a_relu'   ReLU                     ReLU                                                                  (HW Layer)
     9   'res2a_branch2b'        Convolution              64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
    10   'bn2a_branch2b'         Batch Normalization      Batch normalization with 64 channels                                  (HW Layer)
    11   'res2a'                 Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
    12   'res2a_relu'            ReLU                     ReLU                                                                  (HW Layer)
    13   'res2b_branch2a'        Convolution              64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
    14   'bn2b_branch2a'         Batch Normalization      Batch normalization with 64 channels                                  (HW Layer)
    15   'res2b_branch2a_relu'   ReLU                     ReLU                                                                  (HW Layer)
    16   'res2b_branch2b'        Convolution              64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
    17   'bn2b_branch2b'         Batch Normalization      Batch normalization with 64 channels                                  (HW Layer)
    18   'res2b'                 Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
    19   'res2b_relu'            ReLU                     ReLU                                                                  (HW Layer)
    20   'res3a_branch2a'        Convolution              128 3×3×64 convolutions with stride [2  2] and padding [1  1  1  1]   (HW Layer)
    21   'bn3a_branch2a'         Batch Normalization      Batch normalization with 128 channels                                 (HW Layer)
    22   'res3a_branch2a_relu'   ReLU                     ReLU                                                                  (HW Layer)
    23   'res3a_branch2b'        Convolution              128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    24   'bn3a_branch2b'         Batch Normalization      Batch normalization with 128 channels                                 (HW Layer)
    25   'res3a'                 Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
    26   'res3a_relu'            ReLU                     ReLU                                                                  (HW Layer)
    27   'res3a_branch1'         Convolution              128 1×1×64 convolutions with stride [2  2] and padding [0  0  0  0]   (HW Layer)
    28   'bn3a_branch1'          Batch Normalization      Batch normalization with 128 channels                                 (HW Layer)
    29   'res3b_branch2a'        Convolution              128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    30   'bn3b_branch2a'         Batch Normalization      Batch normalization with 128 channels                                 (HW Layer)
    31   'res3b_branch2a_relu'   ReLU                     ReLU                                                                  (HW Layer)
    32   'res3b_branch2b'        Convolution              128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    33   'bn3b_branch2b'         Batch Normalization      Batch normalization with 128 channels                                 (HW Layer)
    34   'res3b'                 Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
    35   'res3b_relu'            ReLU                     ReLU                                                                  (HW Layer)
    36   'res4a_branch2a'        Convolution              256 3×3×128 convolutions with stride [2  2] and padding [1  1  1  1]  (HW Layer)
    37   'bn4a_branch2a'         Batch Normalization      Batch normalization with 256 channels                                 (HW Layer)
    38   'res4a_branch2a_relu'   ReLU                     ReLU                                                                  (HW Layer)
    39   'res4a_branch2b'        Convolution              256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    40   'bn4a_branch2b'         Batch Normalization      Batch normalization with 256 channels                                 (HW Layer)
    41   'res4a'                 Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
    42   'res4a_relu'            ReLU                     ReLU                                                                  (HW Layer)
    43   'res4a_branch1'         Convolution              256 1×1×128 convolutions with stride [2  2] and padding [0  0  0  0]  (HW Layer)
    44   'bn4a_branch1'          Batch Normalization      Batch normalization with 256 channels                                 (HW Layer)
    45   'res4b_branch2a'        Convolution              256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    46   'bn4b_branch2a'         Batch Normalization      Batch normalization with 256 channels                                 (HW Layer)
    47   'res4b_branch2a_relu'   ReLU                     ReLU                                                                  (HW Layer)
    48   'res4b_branch2b'        Convolution              256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    49   'bn4b_branch2b'         Batch Normalization      Batch normalization with 256 channels                                 (HW Layer)
    50   'res4b'                 Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
    51   'res4b_relu'            ReLU                     ReLU                                                                  (HW Layer)
    52   'res5a_branch2a'        Convolution              512 3×3×256 convolutions with stride [2  2] and padding [1  1  1  1]  (HW Layer)
    53   'bn5a_branch2a'         Batch Normalization      Batch normalization with 512 channels                                 (HW Layer)
    54   'res5a_branch2a_relu'   ReLU                     ReLU                                                                  (HW Layer)
    55   'res5a_branch2b'        Convolution              512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    56   'bn5a_branch2b'         Batch Normalization      Batch normalization with 512 channels                                 (HW Layer)
    57   'res5a'                 Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
    58   'res5a_relu'            ReLU                     ReLU                                                                  (HW Layer)
    59   'res5a_branch1'         Convolution              512 1×1×256 convolutions with stride [2  2] and padding [0  0  0  0]  (HW Layer)
    60   'bn5a_branch1'          Batch Normalization      Batch normalization with 512 channels                                 (HW Layer)
    61   'res5b_branch2a'        Convolution              512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    62   'bn5b_branch2a'         Batch Normalization      Batch normalization with 512 channels                                 (HW Layer)
    63   'res5b_branch2a_relu'   ReLU                     ReLU                                                                  (HW Layer)
    64   'res5b_branch2b'        Convolution              512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    65   'bn5b_branch2b'         Batch Normalization      Batch normalization with 512 channels                                 (HW Layer)
    66   'res5b'                 Addition                 Element-wise addition of 2 inputs                                     (HW Layer)
    67   'res5b_relu'            ReLU                     ReLU                                                                  (HW Layer)
    68   'pool5'                 Global Average Pooling   Global average pooling                                                (HW Layer)
    69   'new_fc'                Fully Connected          5 fully connected layer                                               (HW Layer)
    70   'prob'                  Softmax                  softmax                                                               (SW Layer)
    71   'new_classoutput'       Classification Output    crossentropyex with 'MathWorks Cap' and 4 other classes               (SW Layer)

### Optimizing series network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
5 Memory Regions created.

Skipping: data
Compiling leg: conv1>>pool1 ...
Compiling leg: conv1>>pool1 ... complete.
Compiling leg: res2a_branch2a>>res2a_branch2b ...
Compiling leg: res2a_branch2a>>res2a_branch2b ... complete.
Compiling leg: res2b_branch2a>>res2b_branch2b ...
Compiling leg: res2b_branch2a>>res2b_branch2b ... complete.
Compiling leg: res3a_branch1 ...
Compiling leg: res3a_branch1 ... complete.
Compiling leg: res3a_branch2a>>res3a_branch2b ...
Compiling leg: res3a_branch2a>>res3a_branch2b ... complete.
Compiling leg: res3b_branch2a>>res3b_branch2b ...
Compiling leg: res3b_branch2a>>res3b_branch2b ... complete.
Compiling leg: res4a_branch1 ...
Compiling leg: res4a_branch1 ... complete.
Compiling leg: res4a_branch2a>>res4a_branch2b ...
Compiling leg: res4a_branch2a>>res4a_branch2b ... complete.
Compiling leg: res4b_branch2a>>res4b_branch2b ...
Compiling leg: res4b_branch2a>>res4b_branch2b ... complete.
Compiling leg: res5a_branch1 ...
Compiling leg: res5a_branch1 ... complete.
Compiling leg: res5a_branch2a>>res5a_branch2b ...
Compiling leg: res5a_branch2a>>res5a_branch2b ... complete.
Compiling leg: res5b_branch2a>>res5b_branch2b ...
Compiling leg: res5b_branch2a>>res5b_branch2b ... complete.
Compiling leg: pool5 ...
Compiling leg: pool5 ... complete.
Compiling leg: new_fc ...
Compiling leg: new_fc ... complete.
Skipping: prob
Skipping: new_classoutput
Creating Schedule...
.............................
Creating Schedule...complete.
Creating Status Table...
............................
Creating Status Table...complete.
Emitting Schedule...
..........................
Emitting Schedule...complete.
Emitting Status Table...
..............................
Emitting Status Table...complete.

### Allocating external memory buffers:

          offset_name          offset_address    allocated_space
    _______________________    ______________    ________________

    "InputDataOffset"           "0x00000000"     "24.0 MB"
    "OutputResultOffset"        "0x01800000"     "4.0 MB"
    "SchedulerDataOffset"       "0x01c00000"     "4.0 MB"
    "SystemBufferOffset"        "0x02000000"     "28.0 MB"
    "InstructionDataOffset"     "0x03c00000"     "4.0 MB"
    "ConvWeightDataOffset"      "0x04000000"     "16.0 MB"
    "FCWeightDataOffset"        "0x05000000"     "4.0 MB"
    "EndOffset"                 "0x05400000"     "Total: 84.0 MB"

### Network compilation complete.
dn = struct with fields:
             weights: [1×1 struct]
        instructions: [1×1 struct]
           registers: [1×1 struct]
    syncInstructions: [1×1 struct]

Program Bitstream onto FPGA and Download Network Weights

To deploy the network on the Xilinx ZCU102 hardware, run the deploy function of the dlhdl.Workflow object. This function uses the output of the compile function to program the FPGA board by using the programming file. It also downloads the network weights and biases. The deploy function starts programming the FPGA device, displays progress messages, and the time it takes to deploy the network.

hW.deploy
### Programming FPGA Bitstream using Ethernet...
Downloading target FPGA device configuration over Ethernet to SD card ...
# Copied /tmp/hdlcoder_rd to /mnt/hdlcoder_rd
# Copying Bitstream hdlcoder_system.bit to /mnt/hdlcoder_rd
# Set Bitstream to hdlcoder_rd/hdlcoder_system.bit
# Copying Devicetree devicetree_dlhdl.dtb to /mnt/hdlcoder_rd
# Set Devicetree to hdlcoder_rd/devicetree_dlhdl.dtb
# Set up boot for Reference Design: 'AXI-Stream DDR Memory Access : 3-AXIM'

Downloading target FPGA device configuration over Ethernet to SD card done. The system will now reboot for persistent changes to take effect.


System is rebooting . . . . . .
### Programming the FPGA bitstream has been completed successfully.
### Loading weights to Conv Processor.
### Conv Weights loaded. Current time is 11-Jan-2021 11:26:16
### Loading weights to FC Processor.
### FC Weights loaded. Current time is 11-Jan-2021 11:26:16

Load Image for Prediction

Load the example image.

imgFile = fullfile(pwd,'MerchData','MathWorks Cube','Mathworks cube_0.jpg');
inputImg = imresize(imread(imgFile),[224 224]);
imshow(inputImg)

Run Prediction for One Image

Execute the predict method on the dlhdl.Workflow object and then show the label in the MATLAB command window.

[prediction, speed] = hW.predict(single(inputImg),'Profile','on');
### Finished writing input activations.
### Running single input activations.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                    7323615                  0.02929                       1            7323615             34.1
    conv1                  1111619                  0.00445
    pool1                   235563                  0.00094
    res2a_branch2a          268736                  0.00107
    res2a_branch2b          269031                  0.00108
    res2a                    94319                  0.00038
    res2b_branch2a          268677                  0.00107
    res2b_branch2b          268863                  0.00108
    res2b                    94255                  0.00038
    res3a_branch1           155156                  0.00062
    res3a_branch2a          226445                  0.00091
    res3a_branch2b          243593                  0.00097
    res3a                    47248                  0.00019
    res3b_branch2a          243461                  0.00097
    res3b_branch2b          243581                  0.00097
    res3b                    47232                  0.00019
    res4a_branch1           133899                  0.00054
    res4a_branch2a          134402                  0.00054
    res4a_branch2b          234184                  0.00094
    res4a                    23628                  0.00009
    res4b_branch2a          234058                  0.00094
    res4b_branch2b          234648                  0.00094
    res4b                    23756                  0.00010
    res5a_branch1           310730                  0.00124
    res5a_branch2a          310810                  0.00124
    res5a_branch2b          595374                  0.00238
    res5a                    11827                  0.00005
    res5b_branch2a          595150                  0.00238
    res5b_branch2b          595904                  0.00238
    res5b                    12012                  0.00005
    pool5                    35870                  0.00014
    new_fc                   17811                  0.00007
 * The clock frequency of the DL processor is: 250MHz
[val, idx] = max(prediction);
dlquantObj.NetworkObject.Layers(end).ClassNames{idx}
ans =
'MathWorks Cube'
