predict

Class: dlhdl.Workflow
Namespace: dlhdl

Predict responses by using deployed network

Since R2020b

expand all in page

Syntax

Y = predict(workflowObject,images)

Y = predict(workflowObject,X1,...,XN)

[Y1,...,YM] = predict(___)

[Y,performance] = predict(___,Name,Value)

Description

Y = predict(workflowObject,images) predicts responses for the image data, images, by using the deep learning network specified in the dlhdl.Workflow object, workflowObject.

example

Y = predict(workflowObject,X1,...,XN) predicts the responses for the data in the numeric or cell arrays X1, …, XN for the multi-input network specified in the Network argument of the workflowObject. The input XN corresponds to the workflowObject.Network.InputNames(N).

example

[Y1,...,YM] = predict(___) predicts responses for the M outputs of a multi-output network using any of the previous input arguments. The output YM corresponds to the output of the network specified in workflowObject.Network.OutputNames(M).

[Y,performance] = predict(___,Name,Value) predicts the responses with one or more arguments specified by optional name-value pair arguments.

Input Arguments

expand all

`workflowObject` — Deep learning network deployment options
`dlhdl.Workflow` object

Deep learning network deployment options, specified as a dlhdl.Workflow object.

`images` — Input image or input data
numeric array | formatted `dlarray` object

Input image, specified as a numeric array, cell array or formatted dlarray object. The numeric arrays can be 3-D or 4-D arrays. For 4-D arrays, the fourth dimension is the number of input images. If one of the members of the numeric array has four dimensions, then the other members of the numeric arrays must have four dimensions as well, with the value of the fourth dimension being the same for all members.

Data Types: single | int8

`X1,...,XN` — Numeric arrays for networks with multiple inputs
numeric array

Numeric or cell arrays for networks with multiple inputs, specified as a numeric array or cell array.

For multiple inputs to image prediction networks, the format of the predictors must match the formats described in the images argument descriptions.

Name-Value Arguments

expand all

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

`Profile` — Flag that returns profiling results
"off'" (default) | "on"

Flag to return profiling results for the deep learning network deployed to the target board, specified as "off" or "on".

Example: Profile = "on"

`KeepState` — Option to keep internal states
false (default) | true

Option to keep the internal states so that you can perform predictions on a recurrent neural network (RNN) like long short-term memory (LSTM) layer and gated recurrent unit (GRU) layer networks and update the deployed network state, specified as a logical value. By default, the predict method resets the network state when performing a prediction on an RNN. To retain the network state, set KeepState to true.

Example: KeepState = true

Data Types: logical

`timeout` — Specify how long to wait to retrieve prediction result from hardware
20 (default) | positive integer

The timeout property specifies the amount of time (in seconds) to wait for a prediction result to be returned from hardware.

Example: timeout = 20

Output Arguments

expand all

`Y` — Predicted responses
numeric array

Predicted responses, returned as a numeric array. The format of Y depends on the type of task.

Task	Format
2-D image regression	h-by-w-by-c-by-N numeric array, where h, w, and c are the height, width, and number of channels of the images, respectively, and N is the number of images
3-D image regression	h-by-w-by-d-by-c-by-N numeric array, where h, w, d, and c are the height, width, depth, and number of channels of the images, respectively, and N is the number of images
Sequence-to-one regression	N-by-R matrix, where N is the number of sequences and R is the number of responses
Sequence-to-sequence regression	N-by-R matrix, where N is the number of sequences and R is the number of responses
Feature regression	N-by-R matrix, where N is the number of observations and R is the number of responses

For sequence-to-sequence regression problems with one observation, images can be a matrix. In this case, Y is a matrix of responses.

If the output layer of the network is a classification layer, then Y is the predicted classification scores. This table describes the format of the scores for classification tasks.

Task	Format
Image classification	N-by-K matrix, where N is the number of observations and K is the number of classes
Sequence-to-label classification
Feature classification

`Y1,...,YM` — Predicted scores or responses of networks with multiple outputs
numeric array

Predicted scores or responses of networks with multiple outputs, returned as numeric arrays.

Each output Yj corresponds to the network output net.OutputNames(j) and has format as described in the Y output argument.

`performance` — Deployed network performance data
table

Deployed network performance data, returned as an N-by-5 table, where N is the number of layers in the network. This method returns performance only when the Profile name-value argument is set to 'on'. To learn about the data in the performance table, see Profile Inference Run.

Examples

expand all

Bicyclist and Pedestrian Classification by Using FPGA

This example uses:

Open Live Script

This example shows how to deploy a custom trained network to detect pedestrians and bicyclists based on their micro-Doppler signatures. This network is taken from the Pedestrian and Bicyclist Classification Using Deep Learning example from the Phased Array Toolbox. For more details on network training and input data, see Pedestrian and Bicyclist Classification Using Deep Learning (Radar Toolbox).

Prerequisites

Zynq® UltraScale+™ MPSoC ZCU102 Evaluation Kit

The data files used in this example are:

The MAT File trainedNetBicPed.mat contains a model trained on training data set trainDataNoCar and its label set trainLabelNoCar.
The MAT File testDataBicPed.mat contains the test data set testDataNoCar and its label set testLabelNoCar.

Load Data and Network

Load the pretrained network. Load test data and its labels.

load('trainedNetBicPed.mat','trainedNetNoCar')
load('testDataBicPed.mat')

View the layers of the pre-trained network:

deepNetworkDesigner(trainedNetNoCar);

Set Up HDL Toolpath

Set up the path to your installed Xilinx® Vivado® Design Suite 2023.1 executable if it is not already set up. For example, to set the toolpath, enter:

% hdlsetuptoolpath('ToolName', 'Xilinx Vivado','ToolPath', 'C:\Vivado\2023.1\bin');

Create Target Object

Create a target object for your target device with a vendor name and an interface to connect your target device to the host computer. Interface options are JTAG (default) and Ethernet. Vendor options are Intel or Xilinx. Use the installed Xilinx Vivado Design Suite over an Ethernet connection to program the device.

hT = dlhdl.Target('Xilinx', 'Interface', 'Ethernet');

Create Workflow Object

Create an object of the dlhdl.Workflow class. When you create the object, specify the network and the bitstream name. Specify the saved pre-trained network, trainedNetNoCar, as the network. Make sure the bitstream name matches the data type and the FPGA board that you are targeting. In this example, the target FPGA board is the Zynq UltraScale+ MPSoC ZCU102 board. The bitstream uses a single data type.

hW = dlhdl.Workflow('Network', trainedNetNoCar, 'Bitstream', 'zcu102_single', 'Target', hT);

Compile trainedNetNoCar Network

To compile the trainedNetNoCar network, run the compile function of the dlhdl.Workflow object.

dn = hW.compile;

### Compiling network for Deep Learning FPGA prototyping ...
### Targeting FPGA bitstream zcu102_single.
### An output layer called 'Output1_softmax' of type 'nnet.cnn.layer.RegressionOutputLayer' has been added to the provided network. This layer performs no operation during prediction and thus does not affect the output of the network.
### Optimizing network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
### The network includes the following layers:
     1   'imageinput'        Image Input           400×144×1 images                                                 (SW Layer)
     2   'conv_1'            2-D Convolution       16 10×10×1 convolutions with stride [1  1] and padding 'same'    (HW Layer)
     3   'relu_1'            ReLU                  ReLU                                                             (HW Layer)
     4   'maxpool_1'         2-D Max Pooling       10×10 max pooling with stride [2  2] and padding [0  0  0  0]    (HW Layer)
     5   'conv_2'            2-D Convolution       32 5×5×16 convolutions with stride [1  1] and padding 'same'     (HW Layer)
     6   'relu_2'            ReLU                  ReLU                                                             (HW Layer)
     7   'maxpool_2'         2-D Max Pooling       10×10 max pooling with stride [2  2] and padding [0  0  0  0]    (HW Layer)
     8   'conv_3'            2-D Convolution       32 5×5×32 convolutions with stride [1  1] and padding 'same'     (HW Layer)
     9   'relu_3'            ReLU                  ReLU                                                             (HW Layer)
    10   'maxpool_3'         2-D Max Pooling       10×10 max pooling with stride [2  2] and padding [0  0  0  0]    (HW Layer)
    11   'conv_4'            2-D Convolution       32 5×5×32 convolutions with stride [1  1] and padding 'same'     (HW Layer)
    12   'relu_4'            ReLU                  ReLU                                                             (HW Layer)
    13   'maxpool_4'         2-D Max Pooling       5×5 max pooling with stride [2  2] and padding [0  0  0  0]      (HW Layer)
    14   'conv_5'            2-D Convolution       32 5×5×32 convolutions with stride [1  1] and padding 'same'     (HW Layer)
    15   'relu_5'            ReLU                  ReLU                                                             (HW Layer)
    16   'avgpool2d'         2-D Average Pooling   2×2 average pooling with stride [2  2] and padding [0  0  0  0]  (HW Layer)
    17   'fc'                Fully Connected       5 fully connected layer                                          (HW Layer)
    18   'softmax'           Softmax               softmax                                                          (SW Layer)
    19   'Output1_softmax'   Regression Output     mean-squared-error                                               (SW Layer)

### Notice: The layer 'imageinput' with type 'nnet.cnn.layer.ImageInputLayer' is implemented in software.
### Notice: The layer 'softmax' with type 'nnet.cnn.layer.SoftmaxLayer' is implemented in software.
### Notice: The layer 'Output1_softmax' with type 'nnet.cnn.layer.RegressionOutputLayer' is implemented in software.
### Compiling layer group: conv_1>>relu_5 ...
### Compiling layer group: conv_1>>relu_5 ... complete.
### Compiling layer group: avgpool2d ...
### Compiling layer group: avgpool2d ... complete.
### Compiling layer group: fc ...
### Compiling layer group: fc ... complete.

### Allocating external memory buffers:

          offset_name          offset_address    allocated_space
    _______________________    ______________    ________________

    "InputDataOffset"           "0x00000000"     "26.4 MB"
    "OutputResultOffset"        "0x01a5e000"     "4.0 kB"
    "SchedulerDataOffset"       "0x01a5f000"     "72.0 kB"
    "SystemBufferOffset"        "0x01a71000"     "7.1 MB"
    "InstructionDataOffset"     "0x0217e000"     "1020.0 kB"
    "ConvWeightDataOffset"      "0x0227d000"     "888.0 kB"
    "FCWeightDataOffset"        "0x0235b000"     "24.0 kB"
    "EndOffset"                 "0x02361000"     "Total: 35.4 MB"

### Network compilation complete.

Program the Bitstream onto FPGA and Download Network Weights

To deploy the network on the Zynq UltraScale+ MPSoC ZCU102 hardware, run the deploy function of the dlhdl.Workflow object. This function uses the output of the compile function to program the FPGA board by using the programming file. The function also downloads the network weights and biases. The deploy function checks for the Xilinx Vivado tool and the supported tool version. It then starts programming the FPGA device by using the bitstream, displays progress messages and the time it takes to deploy the network.

hW.deploy;

### Programming FPGA Bitstream using Ethernet...
### Attempting to connect to the hardware board at 192.168.1.101...
### Connection successful
### Programming FPGA device on Xilinx SoC hardware board at 192.168.1.101...
### Attempting to connect to the hardware board at 192.168.1.101...
### Connection successful
### Copying FPGA programming files to SD card...
### Setting FPGA bitstream and devicetree for boot...
# Copying Bitstream zcu102_single.bit to /mnt/hdlcoder_rd
# Set Bitstream to hdlcoder_rd/zcu102_single.bit
# Copying Devicetree devicetree_dlhdl.dtb to /mnt/hdlcoder_rd
# Set Devicetree to hdlcoder_rd/devicetree_dlhdl.dtb
# Set up boot for Reference Design: 'AXI-Stream DDR Memory Access : 3-AXIM'
### Programming done. The system will now reboot for persistent changes to take effect.
### Rebooting Xilinx SoC at 192.168.1.101...
### Reboot may take several seconds...
### Attempting to connect to the hardware board at 192.168.1.101...
### Connection successful
### Programming the FPGA bitstream has been completed successfully.
### Loading weights to Conv Processor.
### Conv Weights loaded. Current time is 19-Jun-2024 17:04:03
### Loading weights to FC Processor.
### FC Weights loaded. Current time is 19-Jun-2024 17:04:03

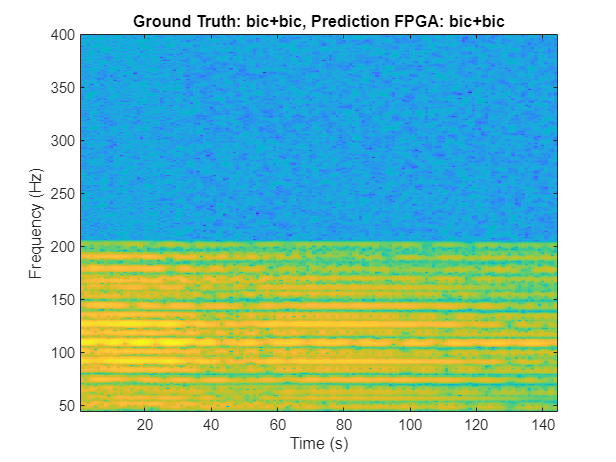

Run Predictions on Micro-Doppler Signatures

Classify one input from the sample test data set by using the predict function of the dlhdl.Workflow object and display the label. The inputs to the network correspond to the sonograms of the micro-Doppler signatures for a pedestrian or a bicyclist or a combination of both.

testImg = single(testDataNoCar(:, :, :, 1));
testLabel = testLabelNoCar(1);

% Get predictions from network on single test input
testImg = dlarray(testImg, 'SSCB');
score = hW.predict(testImg, 'Profile', 'On')

### Finished writing input activations.
### Running single input activation.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                    9312021                  0.04233                       1            9312779             23.6
    conv_1                 4186343                  0.01903
    maxpool_1              1387467                  0.00631
    conv_2                 1976965                  0.00899
    maxpool_2               604660                  0.00275
    conv_3                  816212                  0.00371
    maxpool_3               121647                  0.00055
    conv_4                  146400                  0.00067
    maxpool_4                18760                  0.00009
    conv_5                   42908                  0.00020
    avgpool2d                 7226                  0.00003
    fc                        3391                  0.00002
 * The clock frequency of the DL processor is: 220MHz

score =
  5(C) × 1(B) single dlarray

    0.9956
    0.0000
    0.0000
    0.0044
    0.0000

[~, idx1] = max(score);
predTestLabel = testLabelNoCar(1,1,1,idx1)

predTestLabel = categorical
     ped

Load five random images from the sample test data set and execute the predict function of the dlhdl.Workflow object to display the labels alongside the signatures. The predictions will happen at once since the input is concatenated along the fourth dimension.

numTestFrames = size(testDataNoCar, 4);
numView = 5;
listIndex = randperm(numTestFrames, numView);
testImgBatch = single(testDataNoCar(:, :, :, listIndex));
testLabelBatch = testLabelNoCar(listIndex);

% Get predictions from network using DL HDL Toolbox on FPGA
testImgBatch = dlarray(testImgBatch, 'SSCB');
[scores, speed] = hW.predict(testImgBatch, 'Profile', 'On');

### Finished writing input activations.
### Running in multi-frame mode with 5 inputs.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                    9314346                  0.04234                       5           46556877             23.6
    conv_1                 4188705                  0.01904
    maxpool_1              1387527                  0.00631
    conv_2                 1976807                  0.00899
    maxpool_2               604685                  0.00275
    conv_3                  815776                  0.00371
    maxpool_3               121686                  0.00055
    conv_4                  146622                  0.00067
    maxpool_4                18760                  0.00009
    conv_5                   43098                  0.00020
    avgpool2d                 7234                  0.00003
    fc                        3404                  0.00002
 * The clock frequency of the DL processor is: 220MHz

[~, idx2] = max(scores, [], 1);
predTestLabelBatch = testLabelNoCar(1,1,1,idx2);

% Display the micro-doppler signatures along with the ground truth and
% predictions.
for k = 1:numView
    index = listIndex(k);
    imagesc(testDataNoCar(:, :, :, index));
    axis xy
    xlabel('Time (s)')
    ylabel('Frequency (Hz)')
    title('Ground Truth: '+string(testLabelNoCar(index))+', Prediction FPGA: '+string(predTestLabelBatch(k)))
    drawnow;
    pause(3);
end

The image shows the micro-Doppler signatures of two bicyclists (bic+bic) which is the ground truth. The ground truth is the classification of the image against which the network prediction is compared. The network prediction retrieved from the FPGA correctly predicts that the image has two bicyclists.

Classify Images on FPGA Using Quantized Neural Network

This example uses:

Open Live Script

This example shows how to use Deep Learning HDL Toolbox™ to deploy a quantized deep convolutional neural network (CNN) to an FPGA. In the example you use the pretrained ResNet-18 CNN to perform transfer learning and quantization. You then deploy the quantized network and use MATLAB® to retrieve the prediction results.

ResNet-18 has been trained on over a million images and can classify images into 1000 object categories, such as keyboard, coffee mug, pencil, and many animals. The network has learned rich feature representations for a wide range of images. The network takes an image as input and outputs a label for the object in the image together with the probabilities for each of the object categories.

To perform classification on a new set of images, you fine-tune a pretrained ResNet-18 CNN by transfer learning. In transfer learning, you can take a pretrained network and use it as a starting point to learn a new task. Fine-tuning a network with transfer learning is usually much faster and easier than training a network with randomly initialized weights. You can quickly transfer learned features to a new task using a smaller number of training images.

Load Pretrained Network

Load the pretrained ResNet-18 network.

net = imagePretrainedNetwork("resnet18");

View the layers of the pretrained network.

deepNetworkDesigner(net);

The first layer, the image input layer, requires input images of size 227-by-227-by-3, where three is the number of color channels.

inputSize = net.Layers(1).InputSize;

Load Data

This example uses the MathWorks® MerchData data set. This is a small data set containing 75 images of MathWorks merchandise, belonging to five different classes (cap, cube, playing cards, screwdriver, and torch).

curDir = pwd;
unzip('MerchData.zip');
imds = imageDatastore('MerchData', ...
'IncludeSubfolders',true, ...
'LabelSource','foldernames');

Specify Training and Validation Sets

Divide the data into training and validation data sets, so that 30% percent of the images go to the training data set and 70% of the images to the validation data set. splitEachLabel splits the datastore imds into two new datastores, imdsTrain and imdsValidation.

[imdsTrain,imdsValidation] = splitEachLabel(imds,0.7,'randomized');

Replace Final layers

To retrain ResNet-18 to classify new images, replace the last fully connected layer of the network. In ResNet-18 , this layer has the name 'fc1000'. The fully connected layer of the pretrained network net is configured for 1000 classes. This layer, fc1000 in ResNet-18, contains information on how to combine the features that the network extracts into class probabilities. The layer must be fine-tuned for the new classification problem. Extract all the layers, except the last layer, from the pretrained network.

numClasses = numel(categories(imdsTrain.Labels))

numClasses =
5

newLearnableLayer = fullyConnectedLayer(numClasses, ...
'Name','new_fc', ...
'WeightLearnRateFactor',10, ...
'BiasLearnRateFactor',10);
net = replaceLayer(net,'fc1000',newLearnableLayer);

Prepare Data for Training

The network requires input images of size 224-by-224-by-3, but the images in the image datastores have different sizes. Use an augmented image datastore to automatically resize the training images. Specify additional augmentation operations to perform on the training images, such as randomly flipping the training images along the vertical axis and randomly translating them up to 30 pixels horizontally and vertically. Data augmentation helps prevent the network from overfitting and memorizing the exact details of the training images.

pixelRange = [-30 30];
imageAugmenter = imageDataAugmenter( ...
'RandXReflection',true, ...
'RandXTranslation',pixelRange, ...
'RandYTranslation',pixelRange);

To automatically resize the validation images without performing further data augmentation, use an augmented image datastore without specifying any additional preprocessing operations.

augimdsTrain = augmentedImageDatastore(inputSize(1:2),imdsTrain, ...
'DataAugmentation',imageAugmenter);
augimdsValidation = augmentedImageDatastore(inputSize(1:2),imdsValidation);

Specify Training Options

Specify the training options. For transfer learning, keep the features from the early layers of the pretrained network (the transferred layer weights). To slow down learning in the transferred layers, set the initial learning rate to a small value. Specify the mini-batch size and validation data. The software validates the network every ValidationFrequency iterations during training.

options = trainingOptions('sgdm', ...
'MiniBatchSize',10, ...
'MaxEpochs',6, ...
'InitialLearnRate',1e-4, ...
'Shuffle','every-epoch', ...
'ValidationData',augimdsValidation, ...
'ValidationFrequency',3, ...
'Verbose',false, ...
'Plots','training-progress');

Train Network

Train the network that consists of the transferred and new layers. By default, trainnet uses a GPU if one is available. Using this function on a GPU requires Parallel Computing Toolbox™ and a supported GPU device. For more information, see GPU Computing Requirements (Parallel Computing Toolbox). If a GPU is not available, the network uses a CPU (requires MATLAB Coder™ Interface for Deep Learning). You can also specify the execution environment by using the ExecutionEnvironment name-value argument of trainingOptions.

netTransfer = trainnet(augimdsTrain, net, 'crossentropy', options)

netTransfer =
  dlnetwork with properties:

         Layers: [70×1 nnet.cnn.layer.Layer]
    Connections: [77×2 table]
     Learnables: [82×3 table]
          State: [40×3 table]
     InputNames: {'data'}
    OutputNames: {'prob'}
    Initialized: 1

  View summary with summary.

Quantize Network

Quantize the network using the dlquantizer object. Set the target execution environment to FPGA.

dlquantObj = dlquantizer(netTransfer,'ExecutionEnvironment','FPGA');

Calibrate Quantized Network

Use the calibrate function to exercise the network with sample inputs and collect the range information. The calibrate function collects the dynamic ranges of the weights and biases in the convolution and fully connected layers of the network and the dynamic ranges of the activations in all layers of the network. The function returns the information as a table, in which each row contains range information for a learnable parameter of the quantized network.

calibrate(dlquantObj,augimdsTrain)

ans=94×5 table
       Optimized Layer Name       Network Layer Name    Learnables / Activations    MinValue    MaxValue
    __________________________    __________________    ________________________    ________    ________

    {'conv1_Weights'         }    {'conv1'         }           "Weights"            -0.64526    0.89818
    {'conv1_Bias'            }    {'conv1'         }           "Bias"               -0.64035    0.68777
    {'res2a_branch2a_Weights'}    {'res2a_branch2a'}           "Weights"            -0.39021    0.33934
    {'res2a_branch2a_Bias'   }    {'res2a_branch2a'}           "Bias"               -0.79958     1.2763
    {'res2a_branch2b_Weights'}    {'res2a_branch2b'}           "Weights"            -0.75631    0.57786
    {'res2a_branch2b_Bias'   }    {'res2a_branch2b'}           "Bias"                -1.3255     1.7421
    {'res2b_branch2a_Weights'}    {'res2b_branch2a'}           "Weights"            -0.31048    0.33465
    {'res2b_branch2a_Bias'   }    {'res2b_branch2a'}           "Bias"                -1.1135     1.4752
    {'res2b_branch2b_Weights'}    {'res2b_branch2b'}           "Weights"             -1.1498    0.93351
    {'res2b_branch2b_Bias'   }    {'res2b_branch2b'}           "Bias"               -0.84473     1.2549
    {'res3a_branch2a_Weights'}    {'res3a_branch2a'}           "Weights"            -0.19053    0.24578
    {'res3a_branch2a_Bias'   }    {'res3a_branch2a'}           "Bias"               -0.53824    0.68652
    {'res3a_branch2b_Weights'}    {'res3a_branch2b'}           "Weights"            -0.54176    0.73187
    {'res3a_branch2b_Bias'   }    {'res3a_branch2b'}           "Bias"               -0.68422     1.1596
    {'res3a_branch1_Weights' }    {'res3a_branch1' }           "Weights"            -0.61816    0.95464
    {'res3a_branch1_Bias'    }    {'res3a_branch1' }           "Bias"               -0.95381    0.77789
      ⋮

Define FPGA Board Interface

Define the target FPGA board programming interface by using the dlhdl.Target object. Create a programming interface with custom name for your target device and an Ethernet interface to connect the target device to the host computer.

hTarget = dlhdl.Target('Xilinx','Interface','Ethernet');

Prepare Network for Deployment

Prepare the network for deployment by creating a dlhdl.Workflow object. Specify the network and bitstream name. Ensure that the bitstream name matches the data type and the FPGA board that you are targeting. In this example, the target FPGA board is the Xilinx® Zynq® UltraScale+™ MPSoC ZCU102 board and the bitstream uses the int8 data type.

hW = dlhdl.Workflow(Network=dlquantObj,Bitstream='zcu102_int8',Target=hTarget);

Compile Network

Run the compile method of the dlhdl.Workflow object to compile the network and generate the instructions, weights, and biases for deployment.

dn = compile(hW,'InputFrameNumberLimit',15)

### Compiling network for Deep Learning FPGA prototyping ...
### Targeting FPGA bitstream zcu102_int8.
### An output layer called 'Output1_prob' of type 'nnet.cnn.layer.RegressionOutputLayer' has been added to the provided network. This layer performs no operation during prediction and thus does not affect the output of the network.
### Optimizing network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
### The network includes the following layers:

### Notice: The layer 'data' with type 'nnet.cnn.layer.ImageInputLayer' is implemented in software.
### Notice: The layer 'prob' with type 'nnet.cnn.layer.SoftmaxLayer' is implemented in software.
### Notice: The layer 'Output1_prob' with type 'nnet.cnn.layer.RegressionOutputLayer' is implemented in software.
### Compiling layer group: conv1>>pool1 ...
### Compiling layer group: conv1>>pool1 ... complete.
### Compiling layer group: res2a_branch2a>>res2a_branch2b ...
### Compiling layer group: res2a_branch2a>>res2a_branch2b ... complete.
### Compiling layer group: res2b_branch2a>>res2b_branch2b ...
### Compiling layer group: res2b_branch2a>>res2b_branch2b ... complete.
### Compiling layer group: res3a_branch1 ...
### Compiling layer group: res3a_branch1 ... complete.
### Compiling layer group: res3a_branch2a>>res3a_branch2b ...
### Compiling layer group: res3a_branch2a>>res3a_branch2b ... complete.
### Compiling layer group: res3b_branch2a>>res3b_branch2b ...
### Compiling layer group: res3b_branch2a>>res3b_branch2b ... complete.
### Compiling layer group: res4a_branch1 ...
### Compiling layer group: res4a_branch1 ... complete.
### Compiling layer group: res4a_branch2a>>res4a_branch2b ...
### Compiling layer group: res4a_branch2a>>res4a_branch2b ... complete.
### Compiling layer group: res4b_branch2a>>res4b_branch2b ...
### Compiling layer group: res4b_branch2a>>res4b_branch2b ... complete.
### Compiling layer group: res5a_branch1 ...
### Compiling layer group: res5a_branch1 ... complete.
### Compiling layer group: res5a_branch2a>>res5a_branch2b ...
### Compiling layer group: res5a_branch2a>>res5a_branch2b ... complete.
### Compiling layer group: res5b_branch2a>>res5b_branch2b ...
### Compiling layer group: res5b_branch2a>>res5b_branch2b ... complete.
### Compiling layer group: pool5 ...
### Compiling layer group: pool5 ... complete.
### Compiling layer group: new_fc ...
### Compiling layer group: new_fc ... complete.

### Allocating external memory buffers:

          offset_name          offset_address    allocated_space
    _______________________    ______________    ________________

    "InputDataOffset"           "0x00000000"     "5.7 MB"
    "OutputResultOffset"        "0x005be000"     "4.0 kB"
    "SchedulerDataOffset"       "0x005bf000"     "712.0 kB"
    "SystemBufferOffset"        "0x00671000"     "1.6 MB"
    "InstructionDataOffset"     "0x007fe000"     "1.2 MB"
    "ConvWeightDataOffset"      "0x00936000"     "13.5 MB"
    "FCWeightDataOffset"        "0x016ab000"     "12.0 kB"
    "EndOffset"                 "0x016ae000"     "Total: 22.7 MB"

### Network compilation complete.

dn = struct with fields:
             weights: [1×1 struct]
        instructions: [1×1 struct]
           registers: [1×1 struct]
    syncInstructions: [1×1 struct]
        constantData: {}
             ddrInfo: [1×1 struct]
       resourceTable: [6×2 table]

Program Bitstream onto FPGA and Download Network Weights

To deploy the network on the Xilinx ZCU102 hardware, run the deploy function of the dlhdl.Workflow object. This function uses the output of the compile function to program the FPGA board by using the programming file. It also downloads the network weights and biases. The deploy function starts programming the FPGA device, displays progress messages, and the time it takes to deploy the network.

deploy(hW)

### Programming FPGA Bitstream using Ethernet...
### Attempting to connect to the hardware board at 172.21.88.150...
### Connection successful
### Programming FPGA device on Xilinx SoC hardware board at 172.21.88.150...
### Attempting to connect to the hardware board at 172.21.88.150...
### Connection successful
### Copying FPGA programming files to SD card...
### Setting FPGA bitstream and devicetree for boot...
# Copying Bitstream zcu102_int8.bit to /mnt/hdlcoder_rd
# Set Bitstream to hdlcoder_rd/zcu102_int8.bit
# Copying Devicetree devicetree_dlhdl.dtb to /mnt/hdlcoder_rd
# Set Devicetree to hdlcoder_rd/devicetree_dlhdl.dtb
# Set up boot for Reference Design: 'AXI-Stream DDR Memory Access : 3-AXIM'
### Programming done. The system will now reboot for persistent changes to take effect.
### Rebooting Xilinx SoC at 172.21.88.150...
### Reboot may take several seconds...
### Attempting to connect to the hardware board at 172.21.88.150...
### Connection successful
### Programming the FPGA bitstream has been completed successfully.
### Loading weights to Conv Processor.
### Conv Weights loaded. Current time is 30-Aug-2024 11:31:45
### Loading weights to FC Processor.
### FC Weights loaded. Current time is 30-Aug-2024 11:31:45

Test Network

Load the example image.

imgFile = fullfile(pwd,'MathWorks_cube_0.jpg');
inputImg = imresize(imread(imgFile),[224 224]);
imshow(inputImg)

Classify the image on the FPGA by using the predict method of the dlhdl.Workflow object and display the results.

inputImg = dlarray(single(inputImg), 'SSCB');
[prediction,speed] = predict(hW,inputImg,'Profile','on');

### Finished writing input activations.
### Running single input activation.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                    7405555                  0.02962                       1            7408123             33.7
    conv1                  1115422                  0.00446
    pool1                   200956                  0.00080
    res2a_branch2a          270504                  0.00108
    res2a_branch2b          270422                  0.00108
    res2a                   109005                  0.00044
    res2b_branch2a          270206                  0.00108
    res2b_branch2b          270217                  0.00108
    res2b                   109675                  0.00044
    res3a_branch1           155444                  0.00062
    res3a_branch2a          156720                  0.00063
    res3a_branch2b          245246                  0.00098
    res3a                    54876                  0.00022
    res3b_branch2a          245640                  0.00098
    res3b_branch2b          245443                  0.00098
    res3b                    55736                  0.00022
    res4a_branch1           135533                  0.00054
    res4a_branch2a          136768                  0.00055
    res4a_branch2b          238039                  0.00095
    res4a                    27602                  0.00011
    res4b_branch2a          237950                  0.00095
    res4b_branch2b          238645                  0.00095
    res4b                    27792                  0.00011
    res5a_branch1           324200                  0.00130
    res5a_branch2a          326074                  0.00130
    res5a_branch2b          623097                  0.00249
    res5a                    13961                  0.00006
    res5b_branch2a          623607                  0.00249
    res5b_branch2b          624000                  0.00250
    res5b                    13621                  0.00005
    pool5                    36826                  0.00015
    new_fc                    2141                  0.00001
 * The clock frequency of the DL processor is: 250MHz

scores2label(prediction,categories(imdsTrain.Labels))

ans = categorical
     MathWorks Cube

Performance Comparison

Compare the performance of the quantized network to the performance of the single data type network.

optionsFPGA = dlquantizationOptions('Bitstream','zcu102_int8','Target',hTarget, 'MetricFcn', {@(x)computeClassificationAccuracy(x,imdsValidation)});
predictionFPGA = validate(dlquantObj,imdsValidation,optionsFPGA)

### Compiling network for Deep Learning FPGA prototyping ...
### Targeting FPGA bitstream zcu102_int8.
### An output layer called 'Output1_prob' of type 'nnet.cnn.layer.RegressionOutputLayer' has been added to the provided network. This layer performs no operation during prediction and thus does not affect the output of the network.
### Optimizing network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
### The network includes the following layers:

### Notice: The layer 'data' with type 'nnet.cnn.layer.ImageInputLayer' is implemented in software.
### Notice: The layer 'prob' with type 'nnet.cnn.layer.SoftmaxLayer' is implemented in software.
### Notice: The layer 'Output1_prob' with type 'nnet.cnn.layer.RegressionOutputLayer' is implemented in software.
### Compiling layer group: conv1>>pool1 ...
### Compiling layer group: conv1>>pool1 ... complete.
### Compiling layer group: res2a_branch2a>>res2a_branch2b ...
### Compiling layer group: res2a_branch2a>>res2a_branch2b ... complete.
### Compiling layer group: res2b_branch2a>>res2b_branch2b ...
### Compiling layer group: res2b_branch2a>>res2b_branch2b ... complete.
### Compiling layer group: res3a_branch1 ...
### Compiling layer group: res3a_branch1 ... complete.
### Compiling layer group: res3a_branch2a>>res3a_branch2b ...
### Compiling layer group: res3a_branch2a>>res3a_branch2b ... complete.
### Compiling layer group: res3b_branch2a>>res3b_branch2b ...
### Compiling layer group: res3b_branch2a>>res3b_branch2b ... complete.
### Compiling layer group: res4a_branch1 ...
### Compiling layer group: res4a_branch1 ... complete.
### Compiling layer group: res4a_branch2a>>res4a_branch2b ...
### Compiling layer group: res4a_branch2a>>res4a_branch2b ... complete.
### Compiling layer group: res4b_branch2a>>res4b_branch2b ...
### Compiling layer group: res4b_branch2a>>res4b_branch2b ... complete.
### Compiling layer group: res5a_branch1 ...
### Compiling layer group: res5a_branch1 ... complete.
### Compiling layer group: res5a_branch2a>>res5a_branch2b ...
### Compiling layer group: res5a_branch2a>>res5a_branch2b ... complete.
### Compiling layer group: res5b_branch2a>>res5b_branch2b ...
### Compiling layer group: res5b_branch2a>>res5b_branch2b ... complete.
### Compiling layer group: pool5 ...
### Compiling layer group: pool5 ... complete.
### Compiling layer group: new_fc ...
### Compiling layer group: new_fc ... complete.

### Allocating external memory buffers:

          offset_name          offset_address    allocated_space
    _______________________    ______________    ________________

    "InputDataOffset"           "0x00000000"     "11.5 MB"
    "OutputResultOffset"        "0x00b7c000"     "4.0 kB"
    "SchedulerDataOffset"       "0x00b7d000"     "720.0 kB"
    "SystemBufferOffset"        "0x00c31000"     "1.6 MB"
    "InstructionDataOffset"     "0x00dbe000"     "1.2 MB"
    "ConvWeightDataOffset"      "0x00ef6000"     "13.5 MB"
    "FCWeightDataOffset"        "0x01c6b000"     "12.0 kB"
    "EndOffset"                 "0x01c6e000"     "Total: 28.4 MB"

### Network compilation complete.

### FPGA bitstream programming has been skipped as the same bitstream is already loaded on the target FPGA.
### Loading weights to Conv Processor.
### Conv Weights loaded. Current time is 30-Aug-2024 11:33:06
### Loading weights to FC Processor.
### FC Weights loaded. Current time is 30-Aug-2024 11:33:06
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### Finished writing input activations.
### Running single input activation.
### An output layer called 'Output1_prob' of type 'nnet.cnn.layer.RegressionOutputLayer' has been added to the provided network. This layer performs no operation during prediction and thus does not affect the output of the network.
### Optimizing network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
### Notice: The layer 'data' of type 'ImageInputLayer' is split into an image input layer 'data', an addition layer 'data_norm_add', and a multiplication layer 'data_norm' for hardware normalization.
### The network includes the following layers:

### Notice: The layer 'prob' with type 'nnet.cnn.layer.SoftmaxLayer' is implemented in software.
### Notice: The layer 'Output1_prob' with type 'nnet.cnn.layer.RegressionOutputLayer' is implemented in software.


              Deep Learning Processor Estimator Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                   23781318                  0.10810                       1           23781318              9.3
    data_norm_add           268453                  0.00122
    data_norm               163081                  0.00074
    conv1                  2164700                  0.00984
    pool1                   515128                  0.00234
    res2a_branch2a          966477                  0.00439
    res2a_branch2b          966477                  0.00439
    res2a                   268453                  0.00122
    res2b_branch2a          966477                  0.00439
    res2b_branch2b          966477                  0.00439
    res2b                   268453                  0.00122
    res3a_branch1           541373                  0.00246
    res3a_branch2a          541261                  0.00246
    res3a_branch2b          920141                  0.00418
    res3a                   134257                  0.00061
    res3b_branch2a          920141                  0.00418
    res3b_branch2b          920141                  0.00418
    res3b                   134257                  0.00061
    res4a_branch1           505453                  0.00230
    res4a_branch2a          511309                  0.00232
    res4a_branch2b          909517                  0.00413
    res4a                    67152                  0.00031
    res4b_branch2a          909517                  0.00413
    res4b_branch2b          909517                  0.00413
    res4b                    67152                  0.00031
    res5a_branch1          1045581                  0.00475
    res5a_branch2a         1052749                  0.00479
    res5a_branch2b         2017485                  0.00917
    res5a                    33582                  0.00015
    res5b_branch2a         2017485                  0.00917
    res5b_branch2b         2017485                  0.00917
    res5b                    33582                  0.00015
    pool5                    55746                  0.00025
    new_fc                    2259                  0.00001
 * The clock frequency of the DL processor is: 220MHz


### Finished writing input activations.
### Running single input activation.

predictionFPGA = struct with fields:
       NumSamples: 20
    MetricResults: [1×1 struct]
       Statistics: [2×7 table]

View the frames per second performance for the quantized network and single-data-type network. The quantized network has a performance of 33.8 frames per second compared to 9.3 frames per second for the single-data-type network. You can use quantization to improve your frames per second performance, however you could lose accuracy when you quantize your networks.

predictionFPGA.Statistics.FramesPerSecond

ans = 2×1

    9.2510
   33.7498

However, in this case you can observe the accuracy to be the same for both networks.

predictionFPGA.MetricResults.Result

ans=2×2 table
    NetworkImplementation    MetricOutput
    _____________________    ____________

     {'Floating-Point'}          0.9
     {'Quantized'     }          0.9

Helper Functions

function accuracy = computeClassificationAccuracy(fpgaOutput, validationData)
% Compute accuracy of FPGA result compared to the Deep Learning Toolbox.

%   Copyright 2024 The MathWorks, Inc.

fpgaClassifications = scores2label(fpgaOutput, categories(validationData.Labels));
fpgaClassifications = reshape(fpgaClassifications, size(validationData.Labels));

accuracy = sum(fpgaClassifications == validationData.Labels)./numel(fpgaClassifications);

end

Detect Objects Using YOLO v3 Network Deployed to FPGA

This example uses:

Open Live Script

This example shows how to deploy a trained you only look once (YOLO) v3 object detector to a target FPGA board. You then use MATLAB® to retrieve the object classification from the FPGA board.

Compared to YOLO v2 networks, YOLO v3 networks have additional detection heads that help detect smaller objects.

Create YOLO v3 Detector Object

In this example, you use a pretrained YOLO v3 object detector. To construct and train a custom YOLO v3 detector, see Object Detection Using YOLO v3 Deep Learning (Computer Vision Toolbox).

Use the downloadPretrainedYOLOv3Detector function to generate a dlnetwork object. To get the code for this function, see the downloadPretrainedYOLOv3Detector Function section.

preTrainedDetector = downloadPretrainedYOLOv3Detector;

Downloaded pretrained detector

The generated network uses training data to estimate the anchor boxes, which help the detector learn to predict the boxes. For more information about anchor boxes, see Anchor Boxes for Object Detection (Computer Vision Toolbox). The downloadPretrainedYOLOv3Detector function creates this YOLO v3 network:

Load the Pretrained network

Extract the network from the pretrained YOLO v3 detector object.

yolov3Detector = preTrainedDetector;
net = yolov3Detector.Network;

Extract the attributes of the network as variables.

anchorBoxes = yolov3Detector.AnchorBoxes;
outputNames = yolov3Detector.Network.OutputNames;
inputSize = yolov3Detector.InputSize;
classNames = yolov3Detector.ClassNames;

Use the analyzeNetwork function to obtain information about the network layers. the function returns a graphical representation of the network that contains detailed parameter information for every layer in the network.

analyzeNetwork(net);

Define FPGA Board Interface

hTarget = dlhdl.Target('Xilinx','Interface','Ethernet');

Prepare Network for Deployment

hW = dlhdl.Workflow('Network',net,'Bitstream','zcu102_single','Target',hTarget);

Compile Network

Run the compile method of the dlhdl.Workflow object to compile the network and generate the instructions, weights, and biases for deployment.

dn = compile(hW);

### Compiling network for Deep Learning FPGA prototyping ...
### Targeting FPGA bitstream zcu102_single.
### An output layer called 'Output1_customOutputConv1' of type 'nnet.cnn.layer.RegressionOutputLayer' has been added to the provided network. This layer performs no operation during prediction and thus does not affect the output of the network.
### An output layer called 'Output2_customOutputConv2' of type 'nnet.cnn.layer.RegressionOutputLayer' has been added to the provided network. This layer performs no operation during prediction and thus does not affect the output of the network.
### Optimizing network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
### The network includes the following layers:
     1   'data'                        Image Input                    227×227×3 images                                                     (SW Layer)
     2   'conv1'                       2-D Convolution                64 3×3×3 convolutions with stride [2  2] and padding [0  0  0  0]    (HW Layer)
     3   'relu_conv1'                  ReLU                           ReLU                                                                 (HW Layer)
     4   'pool1'                       2-D Max Pooling                3×3 max pooling with stride [2  2] and padding [0  0  0  0]          (HW Layer)
     5   'fire2-squeeze1x1'            2-D Convolution                16 1×1×64 convolutions with stride [1  1] and padding [0  0  0  0]   (HW Layer)
     6   'fire2-relu_squeeze1x1'       ReLU                           ReLU                                                                 (HW Layer)
     7   'fire2-expand1x1'             2-D Convolution                64 1×1×16 convolutions with stride [1  1] and padding [0  0  0  0]   (HW Layer)
     8   'fire2-relu_expand1x1'        ReLU                           ReLU                                                                 (HW Layer)
     9   'fire2-expand3x3'             2-D Convolution                64 3×3×16 convolutions with stride [1  1] and padding [1  1  1  1]   (HW Layer)
    10   'fire2-relu_expand3x3'        ReLU                           ReLU                                                                 (HW Layer)
    11   'fire2-concat'                Depth concatenation            Depth concatenation of 2 inputs                                      (HW Layer)
    12   'fire3-squeeze1x1'            2-D Convolution                16 1×1×128 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    13   'fire3-relu_squeeze1x1'       ReLU                           ReLU                                                                 (HW Layer)
    14   'fire3-expand1x1'             2-D Convolution                64 1×1×16 convolutions with stride [1  1] and padding [0  0  0  0]   (HW Layer)
    15   'fire3-relu_expand1x1'        ReLU                           ReLU                                                                 (HW Layer)
    16   'fire3-expand3x3'             2-D Convolution                64 3×3×16 convolutions with stride [1  1] and padding [1  1  1  1]   (HW Layer)
    17   'fire3-relu_expand3x3'        ReLU                           ReLU                                                                 (HW Layer)
    18   'fire3-concat'                Depth concatenation            Depth concatenation of 2 inputs                                      (HW Layer)
    19   'pool3'                       2-D Max Pooling                3×3 max pooling with stride [2  2] and padding [0  1  0  1]          (HW Layer)
    20   'fire4-squeeze1x1'            2-D Convolution                32 1×1×128 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    21   'fire4-relu_squeeze1x1'       ReLU                           ReLU                                                                 (HW Layer)
    22   'fire4-expand1x1'             2-D Convolution                128 1×1×32 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    23   'fire4-relu_expand1x1'        ReLU                           ReLU                                                                 (HW Layer)
    24   'fire4-expand3x3'             2-D Convolution                128 3×3×32 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    25   'fire4-relu_expand3x3'        ReLU                           ReLU                                                                 (HW Layer)
    26   'fire4-concat'                Depth concatenation            Depth concatenation of 2 inputs                                      (HW Layer)
    27   'fire5-squeeze1x1'            2-D Convolution                32 1×1×256 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    28   'fire5-relu_squeeze1x1'       ReLU                           ReLU                                                                 (HW Layer)
    29   'fire5-expand1x1'             2-D Convolution                128 1×1×32 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    30   'fire5-relu_expand1x1'        ReLU                           ReLU                                                                 (HW Layer)
    31   'fire5-expand3x3'             2-D Convolution                128 3×3×32 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    32   'fire5-relu_expand3x3'        ReLU                           ReLU                                                                 (HW Layer)
    33   'fire5-concat'                Depth concatenation            Depth concatenation of 2 inputs                                      (HW Layer)
    34   'pool5'                       2-D Max Pooling                3×3 max pooling with stride [2  2] and padding [0  1  0  1]          (HW Layer)
    35   'fire6-squeeze1x1'            2-D Convolution                48 1×1×256 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    36   'fire6-relu_squeeze1x1'       ReLU                           ReLU                                                                 (HW Layer)
    37   'fire6-expand1x1'             2-D Convolution                192 1×1×48 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    38   'fire6-relu_expand1x1'        ReLU                           ReLU                                                                 (HW Layer)
    39   'fire6-expand3x3'             2-D Convolution                192 3×3×48 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    40   'fire6-relu_expand3x3'        ReLU                           ReLU                                                                 (HW Layer)
    41   'fire6-concat'                Depth concatenation            Depth concatenation of 2 inputs                                      (HW Layer)
    42   'fire7-squeeze1x1'            2-D Convolution                48 1×1×384 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    43   'fire7-relu_squeeze1x1'       ReLU                           ReLU                                                                 (HW Layer)
    44   'fire7-expand1x1'             2-D Convolution                192 1×1×48 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    45   'fire7-relu_expand1x1'        ReLU                           ReLU                                                                 (HW Layer)
    46   'fire7-expand3x3'             2-D Convolution                192 3×3×48 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    47   'fire7-relu_expand3x3'        ReLU                           ReLU                                                                 (HW Layer)
    48   'fire7-concat'                Depth concatenation            Depth concatenation of 2 inputs                                      (HW Layer)
    49   'fire8-squeeze1x1'            2-D Convolution                64 1×1×384 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    50   'fire8-relu_squeeze1x1'       ReLU                           ReLU                                                                 (HW Layer)
    51   'fire8-expand1x1'             2-D Convolution                256 1×1×64 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    52   'fire8-relu_expand1x1'        ReLU                           ReLU                                                                 (HW Layer)
    53   'fire8-expand3x3'             2-D Convolution                256 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    54   'fire8-relu_expand3x3'        ReLU                           ReLU                                                                 (HW Layer)
    55   'fire8-concat'                Depth concatenation            Depth concatenation of 2 inputs                                      (HW Layer)
    56   'fire9-squeeze1x1'            2-D Convolution                64 1×1×512 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    57   'fire9-relu_squeeze1x1'       ReLU                           ReLU                                                                 (HW Layer)
    58   'fire9-expand1x1'             2-D Convolution                256 1×1×64 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    59   'fire9-relu_expand1x1'        ReLU                           ReLU                                                                 (HW Layer)
    60   'fire9-expand3x3'             2-D Convolution                256 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    61   'fire9-relu_expand3x3'        ReLU                           ReLU                                                                 (HW Layer)
    62   'fire9-concat'                Depth concatenation            Depth concatenation of 2 inputs                                      (HW Layer)
    63   'customConv1'                 2-D Convolution                1024 3×3×512 convolutions with stride [1  1] and padding 'same'      (HW Layer)
    64   'customRelu1'                 ReLU                           ReLU                                                                 (HW Layer)
    65   'customOutputConv1'           2-D Convolution                18 1×1×1024 convolutions with stride [1  1] and padding 'same'       (HW Layer)
    66   'featureConv2'                2-D Convolution                128 1×1×512 convolutions with stride [1  1] and padding 'same'       (HW Layer)
    67   'featureRelu2'                ReLU                           ReLU                                                                 (HW Layer)
    68   'Output1_customOutputConv1'   Regression Output              mean-squared-error                                                   (SW Layer)
    69   'featureResize2'              dnnfpga.custom.Resize2DLayer   dnnfpga.custom.Resize2DLayer                                         (HW Layer)
    70   'depthConcat2'                Depth concatenation            Depth concatenation of 2 inputs                                      (HW Layer)
    71   'customConv2'                 2-D Convolution                256 3×3×384 convolutions with stride [1  1] and padding 'same'       (HW Layer)
    72   'customRelu2'                 ReLU                           ReLU                                                                 (HW Layer)
    73   'customOutputConv2'           2-D Convolution                18 1×1×256 convolutions with stride [1  1] and padding 'same'        (HW Layer)
    74   'Output2_customOutputConv2'   Regression Output              mean-squared-error                                                   (SW Layer)

### Notice: The layer 'data' with type 'nnet.cnn.layer.ImageInputLayer' is implemented in software.
### Notice: The layer 'Output1_customOutputConv1' with type 'nnet.cnn.layer.RegressionOutputLayer' is implemented in software.
### Notice: The layer 'Output2_customOutputConv2' with type 'nnet.cnn.layer.RegressionOutputLayer' is implemented in software.
### Compiling layer group: conv1>>fire2-relu_squeeze1x1 ...
### Compiling layer group: conv1>>fire2-relu_squeeze1x1 ... complete.
### Compiling layer group: fire2-expand1x1>>fire2-relu_expand1x1 ...
### Compiling layer group: fire2-expand1x1>>fire2-relu_expand1x1 ... complete.
### Compiling layer group: fire2-expand3x3>>fire2-relu_expand3x3 ...
### Compiling layer group: fire2-expand3x3>>fire2-relu_expand3x3 ... complete.
### Compiling layer group: fire3-squeeze1x1>>fire3-relu_squeeze1x1 ...
### Compiling layer group: fire3-squeeze1x1>>fire3-relu_squeeze1x1 ... complete.
### Compiling layer group: fire3-expand1x1>>fire3-relu_expand1x1 ...
### Compiling layer group: fire3-expand1x1>>fire3-relu_expand1x1 ... complete.
### Compiling layer group: fire3-expand3x3>>fire3-relu_expand3x3 ...
### Compiling layer group: fire3-expand3x3>>fire3-relu_expand3x3 ... complete.
### Compiling layer group: pool3>>fire4-relu_squeeze1x1 ...
### Compiling layer group: pool3>>fire4-relu_squeeze1x1 ... complete.
### Compiling layer group: fire4-expand1x1>>fire4-relu_expand1x1 ...
### Compiling layer group: fire4-expand1x1>>fire4-relu_expand1x1 ... complete.
### Compiling layer group: fire4-expand3x3>>fire4-relu_expand3x3 ...
### Compiling layer group: fire4-expand3x3>>fire4-relu_expand3x3 ... complete.
### Compiling layer group: fire5-squeeze1x1>>fire5-relu_squeeze1x1 ...
### Compiling layer group: fire5-squeeze1x1>>fire5-relu_squeeze1x1 ... complete.
### Compiling layer group: fire5-expand1x1>>fire5-relu_expand1x1 ...
### Compiling layer group: fire5-expand1x1>>fire5-relu_expand1x1 ... complete.
### Compiling layer group: fire5-expand3x3>>fire5-relu_expand3x3 ...
### Compiling layer group: fire5-expand3x3>>fire5-relu_expand3x3 ... complete.
### Compiling layer group: pool5>>fire6-relu_squeeze1x1 ...
### Compiling layer group: pool5>>fire6-relu_squeeze1x1 ... complete.
### Compiling layer group: fire6-expand1x1>>fire6-relu_expand1x1 ...
### Compiling layer group: fire6-expand1x1>>fire6-relu_expand1x1 ... complete.
### Compiling layer group: fire6-expand3x3>>fire6-relu_expand3x3 ...
### Compiling layer group: fire6-expand3x3>>fire6-relu_expand3x3 ... complete.
### Compiling layer group: fire7-squeeze1x1>>fire7-relu_squeeze1x1 ...
### Compiling layer group: fire7-squeeze1x1>>fire7-relu_squeeze1x1 ... complete.
### Compiling layer group: fire7-expand1x1>>fire7-relu_expand1x1 ...
### Compiling layer group: fire7-expand1x1>>fire7-relu_expand1x1 ... complete.
### Compiling layer group: fire7-expand3x3>>fire7-relu_expand3x3 ...
### Compiling layer group: fire7-expand3x3>>fire7-relu_expand3x3 ... complete.
### Compiling layer group: fire8-squeeze1x1>>fire8-relu_squeeze1x1 ...
### Compiling layer group: fire8-squeeze1x1>>fire8-relu_squeeze1x1 ... complete.
### Compiling layer group: fire8-expand1x1>>fire8-relu_expand1x1 ...
### Compiling layer group: fire8-expand1x1>>fire8-relu_expand1x1 ... complete.
### Compiling layer group: fire8-expand3x3>>fire8-relu_expand3x3 ...
### Compiling layer group: fire8-expand3x3>>fire8-relu_expand3x3 ... complete.
### Compiling layer group: fire9-squeeze1x1>>fire9-relu_squeeze1x1 ...
### Compiling layer group: fire9-squeeze1x1>>fire9-relu_squeeze1x1 ... complete.
### Compiling layer group: fire9-expand1x1>>fire9-relu_expand1x1 ...
### Compiling layer group: fire9-expand1x1>>fire9-relu_expand1x1 ... complete.
### Compiling layer group: fire9-expand3x3>>fire9-relu_expand3x3 ...
### Compiling layer group: fire9-expand3x3>>fire9-relu_expand3x3 ... complete.
### Compiling layer group: customConv1>>customOutputConv1 ...
### Compiling layer group: customConv1>>customOutputConv1 ... complete.
### Compiling layer group: featureConv2>>featureRelu2 ...
### Compiling layer group: featureConv2>>featureRelu2 ... complete.
### Compiling layer group: customConv2>>customOutputConv2 ...
### Compiling layer group: customConv2>>customOutputConv2 ... complete.

### Allocating external memory buffers:

          offset_name          offset_address     allocated_space
    _______________________    ______________    _________________

    "InputDataOffset"           "0x00000000"     "24.0 MB"
    "OutputResultOffset"        "0x01800000"     "4.0 MB"
    "SchedulerDataOffset"       "0x01c00000"     "4.0 MB"
    "SystemBufferOffset"        "0x02000000"     "28.0 MB"
    "InstructionDataOffset"     "0x03c00000"     "8.0 MB"
    "ConvWeightDataOffset"      "0x04400000"     "104.0 MB"
    "EndOffset"                 "0x0ac00000"     "Total: 172.0 MB"

### Network compilation complete.

Program Bitstream onto FPGA and Download Network Weights

To deploy the network on the Xilinx® Zynq® UltraScale+ MPSoC ZCU102 hardware, run the deploy method of the dlhdl.Workflow object. This method programs the FPGA board using the output of the compile method and the programming file, downloads the network weights and biases, displays progress messages, and the time it takes to deploy the network.

deploy(hW);

### Programming FPGA Bitstream using Ethernet...
### Attempting to connect to the hardware board at 192.168.1.101...
### Connection successful
### Programming FPGA device on Xilinx SoC hardware board at 192.168.1.101...
### Copying FPGA programming files to SD card...
### Setting FPGA bitstream and devicetree for boot...
# Copying Bitstream zcu102_single.bit to /mnt/hdlcoder_rd
# Set Bitstream to hdlcoder_rd/zcu102_single.bit
# Copying Devicetree devicetree_dlhdl.dtb to /mnt/hdlcoder_rd
# Set Devicetree to hdlcoder_rd/devicetree_dlhdl.dtb
# Set up boot for Reference Design: 'AXI-Stream DDR Memory Access : 3-AXIM'
### Rebooting Xilinx SoC at 192.168.1.101...
### Reboot may take several seconds...
### Attempting to connect to the hardware board at 192.168.1.101...
### Connection successful
### Programming the FPGA bitstream has been completed successfully.
### Loading weights to Conv Processor.
### Conv Weights loaded. Current time is 27-Oct-2022 13:44:50

Test Network

Load the example image and convert the image into a dlarray. Then classify the image on the FPGA by using the predict method of the dlhdl.Workflow object and display the results.

img = imread('vehicle_image.jpg');
I = single(rescale(img));
I = imresize(I, yolov3Detector.InputSize(1:2));
dlX = dlarray(I,'SSC');

Store the output of each detection head of the network in the features variable. Pass features to the post-processing function processYOLOv3Output to combine the multiple outputs and compute the final results. To get the code for this function, see the processYOLOv3Output Function section.

features = cell(size(net.OutputNames'));
[features{:}] = hW.predict(dlX, 'Profiler', 'on');

### Finished writing input activations.
### Running single input activation.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                   34469645                  0.15668                       1           34473970              6.4
    conv1                   673148                  0.00306
    pool1                   509022                  0.00231
    fire2-squeeze1x1        308280                  0.00140
    fire2-expand1x1         305546                  0.00139
    fire2-expand3x3         305227                  0.00139
    fire3-squeeze1x1        628018                  0.00285
    fire3-expand1x1         305219                  0.00139
    fire3-expand3x3         305220                  0.00139
    pool3                   286781                  0.00130
    fire4-squeeze1x1        264346                  0.00120
    fire4-expand1x1         264777                  0.00120
    fire4-expand3x3         264750                  0.00120
    fire5-squeeze1x1        749166                  0.00341
    fire5-expand1x1         264800                  0.00120
    fire5-expand3x3         264880                  0.00120
    pool5                   219686                  0.00100
    fire6-squeeze1x1        195193                  0.00089
    fire6-expand1x1         145091                  0.00066
    fire6-expand3x3         145075                  0.00066
    fire7-squeeze1x1        290001                  0.00132
    fire7-expand1x1         144830                  0.00066
    fire7-expand3x3         145390                  0.00066
    fire8-squeeze1x1        369605                  0.00168
    fire8-expand1x1         245085                  0.00111
    fire8-expand3x3         245208                  0.00111
    fire9-squeeze1x1        490784                  0.00223
    fire9-expand1x1         244864                  0.00111
    fire9-expand3x3         245458                  0.00112
    customConv1           17592876                  0.07997
    customOutputConv1       952889                  0.00433
    featureConv2            913457                  0.00415
    featureResize2           57819                  0.00026
    customConv2            5600648                  0.02546
    customOutputConv2       526143                  0.00239
 * The clock frequency of the DL processor is: 220MHz

[bboxes, scores, labels] = processYOLOv3Output(anchorBoxes, inputSize, classNames, features, I);
resultImage = insertObjectAnnotation(I,'rectangle',bboxes,scores);
imshow(resultImage)

The FPGA returns a score prediction of 0.89605 with a bounding box drawn around the object in the image. The FPGA also returns a prediction of vehicle to the labels variable.

downloadPretrainedYOLOv3Detector Function

The downloadPretrainedYOLOv3Detector function to download the pretrained YOLO v3 detector network:

function detector = downloadPretrainedYOLOv3Detector
if ~exist('yolov3SqueezeNetVehicleExample_21aSPKG.mat', 'file')
    if ~exist('yolov3SqueezeNetVehicleExample_21aSPKG.zip', 'file')
        zipFile = matlab.internal.examples.downloadSupportFile('vision/data', 'yolov3SqueezeNetVehicleExample_21aSPKG.zip');
        copyfile(zipFile);
    end
    unzip('yolov3SqueezeNetVehicleExample_21aSPKG.zip');
end
pretrained = load("yolov3SqueezeNetVehicleExample_21aSPKG.mat");
detector = pretrained.detector;
disp('Downloaded pretrained detector');
end

processYOLOv3Output Function

The processYOLOv3Output function is attached as a helper file in this example's directory. This function converts the feature maps from multiple detection heads to bounding boxes, scores and labels. A code snippet of the function is shown below.

function [bboxes, scores, labels] = processYOLOv3Output(anchorBoxes, inputSize, classNames, features, img)
% This function converts the feature maps from multiple detection heads to bounding boxes, scores and labels
% processYOLOv3Output is C code generatable

% Breaks down the raw output from predict function into Confidence score, X, Y, Width,
% Height and Class probabilities for each output from detection head
predictions = iYolov3Transform(features, anchorBoxes);

% Initialize parameters for post-processing
inputSize2d = inputSize(1:2);
info.PreprocessedImageSize = inputSize2d(1:2);
info.ScaleX = size(img,1)/inputSize2d(1);
info.ScaleY = size(img,2)/inputSize2d(1);
params.MinSize = [1 1];
params.MaxSize = size(img(:,:,1));
params.Threshold = 0.5;
params.FractionDownsampling = 1;
params.DetectionInputWasBatchOfImages = false;
params.NetworkInputSize = inputSize;
params.DetectionPreprocessing = "none";
params.SelectStrongest = 1;
bboxes = [];
scores = [];
labels = [];

% Post-process the predictions to get bounding boxes, scores and labels
[bboxes, scores, labels] = iPostprocessMultipleDetection(anchorBoxes, inputSize, classNames, predictions, info, params);
end

function [bboxes, scores, labels] = iPostprocessMultipleDetection (anchorBoxes, inputSize, classNames, YPredData, info, params)
% Post-process the predictions to get bounding boxes, scores and labels

% YpredData is a (x,8) cell array, where x = number of detection heads
% Information in each column is:
% column 1 -> confidence scores
% column 2 to column 5 -> X offset, Y offset, Width, Height of anchor boxes
% column 6 -> class probabilities
% column 7-8 -> copy of width and height of anchor boxes

% Initialize parameters for post-processing
classes = classNames;
predictions = YPredData;
extractPredictions = cell(size(predictions));
% Extract dlarray data
for i = 1:size(extractPredictions,1)
    for j = 1:size(extractPredictions,2)
        extractPredictions{i,j} = extractdata(predictions{i,j});
    end
end

% Storing the values of columns 2 to 5 of extractPredictions
% Columns 2 to 5 represent information about X-coordinate, Y-coordinate, Width and Height of predicted anchor boxes
extractedCoordinates = cell(size(predictions,1),4);
for i = 1:size(predictions,1)
    for j = 2:5
        extractedCoordinates{i,j-1} = extractPredictions{i,j};
    end
end

% Convert predictions from grid cell coordinates to box coordinates.
boxCoordinates = anchorBoxGenerator(anchorBoxes, inputSize, classNames, extractedCoordinates, params.NetworkInputSize);
% Replace grid cell coordinates in extractPredictions with box coordinates
for i = 1:size(YPredData,1)
    for j = 2:5
        extractPredictions{i,j} = single(boxCoordinates{i,j-1});
    end
end

% 1. Convert bboxes from spatial to pixel dimension
% 2. Combine the prediction from different heads.
% 3. Filter detections based on threshold.

% Reshaping the matrices corresponding to confidence scores and  bounding boxes
detections = cell(size(YPredData,1),6);
for i = 1:size(detections,1)
    for j = 1:5
        detections{i,j} = reshapePredictions(extractPredictions{i,j});
    end
end
% Reshaping the matrices corresponding to class probablities
numClasses = repmat({numel(classes)},[size(detections,1),1]);
for i = 1:size(detections,1)
    detections{i,6} = reshapeClasses(extractPredictions{i,6},numClasses{i,1});
end

% cell2mat converts the cell of matrices into one matrix, this combines the
% predictions of all detection heads
detections = cell2mat(detections);

% Getting the most probable class and corresponding index
[classProbs, classIdx] = max(detections(:,6:end),[],2);
detections(:,1) = detections(:,1).*classProbs;
detections(:,6) = classIdx;

% Keep detections whose confidence score is greater than threshold.
detections = detections(detections(:,1) >= params.Threshold,:);

[bboxes, scores, labels] = iPostProcessDetections(detections, classes, info, params);
end

function [bboxes, scores, labels] = iPostProcessDetections(detections, classes, info, params)
% Resizes the anchor boxes, filters anchor boxes based on size and apply
% NMS to eliminate overlapping anchor boxes
if ~isempty(detections)

    % Obtain bounding boxes and class data for pre-processed image
    scorePred = detections(:,1);
    bboxesTmp = detections(:,2:5);
    classPred = detections(:,6);
    inputImageSize = ones(1,2);
    inputImageSize(2) = info.ScaleX.*info.PreprocessedImageSize(2);
    inputImageSize(1) = info.ScaleY.*info.PreprocessedImageSize(1);
    % Resize boxes to actual image size.
    scale = [inputImageSize(2) inputImageSize(1) inputImageSize(2) inputImageSize(1)];
    bboxPred = bboxesTmp.*scale;
    % Convert x and y position of detections from centre to top-left.
    bboxPred = iConvertCenterToTopLeft(bboxPred);

    % Filter boxes based on MinSize, MaxSize.
    [bboxPred, scorePred, classPred] = filterBBoxes(params.MinSize, params.MaxSize, bboxPred, scorePred, classPred);

    % Apply NMS to eliminate boxes having significant overlap
    if params.SelectStrongest
        [bboxes, scores, classNames] = selectStrongestBboxMulticlass(bboxPred, scorePred, classPred ,...
            'RatioType', 'Union', 'OverlapThreshold', 0.4);
    else
        bboxes = bboxPred;
        scores = scorePred;
        classNames = classPred;
    end

    % Limit width detections
    detectionsWd = min((bboxes(:,1) + bboxes(:,3)),inputImageSize(1,2));
    bboxes(:,3) = detectionsWd(:,1) - bboxes(:,1);

    % Limit height detections
    detectionsHt = min((bboxes(:,2) + bboxes(:,4)),inputImageSize(1,1));
    bboxes(:,4) = detectionsHt(:,1) - bboxes(:,2);
    bboxes(bboxes<1) = 1;

    % Convert classId to classNames.
    labels = categorical(classes,cellstr(classes));
    labels = labels(classNames);

else
    % If detections are empty then bounding boxes, scores and labels should
    % be empty
    bboxes = zeros(0,4,'single');
    scores = zeros(0,1,'single');
    labels = categorical(classes);
end
end

function x = reshapePredictions(pred)
% Reshapes the matrices corresponding to scores, X, Y, Width and Height to
% make them compatible for combining the outputs of different detection
% heads
[h,w,c,n] = size(pred);
x = reshape(pred,h*w*c,1,n);
end

function x = reshapeClasses(pred,numClasses)
% Reshapes the matrices corresponding to the class probabilities, to make it
% compatible for combining the outputs of different detection heads
[h,w,c,n] = size(pred);
numAnchors = c/numClasses;
x = reshape(pred,h*w,numClasses,numAnchors,n);
x = permute(x,[1,3,2,4]);
[h,w,c,n] = size(x);
x = reshape(x,h*w,c,n);
end

function bboxes = iConvertCenterToTopLeft(bboxes)
% Convert x and y position of detections from centre to top-left.
bboxes(:,1) = bboxes(:,1) - bboxes(:,3)/2 + 0.5;
bboxes(:,2) = bboxes(:,2) - bboxes(:,4)/2 + 0.5;
bboxes = floor(bboxes);
bboxes(bboxes<1) = 1;
end

function tiledAnchors = anchorBoxGenerator(anchorBoxes, inputSize, classNames,YPredCell,inputImageSize)
% Convert grid cell coordinates to box coordinates.
% Generate tiled anchor offset.
tiledAnchors = cell(size(YPredCell));
for i = 1:size(YPredCell,1)
    anchors = anchorBoxes{i,:};
    [h,w,~,n] = size(YPredCell{i,1});
    [tiledAnchors{i,2},tiledAnchors{i,1}] = ndgrid(0:h-1,0:w-1,1:size(anchors,1),1:n);
    [~,~,tiledAnchors{i,3}] = ndgrid(0:h-1,0:w-1,anchors(:,2),1:n);
    [~,~,tiledAnchors{i,4}] = ndgrid(0:h-1,0:w-1,anchors(:,1),1:n);
end

for i = 1:size(YPredCell,1)
    [h,w,~,~] = size(YPredCell{i,1});
    tiledAnchors{i,1} = double((tiledAnchors{i,1} + YPredCell{i,1})./w);
    tiledAnchors{i,2} = double((tiledAnchors{i,2} + YPredCell{i,2})./h);
    tiledAnchors{i,3} = double((tiledAnchors{i,3}.*YPredCell{i,3})./inputImageSize(2));
    tiledAnchors{i,4} = double((tiledAnchors{i,4}.*YPredCell{i,4})./inputImageSize(1));
end
end

function predictions = iYolov3Transform(YPredictions, anchorBoxes)
% This function breaks down the raw output from predict function into Confidence score, X, Y, Width,
% Height and Class probabilities for each output from detection head

predictions = cell(size(YPredictions,1),size(YPredictions,2) + 2);

for idx = 1:size(YPredictions,1)
    % Get the required info on feature size.
    numChannelsPred = size(YPredictions{idx},3);  %number of channels in a feature map
    numAnchors = size(anchorBoxes{idx},1);    %number of anchor boxes per grid
    numPredElemsPerAnchors = numChannelsPred/numAnchors;
    channelsPredIdx = 1:numChannelsPred;
    predictionIdx = ones([1,numAnchors.*5]);

    % X positions.
    startIdx = 1;
    endIdx = numChannelsPred;
    stride = numPredElemsPerAnchors;
    predictions{idx,2} = YPredictions{idx}(:,:,startIdx:stride:endIdx,:);
    predictionIdx = [predictionIdx startIdx:stride:endIdx];

    % Y positions.
    startIdx = 2;
    endIdx = numChannelsPred;
    stride = numPredElemsPerAnchors;
    predictions{idx,3} = YPredictions{idx}(:,:,startIdx:stride:endIdx,:);
    predictionIdx = [predictionIdx startIdx:stride:endIdx];

    % Width.
    startIdx = 3;
    endIdx = numChannelsPred;
    stride = numPredElemsPerAnchors;
    predictions{idx,4} = YPredictions{idx}(:,:,startIdx:stride:endIdx,:);
    predictionIdx = [predictionIdx startIdx:stride:endIdx];

    % Height.
    startIdx = 4;
    endIdx = numChannelsPred;
    stride = numPredElemsPerAnchors;
    predictions{idx,5} = YPredictions{idx}(:,:,startIdx:stride:endIdx,:);
    predictionIdx = [predictionIdx startIdx:stride:endIdx];

    % Confidence scores.
    startIdx = 5;
    endIdx = numChannelsPred;
    stride = numPredElemsPerAnchors;
    predictions{idx,1} = YPredictions{idx}(:,:,startIdx:stride:endIdx,:);
    predictionIdx = [predictionIdx startIdx:stride:endIdx];

    % Class probabilities.
    classIdx = setdiff(channelsPredIdx,predictionIdx);
    predictions{idx,6} = YPredictions{idx}(:,:,classIdx,:);
end

for i = 1:size(predictions,1)
    predictions{i,7} = predictions{i,4};
    predictions{i,8} = predictions{i,5};
end

% Apply activation to the predicted cell array
% Apply sigmoid activation to columns 1-3 (Confidence score, X, Y)
for i = 1:size(predictions,1)
    for j = 1:3
        predictions{i,j} = sigmoid(predictions{i,j});
    end
end
% Apply exponentiation to columns 4-5 (Width, Height)
for i = 1:size(predictions,1)
    for j = 4:5
        predictions{i,j} = exp(predictions{i,j});
    end
end
% Apply sigmoid activation to column 6 (Class probabilities)
for i = 1:size(predictions,1)
    for j = 6
        predictions{i,j} = sigmoid(predictions{i,j});
    end
end
end

function [bboxPred, scorePred, classPred] = filterBBoxes(minSize, maxSize, bboxPred, scorePred, classPred)
% Filter boxes based on MinSize, MaxSize
[bboxPred, scorePred, classPred] = filterSmallBBoxes(minSize, bboxPred, scorePred, classPred);
[bboxPred, scorePred, classPred] = filterLargeBBoxes(maxSize, bboxPred, scorePred, classPred);
end

function varargout = filterSmallBBoxes(minSize, varargin)
% Filter boxes based on MinSize
bboxes = varargin{1};
tooSmall = any((bboxes(:,[4 3]) < minSize),2);
for ii = 1:numel(varargin)
    varargout{ii} = varargin{ii}(~tooSmall,:);
end
end

function varargout = filterLargeBBoxes(maxSize, varargin)
% Filter boxes based on MaxSize
bboxes = varargin{1};
tooBig = any((bboxes(:,[4 3]) > maxSize),2);
for ii = 1:numel(varargin)
    varargout{ii} = varargin{ii}(~tooBig,:);
end
end

function m = cell2mat(c)
% Converts the cell of matrices into one matrix by concatenating
% the output corresponding to each feature map

elements = numel(c);
% If number of elements is 0 return an empty array
if elements == 0
    m = [];
    return
end
% If number of elements is 1, return same element as matrix
if elements == 1
    if isnumeric(c{1}) || ischar(c{1}) || islogical(c{1}) || isstruct(c{1})
        m = c{1};
        return
    end
end
% Error out for unsupported cell content
ciscell = iscell(c{1});
cisobj = isobject(c{1});
if cisobj || ciscell
    disp('CELL2MAT does not support cell arrays containing cell arrays or objects.');
end
% If input is struct, extract field names of structure into a cell
if isstruct(c{1})
    cfields = cell(elements,1);
    for n = 1:elements
        cfields{n} = fieldnames(c{n});
    end
    if ~isequal(cfields{:})
        disp('The field names of each cell array element must be consistent and in consistent order.');
    end
end
% If number of dimensions is 2
if ndims(c) == 2
    rows = size(c,1);
    cols = size(c,2);
    if (rows < cols)
        % If rows is less than columns first concatenate each column into 1
        % row then concatenate all the rows
        m = cell(rows,1);
        for n = 1:rows
            m{n} = cat(2,c{n,:});
        end
        m = cat(1,m{:});
    else
        % If columns is less than rows, first concatenate each corresponding
        % row into columns, then combine all columns into 1
        m = cell(1,cols);
        for n = 1:cols
            m{n} = cat(1,c{:,n});
        end
        m = cat(2,m{:});
    end
    return
end
end

References

[1] Redmon, Joseph, and Ali Farhadi. “YOLOv3: An Incremental Improvement.” Preprint, submitted April 8, 2018. https://arxiv.org/abs/1804.02767.

Version History

Introduced in R2020b

predict

Syntax

Description

Input Arguments

`workflowObject` — Deep learning network deployment options
`dlhdl.Workflow` object

`images` — Input image or input data
numeric array | formatted `dlarray` object

`X1,...,XN` — Numeric arrays for networks with multiple inputs
numeric array

Name-Value Arguments

`Profile` — Flag that returns profiling results
"off'" (default) | "on"

`KeepState` — Option to keep internal states
false (default) | true

`timeout` — Specify how long to wait to retrieve prediction result from hardware
20 (default) | positive integer

Output Arguments

`Y` — Predicted responses
numeric array

`Y1,...,YM` — Predicted scores or responses of networks with multiple outputs
numeric array

`performance` — Deployed network performance data
table

Examples

Bicyclist and Pedestrian Classification by Using FPGA

Classify Images on FPGA Using Quantized Neural Network

Detect Objects Using YOLO v3 Network Deployed to FPGA

Version History

See Also

Topics

predict

Syntax

Description

Input Arguments

workflowObject — Deep learning network deployment options dlhdl.Workflow object

images — Input image or input data numeric array | formatted dlarray object

X1,...,XN — Numeric arrays for networks with multiple inputs numeric array

Name-Value Arguments

Profile — Flag that returns profiling results "off'" (default) | "on"

KeepState — Option to keep internal states false (default) | true

timeout — Specify how long to wait to retrieve prediction result from hardware 20 (default) | positive integer

Output Arguments

Y — Predicted responses numeric array

Y1,...,YM — Predicted scores or responses of networks with multiple outputs numeric array

performance — Deployed network performance data table

Examples

Bicyclist and Pedestrian Classification by Using FPGA

Classify Images on FPGA Using Quantized Neural Network

Detect Objects Using YOLO v3 Network Deployed to FPGA

Version History

See Also

Topics

`workflowObject` — Deep learning network deployment options
`dlhdl.Workflow` object

`images` — Input image or input data
numeric array | formatted `dlarray` object

`X1,...,XN` — Numeric arrays for networks with multiple inputs
numeric array

`Profile` — Flag that returns profiling results
"off'" (default) | "on"

`KeepState` — Option to keep internal states
false (default) | true

`timeout` — Specify how long to wait to retrieve prediction result from hardware
20 (default) | positive integer

`Y` — Predicted responses
numeric array

`Y1,...,YM` — Predicted scores or responses of networks with multiple outputs
numeric array

`performance` — Deployed network performance data
table
