# spapi

Spline interpolation

## Syntax

## Description

returns the spline `spline`

= spapi(`knots`

,`x`

,`y`

)*f* (if any) of order

k = length(knots) - length(x)

`knots`

for which (*) f(x(j)) = y(:,j), all j.

`x`

are the same, then:
$${D}^{m(j)}f(x(j))=y(:,j)$$

with $$m(j)=\{i<j:x(i)=x(j)\}$$ and *D ^{m}f* the

*m*-th derivative of

*f*. In this case, the

*r*-fold repetition of a site

*z*in

`x`

corresponds to the prescribing of value and the first *r*– 1 derivatives of

*f*at

*z*. To match the average of all data values with the same data instead, call

`spapi`

with an additional fourth argument.The data values, `y(:,j)`

, can be scalars, vectors, matrices, or ND-arrays.

`spapi(`

, with `k`

,`x`

,`y`

)`k`

a positive integer, specifies the desired spline order, `k`

. In this case the `spapi`

function calls the `aptknt`

function to determine a workable, but not necessarily optimal, knot sequence for the given sites `x`

. In other words, the command `spapi(k,x,y)`

has the same effect as the more explicit command `spapi(aptknt(x,k),x,y)`

.

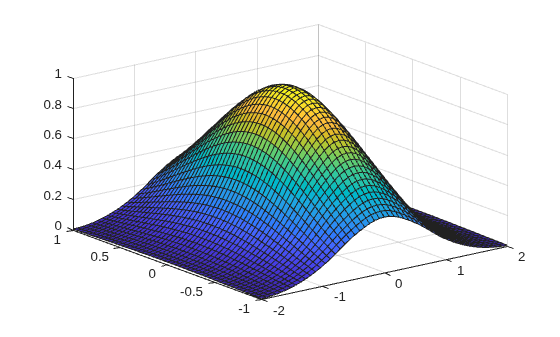

`spapi({knork1,...,knorkm},{x1,...,xm},y)`

returns the B-form of a tensor-product spline interpolant to *gridded* data. Here, each `knorki`

is either a knot sequence, or a positive integer specifying the polynomial order used in the `i`

-th variable. The `spapi`

function then provides a corresponding knot sequence for the `i`

-th variable. Further, `y`

must be an (`r+m`

)-dimensional array, with `y(:,i1,...,im)`

the datum to fit at the site `[x{1}(i1),...,x{m}(im)]`

, for all `i1`

, ..., `im`

. In contrast to the univariate case, if the spline is scalar-valued, then `y`

can be an `m`

-dimensional array.

`spapi(...,'noderiv')`

with the character vector or string scalar `'noderiv'`

as a fourth argument, has the same effect as `spapi(...)`

except that data values sharing the same site are interpreted differently. With the fourth argument present, the average of the data values with the same data site is interpolated at such a site. Without it, data values with the same data site are interpreted as values of successive derivatives to be matched at such a site, as described above, in the first paragraph of this Description.

## Examples

## Input Arguments

## Output Arguments

## Limitations

The given (univariate) knots and sites must satisfy the Schoenberg-Whitney conditions for the interpolant to be defined. If the site sequence `x`

is nondecreasing, then

$$\text{knots}(j)<x(j)<\text{knots}(j+k),\text{all}j$$

with equality possible at `knots`

(1) and `knots`

(`end`

)). In the multivariate case, these conditions must hold in each variable separately.

## Algorithms

The function calls `spcol`

to provide the almost-block-diagonal collocation matrix (*B _{j}*,

_{k}(

*x*)) (with repeats in

`x`

denoting derivatives, as described above), and `slvblk`

solves the linear system (*), using a block QR factorization. The function fits gridded data, in tensor-product fashion, one variable at a time, taking advantage of the fact that a univariate spline fit depends linearly on the values that are being fitted.

## Version History

**Introduced in R2006b**
