QPSK Demodulator Baseband

Demodulate QPSK-modulated data

•

Libraries:
Communications Toolbox / Modulation / Digital Baseband Modulation / PSK
Communications Toolbox HDL Support / Modulation / PM

Description

The QPSK Demodulator Baseband block demodulates a signal that was modulated using the quadrature phase shift keying method (QPSK) method. The input is a baseband representation of the modulated signal.

The input must be a complex signal. This block accepts a scalar or column vector input signal. For information about the data types, see Supported Data Types.

Examples

Demodulate Noisy QPSK Signal

Modulate and demodulate a noisy QPSK signal.

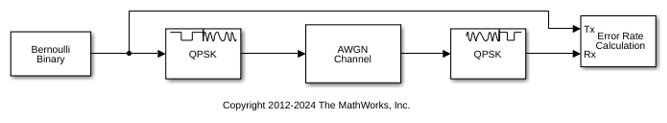

The doc_qpsk_demod model QPSK-modulates random frames of binary data, adds noise to the modulated data, QPSK-demodulates the data, and then calculates the error rate of the received signal.

Running the simulation saves error rate results to the base workspace in the 1-by-3 row vector, ErrorVec. The first element holds the bit error rate (BER).

The AWGN Channel block has Eb/N0 set to 4.3 dB. Run the model to display the error statistics. For an Eb/N0 of 4.3 dB, the resultant BER is approximately 0.01. Your results might vary slightly.

ans =

    0.0104

Increase Eb/N0 for the AWGN to 7 dB. Rerun the simulation, and observe that the BER has decreased.

ans =

   7.0000e-04

Ports

Input

In — Input QPSK-modulated signal

scalar | vector

Input QPSK-modulated signal, specified as a complex-valued scalar or vector containing the baseband representation of a QPSK-modulated signal. When the noise variance or signal power result in computations involving extreme positive or negative magnitudes, see Soft-Decision QPSK Demodulation for demodulation decision type considerations.

This port in unnamed on the block until you enable the Var port.

Data Types: double | single | fixed point
Complex Number Support: Yes

Var — Noise variance estimate

positive scalar

Noise variance estimate, specified as a positive scalar.

When the noise variance or signal power result in computations involving extreme positive or negative magnitudes, see Soft-Decision QPSK Demodulation for demodulation decision type considerations.

Dependencies

This parameter applies when you set Noise variance source to Port.

Data Types: double | single

Output

Out — Output signal

scalar | column vector

Output signal, returned as a scalar or column vector. The output is a demodulated version of the PSK-modulated input signal, In.

• When you set Output type to Integer, the returned output signal elements are integers in the range [0, 3].

• When you set Output type to Bit, the returned output signal contains a vector with an even number of elements because QPSK has 2 bits per symbol.

This port in unnamed on the block.

Data Types: double | single | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean | fixed point

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink^® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Main

Output type — Integer or bit pair output indicator

Integer (default) | Bit

Integer or bit pair output indicator, specified as Integer or Bit.

• When you set Output type to Integer and Constellation ordering to Binary, the block maps the point e^{(jϕ + jπm/2)} to m, where ϕ is the phase offset in radians (Phase offset (rad)) and m is 0, 1, 2, or 3.

• When you set Output type to Bit and Decision type to Hard decision, the output contains pairs of binary values. The most significant bit (top-most bit in the vector) is the first bit the block outputs.

• When you set Output type to Bit and Decision type to Log-likelihood ratio or Approximate log-likelihood ratio, the output contains bitwise LLR or approximate LLR values, respectively.

Decision type — Demodulator output

Hard decision (default) | Log-likelihood ratio | Approximate log-likelihood ratio

Demodulator output, specified as Hard decision, Log-likelihood ratio, or Approximate log-likelihood ratio. The LLR and approximate LLR outputs are used with error decoders that support soft-decision inputs, such as a Viterbi Decoder, to achieve superior performance. For more information, see Algorithms.

The output values for Log-likelihood ratio and Approximate log-likelihood ratio decision types are of the same data type as the input values.

Dependencies

This parameter applies when you set Output type to Bit.

Noise variance source — Source of noise variance estimate

Dialog (default) | Port

Source of noise variance estimate, specified as one of these options:

• To define the noise variance by using the Noise variance parameter, set this parameter to Dialog.

• To define the noise variance by using the Var port, set this parameter to Port.

Dependencies

This parameter applies when you set Decision type to Log-likelihood ratio or Approximate log-likelihood ratio.

Noise variance — Noise variance estimate

1 (default) | positive scalar

Noise variance estimate, specified as a positive scalar.

When the noise variance or signal power result in computations involving extreme positive or negative magnitudes, see Soft-Decision QPSK Demodulation for demodulation decision type considerations.

This parameter is tunable in normal mode, accelerator mode and rapid accelerator mode. If you use the Simulink Coder™ rapid simulation (RSIM) target to build an RSIM executable, then you can tune the parameter without recompiling the model. Avoiding recompilation is useful for Monte Carlo simulations in which you run the simulation multiple times (perhaps on multiple computers) with different amounts of noise.

Tunable: Yes

Dependencies

This parameter applies when you set Noise variance source to Dialog.

Constellation ordering — Symbol mapping

Gray (default) | Binary

Symbol mapping of integer or bit pair outputs, specified as Gray or Binary.

• To map symbols using Gray-coded ordering, set this parameter to Gray.

• To map symbols using binary-coded ordering, set this parameter to Binary.

Phase offset (rad) — Phase offset of zeroth point

pi/4 (default) | scalar

Phase of the zeroth point of the signal constellation in radians, specified as a scalar.

Data Types

Output — Output data type

Same as input

Output data type is the same as the input data type.

Dependencies

This setting applies when you set Output type to Bit and Decision type to Log-likelihood ratio or Approximate log-likelihood ratio.

Output data type — Output data type

Inherit via internal rule (default) | Smallest unsigned integer | double | single | int8 | uint8 | int16 | uint16 | int32 | uint32 | boolean

Output data type of the demodulated signal, specified as one of these options:

• For integer outputs, the output data type can be set to 'Inherit via internal rule', 'Smallest unsigned integer', double, single, int8, uint8, int16, uint16, int32, or uint32.

• For bit outputs, when you set Decision type to Hard decision, the output data type can be set to 'Inherit via internal rule', 'Smallest unsigned integer', double, single, int8, uint8, int16, uint16, int32, uint32, or boolean.

When you set this parameter to 'Inherit via internal rule', the block inherits the output data type from the input port.

• If the input is a floating-point type (single or double), the output data type is the same as the input data type.

• If the input data type is fixed-point, the output data type works as if this parameter is set to 'Smallest unsigned integer'.

When you set this parameter to 'Smallest unsigned integer', the output data type is based on the settings that you use in the Hardware Implementation pane of the Configuration Parameters dialog box of the model.

• If ASIC/FPGA is selected in the Hardware Implementation pane, and you set Output type to Bit, the output data type is the ideal minimum one-bit size (ufix(1)). For all other selections, it is an unsigned integer with the smallest available word length large enough to fit 1 bit, usually corresponding to the size of a char (for example, uint8).

• If ASIC/FPGA is selected in the Hardware Implementation pane, and you set Output type to Integer, the output data type is the ideal minimum two-bit size (ufix(2)). For all other selections, it is an unsigned integer with the smallest available word length large enough to fit 2 bits, usually corresponding to the size of a char (for example, uint8).

For information about specifying data types, see Data Type Assistant.

Dependencies

This parameter applies when you set Output type to Integer or Output type to Bit and Decision type to Hard decision.

Block Characteristics

Data Types	Boolean | double | fixed pointa, b | integer | single
Multidimensional Signals	no
Variable-Size Signals	yes
a Fixed-point inputs must be signed. b When ASIC/FPGA is selected in the Hardware Implementation Pane, output is ufix(1) for bit outputs, and ufix(ceil(log2(M))) for integer outputs.

More About

Integer-Valued Signals and Binary-Valued Signals

If you set the Output type parameter to Integer, then output values are 0, 1, 2, and 3. When you set Constellation ordering to Binary for output m the output symbol is e^{j(ϕ + πm/2)}, where ϕ is the phase offset (Phase offset). In this case, the block accepts a scalar or column vector signal.

If you set the Output type parameter to Bit, the output contains pairs of binary values. For this configuration, the block outputs column vectors with even lengths. When you set the Phase offset (rad) parameter to π/4, then the block uses one of the signal constellations in the following figure, depending on whether you set the Constellation ordering parameter to Binary or Gray.

This figure shows the binary-coded and Gray-coded constellation ordering. In this figure, the most significant bit is the left-most bit and is the first bit input to the block.

Supported Data Types

Port	Supported Data Types
Input	Double-precision floating point Single-precision floating point Signed fixed-point when: Output type is Integer Output type is Bit and Decision type is Hard-decision
Var	Double-precision floating point Single-precision floating point
Output	Double-precision floating point Single-precision floating point Boolean when Output type is Bit and Decision type is Hard-decision 8-, 16-, 32- bit signed integers 8-, 16-, 32- bit unsigned integers ufix(1) in ASIC/FPGA when Output type is Bit ufix(2) in ASIC/FPGA when Output type is Integer

Data Type Assistant

The Data Type Assistant helps you set data attributes. To use the Data Type Assistant, click . For more information, see Specify Data Types Using Data Type Assistant (Simulink).

Algorithms

Hard-Decision QPSK Demodulation

The signal preprocessing required for QPSK demodulation depends on the configuration.

This figure shows the hard-decision QPSK demodulation signal diagram for the trivial phase offset (odd multiple of π/4) configuration.

This figure shows the hard-decision QPSK demodulation floating-point signal diagram for the nontrivial phase offset configuration.

This figure shows the hard-decision QPSK demodulation fixed-point signal diagram for the nontrivial phase offset configuration.

Soft-Decision QPSK Demodulation

For soft demodulation, two soft-decision log-likelihood ratio (LLR) algorithms are available: exact LLR and approximate LLR. The exact LLR algorithm is more accurate but has slower execution speed than the approximate LLR algorithm. For further description of these algorithms, see the Hard- vs. Soft-Decision Demodulation topic.

Note

The exact LLR algorithm computes exponentials using finite precision arithmetic. For computations involving very large positive or negative magnitudes, the exact LLR algorithm yields:

• Inf or -Inf if the noise variance is a very large value

• NaN if the noise variance and signal power are both very small values

The approximate LLR algorithm does not compute exponentials. You can avoid Inf, -Inf, and NaN results by using the approximate LLR algorithm.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.

HDL Architecture

This block has one default HDL architecture.

HDL Block Properties

ConstrainedOutputPipeline	Number of registers to place at the outputs by moving existing delays within your design. Distributed pipelining does not redistribute these registers. The default is 0. For more details, see ConstrainedOutputPipeline (HDL Coder).
InputPipeline	Number of input pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see InputPipeline (HDL Coder).
OutputPipeline	Number of output pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see OutputPipeline (HDL Coder).
