Apply pulse shaping by decimating signal using raised-cosine FIR filter


The comm.RaisedCosineReceiveFilter System object™ applies pulse shaping by decimating an input signal using a raised-cosine finite impulse response (FIR) filter. The FIR filter has (FilterSpanInSymbols × InputSamplesPerSymbol + 1) tap coefficients.

To apply pulse shaping by decimating an input signal using a raised-cosine FIR filter:

  1. Create the comm.RaisedCosineReceiveFilter object and set its properties.

  2. Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?



rxfilter = comm.RaisedCosineReceiveFilter returns a raised-cosine FIR receive filter System object, which decimates the input signal using a raised-cosine FIR filter. The filter uses an efficient polyphase FIR decimation structure and has unit energy.


rxfilter = comm.RaisedCosineReceiveFilter(Name,Value) sets properties using one or more name-value pairs. Enclose each property name in quotes. For example, comm.RaisedCosineReceiveFilter('RolloffFactor',0.3) configures a raised-cosine receive filter System object with the roll-off factor set to 0.3.


expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

Filter shape, specified as 'Square root' or 'Normal'.

Data Types: char | string

Roll-off factor, specified as a scalar in the range [0, 1].

Data Types: double

Filter span in symbols, specified as a positive integer. The object truncates the infinite impulse response (IIR) of an ideal raised-cosine filter to an impulse response that spans the number of symbols specified by this property.

Data Types: double

Input samples per symbol, specified as a positive integer.

Data Types: double

Decimation factor, specified as an integer in the range [1, InputSamplesPerSymbol]. This value must evenly divide into InputSamplesPerSymbol. The sampling rate of the output signal is reduced by the decimation factor such that length(Y)/length(X) is equal to DecimationFactor. For a matrix input signal, the number of input rows must be a multiple of the decimation factor.

Data Types: double

Decimation offset, specified as an integer in the range [0, (DecimationFactor − 1)]. This property specifies the number of filtered samples the object discards before downsampling.

Data Types: double

Linear filter gain, specified as a positive scalar. The object designs a raised-cosine filter that has unit energy and then applies the linear filter gain to obtain final tap coefficient values.

Data Types: double




Y = rxfilter(X) applies pulse shaping by decimating an input signal using a raised cosine FIR filter. The output consists of decimated signal values.

Input Arguments

expand all

Input signal, specified as a column vector or a Ki-by-N matrix. Ki is the number of input samples per signal channel, and N is the number of signal channels.

For a Ki-by-N matrix input, the object processes columns of the input matrix as N independent channels.

This object accepts variable-size inputs. After the object is locked, you can change the size of each input channel, but you cannot change the number of channels. For more information, see Variable-Size Signal Support with System Objects.

Data Types: double | single
Complex Number Support: Yes

Output Arguments

expand all

Output signal, returned as a column vector or a Ko-by-N matrix. Ko is equal to Ki / DecimationFactor. Ki is the number of input samples per signal channel, and N is the number of signal channels.

The System object filters each channel over time and generates a Ko-by-N output matrix. The output signal is the same data type as the input signal.

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:


expand all

infoInformation about filter System object
coeffsCoefficients for filters
costComputational cost of implementing filter System object
freqzFrequency response of discrete-time filter
fvtoolPlot frequency response of filter
grpdelayGroup delay response of discrete-time filter
impzImpulse response of discrete-time filter
orderOrder of discrete-time filter System object
stepRun System object algorithm
releaseRelease resources and allow changes to System object property values and input characteristics
resetReset internal states of System object


collapse all

Filter the output of a square-root-raised-cosine (RRC) transmit filter by using a matched RRC receive filter. The input signal has eight samples per symbol.

Create an RRC transmit filter object, setting the number of output samples per symbol to 8.

 txfilter = comm.RaisedCosineTransmitFilter('OutputSamplesPerSymbol',8);

Create an RRC receive filter, setting the number of input samples per symbol to 8 and the decimation factor to 8.

rxfilter = comm.RaisedCosineReceiveFilter('InputSamplesPerSymbol',8, ...

Use the coeffs function to determine the filter coefficients for both filters.

txCoef = coeffs(txfilter);
rxCoef = coeffs(rxfilter);

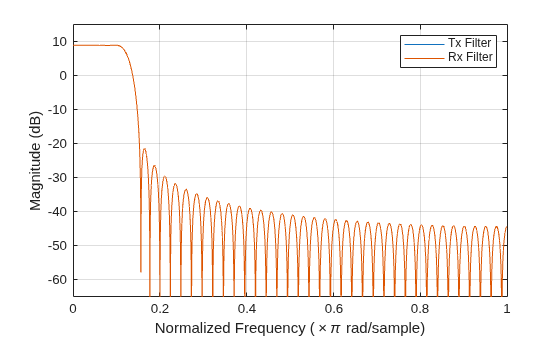

Display the magnitude responses of the two filters. The results show that the responses are the same. Here we use the freqz and plot functions to plot the magnitude responses. The Filter Analyzer app can also generate the filter responses.

[htx,f] = freqz(txfilter);
hrx = freqz(rxfilter);

plot(f/pi,mag2db(abs([htx hrx])))
ylabel("Magnitude (dB)")
xlabel("Normalized Frequency (\times\pi rad/sample)")
legend(["Tx" "Rx"]+" Filter")
ylim([-65 15])

Generate a random bipolar signal. Interpolate the signal by using the RRC transmit filter object.

 preTx = 2*randi([0 1],100,1) - 1;
 y = txfilter(preTx);

Decimate the signal by using the RRC receive filter object.

 postRx = rxfilter(y);

The filter delay is equal to the filter span. Accounting for the filter delay, adjust the plotted samples to compare the pre-Tx filter signal with the post-Rx filter signal. Because the combined receive and the transmit RRC filters generate a matched filter pair, the two signals overlap one another.

delay = txfilter.FilterSpanInSymbols;
x = (1:(length(preTx)-delay));
legend('Pre-Tx filter','Post-Rx filter')

Decimate a bipolar signal using a square-root-raised-cosine (RRC) filter whose impulse response is truncated to filter a span of six symbol durations.

Create a RRC transmit FIR filter, setting the filter span to six symbols. The object truncates the impulse response to six symbols.

txfilter = comm.RaisedCosineTransmitFilter(FilterSpanInSymbols=6);

Generate a random bipolar signal. Filter the signal by using the RRC transmit FIR filter object.

x = 2*randi([0 1],25,1) - 1;
y = txfilter(x);

Create a matched RRC receive filter object.

rxfilter = comm.RaisedCosineReceiveFilter(FilterSpanInSymbols=6);

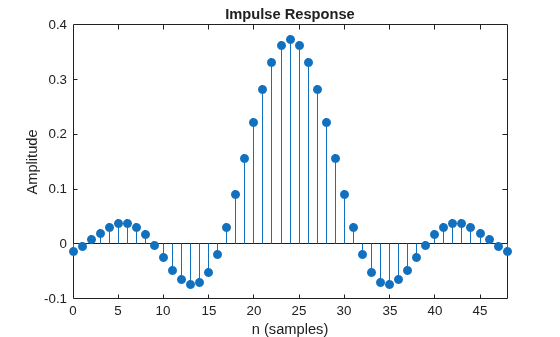

Use impz to plot the impulse response of the receive filter.


Filter the output signal from the transmit filter by using the matched RRC receive filter object.

r = rxfilter(y);

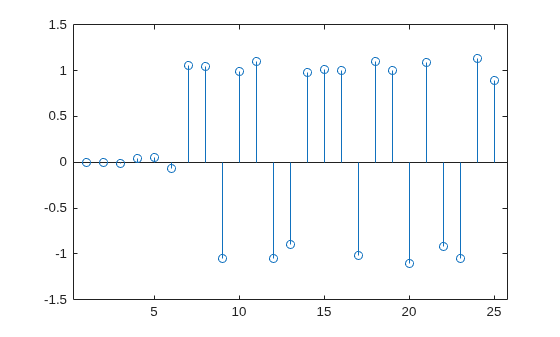

Plot the interpolated signal. The results show a delay equal to the filter span (six symbols) before data passes through the filter.


Create a square-root-raised-cosine (RRC) receive filter object. Use freqz to plot the filter response. The results show that the linear filter gain is greater than unity. Specifically, the passband gain is more than 0 dB.

rxfilter = comm.RaisedCosineReceiveFilter;

Use the coeffs object function to obtain the filter coefficients and adjust the filter gain to unit energy.

b = coeffs(rxfilter);

Because a filter with unity passband gain must have filter coefficients that sum to 1, set the linear filter gain to the inverse of the sum of the filter tap coefficients, b.Numerator.

rxfilter.Gain = 1/sum(b.Numerator);

Verify that the resulting filter coefficients sum to 1.

bNorm = coeffs(rxfilter);
ans = 1.0000

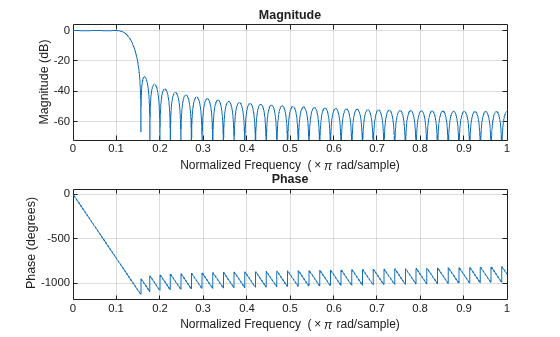

Plot the filter frequency response. The results now show that the passband gain is 0 dB, which is unity gain.
