visualize

Visualize and validate filter response

collapse all in page

Syntax

visualize(octFilt)
visualize(octFilt,N)
visualize(___,mType)
hvsz = visualize(___)

Description

visualize(octFilt) plots the magnitude response of the octave-band filter octFilt. The plot is updated automatically when properties of the object change.

example

visualize(octFilt,N) uses an N-point FFT to calculate the magnitude response.

example

visualize(___,mType) creates a mask based on the class of filter specified by mType, using either of the previous syntaxes. Specify mType as 'class 0', 'class 1', or 'class 2'. The mask attenuation limits are defined in the ANSI S1.11-2004 standard. The mask center frequency is the ANSI standard center frequency, with band edge frequencies on either side of the CenterFrequency set in octFilt.

  • If the mask is green, the design is compliant with the ANSI S1.11-2004 standard.

  • If the mask is red, the design breaks compliance.

example

hvsz = visualize(___) returns a handle to the visualizer as a dsp.DynamicFilterVisualizer object when called with any of the previous syntaxes.

Examples

collapse all

Open Live Script

Create an octaveFilter System object™ and then plot the magnitude response of the filter.

octFilt = octaveFilter;
visualize(octFilt)

Open Live Script

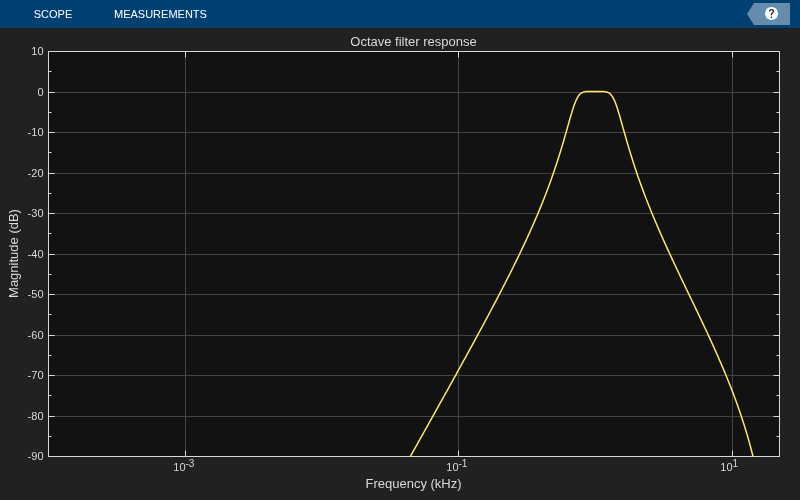

Create an octaveFilter System object™. Plot a 5096-point frequency representation.

octFilt = octaveFilter;
visualize(octFilt,5096)

Open Live Script

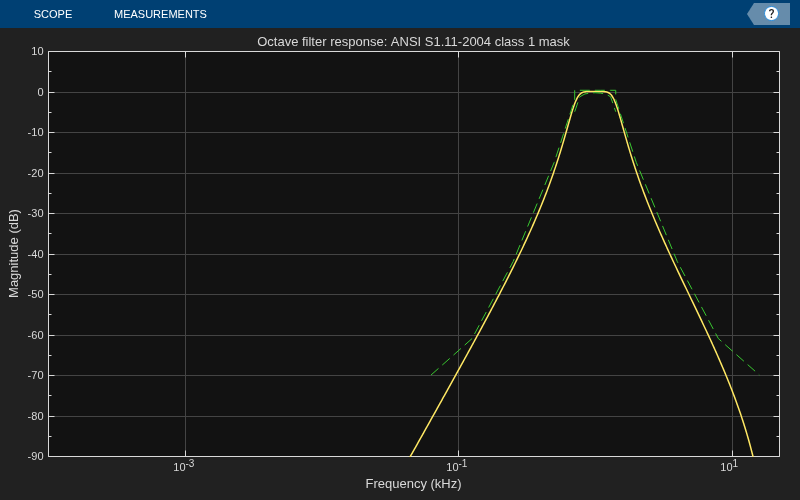

Create an octaveFilter System object™. Visualize the class 1 compliance of the filter design.

octFilt = octaveFilter;
visualize(octFilt,'class 1')

Input Arguments

collapse all

Object of the octaveFilter System object™.

Number of DFT bins in frequency-domain representation, specified as a positive scalar. The default is 2048.

Data Types: single | double

Type of mask, specified as 'class 0', 'class 1, or 'class 2'.

The mask attenuation limits are defined in the ANSI S1.11-2004 standard. The mask center frequency is the ANSI standard center frequency, with band edge frequencies on either side of the CenterFrequency set in octFilt.

  • If the mask is green, the design is compliant with the ANSI S1.11-2004 standard.

  • If the mask is red, the design breaks compliance.

Data Types: char

Version History

Introduced in R2016b
