acousticSharpness

Perceived sharpness of acoustic signal

Since R2020a

Syntax

sharpness = acousticSharpness(audioIn,fs)

sharpness = acousticSharpness(audioIn,fs,calibrationFactor)

sharpness = acousticSharpness(SPLIn)

sharpness = acousticSharpness(specificLoudnessIn)

sharpness = acousticSharpness(___,Name,Value)

acousticSharpness(___,TimeVarying,true)

Description

sharpness = acousticSharpness(audioIn,fs) returns sharpness in acum according to DIN 45692 [2] and ISO 532-1:2017(E) [1].

sharpness = acousticSharpness(audioIn,fs,calibrationFactor) specifies a nondefault microphone calibration factor used to compute loudness.

sharpness = acousticSharpness(SPLIn) computes sharpness using one-third-octave-band sound pressure levels (SPL).

sharpness = acousticSharpness(specificLoudnessIn) computes sharpness using specific loudness.

sharpness = acousticSharpness(___,Name,Value) specifies options using one or more Name,Value pair arguments.

Example: sharpness = acousticSharpness(audioIn,fs,calibrationFactor,'SoundField','diffuse') returns sharpness assuming a diffuse sound field.

acousticSharpness(___,TimeVarying,true) with no output arguments plots sharpness relative to time.

Examples

Acoustic Sharpness of Audio Signal

Compute the acoustic sharpness of turbine noise. Assume it is stationary and was recorded in a diffuse sound field.

[audioIn,fs] = audioread('Turbine-16-44p1-mono-22secs.wav');

sharpness = acousticSharpness(audioIn,fs,'SoundField','diffuse');

fprintf('Acoustic sharpness = %0.2f acum\n',sharpness)

Acoustic sharpness = 1.11 acum

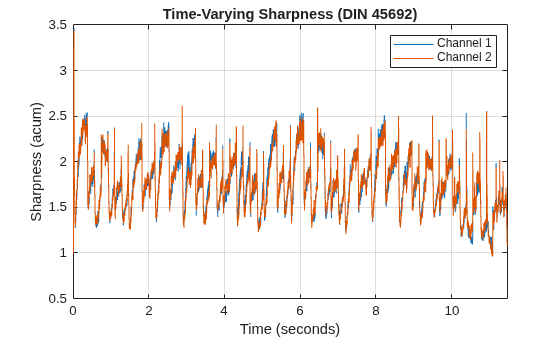

Time-Varying Sharpness

Read in an audio signal.

[audioIn,fs] = audioread('RockDrums-48-stereo-11secs.mp3');

Plot the time-varying sharpness of the signal. Listen to the signal.

acousticSharpness(audioIn,fs,'TimeVarying',true)

sound(audioIn,fs)

Measure Loudness and Sharpness of Stationary Signals

Create two stationary signals with equivalent power: a pink noise signal and a white noise signal.

fs = 48e3;
dur = 5;
pnoise = 2*pinknoise(dur*fs);
wnoise = rand(dur*fs,1) - 0.5;
wnoise = wnoise*sqrt(var(pnoise)/var(wnoise));

Call acousticLoudness using the default ISO 532-1 (Zwicker) method and no output arguments to plot the loudness of the pink noise. Call acousticLoudness again, this time with output arguments, to get the specific loudness.

figure
acousticLoudness(pnoise,fs)

[~,pSpecificLoudness] = acousticLoudness(pnoise,fs);

Plot the loudness for the white noise signal and then get the specific loudness values.

figure
acousticLoudness(wnoise,fs)

[~,wSpecificLoudness] = acousticLoudness(wnoise,fs);

Call the acousticSharpness function to compare the sharpness of the pink noise and white noise.

pSharpness = acousticSharpness(pSpecificLoudness);
wSharpness = acousticSharpness(wSpecificLoudness);
fprintf('Sharpness of pink noise = %0.2f acum\n',pSharpness)

Sharpness of pink noise = 2.00 acum

fprintf('Sharpness of white noise = %0.2f acum\n',wSharpness)

Sharpness of white noise = 2.62 acum

Effect of Input Levels on Acoustic Sharpness

Create a pink noise signal with a 48 kHz sample rate and a duration of 5 seconds.

fs = 48e3;
n = fs*5;
pnoise = pinknoise(n);

Specify a vector to sweep over the dB range from -60 to 20. Create a gain vector which, when multiplied by the original signal, results in a signal with the desired output level.

dBSweep = -60:10:20;
coefSweep = sqrt((10.^(dBSweep/10))/var(pnoise));

Call acousticSharpness in a loop with the different signal levels. Determine the sharpness using the default DIN 45692 frequency weighting and the Aures frequency weighting.

sharpnessDIN45692 = zeros(numel(dBSweep),1);
sharpnessAures = zeros(numel(dBSweep),1);
for ii = 1:numel(dBSweep)
    signal = pnoise*coefSweep(ii);
    sharpnessDIN45692(ii) = acousticSharpness(signal,fs);
    sharpnessAures(ii) = acousticSharpness(signal,fs,'Weighting','Aures');
end

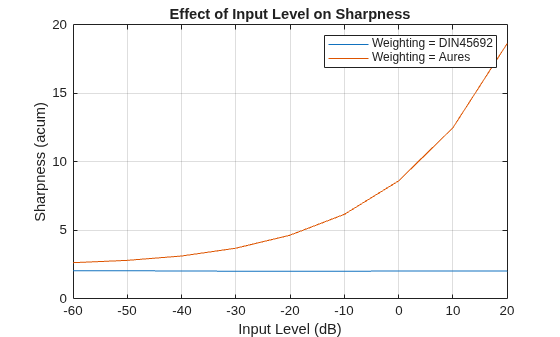

Display the effect of the input level on the acoustic sharpness. The Aures frequency weighting method is more sensitive to the input level.

plot(dBSweep,sharpnessDIN45692,dBSweep,sharpnessAures)
legend('Weighting = DIN45692','Weighting = Aures')
xlabel('Input Level (dB)')
ylabel('Sharpness (acum)')
title('Effect of Input Level on Sharpness')
axis([dBSweep(1) dBSweep(end) 0 20])
grid on

Compare Time-Varying Sharpness of Music Genres

Read in two audio files: one of an electric guitar with distortion and one of an acoustic guitar. Both audio files have a sample rate of 44.1 kHz. For easy comparison, convert the rock guitar signal to mono and shorten the soft guitar signal to the length of the rock guitar signal.

fs = 44.1e3;
rockGuitar = audioread('RockGuitar-16-44p1-stereo-72secs.wav');
softGuitar = audioread('SoftGuitar-44p1_mono-10mins.ogg');
rockGuitar = mean(rockGuitar,2);
softGuitar = softGuitar(1:numel(rockGuitar));

Calculate the time-varying sharpness for both the rock guitar and soft guitar.

rGSharpness = acousticSharpness(rockGuitar,fs,'TimeVarying',true);
sGSharpness = acousticSharpness(softGuitar,fs,'TimeVarying',true);

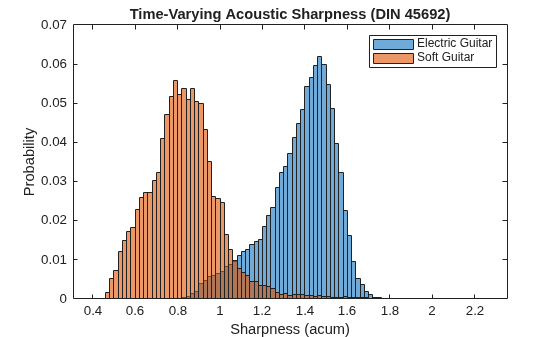

Plot the probability distribution based on the observed sharpness of the rock guitar and the soft guitar.

histogram(rGSharpness,'Normalization','probability')
hold on
histogram(sGSharpness,'Normalization','probability')
legend('Electric Guitar','Soft Guitar')
xlabel('Sharpness (acum)')
ylabel('Probability')
title('Time-Varying Acoustic Sharpness (DIN 45692)')

Measure Acoustic Sharpness from Sound Pressure Level

Read in an audio file.

[audioIn,fs] = audioread('Turbine-16-44p1-mono-22secs.wav');

To calculate sound pressure levels from an audio signal, first create an splMeter object. Call the splMeter object with the audio input.

spl = splMeter("SampleRate",fs,"Bandwidth","1/3 octave", ...
    "FrequencyWeighting","Z-weighting","OctaveFilterOrder",6);

splMeasurement = spl(audioIn);

Compute the mean SPL level, skipping the first 0.2 seconds. Only keep the bands from 25 Hz to 12.5 kHz (the first 28 bands).

SPLIn = mean(splMeasurement(ceil(0.2*fs):end,1:28));

To determine the acoustic sharpness of the audio signal, call acousticSharpness using the sound pressure level input.

sharpness = acousticSharpness(SPLIn)

sharpness =
1.1015

Input Arguments

audioIn — Audio input

column vector | 2-column matrix

Audio input, specified as a column vector (mono) or matrix with two columns (stereo). Sharpness is computed for each channel (column) independently.

Data Types: single | double

fs — Sample rate (Hz)

positive scalar

Sample rate in Hz, specified as a positive scalar. The recommended sample rate for new recordings is 48 kHz.

Note

The minimum acceptable sample rate is 8 kHz.

Data Types: single | double

calibrationFactor — Microphone calibration factor

sqrt(8) | positive scalar

Microphone calibration factor, specified as a positive scalar. The default calibration factor corresponds to a full-scale 1 kHz sine wave with a sound pressure level of 100 dB (SPL). To compute the calibration factor specific to your system, use the calibrateMicrophone function.

Data Types: single | double

SPLIn — Sound pressure level (dB)

1-by-28-by-C

Sound pressure level (SPL) in dB, specified as a 1-by-28-by-C array. 28 corresponds to one-third-octave bands between 25 Hz and 12.5 kHz. C is the number of channels.

Data Types: single | double

specificLoudnessIn — Specific loudness (sones/Bark)

T-by-240-by-C

Specific loudness in sones/Bark, specified as a T-by-240-by-C array, where:

• T is 1 for stationary signals or one per 2 ms for time-varying signals.

• 240 is the number of Bark bins in the domain for specific loudness. The Bark bins are 0.1:0.1:24.

• C is the number of channels.

You can use the acousticLoudness function to calculate specificLoudnessIn using this syntax:

[~,specificLoudnessIn] = acousticLoudness(audioIn,fs);

Data Types: single | double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: acousticSharpness(audioIn,fs,'Weighting','von Bismarck')

Weighting — Frequency weighting

'DIN 45692' (default) | 'Aures' | 'von Bismarck'

Frequency weighting, specified as 'DIN 45692', 'Aures', or 'von Bismarck'. By design, the 'Aures' frequency weighting method is more sensitive to amplitude levels and proper calibration. For details, see Algorithms.

Data Types: char | string

SoundField — Sound field

'free' (default) | 'diffuse'

Sound field of audio recording, specified as 'free' or 'diffuse'.

Data Types: char | string

PressureReference — Reference pressure (Pa)

20e-6 (default) | positive scalar

Reference pressure for dB calculation in pascals, specified as a positive scalar. The default value, 20 micropascals, is the common value for air.

Data Types: single | double

TimeVarying — Input is time-varying

false (default) | true

Input is time-varying, specified as true or false. If TimeVarying is set to true, acoustic sharpness is calculated in 2 ms intervals.

Data Types: logical

Output Arguments

sharpness — Acoustic sharpness (acum)

scalar | vector | matrix

Acoustic sharpness in acum, returned as a scalar, vector, or matrix. Sharpness is computed according to DIN 45692 and ISO 532-1.

Data Types: single | double

Algorithms

Acoustic sharpness is a measurement derived from acoustic loudness. The acoustic loudness algorithm is described in [1] and implemented in the acousticLoudness function. The acoustic sharpness calculation is described in [2]. The algorithm for acoustic sharpness is outlined as follows.

$$sharpness=k\left(\frac{{\displaystyle \underset{z=0}{\overset{24}{\int }}N\text{'}(z)g(z)z\text{d}z}}{{\displaystyle \underset{z=0}{\overset{24}{\int }}N\text{'}(z)\text{d}z}}\right)$$

Where N' is the specific loudness in sones/Bark. The function g(z) and the scaling factor k depend on the specified Weighting method:

'DIN 45692': k is set such that a 1 kHz reference tone results in a 1 acum sharpness measurement, and

$$\begin{array}{lll}g(z)=1\hfill & \text{for}\hfill & z\le 15.8\text{Bark}\hfill \\ g(z)=0.15e^{0.42(z-15.8)}+0.85\hfill & \text{for}\hfill & z>15.8\text{}\text{Bark}\hfill \end{array}$$

'von Bismark': k is set to 0.11, and

$$\begin{array}{lll}g(z)=1\hfill & \text{for}\hfill & z\le 15\text{Bark}\hfill \\ g(z)=0.2e^{0.308(z-15)}+0.8\hfill & \text{for}\hfill & z>15\text{}\text{Bark}\hfill \end{array}$$

'Aures': k is set to 0.11, and

$$\begin{array}{l}g(z)=0.078\left(\frac{e^{0.171z}}{z}\right)\left(\frac{N}{\ln (0.05N+1)}\right)\\ \text{where}\\ N={\displaystyle \underset{z=0}{\overset{24}{\int }}N\text{'}(z)\text{d}z}\end{array}$$

References

[1] ISO 532-1:2017(E). "Acoustics – Methods for calculating loudness – Part 1: Zwicker method." International Organization for Standardization.

[2] DIN 45692:2009. "Measurement Technique for the Simulation of the Auditory Sensation of Sharpness." German Institute for Standardization.
