plus

Join two shapes

Syntax

plus(shape1,shape2)

c = plus(shape1,shape2)

Description

plus(shape1,shape2) joins the shape1 with shape2 and plots the resultant shape. Alternatively, you can also use the '+' operator to join the shapes.

c = plus(shape1,shape2) joins the shape1 with shape2 and returns a polygon object for resultant 2-D shape or a custom 3-D object for resultant 3-D shape. Alternatively, you can also use the '+' operator to join the shapes.

Examples

Join Rectangle and Circle

Create and join a rectangular and a circular shape.

r = antenna.Rectangle;
c = antenna.Circle;

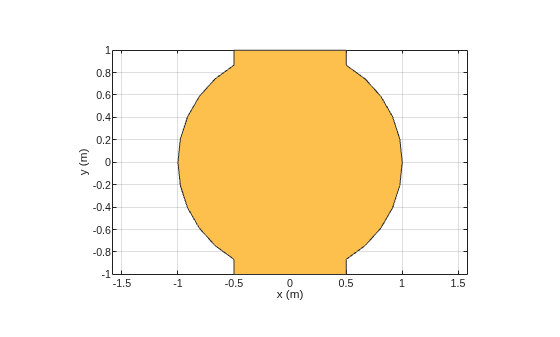

plus(r,c);

Alternatively, you can directly join shapes using the '+' operator.

r + c;

Join Box and Custom 3-D Shape

Create and join a box and a custom 3-D shape.

b = shape.Box;
c = shape.Custom3D;
s = plus(b,c)

s =
  Custom3D with properties:

            Name: 'custom3D'
        Vertices: [23x3 double]
           Metal: 'PEC'
      Dielectric: 'Air'
           Color: 'Individual'
    Transparency: 'Individual'
       EdgeColor: 'Individual'

Alternatively, you can directly join shapes using the '+' operator.

b + c;

Input Arguments

shape1,shape2 — Shapes created using shape objects

shape object

2-D and 3-D geometric shapes created using shape objects in Custom 2-D and 3-D Antenna.

Example: antenna.Rectangle,antenna.Circle

Example: shape.Box,shape.Custom3D

Output Arguments

c — Resultant shape

antenna.Polygon object | shape.Polygon object | shape.Custom3D object

Shape obtained after uniting two 2-D or 3-D shapes.

Example: antenna.Polygon

Example: shape.Polygon

Example: shape.Custom3D
