Change size of shape by fixed factor
scale(shape,factor)
c = scale(shape,factor)
scale(shape,factor) scales the shape by a constant scaling factor and plots the resultant shape.
shape
factor
example
c = scale(shape,factor) scales the shape by a constant scaling factor and returns a shape object.
c
collapse all

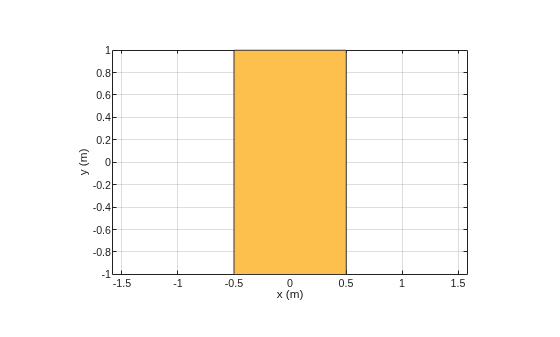

Create a rectangular shape.
r = antenna.Rectangle; show(r) axis equal
Shrink the rectangle by 50%.
scale(r,0.5);
2-D and 3-D geometric shapes created using shape objects in Custom 2-D and 3-D Antenna catalog.
Example: antenna.Rectangle
antenna.Rectangle
Example: shape.Polygon
shape.Polygon
Example: shape.Box
shape.Box
Constant factor to change shape size, specified as a scalar.
Example: 2
2
Data Types: double
double
Resultant shape obtained after the scaling operation on the input shape, returned as a shape object.
Introduced in R2017a
add | subtract | area | intersect | rotate | rotateX | rotateY | rotateZ | show | mesh | plot
add
subtract
area
intersect
rotate
rotateX
rotateY
rotateZ
show
mesh
plot
