Rotor Systems
R2026bModel rotor systems for rotorcraft and VTOL vehicles with integrated aerodynamics,
blade dynamics, and inflow models
Model rotor systems for rotorcraft and VTOL applications, including blade dynamics, aerodynamic forces and moments, and induced and unsteady inflow effects. Support configurable model fidelity, analytical dynamic inflow models, and single-rotor or multirotor configurations for flight-control design and real-time simulation.
Categories
- Inflow Models
Use the inflow model blocks to capture the distribution of normal induced velocity through the rotor disc
- Blade Components
Model the structural dynamics of rotor blades, providing blade states and derivatives for use with force computation blocks
- Rotor Aerodynamics
Use rotor aerodynamics blocks to model aerodynamic forces and moments generated by a single rotor or a multirotor configuration
Featured Examples

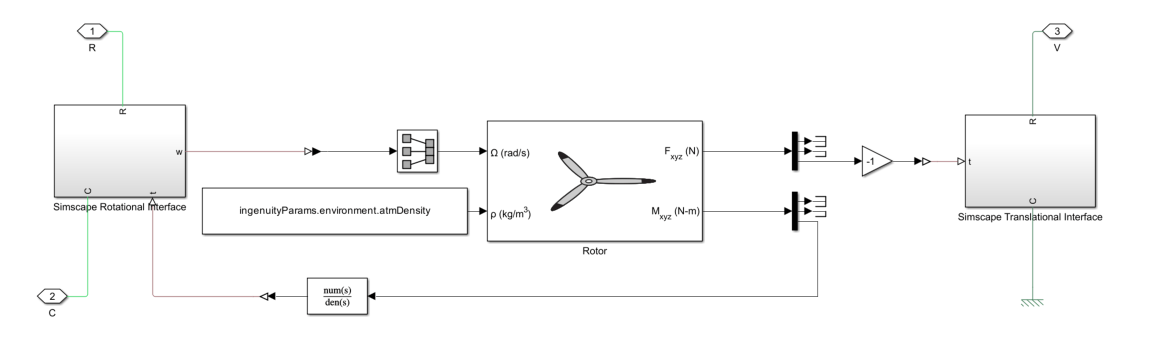

Mars Helicopter Simulink-Based System Level Design
Model a helicopter with coaxial rotors suitable to fly on Mars.

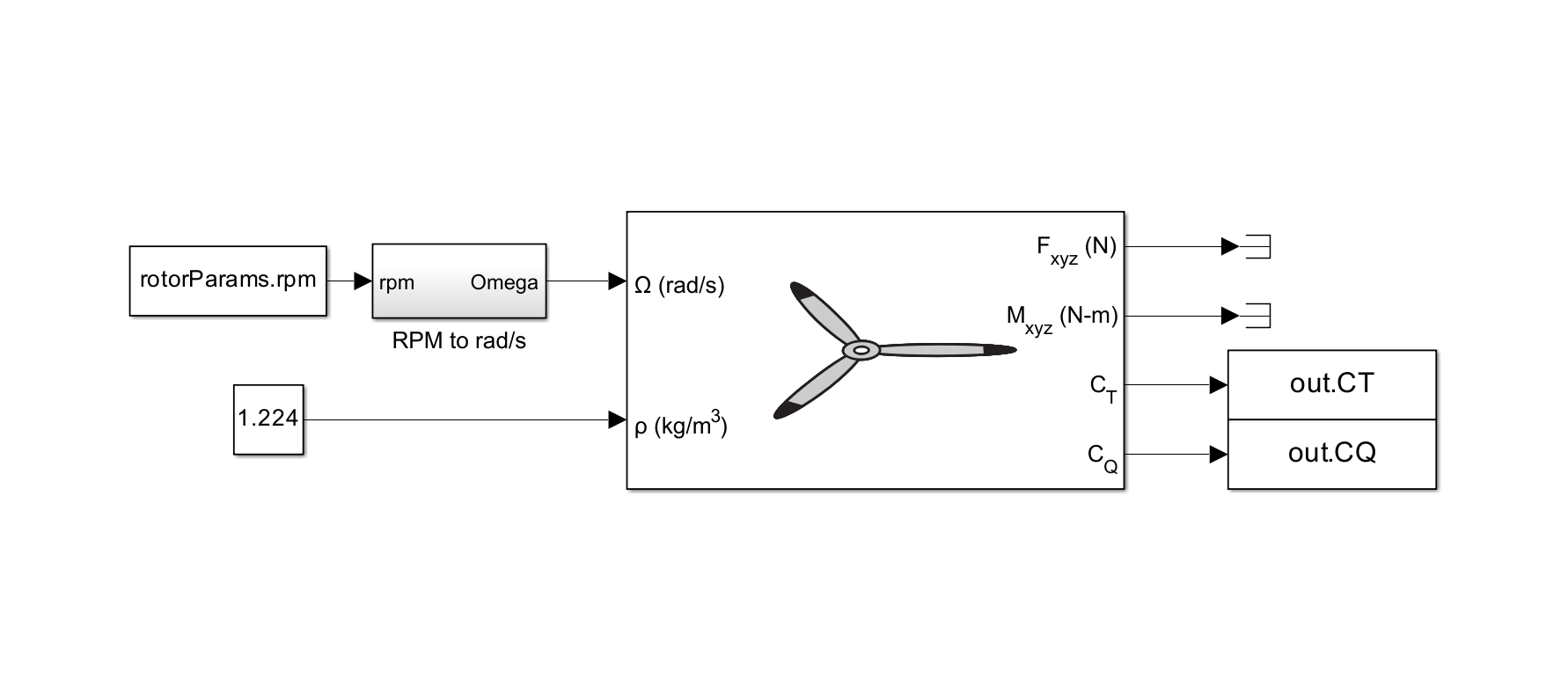

Compute Thrust and Torque Coefficients Using Rotor Block
Compute thrust and torque coefficient of an isolated rotor.
Helicopter Modeling and Simulation
Demonstrates how to model, simulate, control, and visualize a UH-1H helicopter system in Simulink® using the Rotor and 6DOF (Euler Angles) blocks from Aerospace Blockset™.
