Photovoltaic Module Interactive Demo Program

An interactive demo program to demonstrate the PV module's operation

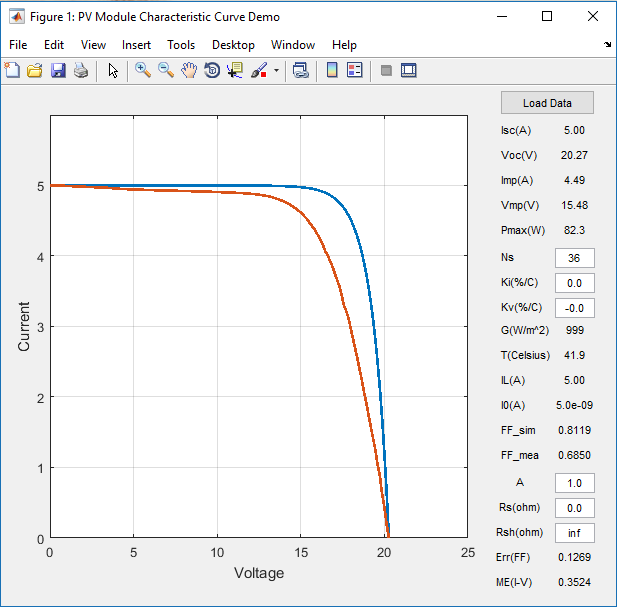

This is the interactive algorithm for demonstrating the operation of a photovoltaic (PV) module, based on the acquired measurements of the real PV module. The interactive development of this algorithm effectively displays two I-V characteristic curves: simulated I-V curve based on measured data (blue curve), and measured I-V curve (red curve). The algorithm takes the input parameters from the measured data (exported Excel file), constructing both I-V curves mentioned for comparison and evaluation. With the editable parameters like ideality factor, series resistance, and shunt resistance, changes in the I-V curves are observable and instantaneous.
