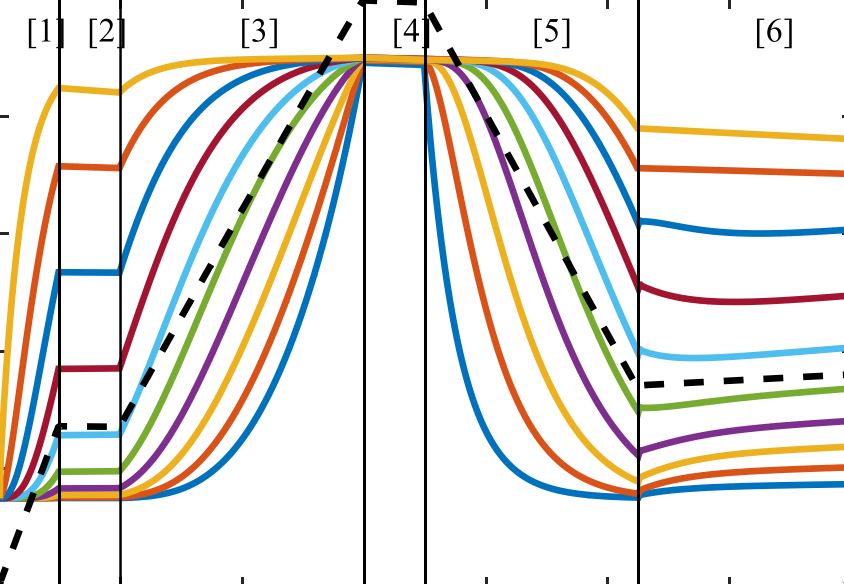

image thumbnail

mtype340

version 1.0.0.0 (14.6 KB) by Marc Jakobi
Model of a thermal storage tank based on the TRNSYS "MULTIPORT Store-Model" Type 340 by H. Drueck

5 Downloads

Updated 08 Oct 2020

GitHub view license on GitHub

Model of a thermal storage tank based on the TRNSYS "MULTIPORT Store-Model" Type 340 by H. Drueck
Source: H. Drueck - MULTIPORT Store-Model for TRNSYS
- Stratified fluid storage tank with four internal heat exchangers,
ten connections for direct charge and discharge and an internal electrical heater
Type 340
Version 1.99F, March 2006
URL: http://www.trnsys.de/download/en/ts_type_340_en.pdf (Accessed 19.12.2016)

For the purpose of simplification of the use, some of the input
arguments are set as constant properties in this model.

mtype340 Methods:

mtype340 - Initiates a model of a thermal storage tank based on the "MULTIPORT Store-Model" Type 340 (TRNSYS)
simulate - Pass simulation variables to MTYPE340 object and update.

Cite As

Marc Jakobi (2020). mtype340 (https://github.com/MrcJkb/mtype340), GitHub. Retrieved .

Comments and Ratings (3)

Fabien Rouault

Hello,

Nmax variable is not working. I solved the problem integrating Nmax in the function "mtype340" and in the inputparser

Regards,

Marc Jakobi

Hello Sahar.
I presume you mean the TRNSYS type 340?
For the original TRNSYS model, you probably need a license for TRNSYS. The Matlab version is mainly based on the documentation: http://www.trnsys.de/download/de/ts_type_340_de.pdf, but also partly on information kindly provided to me by the author of the original model, Dr.-Ing. Harald Drueck.

sahar tajik

how can i get the type 840 trnsys?
