Quadrotor modelling and Control with SimMechanics
This model is part of my Quadrotor project
You are now following this Submission
- You will see updates in your followed content feed
- You may receive emails, depending on your communication preferences

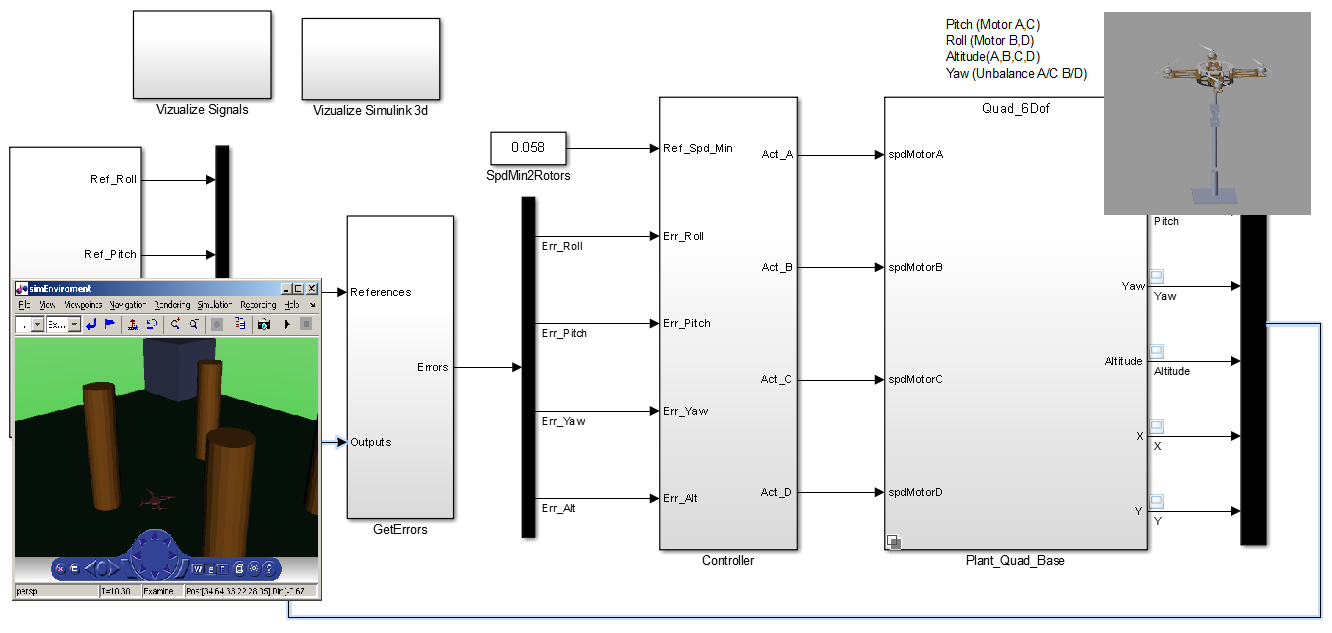

Quadrotor modelled with SimMechanics using the Solidworks link and PID control with Control toolbox.
I've did not received the 3d printed parts yet but as soon as I receive them I will also update the plant with the System Identification toolbox.
Currently I have problems to get the state-space representation from this model (I'm trying with linmod) if someone know better how to do this please give some feedback ;)
http://www.youtube.com/watch?v=uWVoc4OLKb8&list=PL5hTGmDP4WFnfg4NvXzYPqSp0aG0FzLos
