SonnetLab Farfield Tool Example

Version 1.0.0.0 (691 KB) by Bashir Souid
A demonstration of SonnetLab's ability to export and plot Sonnet generated farfield data.
0.0
(0)
435 Downloads
Updated 29 Nov 2011

View License

The attached ZIP file contains a demonstration of the flexibility of the SonnetLab Toolbox for MATLAB®. SonnetLab is a free MATLAB® toolbox that enables users to control and automate Sonnet's 3D planar electromagnetic simulator.

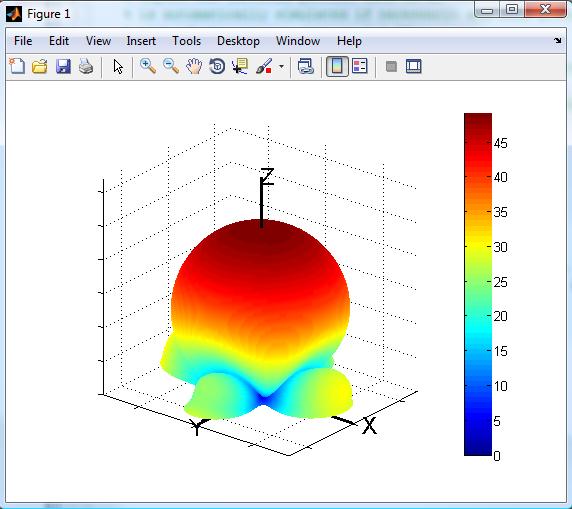

This simple example will open a Sonnet project file with SonnetLab, export the farfield pattern data to an output file and will produce a 3D plot of the pattern data at 2.4 GHz.

This demonstration requires the latest version of SonnetLab. SonnetLab can be downloaded from the Sonnet Software website: http://sonnetsoftware.com/support/sonnet-suites/sonnetlab.html

Please Note: SonnetLab was developed in conjunction with Syracuse University and is not a Sonnet Software supported product. Sonnet Software does not provide any warranty, either expressed or implied, for the SonnetLab toolbox for MATLAB.
