Anatomy Defect Analysis

A unified MATLAB project combining multiple anatomy‑analysis classes into a comprehensive anatomy modeling workflow.

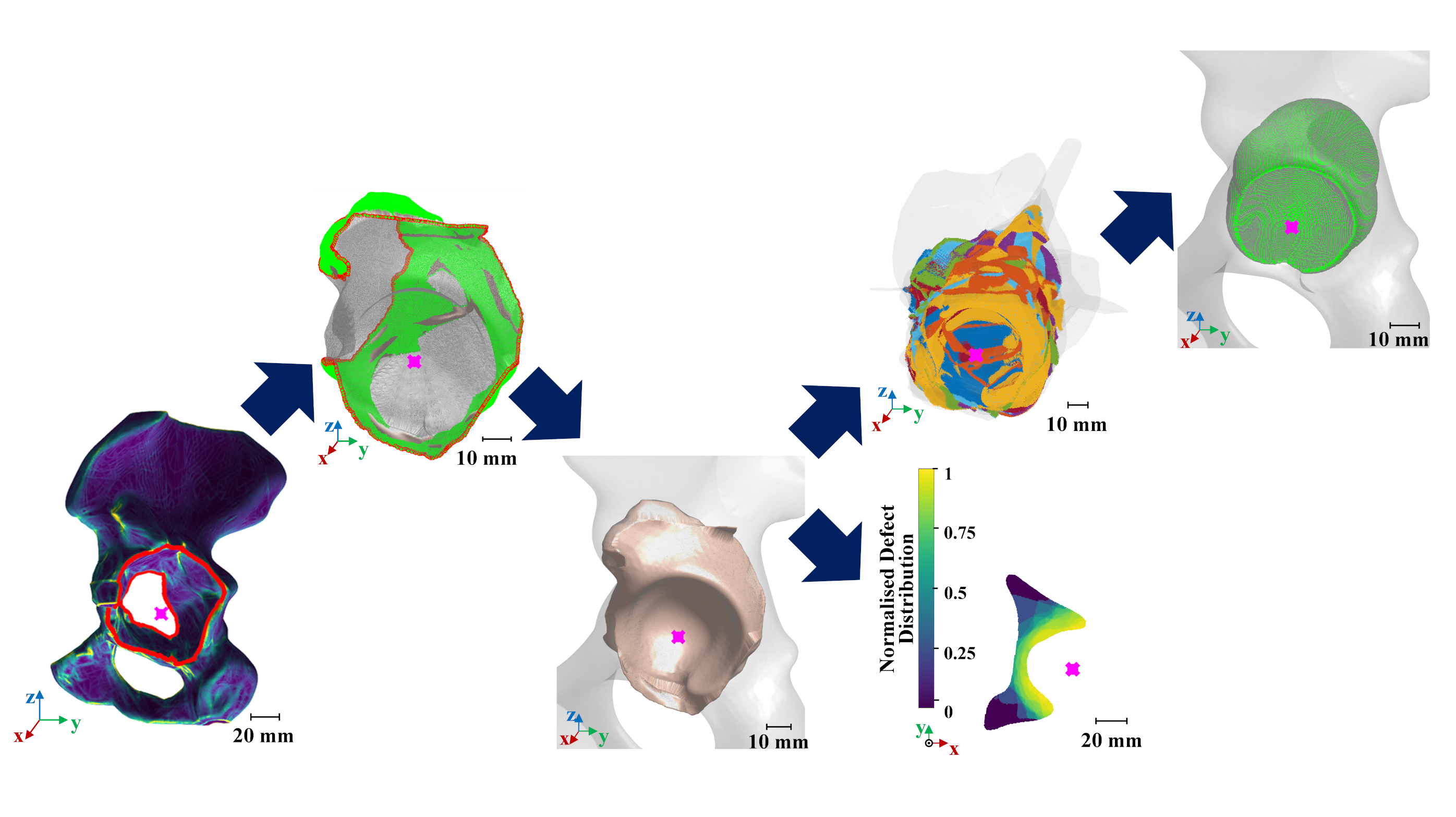

The Anatomy Defect Analysis toolbox integrates several specialized geometry-analysis classes - such as curvature, boundary, transformation, volume generating, intersection & distribution, and approximation - to provide an end-to-end solution for anatomical defect assessment. It contains a main script that structures the entire workflow: import, preprocess, create anatomical volume models, approximate, compare, and visualize anatomical volume models.

Key Features:

1. Modular Integration: Combines Curvature, Boundary, Transformation, IntersectionDistribution and Approximation classes under one unified interface

2. Main Script Management: A central main.m controls the execution of the full anatomical analysis pipeline

3. Comprehensive Workflow: From mesh import and preprocessing to multi-method analysis and visualization

How to Use:

1. Structure: Use main.m to run the complete defect-analysis workflow. Individual class methods can also be invoked independently in custom workflows.

2. Import Data: Load anatomical STL models into MATLAB. Ensure supporting functions (e.g., inpolyhedron) are on the path.

3. Execute Workflow: Run main.m to perform sequential steps:

• Curvature analysis
• Boundary and transformation for alignment
• Volume generating
• Intersection and distribution analysis
• Approximation of volume models (multi-sphere models)

4. Visualize Results: Output includes voxel-based comparisons, mesh overlays, and colored defect maps for intuitive interpretation.

Use Cases:

• Orthopaedic research on bone deformities
• Comparative anatomical modeling across patient data sets
• Workflow prototyping for geometry processing in biomedical engineering

Benefits:

• All-in-One Framework: Project unites multiple classes for anatomical defect analysis
• Reusability & Flexibility: Classes remain modular and can be reused individually or collectively
• Proven Methodologies: Use of already validated analytical tools to ensure reliability

Keywords:

anatomy, defect analysis, pelvis, orthopaedics, biomechanics, mesh processing, STL, triangulation, curvature, bounding box, scaling, transformation, mesh repair, hole filling, shrink wrap, alpha shape, intersection, sphere approximation, clumped spheres, volume analysis, rigid body alignment, Kabsch algorithm, distance mapping, boundary detection, point cloud, DBSCAN

Compatibility:

These class is compatible with MATLAB and can be easily integrated into existing workflows to generate multi-sphere models from anatomical models. It is optimised for MATLAB 2024a but should be compatible with the most recent versions of MATLAB.

Disclaimer:

This MATLAB class is provided on the MATLAB File Exchange for educational and research purposes. Users should ensure that the class meets their specific analysis requirements and may need to adapt it accordingly. The code is provided "as-is," and the author assumes no responsibility for its use or any consequences thereof.
