Control of DC Motor Using Transfer Function Modeling MATLAB.

Version 1.0.0 (59.2 KB) by Prem Manoj Mule
Simulate and control a DC motor using transfer function-based modeling in MATLAB to analyze speed and position control performance.
0.0
(0)
33 Downloads
Updated 31 Mar 2025

View License

Control of DC Motor Using Transfer Function Modeling MATLAB Simulation.

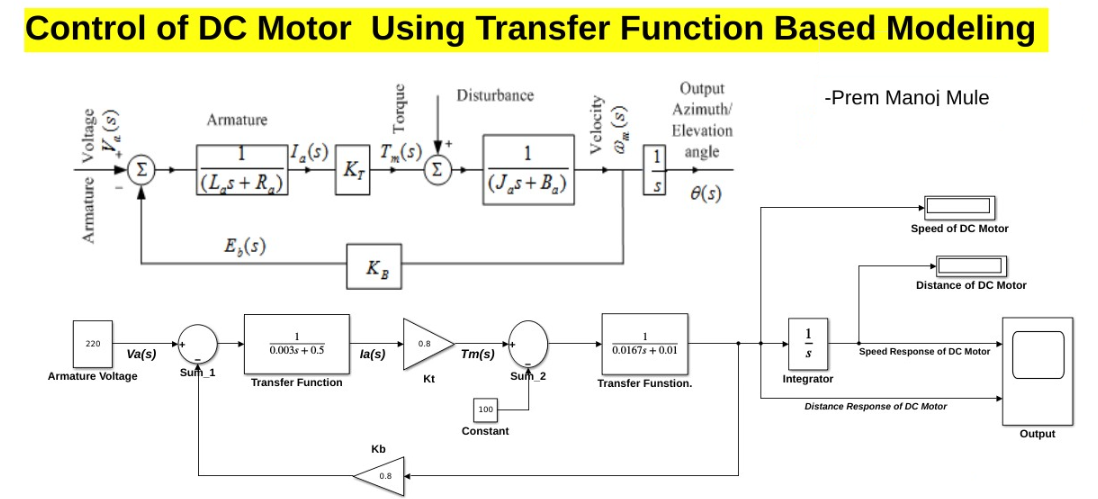

This MATLAB simulation demonstrates DC motor control using transfer function-based modeling. The model represents the motor's electrical and mechanical dynamics using differential equations, which are converted into a transfer function for analysis.
Key Features:
  • DC Motor Modeling: Representation using a transfer function.
  • Speed & Position Control: Response analysis under different control inputs.
  • Graphical Analysis: Step response, Bode plot, and root locus for stability evaluation.
  • Tunable Parameters: Adjust motor parameters like resistance, inductance, and inertia.
Application
  • Speed and position control of DC motors.
  • Control system design and analysis.
  • Electrical and mechanical system modeling.
  • MATLAB-based power electronics simulation.

Cite As

Prem Manoj Mule (2025). Control of DC Motor Using Transfer Function Modeling MATLAB. (https://www.mathworks.com/matlabcentral/fileexchange/180610-control-of-dc-motor-using-transfer-function-modeling-matlab), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2024b
Compatible with R2019a and later releases
