TLSDA_v2

Version 2.2 (1.68 MB) by Amr Sadek
The Deconvolution Analysis of Thermoluminescence Glow Curves.
0.0
(0)
105 Downloads
Updated 31 Mar 2025

View License

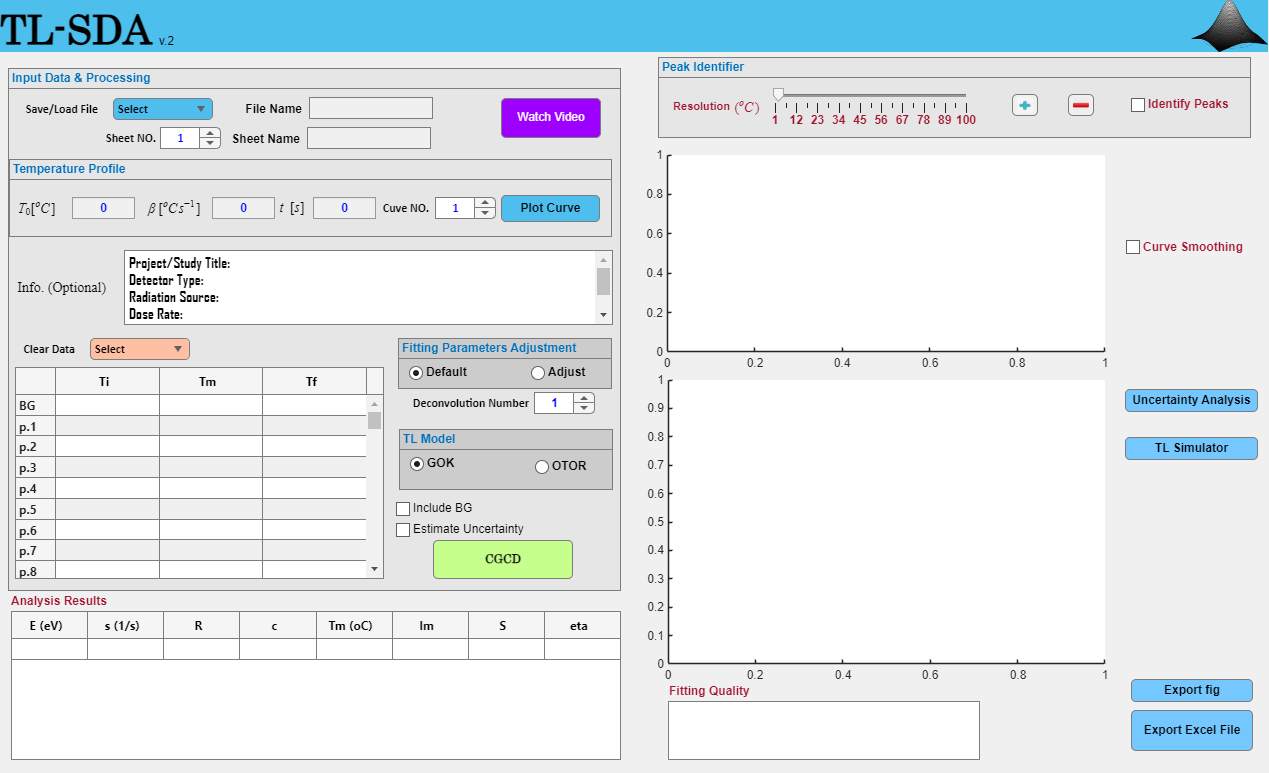

This application was designed to analyze the thermoluminescence glow curves using analytical expressions derived from the one trap one recombination (OTOR) model. Running the application does not require any knowledge of writing codes. However, an installed MATLAB is necessary to run this application, following these steps:
  1. Set the MATLAB path to the folder where the file was downloaded.
  2. Right-click on the file and install it.
  3. Run the application from the "APP" tab on MATLAB.

Cite As

Sadek, A. M., et al. “TL-SDA: A Designed Toolkit for the Deconvolution Analysis of Thermoluminescence Glow Curves.” Applied Radiation and Isotopes, vol. 206, Apr. 2024, p. 111202, https://doi.org/10.1016/j.apradiso.2024.111202.

View more styles
MATLAB Release Compatibility
Created with R2023a
Compatible with any release
Platform Compatibility
Windows macOS Linux
Tags Add Tags
Version Published Release Notes
2.2

Issues Resolved.
2.1

TL simulator using the Interactive Multiple-Trap System (IMTS) Model has been added.
2.0

- The uncertainty of the deconvolution process was added.
- The deconvolution analysis using the GOK equation was added.
- Extracting the glow curve, the individual peaks, and all the trapping parameters on the Excel sheet was added.
1.1

The uncertainty of the evaluated trapping parameters was added to the extracted Excel sheet file.
1.0
