DHT20 Temperature and Humidity

MATLAB + Arduino I2C DHT20 Temperature and Humidity sensor support
84 Downloads
Updated 5 Nov 2024

View License

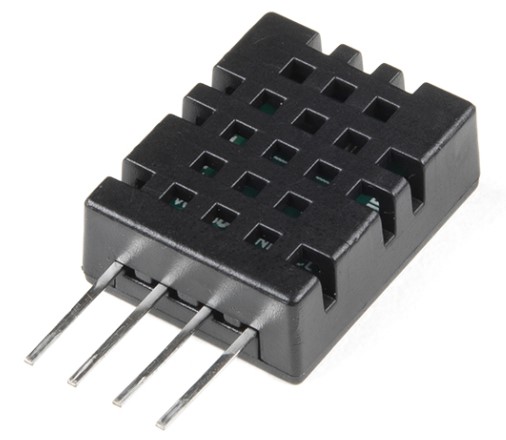

Support for the latest DHT sensor: the DHT20
The DHT20 sensor is an I2C sensor and must be connected to the I2C port of the Arduino
1. First, define your Arduino in your workspace:
a = arduino('<your COM Port>','Nano3','Libraries',{'I2C'});
2. Then, tell MATLAB that there is a DHT20 sensor attached to it.
dht20obj = dht20(a);
3. Once you've created your sensor object, you can ask it to take temperature and humidity readings, or both:
myTemperature = readTemperature(dht20obj);
myHumidity = readHumidity(dht20obj);
myDHTSensorData = readRawSensorData(dht20obj);
% can also call it using . annotation:
dht20obj.readHumidity;
dht20obj.readTemperature;
dht20obj.readSensorData;

Cite As

Eric Prandovsky (2024). DHT20 Temperature and Humidity (https://www.mathworks.com/matlabcentral/fileexchange/121792-dht20-temperature-and-humidity), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2022b
Compatible with R2021a and later releases
Platform Compatibility
Windows macOS Linux
Acknowledgements

Inspired by: MATLAB Support Package for Arduino Hardware

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!
Version Published Release Notes
0.7.1


Updated to work with r2024+ where device.read() is no longer visible to the sensor class and the SupportedInterfaces property has been added.

0.7
