C2000 F28379D ADC EPWM
Wan Muhamad Hakimi
on 13 Mar 2025

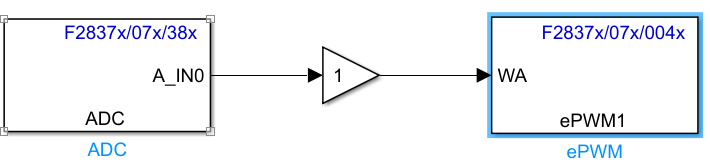

Hi! I am using F28379D DSP. I would like to generate 20khz and 50% duty cycle. I have use ADC with the input 3Vac from voltage sensor. The TBPRD set is 2500 and the CMP value is 1250 with prescaler 1. EPWM1A and EPWM 1B are utilised in this case. Unfortunately EPWM1A duty cycle is shifting/moving/not in phase, EPWM1B is constantly producing 20khz. I am using updown counter. CAU is set CAD is Clear same goes to EPWM1B. Why this happen? I would like to do a switching where PWM 20khz is on during positive half cycle, PWM 20khz is off during negative half cycle. Appreciate for the help!
