drawframe(1);
Write your drawframe function below
function drawframe(f)
persistent r rs theta phi res gx gy c mp mv
% initialize start values constants
if isempty(mp)
r=0.1; % radius of spheres
rs=32; % resolution of spheres
theta = pi*(-rs:2:rs)/rs;
phi = (pi/2)*(-rs:2:rs)'/rs;
res=200;
[gx,gy]=meshgrid(linspace(-1,1,res),linspace(-1,1,res));
c=complex(gx,gy);
mp=exp(j*(0:2:4)*pi/3)*0.7;
mv=mp*j*0.039;
end
% move masses
for i=1:length(mp)
mp(i)=mp(i)+mv(i);
end
% calculate forces and new velocities
for i=1:length(mp)
mf=0;
for p=mp
dp=p-mp(i);
d=abs(dp);
if d>eps
mf=mf+0.001*dp/d^3;
end
end
mv(i)=mv(i)+mf;
end
gz=0*c;
for p=mp
sx = r*cos(phi)*cos(theta)+real(p);
sy = r*cos(phi)*sin(theta)+imag(p);
sz = 12*r*sin(phi)*ones(size(theta));
surf(sx,sy,sz);
hold on;
gz=gz-1./abs(p-c).^2;
end
gz(gz<-20)=-20;
surf(gx,gy,gz);
shading interp;
axis off;
set (gca,'XLim',[-1,1],'YLim',[-1,1],'ZLim',[-19.9,1.5]);
colormap(parula);
lightangle(80,-40);
lightangle(-90,60);
hold off;
end

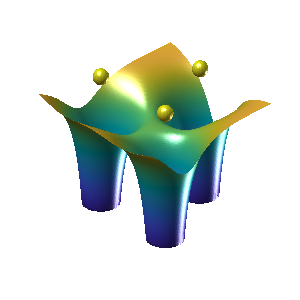

Animation
