Import Image from Specified Location

This example shows how to import an image from a file in the specified location to Simulink workspace by using the Image From File block.

Example Model

Open the simulink model.

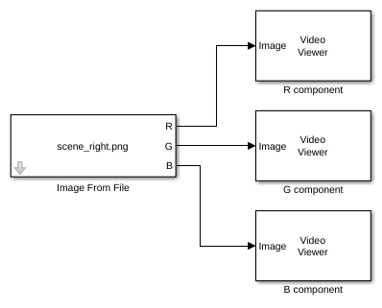

The model imports a color image to the Simulink workspace and displays the R, G, and B color components of the image by using the Video Viewer block. The Image Signal parameter of the Image From File block is set to Separate color signals inorder to import the RGB color components separately.

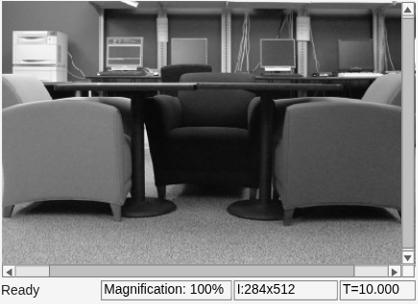

Simulate and Display Results
