Import System Composer Architecture Using `ModelBuilder` Class

Open Live Script

Import architecture specifications into System Composer™ using the systemcomposer.io.ModelBuilder utility class. These architecture specifications can be defined in an external source, such as an Excel® file.

In System Composer, an architecture is fully defined by four sets of information:

Components and their position in the architecture hierarchy
Ports and their mapping to components
Connections among components through ports
Interfaces in architecture models and their mapping to ports

This example uses the systemcomposer.io.ModelBuilder class to pass all of the above architecture information, including interface data definitions from an external source, and import a System Composer model.

In this example, architecture information of a small UAV system is defined in an Excel spreadsheet and is used to create a System Composer architecture model.

External Source Files

Architecture.xlsx — This Excel file contains hierarchical information of the architecture model. This example maps the external source data to System Composer model elements. This information maps in column names to System Composer model elements.

     # Element    : Name of the element. Either can be component or port name.
     # Parent     : Name of the parent element.
     # Class      : Can be either component or port(Input/Output direction of the port).
     # Domain     : Mapped as component property. Property "Manufacturer" defined in the
                    profile UAVComponent under Stereotype PartDescriptor maps to Domain values
                    in excel source file.
     # Kind       : Mapped as component property. Property "ModelName" defined in the
                    profile UAVComponent under Stereotype PartDescriptor maps to Kind values
                    in excel source file.
     # InterfaceName : If class is of port type. InterfaceName maps to name of the interface
                       linked to port.
     # ConnectedTo : In case of port type, it specifies the connection to
                     other port defined in format "ComponentName::PortName".

DataDefinitions.xlsx — This Excel file contains interface data definitions of the model. This example assumes this mapping between the data definitions in the Excel source file and interfaces hierarchy in System Composer.

     # Name        : Name of the interface or element.
     # Parent      : Name of the parent interface Name(Applicable only for elements) .
     # Datatype    : Datatype of element. Can be another interface in format
                     Bus: InterfaceName
     # Dimensions  : Dimensions of the element.
     # Units       : Unit property of the element.
     # Minimum     : Minimum value of the element.
     # Maximum     : Maximum value of the element.

Step 1. Instantiate the `ModelBuilder` Class

You can instantiate the ModelBuilder class with a profile name.

[stat,fa] = fileattrib(pwd);
if ~fa.UserWrite
    disp('This script must be run in a writable directory');
    return;
end

Specify the name of the model to build.

modelName = 'scExampleModelBuilder';

Specify the name of the profile.

profile = 'UAVComponent';

Specify the name of the source file to read architecture information.

architectureFileName = 'Architecture.xlsx';

Instantiate the ModelBuilder.

builder = systemcomposer.io.ModelBuilder(profile);

Step 2. Build Interface Data Definitions

Reading the information in the external source file DataDefinitions.xlsx to build the interface data model.

Create MATLAB® tables from the Excel source file.

opts = detectImportOptions('DataDefinitions.xlsx');
opts.DataRange = 'A2';

Force readtable to start reading from the second row.

definitionContents = readtable('DataDefinitions.xlsx',opts);

The systemcomposer.io.IdService class generates unique ID for a given key.

idService = systemcomposer.io.IdService();

for rowItr =1:numel(definitionContents(:,1))
    parentInterface = definitionContents.Parent{rowItr};
    if isempty(parentInterface)

In the case of interfaces, add the interface name to the model builder.

        interfaceName = definitionContents.Name{rowItr};

Get the unique interface ID.

getID(container,key) generates or returns (if key is already present) same value for input key within the container.

        interfaceID = idService.getID('interfaces',interfaceName);

Use builder.addInterface to add the interface to the data dictionary.

        builder.addInterface(interfaceName,interfaceID);
    else

In the case of an element, read the element properties and add the element to the parent interface.

        elementName  = definitionContents.Name{rowItr};
        interfaceID = idService.getID('interfaces',parentInterface);

The ElementID is unique within a interface. Append E at the start of an ID for uniformity. The generated ID for an input element is unique within parent interface name as a container.

        elemID = idService.getID(parentInterface,elementName,'E');

Set the data type, dimensions, units, minimum, and maximum properties of the element.

        datatype = definitionContents.DataType{rowItr};
        dimensions = string(definitionContents.Dimensions(rowItr));
        units = definitionContents.Units(rowItr);

Make sure that input to builder utility function is always a string.

        if ~ischar(units)
            units = '';
        end
        minimum = definitionContents.Minimum{rowItr};
        maximum = definitionContents.Maximum{rowItr};

Use builder.addElementInInterface to add an element with properties in the interface.

        builder.addElementInInterface(elementName,elemID,interfaceID,datatype,dimensions,...
            units,'real',maximum,minimum);
    end
end

Step 3. Build Architecture Specifications

Architecture specifications are created by MATLAB tables from the Excel source file.

excelContents = readtable(architectureFileName);

Iterate over each row in the table.

for rowItr =1:numel(excelContents(:,1))

Read each row of the Excel file and columns.

    class = excelContents.Class(rowItr);
    Parent = excelContents.Parent(rowItr);
    Name = excelContents.Element{rowItr};

Populate the contents of the table.

    if strcmp(class,'component')
        ID = idService.getID('comp',Name);

The Root ID is by default set as zero.

        if strcmp(Parent,'scExampleSmallUAV')
            parentID = "0";
        else
            parentID = idService.getID('comp',Parent);
        end

Use builder.addComponent to add a component.

        builder.addComponent(Name,ID,parentID);

Read the property values.

        kind = excelContents.Kind{rowItr};
        domain = excelContents.Domain{rowItr};

Use builder.setComponentProperty to set stereotype and property values.

        builder.setComponentProperty(ID,'StereotypeName','UAVComponent.PartDescriptor',...
            'ModelName',kind,'Manufacturer',domain);
    else

In this example, concatenation of the port name and parent component name is used as key to generate unique IDs for ports.

        portID = idService.getID('port',strcat(Name,Parent));

For ports on root architecture, the compID is assumed as 0.

        if strcmp(Parent,'scExampleSmallUAV')
            compID = "0";
        else
            compID = idService.getID('comp',Parent);
        end

Use builder.addPort to add a port.

        builder.addPort(Name,class,portID,compID );

The InterfaceName specifies the name of the interface linked to the port.

        interfaceName = excelContents.InterfaceName{rowItr};

Get the interface ID.

getID will return the same IDs already generated while adding interface in Step 2.

        interfaceID = idService.getID('interfaces',interfaceName);

Use builder.addInterfaceToPort to map interface to port.

        builder.addInterfaceToPort(interfaceID,portID);

Read the ConnectedTo information to build connections between components.

        connectedTo = excelContents.ConnectedTo{rowItr};

ConnectedTo is in the format:

(DestinationComponentName::DestinationPortName)

For this example, consider the current port as source of the connection.

        if ~isempty(connectedTo)
            connID = idService.getID('connection',connectedTo);
            splits = split(connectedTo,'::');

Get the port ID of the connected port.

In this example, port ID is generated by concatenating the port name and the parent component name. If the port ID is already generated, the getID function returns the same ID for the input key.

            connectedPortID = idService.getID('port',strcat(splits(2),splits(1)));

Populate the connection table.

            sourcePortID = portID;
            destPortID = connectedPortID;

Use builder.addConnection to add connections.

            builder.addConnection(connectedTo,connID,sourcePortID,destPortID);
        end
    end
end

Step 3. Import Model from Populated Tables with `builder.build` Function

[model,importReport] = builder.build(modelName);

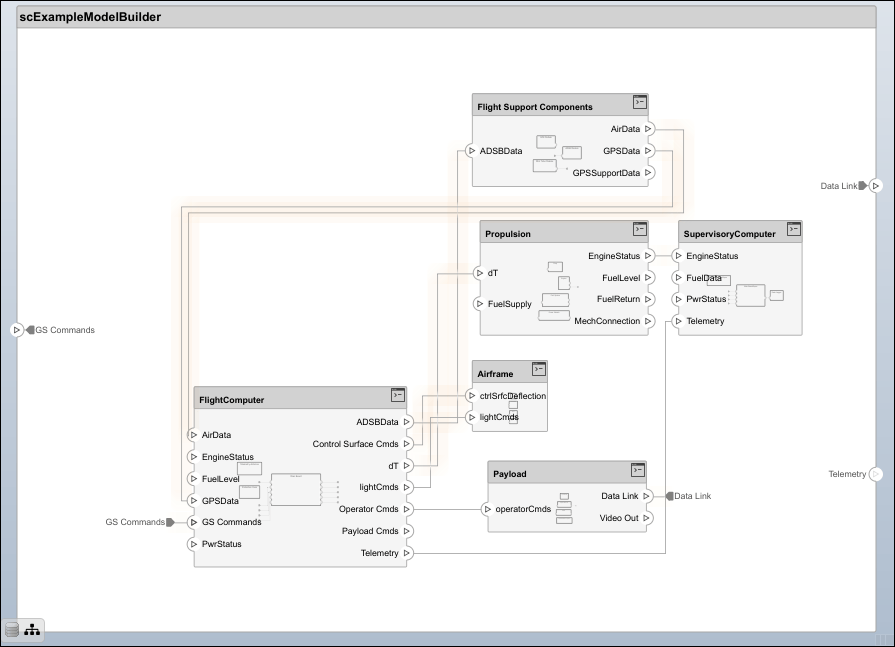

Small UAV architecture model created using the ModelBuilder APIs

Clean up artifacts.

cleanUp
