Assign Interfaces to Ports

A port interface transmits data between ports in a System Composer™ architecture model. Data elements within the interface describe characteristics of the data transmitted across the interface. Data elements can describe the composition of a data interface, messages transmitted, or data structures shared between components.

Note

Connected ports in System Composer are compatible if they share a compatible interface type and structure. Ports without assigned interfaces automatically inherit from other ports on the connection. To activate compile-time checks for interface compatibility, on the toolstrip, click Update Diagram. You can reconcile incompatible interfaces on either end of a connection with an Adapter block using the Interface Adapter.

For interfaces terminology, see Define Port Interfaces Between Components.

This topic shows how to:

  • Assign data interfaces to a single port using the Property Inspector or multiple ports using the Interface Editor.

  • Manage owned interfaces that are local to a port and not shared in a data dictionary.

  • Assign interfaces to multiple ports at the same time.

  • Connect components through ports and specify the source element or the destination element for the connection.

  • Use the interface compatibility edit-time check.

To manage interfaces shared between models in data dictionaries, see Manage Interfaces with Data Dictionaries. For information on physical interfaces, see Specify Physical Interfaces on Ports.

Mobile Robot Architecture Model with Interfaces

This example shows a mobile robot hardware architecture with interfaces defined.

Associate Ports with Interfaces in Property Inspector

To assign data interfaces or value types to one port at a time, use the Property Inspector. To open the Property Inspector, navigate to Modeling > Property Inspector. To show the SensorData port properties, select the port in the model. Expand Interface, and from the Name list, select sensordata to associate the sensordata interface with the SensorData port.

The Property Inspector is open. The sensor data interface is selected in the Interface list.

Note

New ports by default use <inherit> mode to support unknown interface specifications in early stages of architectural design. If an interface is specified on another port, the <inherit> specification propagates that interface across connections to your original port.

Assign Interfaces to Ports Using the Context Menu

After you select an interface from the Interface Editor, right-click a port. If the selected interface is compatible with the port, select Apply selected interface: <interface name> to assign the interface to the port. If a port already has an interface assigned, when you right click the port, you can select Clear interface: <interface name> to remove the interface.

After you select a port from the architecture canvas, right-click an interface on the Interface Editor. To assign the interface to the port, select Assign to selected port(s).

Define Owned Interfaces Local to Ports

You can select a value type or data interface from the model data dictionary in the Property Inspector, or you can create an owned interface.

An owned interface is an interface that is local to a specific port and not shared in a data dictionary or the model dictionary.

Create an owned interface to represent a value type or data interface that is local to a port.

Note

Owned interfaces and value types do not have their own names because they are local to a port and not shared. The name of the owned interface is derived from the port name.

Manage Owned Interfaces Using Property Inspector

You can edit the data for the owned interface in the Property Inspector. Select the Docking architecture port. In the Property Inspector, under Interface, from the Name list, select <owned>.

An owned interface in the Property Inspector.

By default, the owned interface Docking becomes an owned value type. Edit interface attributes directly in the Property Inspector, or select Open in Interface Editor to edit the owned value type interface.

The owned value type in the Interface Editor for the Docking port.

To convert the owned value type into an owned data interface, click add data element to add a data element.

Manage Owned Interfaces Using Interface Editor

You can also work exclusively from the Interface Editor. Select the component port named Feedback. In the Interface Editor, change from Dictionary View to Port Interface View.

The port interface view option in the Interface Editor.

Click add data element to add data elements to the owned data interface.

Owned data elements in port interface view in the Interface Editor.

To convert the owned data interface to an owned value type, change the Type for Feedback to a valid MATLAB® data type, such as double.

Make Owned Interfaces into Shared Interfaces

To convert an owned interface into a shared interface, right-click the port with the owned interface and select Convert to shared interface. Alternatively, use the makeOwnedInterfaceShared function.

Select Multiple Ports and Assign Data Interface

Multiple ports, whether they are connected or not, can use the same data interface definition. When you assign a data interface to a port, the interface is automatically propagated to connected ports, provided they do not already have assignments. To simplify batch assignments, select multiple ports, right-click the data interface, and select Assign to selected port(s).

To highlight the ports that use a data interface definition, in the Interface Editor, right-click the interface name and select Highlight port(s) using this interface. To highlight only the source interfaces explicitly assigned to the ports, not including inherited interfaces on ports, select the interface in the Interface Editor.

The interface named 'sensor data' is selected in the Interface Editor. The ports that are associated with it are highlighted in purple in the model.

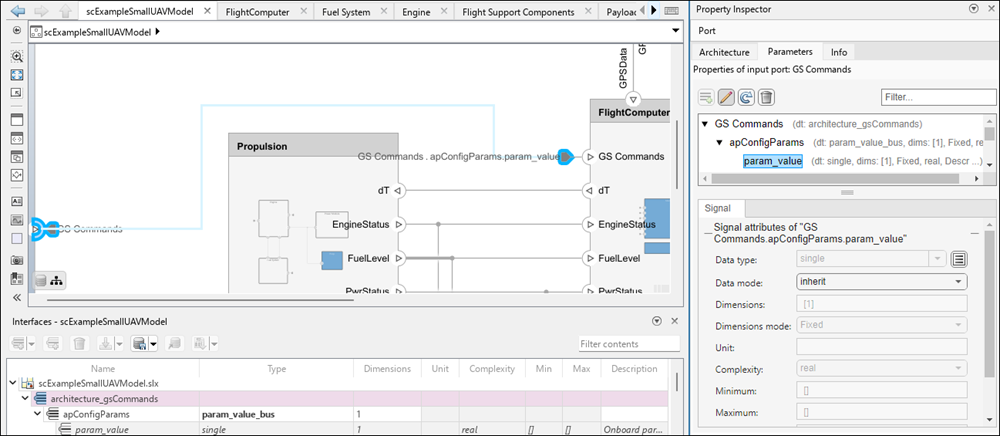

Specify Source Element or Destination Element for Ports

For connections between the root architecture and a component within the architecture model, you can add a source element or destination element to the ports.

  1. Create a component called Motor and connect it to the root architecture with ports named MotionData and SpeedData.

  2. Define the data interface Wheel with the data elements RotationSpeed and MaxSpeed.

  3. Assign the Wheel data interface to the ports on the connection.

  4. Select the MotionData port name on the component. A dot and a list of data elements appear. From the list, select the source element RotationSpeed.

  5. Assign the MaxSpeed destination element to the SpeedData port.

The interface element rotation speed is the source element for the motion data port on the motor component.

Enable Interface Compatibility Edit-Time Check

Edit-time checks report warnings as you build the model and require a Simulink® Check™ license. Types of warnings for interface compatibility include:

  • Shared interfaces defined in an interface data dictionary are incompatible across ports on a connection if different interfaces are assigned to different ports.

  • Owned interfaces defined locally on ports are incompatible across ports on a connection if the value type or data elements do not have the same structure.

To enable edit-time checks on your architecture model, navigate to Modeling > Model Advisor > Edit-Time Checks. Select the Edit-Time Checks check box.

Connectors highlighted in yellow signify an interface mismatch between different ports on the same connector. If you click the warning symbol, you see the edit-time check message and a suggestion for what to do.

Edit-time check for mismatched interfaces.

For incompatible interfaces on different ports on the same connection, such as different data interfaces, you can fix the problem by adding an Adapter block to define interface mappings.
