This example shows how to use a copula and rank correlation to generate correlated data from probability distributions that do not have an inverse cdf function available, such as the Pearson flexible distribution family.
Generate 1000 random numbers from two different Pearson distributions, using the
pearsrnd function. The first distribution has the parameter values mu equal to 0, sigma equal to 1, skew equal to 1, and kurtosis equal to 4. The second distribution has the parameter values mu equal to 0, sigma equal to 1, skew equal to 0.75, and kurtosis equal to 3.
rng default % For reproducibility p1 = pearsrnd(0,1,-1,4,1000,1); p2 = pearsrnd(0,1,0.75,3,1000,1);
At this stage,
p2 are independent samples from their respective Pearson distributions, and are uncorrelated.

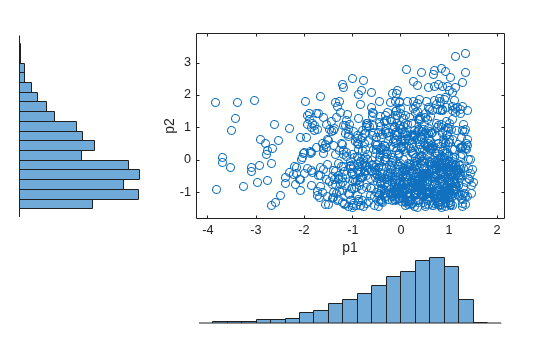

scatterhist plot to visualize the Pearson random numbers.
The histograms show the marginal distributions for
p2. The scatterplot shows the joint distribution for
p2. The lack of pattern to the scatterplot shows that
p2 are independent.

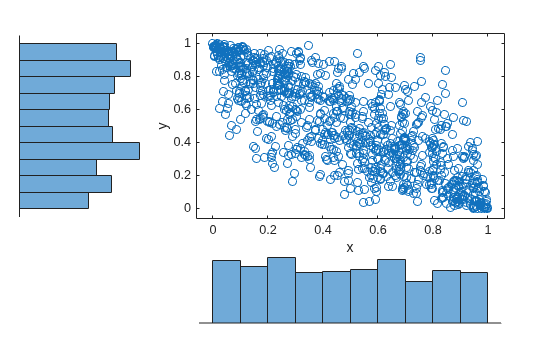

copularnd to generate 1000 correlated random numbers with a correlation coefficient equal to –0.8, using a Gaussian copula. Create a
scatterhist plot to visualize the random numbers generated from the copula.
u = copularnd('Gaussian',-0.8,1000); figure scatterhist(u(:,1),u(:,2))
The histograms show that the data in each column of the copula have a marginal uniform distribution. The scatterplot shows that the data in the two columns are negatively correlated.
Using Spearman's rank correlation, transform the two independent Pearson samples into correlated data.
sort function to sort the copula random numbers from smallest to largest, and to return a vector of indices describing the rearranged order of the numbers.
[s1,i1] = sort(u(:,1)); [s2,i2] = sort(u(:,2));
s2 contain the numbers from the first and second columns of the copula,
u, sorted in order from smallest to largest.
i2 are index vectors that describe the rearranged order of the elements into
s2. For example, if the first value in the sorted vector
s1 is the third value in the original unsorted vector, then the first value in the index vector
i1 is 3.
Create two vectors of zeros,
x2, that are the same size as the sorted copula vectors,
s2. Sort the values in
p2 from smallest to largest. Place the values into
x2, in the same order as the indices
i2 generated by sorting the copula random numbers.
x1 = zeros(size(s1)); x2 = zeros(size(s2)); x1(i1) = sort(p1); x2(i2) = sort(p2);

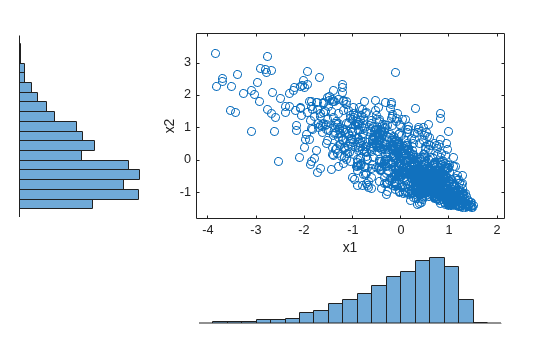

scatterhist plot to visualize the correlated Pearson data.
The histograms show the marginal Pearson distributions for each column of data. The scatterplot shows the joint distribution of
p2, and indicates that the data are now negatively correlated.
Confirm that the Spearman rank correlation coefficient is the same for the copula random numbers and the correlated Pearson random numbers.
copula_corr = corr(u,'Type','spearman')
copula_corr = 2×2 1.0000 -0.7858 -0.7858 1.0000
pearson_corr = corr([x1,x2],'Type','spearman')
pearson_corr = 2×2 1.0000 -0.7858 -0.7858 1.0000
The Spearman rank correlation is the same for the copula and the Pearson random numbers.
