Fit Mixed-Effects Spline Regression

This example shows how to fit a mixed-effects linear spline model.

Load the sample data.

load('mespline.mat');

This is simulated data.

Plot y versus sorted x.

[x_sorted,I] = sort(x,'ascend');
plot(x_sorted,y(I),'o')

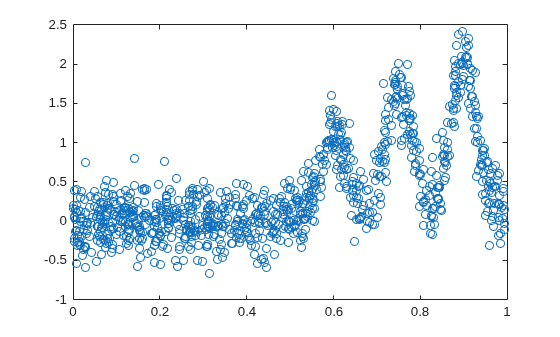

Figure contains an axes. The axes contains an object of type line.

Fit the following mixed-effects linear spline regression model

yi=β1+β2xi+j=1Kbj(xi-kj)++ϵi

where kj is the j th knot, and K is the total number of knots. Assume that bjN(0,σb2) and ϵN(0,σ2).

Define the knots.

k = linspace(0.05,0.95,100);

Define the design matrices.

X = [ones(1000,1),x];
Z = zeros(length(x),length(k));
for j = 1:length(k)
      Z(:,j) = max(X(:,2) - k(j),0);
end

Fit the model with an isotropic covariance structure for the random effects.

lme = fitlmematrix(X,y,Z,[],'CovariancePattern','Isotropic');

Fit a fixed-effects only model.

X = [X Z];
lme_fixed = fitlmematrix(X,y,[],[]);

Compare lme_fixed and lme via a simulated likelihood ratio test.

compare(lme,lme_fixed,'NSim',500,'CheckNesting',true)
ans =
    Simulated Likelihood Ratio Test: Nsim = 500, Alpha = 0.05

    Model        DF     AIC       BIC       LogLik     LRStat    pValue
    lme            4    170.62    190.25    -81.309
    lme_fixed    103    113.38    618.88     46.309    255.24    0.68064


    Lower      Upper

    0.63784    0.72129

The p-value indicates that the fixed-effects only model is not a better fit than the mixed-effects spline regression model.

Plot the fitted values from both models on top of the original response data.

R = response(lme);
figure();
plot(x_sorted,R(I),'o', 'MarkerFaceColor',[0.8,0.8,0.8],...
    'MarkerEdgeColor',[0.8,0.8,0.8],'MarkerSize',4);
hold on
F = fitted(lme);
F_fixed = fitted(lme_fixed);
plot(x_sorted,F(I),'b');
plot(x_sorted,F_fixed(I),'r');
legend('data','mixed effects','fixed effects','Location','NorthWest')
xlabel('sorted x values');
ylabel('y');
hold off

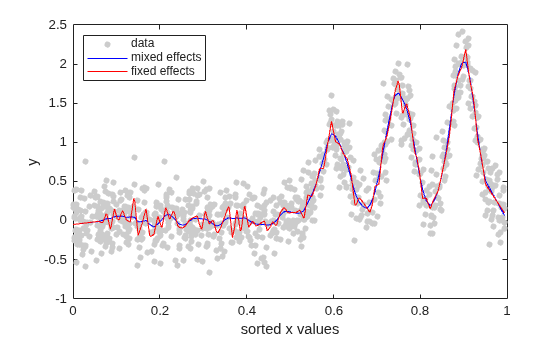

Figure contains an axes. The axes contains 3 objects of type line. These objects represent data, mixed effects, fixed effects.

You can also see from the figure that the mixed-effects model provides a better fit to data than the fixed-effects only model.
