Active state data can simplify the design of some Stateflow® charts because you do not have to maintain data that is highly correlated to the chart hierarchy. When you enable active state data, Stateflow reports state activity through an output port to Simulink® or as local data in your chart. This example shows how to simplify the design of a Stateflow chart by adding active state output data. For more information, see Monitor State Activity Through Active State Data.

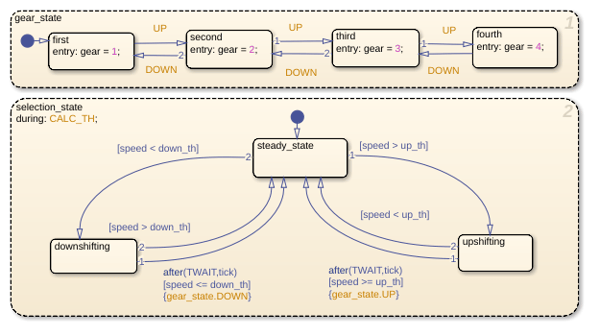

In the legacy model
old_sf_car, the Stateflow chart shift_logic tracks child state activity in
gear_state by updating the value of the output data
By incorporating active state data, the model
sf_car avoids manual data updates reflecting chart activity. Instead, the chart outputs child state activity automatically through the active state output gear.
To simplify the design of the
old_sf_car model, eliminate data that is highly correlated to the chart hierarchy and enable automatic monitoring of child state activity in
Step 1: Eliminate Manual Tracking of State Activity
In the model
old_sf_car, open the chart
Open the Symbols pane. In the Modeling tab, select Symbols Pane.
In each substate of
gear_state, delete the entry action assigning a value to the output data variable
In the Symbols pane, right-click the output variable
gear and select
Step 2: Enable Active State Output
Open the Property Inspector. In the Modeling tab, select Property Inspector.
In the Stateflow Editor, select the state

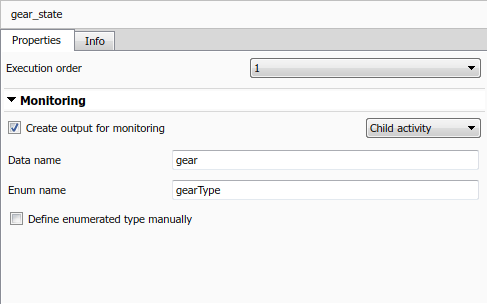

In the Property Inspector, select the Create output for monitoring check box and choose
In the Data name field, enter the name
gear of the active state data.
In the Enum name field, enter the name
gearType of the enumeration data type for the active state data.

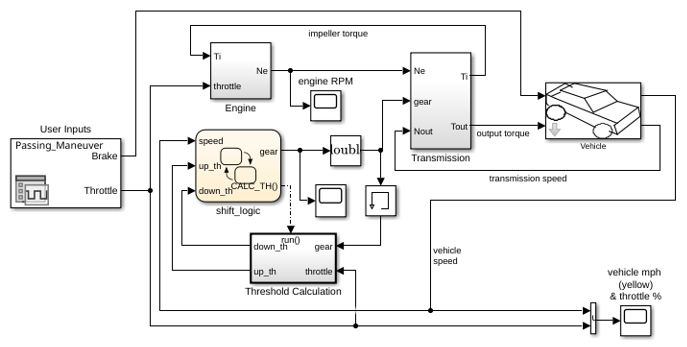

Step 3: Connect Signal to Simulink Blocks
In the Simulink model, add a Cast To Double block. This block converts the enumerated output from the Stateflow chart to a signal of type
double. For more information, see Data Type Conversion (Simulink).
Connect the output signal
gear from the
shift_logic chart to the Cast To Double block.
Connect the output signal from the Cast To Double block to the Transmission subsystem.
Add a Memory (Simulink) block. This block prevents an algebraic loop between the Stateflow chart and the Threshold Calculation subsystem.
Make a second connection from the output signal from the Cast To Double block to the Memory block.
Connect the output of the Memory block to the Threshold Calculation subsystem.
The output signal

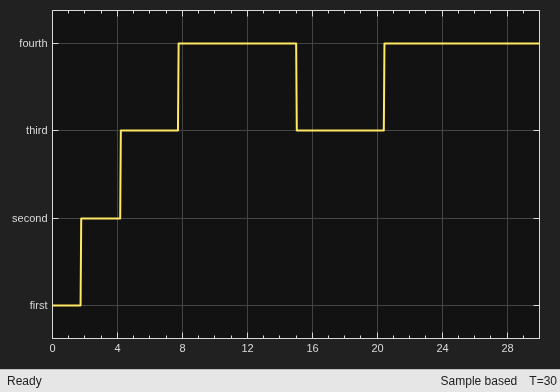

gear is an enumerated type managed by Stateflow. You can view the active state output signal gear during simulation by connecting the chart to a Scope block. The names of the enumerated values match the names of the substates in
gear_state. The additional enumerated value of
None indicates time steps when no child is active.
