# Estimate Vehicle Drag Coefficients by Coast-Down Testing

Since R2023b

This example shows how to estimate the drag coefficients of a vehicle using parameter estimation with data obtained from coast-down testing. Coast-down testing of a vehicle is performed by running the vehicle at a constant speed before letting it coast down at idle throttle and measuring the vehicle velocity over time. The velocity decays due to several sources of drag, including fixed resistances, drivetrain and rolling resistances, and aerodynamic drag resistance. Drivetrain and rolling resistances scale with the velocity, while aerodynamic resistance scales with the square of velocity. Thus, fitting the drag force to a polynomial of the form ${\mathit{F}}_{\mathrm{drag}}=\mathit{a}+\mathit{b}\stackrel{˙}{\mathit{x}}+\mathit{c}{\stackrel{˙}{\mathit{x}}}^{2}$ lets you estimate the coefficients for each type of drag. This coast-down testing procedure is specified in SAE standard J1263.

### Coast-Down Model

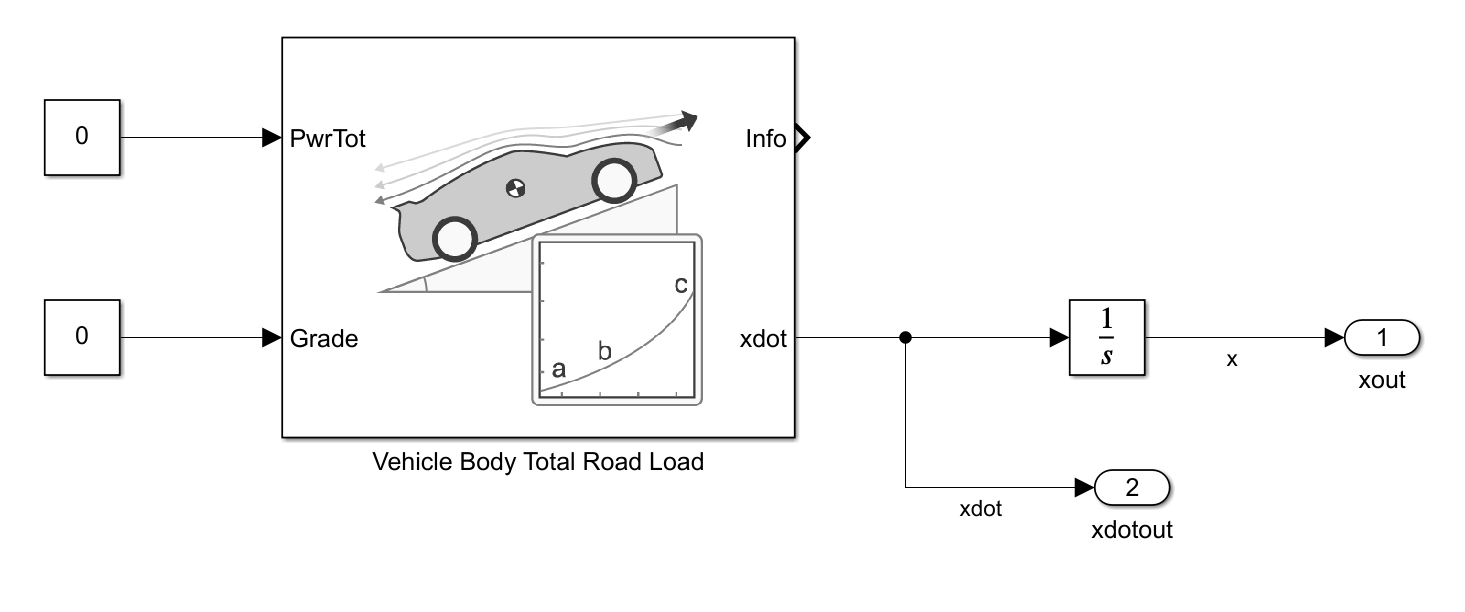

The Simulink® model `coastdownmodel.slx` uses the block Vehicle Body Total Road Load (Vehicle Dynamics Blockset). Open the model.

```mdl = "coastdownmodel"; open_system(mdl)```

The Vehicle Body Total Road Load block implements the dynamic coast-down model ${\mathit{F}}_{\mathrm{drag}}=\mathit{a}+\mathit{b}\stackrel{˙}{\mathit{x}}+\mathit{c}{\stackrel{˙}{\mathit{x}}}^{2}$, where:

• `Cd = c` is the aerodynamic drag coefficient.

• `Cr = b` is the coefficient for drivetrain and rolling resistance.

• `Cr0 = a` is the coefficient for the fixed resistances.

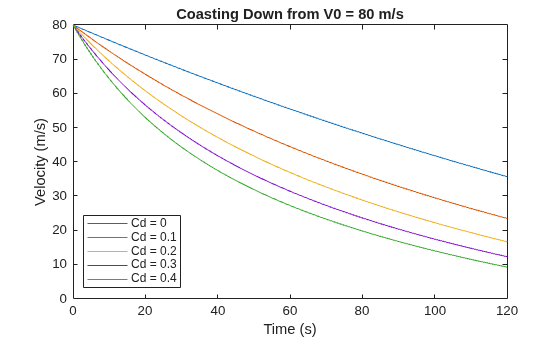

To illustrate the effects of the drag coefficients, try simulating the model with varying `Cd`, fixing the values of the other two coefficients and assuming the vehicle mass is 1800 kg. Plot the velocity versus time for `Cd` values ranging from 0 to 0.4 in 0.1 increments and an initial velocity of 80 m/s. The plot shows that higher aerodynamic drag coefficients lead to much more deceleration and thus a faster coast-down curve.

```Cd_vec = 0.0:0.1:0.4; Cr = 6.5; % drivetrain/rolling resistance Cr0 = 300; % fixed resistances M = 1800; % vehicle mass V0 = 80; % initial velocity for Cd = Cd_vec out = sim("coastdownmodel.slx"); t = out.tout; xdot = out.yout(:,2); plot(t,xdot,"DisplayName","Cd = " + string(Cd)); hold on end xlabel("Time (s)") ylabel("Velocity (m/s)") xlim([0 120]) legend("Location","southwest") title("Coasting Down from V0 = 80 m/s") hold off```

### Measured Data

If you have measured coast-down data, you can use the Parameter Estimator app with this model to estimate the coefficients of the vehicle used for the measurement. For this example, load coast-down data obtained using initial velocities `V0` = 40, 60, and 80 m/s. The data is stored in the structure `measData`.

```load coastDownExampleData.mat measData measData```
```measData = struct with fields: t_40: [59x1 double] xdot_40: [59x1 double] t_60: [60x1 double] xdot_60: [60x1 double] t_80: [60x1 double] xdot_80: [60x1 double] ```
```plot(measData.t_40,measData.xdot_40,... measData.t_60,measData.xdot_60,... measData.t_80,measData.xdot_80) legend("V0 = 40","V0 = 60","V0 = 80") xlabel("Time (s)") ylabel("Velocity (m/s)") title("Coast-Down Measurements")```

### Parameter Estimation with Data

To use the measured data for parameter estimation, open the Parameter Estimator app for `coastdownmodel` by clicking Parameter Estimator in the Apps tab of the model. In the app, create a new experiment for the `V0 = 40` data. Under Output Signals, for the `xdot` output signal of the Vehicle Body Total Road Load block, set the measured data to `[measData.t_40,measData.xdot_40]`.

Then, under Initial States, select the model state `coastdownmodel/Vehicle Body Total Road Load/Vehicle Body Total Road Load Power Input/Integrator2`. This state feeds the `xdot` output and corresponds to the velocity of the vehicle. Therefore, set its initial value to 40, and clear the Estimate checkbox for this state.

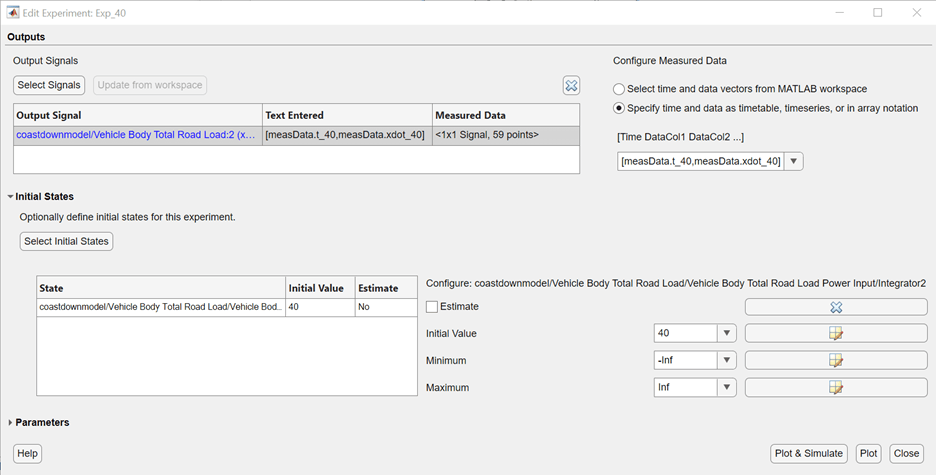

The following screenshot shows the Edit Experiment dialog box for this `V0 = 40` data.

Click Plot to create an experiment plot in the app, and click Close to save the experiment.

Next, return to the Parameter Estimation tab and create similar experiments and experiment plots for the `V0 = 60` and `V0 = 80` coast-down data. For more details about how to configure experiment data and initial states for parameter estimation, see Specify Estimation Data and Specify Known Initial States.

### Specify Parameters to Estimate

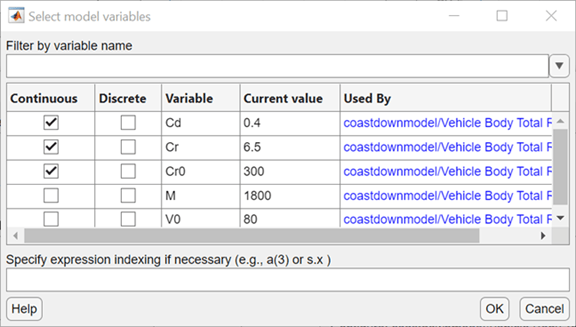

Next, select and configure the parameters to estimate. In the app, click Select Parameters. In the Edit: Estimated Parameters dialog box, click Select Parameters. Then specify the model parameters `Cd`, `Cr`, and `Cr0` as continuous-valued parameters for estimation.

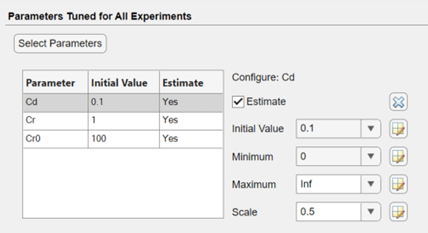

Set the minimum allowed value of all three parameters to zero to ensure that the estimated values are positive. Set the initial values as follows:

• `Cd` — 0.1

• `Cr` — 1

• `Cr0` — 100

The app uses these values as initial guesses for the estimation.

For more details on configuring parameters for estimation, see Specify Parameters for Estimation.

### Estimate Parameters

To begin the estimation, click Estimate. The app estimates the parameter values by repeatedly simulating the model and evaluating the default cost function. The estimation process looks for parameter values that minimize the cost function. For this problem, the estimation takes only a few iterations to converge.

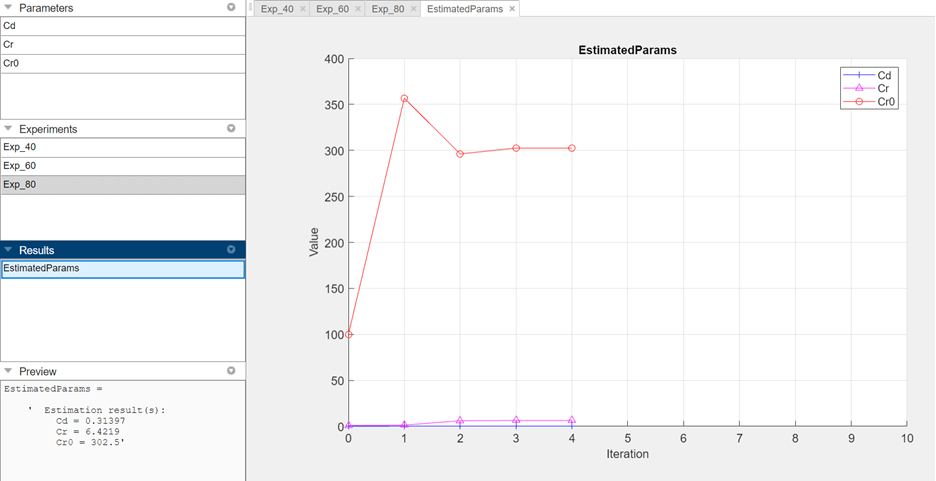

To view the estimated parameter values, under Results, select `EstimatedParams`. The resulting estimated values of the three drag coefficients are shown under Preview.

• `Cd` — 0.31397

• `Cr` — 6.4219

• `Cr0` — 302.5

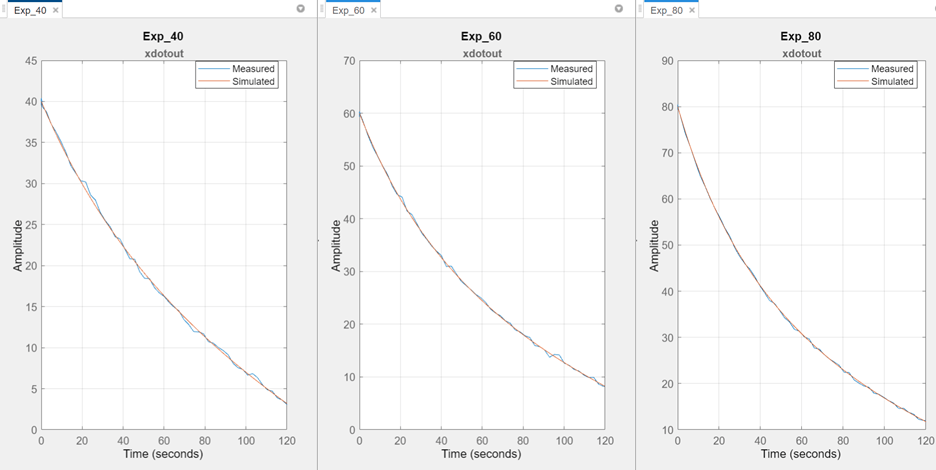

The app updates the experiment plots to compare the measured data against the results of simulating the model at each initial velocity with these estimated parameter values.

The plots show that simulating the model at `V0 = 40`, `V0 = 60`, and `V0 = 80` using these parameter values results in coast-down curves that closely match the measured velocity curves. You can further validate the estimated parameter values using coast-down data measured independently from the data used for estimation (see Validate Estimation Results).
